FIBER FOX Mini6S Bedienungsanleitung
Mini 6S
User Manual
www.fiberfox.co.kr
www.fiberfox.co.kr
80, Dongseo-daero 179beon-gil,
yuseong-gu, Daejeon 305-320, Korea
website youtube
- 2 -
Contents
Introduction
Technical specifications
Splicer description & Part name
How to the replace the fiber folder
Cleaning
Splice Program
- Stabilize Electrodes
- Arc Calibration
- Splice Menu
- Maintenance
- Setting
1) Splice Mode
2) Splice Option
3) Heater Mode
4) Data Storage
5) Menu Lock
6) Reset
1) System Setting
2) Language
3) Power Save Option
4) Set Calendar
4
4
6
7
7
9
10
11
13
14
15
8
8
20
21
22
23
·
·
·
·
·
·
- 3 -
Appendix I
Appendix II
Appendix III
5) Password
6) System Information
Cautions
Important
The Battery must be taken out of the splicer, when stored in the Hand carrying case.
FiberFox highly recommend’s that all users read this manual before operating the Mini 6S.
This manual is valid for the following software version.
26
28
31
23
24
·
·
·
- 4 -
Introduction
Technical specifications
Thank you for choosing Mini 6S FTTx Master from FiberFox. The Mini 6S with innovative design and
excellent manufacturing technology gives customers assurance of trust.
Exceptional splicing experience and new technology greatly reduces splicing and heating times.
Advanced estimate method and core alignment technique ensure the accuracy of the splice loss
calculation. Its’ small size, compact design and reliable protective casing make it suitable for any
operating environment. Dynamic operation interface and automatic splice mode give the custom-
ers great user-friendliness. For more information, please contact your local distributor or visit our
website at www.fiberfox.co.kr
This manual explains the features, specifications, operation, maintenance and warnings about Mini
6S. The primary goal of this manual is to make the user very familiar with the splicer operation.
Camera High precision dual camera
Display 4.3” wide color reinforced LCD
Microscope
x150 : X&Y axis dual view
x300 : X axis single view
x300 : Y axis single view
Power Supply
Splicer
AC 100~240V
50~60HZ
DC 9~14V
Li-ion Battery DC 11.1V
Data Capacity
Splice Mode
Factory pre-set 36 ea
User Mode 36 ea
Data Storage (Splicing result) 2,000
Max 10,000
Splice Speed
SM Quick mode 7 Sec.
SM AUTO mode 9 Sec.
- 5 -
Heater
Applicable Sleeve
Standard : 20, 25, 30, 35, 40, 60mm
Custom : 4*32mm sleeve (For SOC)
Heating Time 8~900sec (Typical: 15sec)
Heat mode
Factory pre-set 10 ea
User Mode 10 ea
Heating block
Standard 1 ea(Pre-installed)
SOC Customized 1 ea(In Package)
Applicable
Fiber
Fiber count : Single core
Fiber Type : SM(ITU-TG.652)/ DS(ITU-TG.653)/ NZDS(ITU-TG.655)/
ITU-TG.657 A,B Type / MM(ITU-TG.651)
Applicable
Cable
Fiber count : Single core fiber in cable
Applicable diameter : 0.25mm / 0.9mm / 2.0mm / 2.4mm / 3.0mm
Applicable buffer Diameter
: Cladding diameter : 80~150µm, Coating diameter : 100~3,000 µm
Splice Loss
SM : 0.02dB
MM : 0.01dB
DS : 0.04dB
NZDS : 0.04dB
G.657 : 0.02dB
Reliability
Operating
Condition
Altitude 0~5,000M
Humidity 0~95%
Temperature -15~60
℃
Wind Speed 15m/s
Storage
Condition
Humidity 0~95%
Temperature
Splicer -40~80
℃
Battery -20~30
℃
- 6 -
Splicer description & part name
Power Supply / Battery
Micro HDMI Port
Connenctor for Charging Battery
Return Button
ON/OFF Button
Sleeve Heater
Monitor
- 7 -

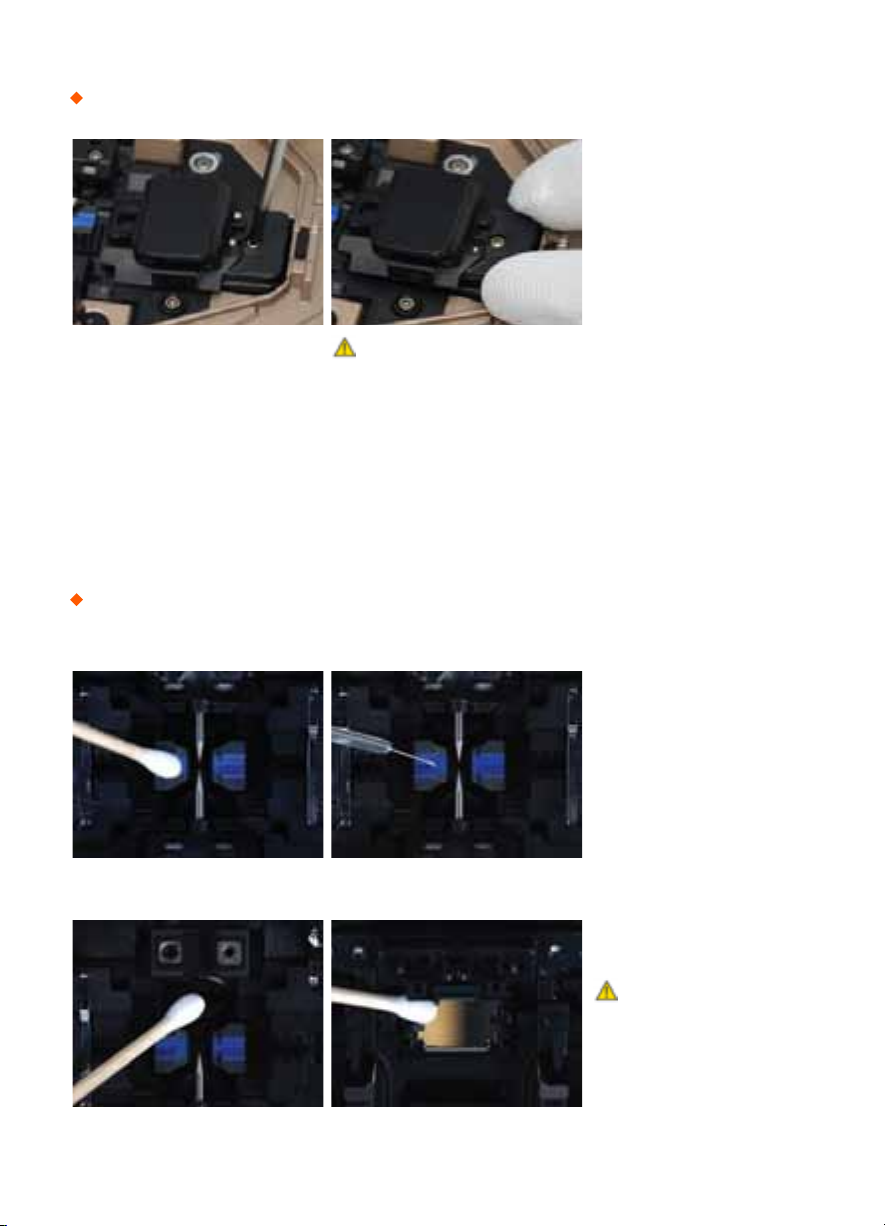

How to replace the fiber holder
Cleaning
1) Unscrew the screws
2) Remove the worn holder
3) Replace it with new one
4) Tighten up the screw
V-Grooves
Check fiber after cleaning
with cotton swab
1) Do not disturb
the electrode tips
2) Use only 99% or better
purity alcohol
Lens Mirrors
Caution
1) The unscrewd screws remain in the
holder (Do not remove the screws out)
2) Do not screw down the holder too tight
Caution
- 8 -
Splice Programs
Splice Menu, Maintenance, Stabilize Electrodes, Setting, User Instruction, Arc Calibration
Atmospheric conditions such as temperature, humidity, and pressure are constantly changing, which
creates variability in the arc temperature. This splicer is equipped with temperature and pressure
sensors that are used in a constant feedback monitoring control system to regulate the arc power
at a constant level. However, changes in arc power due to electrode wear and glass adhesion cannot
be automatically corrected. Also, the center position of arc discharge sometimes shifts to the left or
to the right. In this case, the fiber splicing position has to be shifted in relation to the arc discharge
center. It is necessary to perform an arc power calibration to eliminate these problems.
Note : Performing [Arc calibration] function changes the arc power “Factor” value. This factor value is
used in the algorithm program for all splicing. The arc power value will not change in the splice modes.
* Standard Factor value is changed within 11 ± 2, It shows “Complete” word.
[Arc Calibration]
In the event of sudden change in environmental conditions or after cleaning electrodes, the arc power
sometimes becomes unstable, resulting in higher splice loss. This is especially a concern when the
splicer is moved from lower altitudes to higher , it takes time for the arc power to stabilize. In this case,
stabilizing electrodes will expedite the process to normalize the arc power. If many tests are required
to get the “Test ok” message appearing the [Arc calibration], use this function as well.
[Stabilize Electrodes]
- 9 -
1) Splice Mode
[Splice Menu]
Factory Pre-Set Mode 36 ea
User Mode User Edit : 36 ea
Customized mode : 1 ea
Delete Splice Mode -
- 10 -

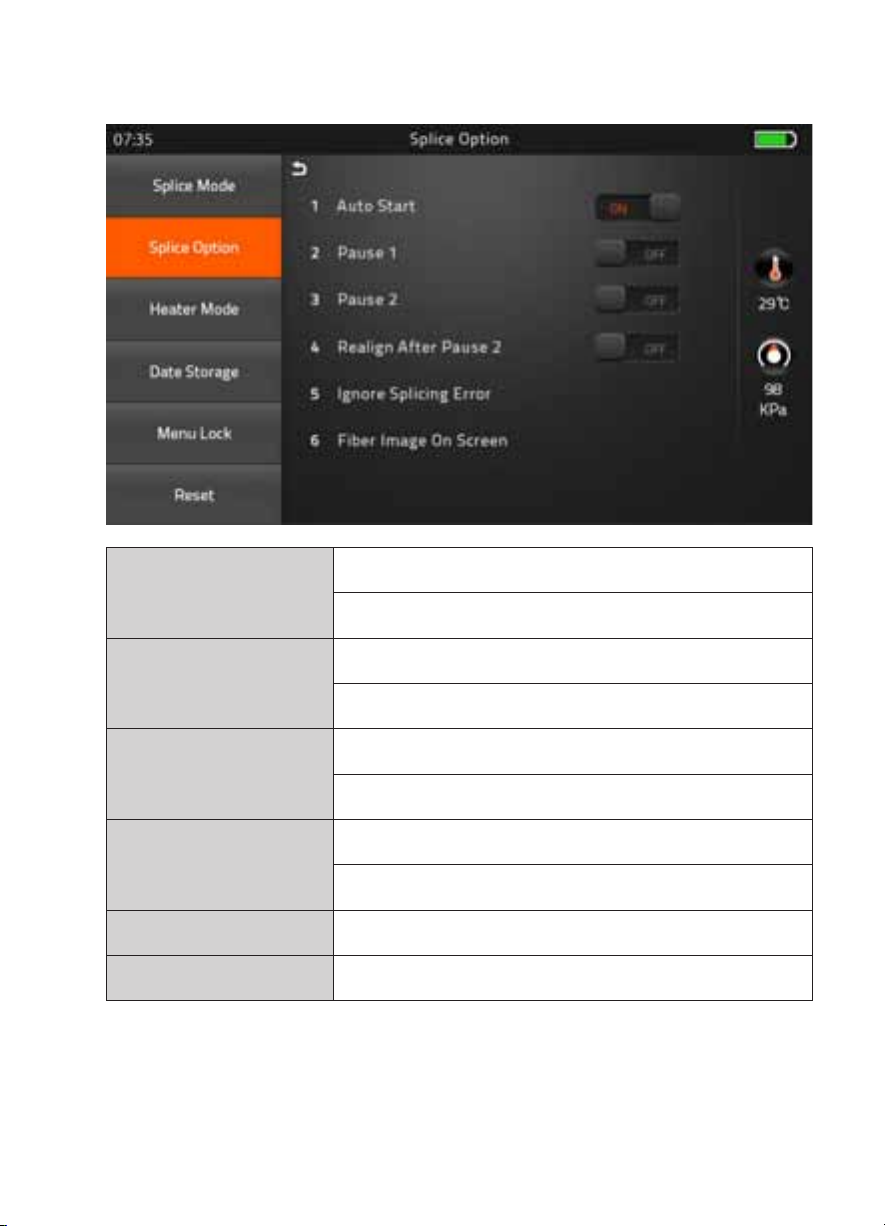

2) Splice Option
Auto Start
ON : Automatic splicing procedure
OFF : Maunal Splicing procedure
Pause 1
(Press Motor)
ON : Pause after the fiber gap position process
OFF : Proceeding without the pause
Pause 2
(Align Motor)
ON : Pause after camera focus & Axis alignment process
OFF : Proceeding without the pause
Realign After Pause 2
ON : Automatically proceed realignment
OFF : Proceeding without the pause
Ignore Splicing Error ‘splicing error’ message is not displayed
Fiber Image On Screen Select display structure for each splicing process
