FIC P4-875P MAX Bedienungsanleitung

875 Dynasty

MAINBOARD

MANUAL

DOC No.: M03207

Rev. :A2

Date : 6, 2003

Part No. : 25-11242-02

P4-875P MAX

Handling Precautions

Warning:

1. Static electricity may cause damage to the integrated circuits on

the motherboard. Before handling any motherboard outside of its

protective packaging, ensure that there is no static electric charge

in your body.

2. There is a danger of explosion if the battery is incorrectly

replaced. Replace only with the same or an equivalent type

recommended by the manufacturer.

3. Discard used batteries according to the manufacturer’s

instructions.

4. Never run the processor without the heatsink properly and firmly

attached. PERMANENT DAMAGE WILL RESULT!

Observe the following basic precautions when handling the motherboard

or other computer components:

Wear a static wrist strap which fits around your wrist and is

connected to a natural earth ground.

Touch a grounded or anti-static surface or a metal fixture such as a

water pipe.

Avoid contacting the components on add-on cards, motherboards,

and modules with the golden fingers connectors plugged into the

expansion slot. It is best to handle system components by their

mounting brackets.

The above methods prevent static build-up and cause it to be discharged

properly.

Trademark

All trademarks mentioned in this manual are registered properly of

the respective owners.

Handling Precautions

This manual may not, in whole or in part, be photocopied, reproduced,

transcribed, translated, or transmitted in whatever form without the

written consent of the manufacturer, except for copies retained by the

purchaser for personal archival purposes.

Notice

Table of Contents

Chapter 1 Overview

Package Checklist .......................................................................... 1-2

P4-875P MAX ............................................................................ 1-3

Main Features ................................................................................ 1-4

FIC Unique Innovation for Users (NOVUS) -

Enhanced Mainboard Features and System Support .................... 1-6

Chapter 2 Installation Procedures

1). Set System Jumpers .................................................................. 2-2

Clear CMOS ...................................................................... 2-2

BIOS Protect ...................................................................... 2-3

2). Install Memory Modules .......................................................... 2-4

3). Install the CPU .......................................................................... 2-5

Connect ATX Power .......................................................... 2-6

4). Install Expansion Cards ............................................................. 2-7

5). Connect Devices ....................................................................... 2-9

Floppy Diskette Drive Connector ...................................... 2-9

IDE Device Connectors ..................................................... 2-9

Fan Connectors ................................................................. 2-10

Power Connectors ............................................................. 2-11

System Chassis Open Alarm Connector ............................ 2-11

SPDIF Out Connector ....................................................... 2-12

Debug LEDDisplay Connector ......................................... 2-12

Front Panel Block, Power LED, IR, and Speaker Connector 2-13

Serial ATA Connectors ...................................................... 2-14

CDAudio-In Connector .................................................... 2-15

1394 Connectors ................................................................ 2-15

PS/2 Keyboard and Mouse Connector .............................. 2-16

RJ45 LAN Connector ........................................................ 2-16

Serial Port Connectors ....................................................... 2-17

Printer Connector .............................................................. 2-17

875 Dynasty Mainboard Manual

Chapter 3 BIOS Setup

CMOS Setup Utility ....................................................................... 3-1

Standard CMOS Setup ................................................................... 3-2

Advanced BIOS Features .............................................................. 3-4

Advanced Chipset Features .......................................................... 3-8

Integrated Peripherals .................................................................... 3-10

Power Management Setup ............................................................. 3-14

PnP/PCI Configurations ................................................................. 3-18

PC Health Status ............................................................................ 3-19

Frequency/Voltage Control ............................................................ 3-20

Load Fail-Safe Defaults .................................................................. 3-21

Load Optimized Defaults ................................................................ 3-21

Supervisor/User Password ............................................................ 3-21

Save and Exit Setup ........................................................................ 3-22

Exit without Saving ........................................................................ 3-22

Audio I/O Jacks ................................................................ 2-18

Front Audio Connector ..................................................... 2-18

5.1 Audio Channel Feature ................................................ 2-19

Universal Serial Bus Connectors ....................................... 2-20

1 - 1

Overview

Chapter 1

The new ATX, 478-pin 1stMainboard®supports a full range of the latest

generation Intel®Pentium®4 processors. The leading edge Intel®chipset

was designed for coworking with Pentium®4 (up to 3.0 GHz) in the 478-pin

package based on the VRM 10.0 spec and 533/ 800 MHz.Built using the leading

edge technology the Intel Pentium®4 processors provide a significant perfor-

mance over previous Pentium®III processors. Four DDR 333/400 SDRAM

sockets allow for up to 4 GB memory capacity. Support for the Ultra DMA/100

protocol and its high-speed interface further ensures that data transfer speeds

are improved, especially for long sequential transfers required by audio/visual

applications.

The board features onboard audio and LAN function; also, the serial ATA

feature replaces the standard parallel ATA physical storage interface and al-

lows future enhancements to the computing platform. It completely software

compatible with parallel ATA, requiring no mofication to your operating sys-

tem. Two types of RAID connections are provided: IDE (HPT 372) and SATA

(Intel ICH5R). The onboard serial ATA feature includes RAID function to

provide you with a more efficient storage backup. For more detail, please read

the help file in the lst Utilities CD.

The 1stMainboard comes with a versatile range of I/O features such as 2 serial

ports, 2 IDE RAID, 2 serialATA ports, 1 parallel port, 1 LAN, 2 IEEE 1394, 1 PS/

2 mouse and keyboard connector, 8 USB ports, 5.1 audio channel, 1 media

connector (front audio, Line-in, Line-out and Mic-in). In addition, the board is

equipped with 2 dual channel enhanced PCI bus master IDE connectors. Ample

expansion is available through 5 PCI and 1AGP to meet the requirement for

enjoying the P4 CPU benefits in internet applicatons, video/3D graphics per-

formance, and so forth.

Other key features are Remote On/Off, Auto Power Failure Recovery, inte-

grated temperature monitoring and system fan control. Included also is lst

Utilities CD with enhanced drivers and a few bundled soft-ware solutions.

1 - 2

875 Dynasty Mainboard Manual

NOTE: lst Utilities CD that contains patch files, onboard video/au-

dio chip drivers, related online help and other useful information

can be found in your mainboard package.

Please install it right after your Windows operating system installa-

tion is done.Place your lst Utility in the drive, an operating menu will

appears in your monitor. Please select Auto Installation. It will auto-

matically detect which software tools (patch files, drivers) that the

mainboard needs. Press OK button to go through the whole instal-

lation procedure in a very straight forward and easy way. It also

provides you with a custom way to select wanted patch files and

software drivers that for onboard chips use. The top menu of lst

Utilities lists all the functions that allowed by this board.

Package Checklist

If you discover any item below was damaged or lost, please contact your

vendor.

1 - 3

Overview

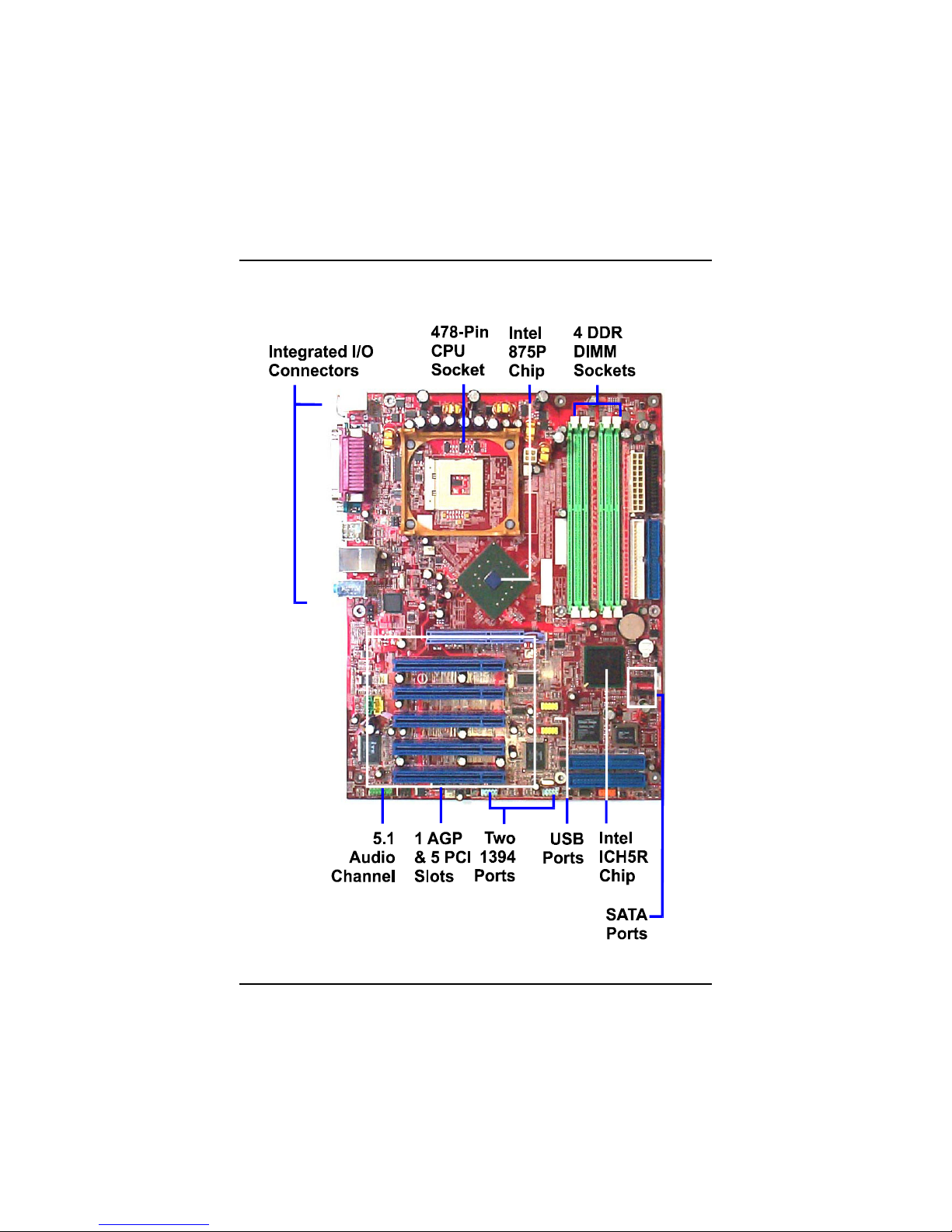

P4-875P MAX

1 - 4

875 Dynasty Mainboard Manual

Main Features



CPU

Pentium®4:

2.26 to 2.8 GHz (FSB 533) and up*

2.4 to 3.0 GHz (FSB 800) and up*

(*: not tested yet)



Chipset

North Bridge: Intel®875P

South Bridge: Intel®ICH5R



Memory

4 memory sockets :

support 184-pin DDR 333/ 400

memory size totally upto 4 GBz

The combinations of FSB/DDR: (must followed)

FSB DDR

800 400

800 333

533 333



Expansion Slots

1 AGP Slot : support 3.0 4X/8X (0.8V/1.5V);

5 PCI Slots



IDE Connections

2 IDE connectors - PIO mode, Ultra DMA 66/100

up to 4 devices



SATA Connections

2 ports controlled by embeded ICH5R®SATA function

level 0/1* RAID functions (*: not tested yet)

1 - 5

Overview



I/O Ports

2 IDE connectors -

PIO, Bus Master, Ultra DMA 66/100

up to 4 devices

2 serial ports COM1 and COM2

1 parallel port

PS/2 mouse and PS/2 keyboard

8 USB 2.0 ports



LAN

Two options: Intel Kenai 10/100 Ethernet or Giga-LAN



IEEE 1394 Ports

Agere FW323

2 ports

1 bracket with cable



Mounting Holes

9 holes



Mainboard Size

12 x 9.6 (unit: inch)



Audio Features

Realtek ALC650 controller

AC97 2.2 compliant

LINE_IN, LINE_OUT, MICROPHONE_IN Jack

5.1 audio channel

A73 audio bracket with cable (optional)

front audio pinheaders



RAID (IDE) Connections

2 ports controlled by HighPoint 372®RAID function

Level 0, 1, 0+1

up to 4 devices

1 - 6

875 Dynasty Mainboard Manual



BIOS Guardian

BIOS Guardian effectively acts as a fire-wall against viruses that can at-

tack the BIOS while the system is running and by default is enabled.

WARNING:

BIOS Guardi an must be disa bled bef ore refla s h BIOS.

NOTE:

Please read Page 3-7 for detail information.

FIC Unique Innovation for Users (NOVUS) -

Enhanced Mainboard Features and System Support



LogoGenie

A user friendly GUI supporting Windows 95/98SE (not Windows 2000/

NT/ME/XP), LogoGenie allows you to customize, create or select a Logo

which will be displayed when the system is booting.

NOTE:

Please read Page 3-7 for detail information.



Easy Key

Instead of completing the multi-layered BIOS setup process these 3 Easy

Key functions provide direct access to Sub-Menu when completing BIOS

settings adjustments.

Easy-Keys are as follows:

Ctrl + c: To enter clock settings menu.

Ctrl + p: To load Performance Default settings and restart.

Ctrl + f: To load Fail-Safe Default settings and restart.

Inhaltsverzeichnis

Beliebte Hauptplatine Handbücher anderer Marken

DFI

DFI SD170 Bedienungsanleitung

ASROCK

ASROCK ROMED8-2T Bedienungsanleitung

Asus

Asus P2L97A Bedienungsanleitung

Winmate

Winmate IC70 Bedienungsanleitung

Asus

Asus MES-B Bedienungsanleitung

Grantech

Grantech SYS8F377VGGA-3OMN Bedienungsanleitung

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Bedienungsanleitung

Gigabyte

Gigabyte GA-9IVDT Bedienungsanleitung

Texas Instruments

Texas Instruments ADS8372EVM Bedienungsanleitung

Commell

Commell MS-C73 Bedienungsanleitung

IBT Technologies

IBT Technologies MB860 Bedienungsanleitung

Nvidia

Nvidia TEGRA DG-04927-001_V01 Bedienungsanleitung

Biostar

Biostar M7VIT Bravo Bedienungs- und Montageanleitung

Intel

Intel D33217CK Bedienungsanleitung

Asus

Asus F1A55-M LX PLUS R2.0 Bedienungsanleitung

EPC

EPC EPC9147C Bedienungsanleitung

Asus

Asus EX-B760M-V5 D4 Bedienungsanleitung

EPOX

EPOX MU-8KHA0010 Bedienungsanleitung
