Field Controls 46512300 Bedienungsanleitung

U

UV

V-

-A

AI

IR

RE

E

A

AI

IR

R

P

PU

UR

RI

IF

FY

YI

IN

NG

G

S

SY

YS

ST

TE

EM

M

Model: UV-16R

Duct Board Mounting Instructions

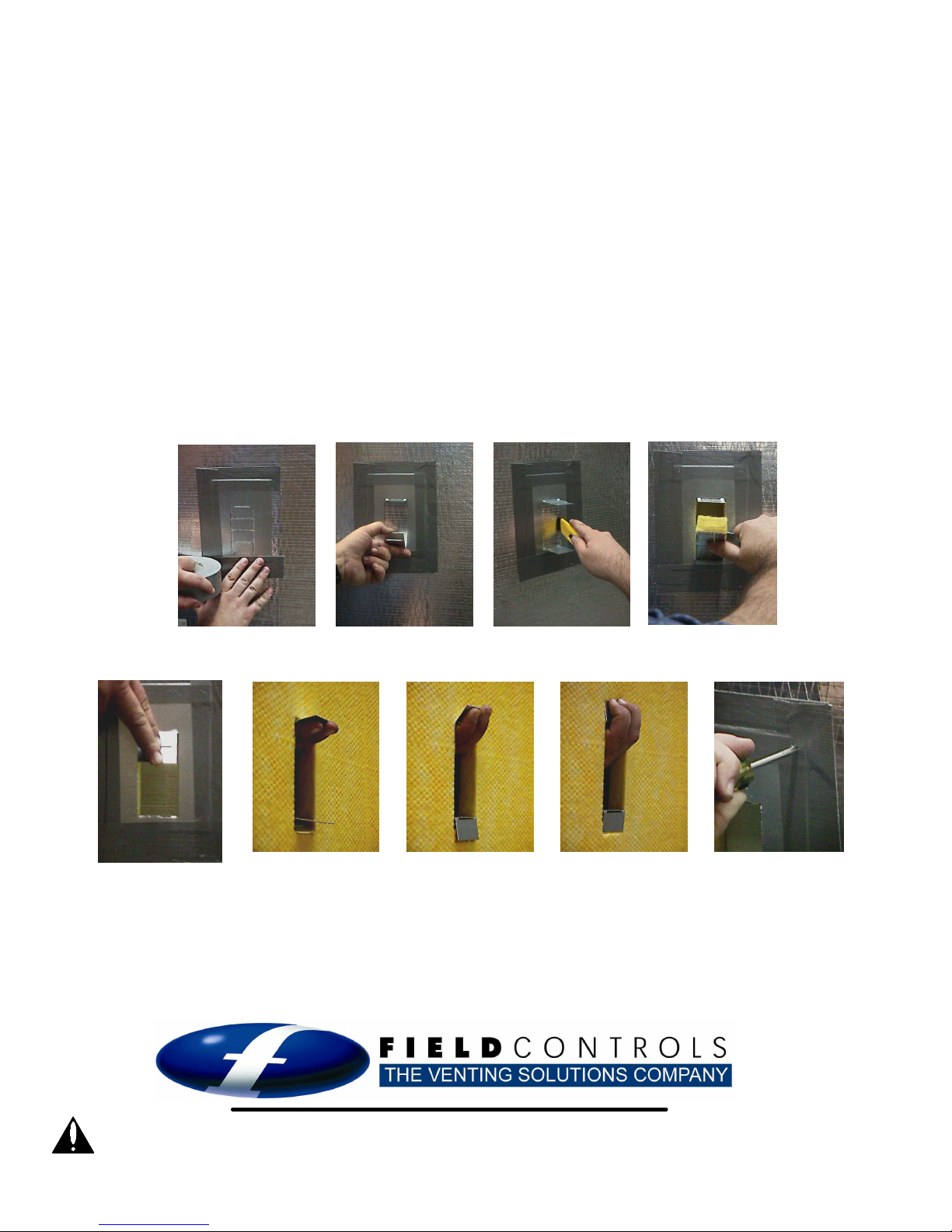

1. Mount the supplied metal mounting plate onto the duct with duct tape in either a vertical or horizontal position

as shown in Figure 2 of main instruction sheet. (See Figure 1)

2. Bend tabs outward as shown in figure 2.

3. Using a knife or blade, cut out a rectangle opening in the duct using the mounting plate as a template. (See

Figure 3)

4. Remove the cut piece of duct. (See Figure 4)

5. Bend both tabs down and through duct at first bend point. (See Figures 5 & 6)

6. Bend both tabs at the second bend point up or down to pinch the duct material and grip the duct material.

(See Figures 7 & 8)

7. Using a screwdriver or pointed object, locate mounting holes by poking holes through the duct tape. (See

Figure 9)

8. Continue installation using main instruction sheet beginning at step 5 on page 3.

Figure 1

Figure 2

Figure 3

Figure 4

Figure 5

Figure 6

Figure 7

Figure 8

Figure 9

WARNING:

Never expose eyes or skin to UVC light from any source. Looking directly at the UVC light may cause permanent eye damage or

blindness. Never operate the UV-Aire Air Purifying System out of the plenum

. Avoid touching the glass portion of the lamp with your

hands.

P/N 46512300 04/06
