Finlux FMO-2063W Bedienungsanleitung
MICROWAVE OVEN
INSTRUCTION MANUAL
MODEL: FMO-2063W
IMPORTANT SAFETY INSTRUCTIONS
READ CAREFULLY AND KEEP FOR FUTURE REFERENCE
Household use only
SAVE THESE INSTRUCTIONS
2
IMPORTANT SAFEGUARDS………………… …… ….
WARNING: If the door or door seals are damaged, the oven must
not be operated until it has been repaired by a trained person.
WARNING: It is hazardous for anyone other than a trained person
to carry out any service or repair operation, which involves the
removal of any cover, which gives protection against exposure to
microwave energy. WARNING: Liquids or other food must not be
heated in sealed containers since they are liable to explode.
1. Only use utensils that are suitable for use in microwave
ovens.
2. Metallic containers for food and beverages are not allowed
during microwave cooking.
3. When heating food in plastic or paper containers, keep an eye
on the oven due to the possibility of ignition.
4. The microwave oven is intended for heating food and
beverages. Drying of food or clothing and heating of warming
pads, slippers, sponges, damp cloth and similar may lead to
risk of injury, ignition or fire.
5. If smoke is observed, switch off or unplug the appliance and
keep the door closed in order to stifle any flames microwave
heating of beverages can result in delayed eruptive boiling,
therefore care has to be taken when handling the container.
6. The contents of feeding bottles and baby food jars are to be
3
stirred or shaken and the temperature is to be checked before
consumption, in order to avoid burns.
7. Eggs in their shell and whole hard-boiled eggs shall not be
heated in microwave ovens since they may explode, even
after microwave heating has ended.
8. Failure to maintain the oven in a clean condition could lead to
deterioration of the surface that could adversely affect the life
of the appliance and possibly result in a hazardous situation.
9. The appliance must not be placed in a cabinet.
10. Care should be taken not to displace the turntable when
removing containers from the appliance.
11. The appliance shall not be cleaned with a steam cleaner.
12. The appliance must not be installed equal or higher than 900
mm above the floor. Minimum height of free space necessary
above the top surface of the oven: 100mm.
Warning: When the appliance is operated in the combination
mode, children should only use the oven under adult supervision
due to the temperatures generated.
CAUTION: HOT SURFACE
13. If the supply cord is damaged, it must be replaced by the
manufacturer or its service agent or a similarly qualified
4
person in order to avoid a hazard.
14. This appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning
use of the appliance in a safe way and understand the
hazards involved.
15. Children shall not play with the appliance.
16. Cleaning and user maintenance shall not be made by children
without supervision.
17. Do not directly put the glass plate into cold water after use. It
needs to place the glass plate for at least 20 minutes, and
then put it into the water to avoid cracking.
18. Group 2 Class B appliance
Group 2 ISM equipment: group 2 contains all ISM equipment
in which radio-frequency energy is intentionally generated
and/or used in the form of electromagnetic radiation for the
treatment of material, and EDM and arc welding equipment.
Class B equipment is equipment suitable for use in domestic
establishments and in establishments directly connected to a
low voltage power supply network which supplies buildings
used for domestic purposes.
19. This product internal light source LED light on＜60lm.
5
.INSTALLATION…………… …… ……………………… …….. ……
1. Take out all the packing. If there is a safe film over the oven,
tear it off before use. Check carefully for damage. If any,
immediately notify dealer or send to the manufacturer’s
service center.
2. Microwave ovens must be placed under dry and
non-corrosiveness environments, kept away from heat and
humidity, such as gas burner or water tank.
3. To ensure sufficient ventilation, the distance of the back of
microwave to the wall should be at least 10 cm, the side to the
wall should be at least 5 cm, the free distance above the top
surface at least 20 cm. the distance of the microwave to the
ground should be at least 85 cm.
4. The position of the oven shall be such that it is far from the TV,
Radio or antenna as picture disturbance, or noise may occur.
The distance should be more than 5m.
5. The appliance must be positioned so that the plug is
accessible, and must ensure a good grounding in case
leakage, ground loop can be formed to avoid electric shock.
6. The microwave oven must be operated with the door closed.
7. The microwave oven must not be placed in a cabinet. The
microwave oven is intended to be used freestanding.
8. As there is manufacturing residue or oil remained on the oven
cavity or heat element, it usually would smell the odor, even a
slight smoke, It is normal case and would not occur after
several times use, keep the door or window open to ensure
good ventilation. So it is strongly recommended to place a cup
of water in the cavity, setting at high power and operate for
several times.
.CLEANING …………………… …………
6
MICROWAVE OVEN CARE
The oven should be cleaned regularly and any food deposits
removed.
a. Remove the power cord from the wall outlet before cleaning.
After cooling products. Don't immerse the appliance in water
or other fluids when cleaning.
b. Failure to maintain the oven in a clean condition could lead to
deterioration of the surface that could adversely affect the life
of the appliance and possibly result in a hazardous situation.
c. Never use hard detergent, gasoline, abrasive powder or
metal brush to clean any part of the appliance.
d. Do not remove the waveguide cover.
e. When the microwave oven has been used for a long time,
there may be some strange odors exist in oven, following 3
methods can get rid of them:
1) Place several lemon slices in a cup, then heat with high
micro power for 2-3 min.
2) Place a cup of red tea in oven, then heat with high micro
power.
3) Put some orange peel into oven, and then heat them with
high micro power for 1 minute.
f. When the product is not used, it should be placed in dry and
ventilated areas as well as possible.
Details how to clean surfaces in contact with food:
After use wipe the waveguide cover with a damp cloth, followed
by dry cloth to remove any food splashes and grease. Built -up
grease may overheat and begin to cause smoke or catch fire.
7
TIPS FOR CLEANING
Details for cleaning door seals, cavity and adjacent parts:
Exterior:
Wipe the enclosure with a dampened soft cloth
Door:
Using a dampened soft cloth, wipe clean the door and window
Wipe the door seals and adjacent parts to remove any spill or
spatter
Wipe the control panel with a slightly dampened soft cloth
Interior walls:
Wipe clean the interior surfaces with a dampened soft cloth
Wipe clean the waveguide cover to remove any food splashed
Turntable / Rotation ring / Rotation axis:
Wash with mild soap water
Rinse with clean water and allow drying thoroughly
8
PRODUCT INSTRUCTION…… …………… .. .......
1) Door lock
Microwave oven door must be properly closed in order for it to
operate.
2) Viewing window
Allow user to see the cooking status
3) Rotating ring
The glass turntable sits on its wheels; it supports the turntable and
helps it to balance when rotating
4) Rotating axis
The glass turntable sits on the axis; the motor underneath it drives
the turntable to rotate
5) Turntable
The food sits on the turntable, its rotation during operation helps
to cook food evenly
9
- Place the rotating ring first
- Fit the turntable onto the rotating axis and make sure that it is
geared in properly

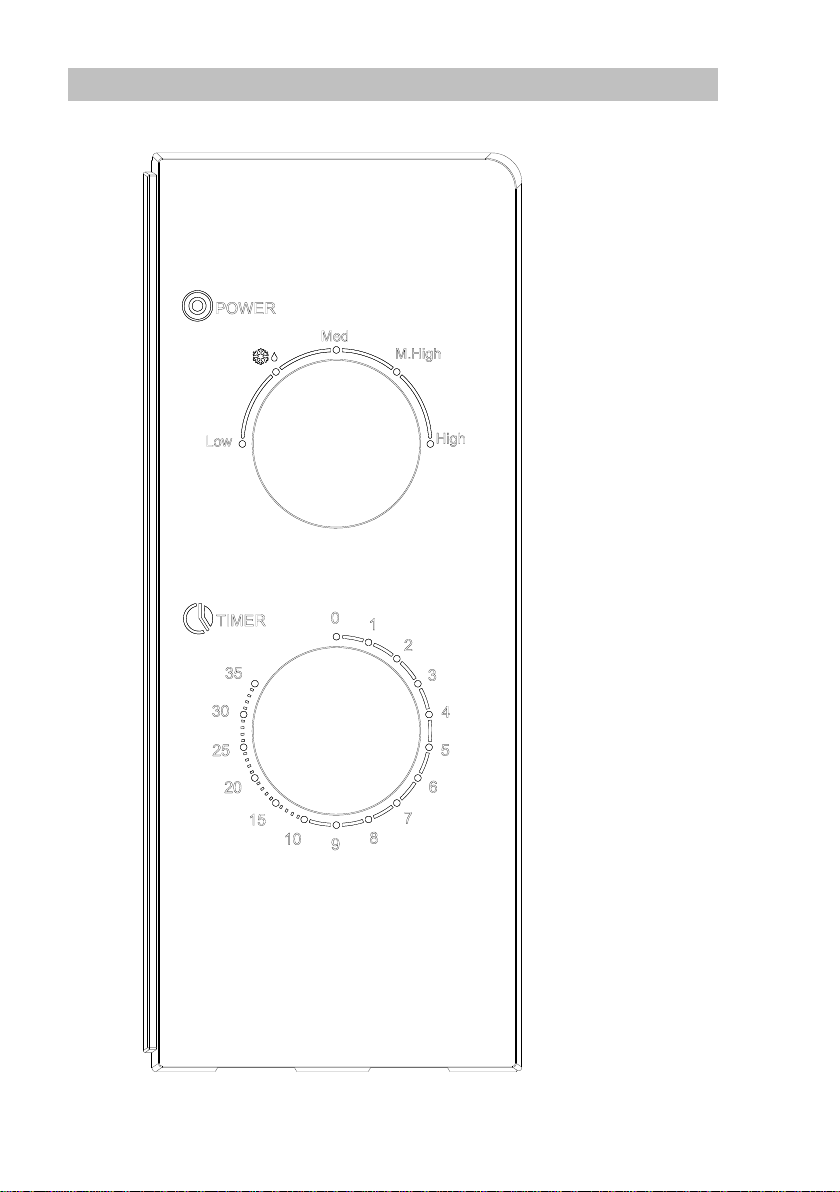

6) Control panel
See below in details (the control panel is subject to change
without prior notice)
7) Waveguide cover
It is inside the air fryer oven, next to the wall of control panel.
Never remove the waveguide cover.
10
OPERATION OF CONTROL PANEL…。。。。。。。。
