FIP FLS M9.06 Bedienungsanleitung

FLS M9.06

PH/ORP MONITOR

SAFETY INSTRUCTIONS

PACKING LIST

General Statements

• Do not install and service the product without following the Instruction

Manual.

• This item is designed to be connected to other instruments which can be

hazardous if used improperly. Read and follow all associated instrument

manuals before using with it.

• Product installation and wiring connections should only be performed by

quali ed staff.

• Do not modify product construction.

Installation and Commissioning Statements

• Remove power to the instrument before wiring input and output connections.

• Do not exceed maximum speci cations using the instrument.

• To clean the unit, use only chemical compatible products.

Please verify that the product is complete and without any damage.

The following items must be included:

• M9.06 pH/ORP Monitor & Transmitter

• Instruction Manual for M9.06 pH/ORP Monitor & Transmitter

DESCRIPTION

CONNECTIONS TO INSTRUMENTS

The new FLS F9.06 is a powerful pH/ORP monitor designed to satisfy a

broad range of applications. A 4” wide full graphic display shows measured

values clearly together with many other useful information. Moreover, due to

the multicolor bright backlight, measurement status can be determined easily

also from very long distance. A tutorial software guarantees a mistake-proof

and fast set up of every parameter. A calibration based on automatic buffer

recognition plus a in line adjustment allow to achieve a precise and a reliable

measurement in every conditions.

F3.00 F3.20 F6.30 F3.10 F3.05 F6.60 F6.61 F111

M9.06--------

ULF F3.80 pH/

ORP200

pH/

ORP400

pH/

ORP600

C150/

200

C100/

C300 C6.30

M9.06 - - X X X ---

TECHNICAL DATA

General

• Associated sensors: FLS pH/ORP electrodes and FLS temperature sensors

• Materials:

- Case: ABS

- Display window: PC

- Panel & Wall gasket: silicone rubber

- Keypad: 5-button silicone rubber

• Display:

- LC full graphic

- Backlight version: 3-colors

- Backlight activation: User adjustable with 5 levels of timing

- Update rate: 1 second

- Enclosure: IP65 front

• pH input range: -2÷16pH

• pH measurement resolution: ± 0.01 pH

• ORP input range: -2000÷ +2000mV

• ORP measurement resolution: ± 1 mV

• Temperature input range: -50÷150°C (-58÷302°F) (with Pt100-Pt1000)

• Temperature measurement resolution: 0,5°C/°F (Pt100-Pt1000)

Electrical

• Supply Voltage: 12 to 24 VDC ± 10% regulated

• 2 x Current output:

- 4-20 mA, isolated, fully adjustable and reversible

- Max loop impedance: 800 Ω @ 24 VDC - 250 Ω @ 12 VDC

• 2 x Solid State Relay output:

- User selectable as ON-OFF, proportional frequency, proportional pulse,

timed pulse

- Optically isolated, 50 mA MAX sink, 24 VDC MAX pull-up voltage

- Max pulse/min: 300

- Hysteresis: User selectable

• 2 x Relay output:

- User selectable as ON-OFF, proportional frequency, proportional pulse,

timed pulse

- Mechanical SPDT contact

- Expected mechanical life (min. operations): 107

- Expected electrical life (min. operations): 105 N.O./N.C. switching capacity

5A/240VAC

- Max pulse/min: 60

- Hysteresis: User selectable

Environmental

• Operating temperature: -20 to +70°C (-4 to 158°F)

• Storage temperature: -30 to +80°C (-22 to 176°F)

• Relative humidity: 0 to 95% not condensing

Standards & Approvals

• Manufactured under ISO 9001

• Manufactured under ISO 14001

• CE

• RoHS Compliant

• GOST R

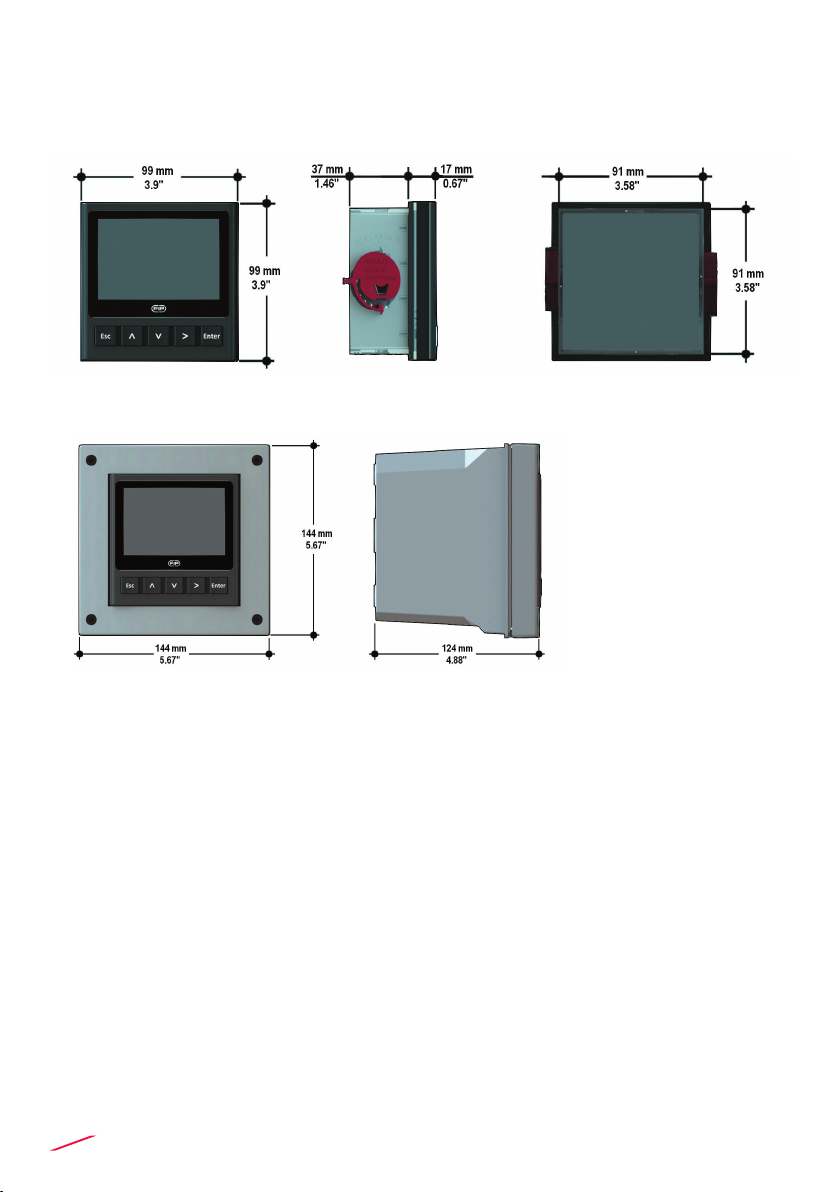

DIMENSIONS

Mechanical installation

The pH/ORP monitor & transmitter is available just in one packaging for panel

or wall installation. The panel version is installed using the panel mounting

kit (M9.SN1), while the wall mounting version is got xing the panel mounting

version on the wall mounting kit (M9.KWX). The mounting kits can be ordered

directly connected to the monitor or separately and then simply installed on it.

PANEL MOUNTING

WALL MOUNTING

INSTALLATION

Panel installation

Fix instrument on the panel rotating by hand the xing snails (M9.SN1).

Wall installation

Use the panel mounting kit (M9.SN1) to x the M9.06 on the dedicated frontal

cutout of the wall mounting kit (M9.KWX).

Tighten front screws of box and waterproof connectors of cables, internally

mount caps on screw sites to get a IP65 watertight installation.

WIRING

REAR TERMINAL VIEW

General recommendation

Always ensure the power supply is switched off before working on the device.

Make wiring connections according to wiring diagrams.

• Terminals accept 26 to 12 AWG (0.08 to 2.5 mm2)

• Strip around 10 mm (0.4”) of insulation from the wire tips and tin bare ends to

avoid fraying.

• Ferrules are suggested when connecting more than one wire to a single

terminal.

• Remove the upper part of the terminals for an easy cabling.

• Insert wire tip or ferrule completely into the terminal and x with the screw

until nger tight.

• Do not route the sensor, DC power, or 4-20mA cables in conduit containing

AC power wiring. Electrical noise may interfere with sensor signal.

• Routing the sensor cable in grounded metal conduit can help prevent

electrical noise and mechanical damage.

• Seal the cable entry points to prevent moisture damage.

Wall Installation

Pull the electrical cables through liquid tight connectors.

Use electrical cables with the proper external diameter for the liquid tight

connector.

PG11/PG9: external diameter between 2-7 mm (0.079-0.276”)

POWER/LOOP WIRING DIAGRAM

PROBE WIRING DIAGRAM

Refer to dedicated sensor manual for its wiring.

In case a temperature sensor (Pt100-Pt1000) is not available, place a brigde

connection between 28 - 29 and between 29 - 30.

Stand-alone application,

no current loop used

pH/ORP probe connection

Connection to a PLC/Instrument with a separate power supply

Connection to a PLC with built-in

power supply

Power Supply

12 - 24 VDC

+ VDC

- VDC

+IN

REF pH

PT100/1000

SIGNAL

SHIELD

Power Supply

12 - 24 VDC

4 - 20 mA

Input 2

PLC Terminals

4 - 20 mA

Input 1

+ VDC

- VDC

- LOOP 2

+ LOOP 1

+ LOOP 2

- LOOP 1

Power Supply

12 - 24 VDC

PLC

4 - 20 mA

Input 2

4 - 20 mA

Input 1

+ VDC

- VDC

- LOOP 2

+ LOOP 1

+ LOOP 2

- LOOP 1

Power Supply

12 - 24 VDC

PLC

4 - 20 mA

Input 2

4 - 20 mA

Input 1

+ VDC

- VDC

- LOOP 2

+ LOOP 1

+ LOOP 2

- LOOP 1

Power Supply

12 - 24 VDC

PLC

4 - 20 mA

Input 2

4 - 20 mA

Input 1

+ VDC

- VDC

- LOOP 2

+ LOOP 1

+ LOOP 2

- LOOP 1

Power Supply

12 - 24 VDC

PLC

4 - 20 mA

Input 2

4 - 20 mA

Input 1

+ VDC

- VDC

- LOOP 2

+ LOOP 1

+ LOOP 2

- LOOP 1

Internal PLC

connection

N.O.

COM

PLC

Imax = 50 mA

Power sup.

O.C. IN

SOLID-STATE RELAY WIRING DIAGRAM

(FOR SSR1 AND SSR2)

Connection to a PLC with NPN input Connection to a PLC with PNP input

N.O.

COM

PLC

Imax = 50 mA

Power sup.

O.C. IN

Internal PLC

connection

Connection to a PLC / Instrument

digital input with separate Power

Supply

Connection to a PLC / Instrument

digital input for Voltage Free Contacts

(REED)

N.O.

COM

Power Supply

12 - 24 VDC

PLC / Instrument

Digital INPUT

Imax = 50mA

lmax = 50mA

PLC

DIGITAL INPUT N

DIGITAL INPUT 2

DIGITAL INPUT 1

REF PLC

N.O.

Imax = 50 mA

Imax

COM

lmax = 50mA

PT100 - PT1000

two wires connection

PT100 - PT1000

three wires connection

PT100/1000

REF pH

PT100/1000

REF pH

Pt100 - Pt1000

no connection

PT100/1000

SOLID-STATE RELAY WIRING DIAGRAM

(FOR SSR1 AND SSR2)

RELAY WIRING DIAGRAM

(FOR RELAY 1 & RELAY 2)

HOLD AND REED CONNECTION

The alarm is OFF during normal

operation and goes ON according to

Relay settings

The alarm is ON during normal

operation and goes OFF according to

Relay settings

The alarm is off during normal

operation and goes ON according to

Relay setting.

If Imax > 50 mA use external Relay

Connection to an User

RELAY 2

COM

Alarm

AC or DC

Power NO

RELAY 2

COM

Alarm

AC or DC

Power

N.O.3

4 COM

AC or DC

Power

User

Imax = 50mA

N.O.3

4 COM

AC or DC

Power User

Imax = 50mA

lmax = 50mA

N.O.3

4 COM

AC or DC

Power

User

Imax = 50mA

N.O.3

4 COM

AC or DC

Power User Imax = 50mA

lmax = 50mA

N.O.

N.C.

COM

External Relay

V= 12-24 VAC/VDC

Imax = 50 mA

Imax

-V lmax = 50mA

- HOLD

+ HOLD

20 - REED

+ REED

12-24

VDC

↓

OPERATIONAL

OVERVIEW

The M9.06 pH/ORP monitor and

transmitter features a full graphic

display and a ve-button keypad

for system set-up, calibration and

operation. Full graphic display has

a white backlight during standard

conditions, a green backlight in case a

external device control is

activated (ON/OFF, PROPORTIONAL

FREQUENCY, PROPORTIONAL

PULSE and TIMED PULSE), a red

backlight in case a set alarm is

activated (O.V.A. and O.T.A., always

with priority).

The ve push buttons of the keypad

are used to navigate display levels and

modify settings.

The function of each button may change

according to display level;

please refer to following table:

VIEW LEVEL

MENU DIRECTORY

pH/ORP or temperature

item code -

software release

pH/ORP or temperature -

analog output 1

pH/ORP or temperature -

analog output 2

pH/ORP direct access to calibration*

pH/ORP - last calibration

Settings

Calibration

Outputs

Options

View data

↓

*"pH/ORP direct access to calibration" includes the "in-line adjustment" option to align on site the

measurement with a instant reference value.
