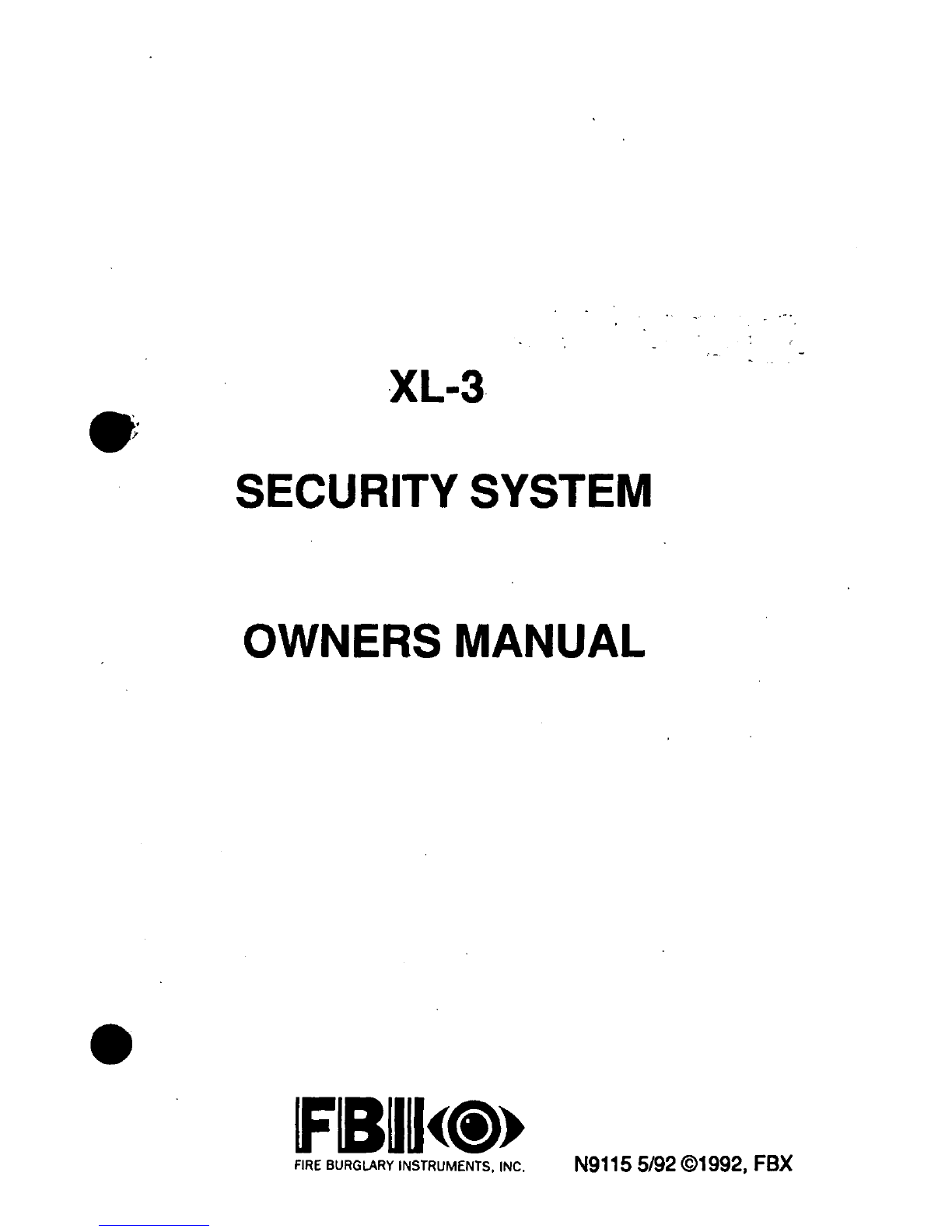

XL-3

SECURITY SYSTEM

OWNERS MANUAL

FIRE BURGLARY INSTRUMENTS, INC.

N91155/9201992, FBX

INTRODUCTION

Congratulations on your decision to protect your home or business with the

XL-3seriessecurity system. Youhavechosen a reliable,stateofthe artsecurii

system that is remarkablyeasyto operate.Yoursystem hasbeenprofessionally

j installed by your local security company who can explain the specifics of your

system within your location.

The keypad is the arming station for your security system. These are available

keypads for your system:

XL4612RM Metal plate keypad containing indicator lights for each of the 12

zones (areasof protection). This keypad can beflush mounted intoyour wall or

surface mounted in a back box.

XL 461294 This is a surface mount keypad with 12 LEDs for monitorfngZQ”‘\

status. ‘1 ,/

I 7015 Keypad with a plastic case and with indicator lights to show the status of

I each of the zones. The zone indicator lights are located behind the plastic

sliding door of the keypad (left hand side). NOTE: This keypad displays zone

status indication lightsfor 16zones.

7005 Keypadwith a plastic case and atwo line LCD (liquidcrystal display)with ’

I a two line readout.

Please identifythe keypad(s) presenton your systemfrom the diagrams shown

I in the sections that follow.

The XL-3 is the Residential version of’ the which has been Listed by

Underwriters Laboratoriesfor household Fire and Burglary applications.

I The model XL-3B isthe Commercial Burglaryconfiguration of the control panel

I and has been Listed by Underwriters Laboratories for Commercial Burglary

applications.

I ‘XL-3 USER’S MANUAL Page 1

TABLE OF CONTENTS

1. KEYPAD LAYOUTXL4612RM and XL4612SM

2. KEYPAD LAYOUT7015 and 7005

3. KEYPAD CONVENTIONS

4. ARMING THE SYSTEM

5. DISARMING

6. STAY

7. INSTANT

8. INSTANT-STAY

9. BYPASS

10. UNBYPASS

11.USER DEFINITION

USER DELETION

’ KEYPADAUXILIARV CONDITIONS

DURESS

15:ARM-ONLY (MAID) CODE

16. DOOR STRIKE USER CODE

17. KEYPADTAMPER

18.QUICK ARMING

19.QUICK FORCED ARMING

20. SET TIME OF DAY

21. ZONE DIRECTORY

22. SET AUTO-ARM TIME

23. CHIME MODE

24. READ CLOCK TIME

25. READ AUTO-SET TIME

26. DOOR STRIKE COMMAND

27. INSTALLATIONLAYOUT

28. SYSTEM TESTING

FCC STATEMENT 16

LIMITATIONSSTATEMENT 17

OWNERS INFORMATION 19

NOTES 20

SUMMARY 22

WARRANTY 23

XL-3 USER’S MANUAL Page 2

KEYPAD LAYOUT XL4612RM and XL4612SM

c I

XL4612RM KEYPAD XL461 2SM KEVPAD +

,Jr)

L-1

1)ZONE STATUSINDICATORS - displays the current zone status as follows:

ALARM Fast blinking.

BYPASS Slow blinking low intensity.

TROUBLE Slow pulse

NOT READY Solid ON

READY OFF

2) ARM/DISARM INDICATOR -indicates system armed or disarmed.

If the system is armed (ARMED indicator ON) then the RDY light will indicate

the arming mode (see item 4 below).

3) AC/LOW BATTERY - shows whether the system is running on AC (ON) or

backup battery (OFF). Ifthe light is blinking slowly then the battery is low, if it is

blinking rapidlythen there is a telephone line failure detected.

4) READY Indicateswhether the system is readyfor arming (ON = Ready,OFF

= Not Ready).

Inaddition, the RDY light shows the arming status if the ARMED LED is ON as

follows:

OFF = Armed in Away mode

Slow Blink = Armed in STAYmode (interiorzones bypassed)

Fast Blink = Armed in INSTANT mode (exit/entry delay eliminated) ,/7

Fast & Slow Blink = Armed in STAY-INSTANTmode !

5) NUMERICAL KEYPAD operates in a similar manner to a calculator or

telephone with the digits 0 - 9 and

# clearly marked.

XL-3 USER’S MANUAL Page 3

2. KEYPAD LAYOUT 7015 and 7005

7 4 2

MODEL7OOS LCD KEYI’AD MODEL7015 LED KEYPAD

The 7015 contains indicator lights for the zone status, and the 7005 keypad

contains a two line English languagedisplay.

1)ZONE STATUSINDICATORS -Yourprotectedlocation hasbeendivided into

areas of protection known as zones. The zone indicators display the current

status of each zone as follows:

ALARM

Fast blinking.

BYPASS Slow blinking low intensity.

TROUBLE

Slow pulse

NOT

READY

Solid ON

READY OFF

2) READY Indicates whether the system is ready for arming.

3) ARM/DISARM IND. Indicates system is armed (ON)/disarmed (OFF).

4) STAY- indicates system is armed with the interior zones bypassed.

5) INSTANT - Indicates system is ARMED with all delay zones instant.

6) AC - indicates system is running on AC,(ON) or backup battery (OFF).

7) BAT - Indicates low battery. Slow pulse = low battery, OFF = Normal

8) COM Indicates a communications failure with the Central station

9) NUMERICAL KEYPAD operates in a similar manner to a calculator or

telephone with the digits 0 - 9 and

# clearly marked.

10) DISPLAY AREA - This section of the LCD keypad displays the current

system status in this two line display. The second line of this display can be

* rogrammed by your installer to contain customized descriptors for the areas

f protection within your location. The OFF-NORMAL installer programming

mode is identified by a flashing READY (on LED models) and by the display

“PROGRAM MODE’ on LCD keypads.The panel is disabled inthis mode. Call

for service if this condition persists.

XL-3 USER’S MANUAL Page 4

/3.

KEYPAD CONVENTIONS

Throughoutthis users manualthe following conventions areusedto display the

keystrokes requiredto performthe functions.

BYPASS Key labeled BYPASS on keypad.

INSTANT

STAY

Key labeled INSTANT on keypad

Key labeled STAY on keypad.

CODE Key labeled CODE on keypad

l?JSJW

Four digit user code.

ARMING THE SYSTEM

ARMING the system will activate all portions of your Security System. Arming

can only be performedif all zones are READY.Forexample, if a protecteddoor

is open the system cannot be armed.

SYSTEMREADY

The system is readyto be armed if the READY indicator light ON (LED- basq?

keypads). On LCD-based keypads the following display will appear: ._ /’

1SYSTEM READY I

Ifthe system is ready,ARMING can be performed as follows;

ARMING PROCEDURE:

1. Enter your four digit user code intothe keypad: [USER]

The ARMED indicator light wili’now be lit and if you are leavingthe home you

may exit through a door designated by your installer as an exit/entry zone for a

fixed time period known as the exit delay.The entry exit times for your system

are as follows;

ENTRY: seconds- EXIT: seconds

LCD keypads will display the following message;

NOTE: For commercial systems (XLSB) installation, a 2 sec. Bell Test is

provided. Following receipt of the off-premise transmission from the control at

the central station, several beeps are heard from the keypad as confirmation.

If neither of these conditions occur, CALL FOR SERVICE.

I p’ I

NOTE: The system can be armedwithout the backup battery connected., ’

XL-3 USER’S MANUAL Page 5

SYSTEM NOT READY

Ifthe system is notreadyto be armedthe READYindicatorwill beOFF.On LED

based keypads the zone indicator lights will .display the zones which are

currently not re,ady.The condition of each zone indicator reflects the status of

each zone as follows;

ALARM Fast blinking

TROUBLE

Slow pulse

NOT

READY

Solid ON

BYPASS Slow blinking/low intensity

The LCD keypad a display indicates the system is not ready followed by

displays showingthe zone number anddescription of the faulted zone.

For example: SYSTEM NOT READY

Inthis example,thefront door is not ready(Zone1).Inorderto makethe system

ready determine which zones are not ready by observing the zone indicator

lights,orthe display sectionof the LCD keypad. Fromthe zone numberyoucan

find out which area of protection is not ready, Forexample, assume the zone 1

is not ready.Typically,this might meanthat a protecteddoor orwindow isopen.

Once the problems with each zone have been resolved the READY

lightwill appear andthe system can be armed.

To ARM the system when the system is NOT READY one of the following

actions are necessary:

Make the zone(s) ready. Determine which zones are not ready and

perform what is necessary to ready the zone(s) (example, close the

door or window, etc.), or

Bypass the zone(s) not ready. Bypassing should only be performed

if the zone cannot be made ready or intentionally will remain not

ready.Zones that are bypassed are not protected when the system

is armed.

XL-3 USER’S MANUAL Page 6’

’

/” /~ DISARMING

Disarmingthe security system will deactivate the system’s burglaryfunction.

This procedurecan also be usedto resetyour system if you accidentally set off

the system (example, o#ened a window while the system was armed, or

excessive amount of smoke activated fire protection system).

DISARM PROCEDURE: [US.ER] ’ Enter your user code.

IF NO ALARMS HAVE TAKEN PLACE

Upondisarming the ARMING indicator will go off.

The system display will reflect the current status. LCD keypads should display

the SYSTEM READY display.

IF ALARMS HAVE TAKEN PLACE

If alarms or other conditions such as system troubles have taken place sincr?

the initial system arming, they will appear on the display. The conditions thh. 1

have occurred appear in the zone display section of the keypad. LED based

keypads will reflect the current system status through the indicator lights as

follows; ALARM Fastblinking.

BYPASS Slowblinkinglowintensity.

TROUBLE Slowpulse

NOTREADY SolidON

Burglary alarms will be indicated with a STEADY sound through the keypad

while FIRE alarms will generate a pulsing sound.

LCD keypads will show the alarm conditions with a display as follows:

This display shows the zones in alarm. After entry of your four digit user code

the following display will appear:

If an intrusion has taken place while you were away, do not enter until the

location has been securedl!!. Call for helpfrom a neighbor’s phone.

Toclear the display of the alarmor troubleconditions and silence the

audible signal enter [USER] again. /-

. ..

XL~USER’SWU~LPage7

STAY

The STAYmodedeactivates any interior protection zones and you will be free

to walk throughout your location without activating the alarm system. To enter

the STAYmode, the system must be READY.(see previous descrtptlon).

STAYPROCEDURE:

STAY[USER]

Depress the STAYkey followed by your user code. After a successful STAY

arming the ARMED indicator will be lit. In addition, on the XL4612RM or

XL4612SM keypadthe RDY indicatorwill slowly blink. Onthe 7015 keypadthe

STAYindicatorwill be lit. On the LCD keypad the following display will appear;

the STAYmodeonly the external or perimeter burglary protection is active.

ou arefree to walk aroundthe residencewithout activating any of the interior

protection zones

Remember,you must DISARMthe systemto when youwant to leave

the premise.

. Note:The STAYoptionwill automatically be resetafterthe system is

disarmed.

INSTANT

The INSTANT mode arms the system and eliminates the entry time delay

interval.This modecould be usedso that if anyoneentersthrough an entry/exit

zone the alarm system will instantly activate. The system must be ready to

select the INSTANToption,

INSTANT PROCEDURE: INSTANT[USER]

Depressthe INSTANTkeyfollowed byyourusercode. Uponsuccessful arming,

the ARMED indicatorwill be lit. Additionally,keypadthe RDY lightwill blink, the

XL4612RMor XL4612SM. (NOTE:This blink isslightlyfasterthanthe indication

for the STAYmode.) On the 7015 keypads the INSTANT indicator will be ON.

The LCD keypad will contain the following message:

m loN:INSTANT

- . Note: The INSTANT option will automatically be reset after the

system is disarmed.

XL-3 USER’S MANUAL Page 8

-8.

INSTANT - STAY _* ‘( .-

x’

The INSTANTSTAY‘modearms the system with the characteristics ofboth the

- INSTANT and STAY.modes with the interior portions bypassed and the entry

delay suspended. The system must be READY to enterthis mode.

PROCEDURE:

INSTANT STAY [USER]

STAY LTANT [USER]

Depressthe INSTANTand STAYkeys in any orderfollowed by your user code.

After a successful INSTANTSTAYarmingthe ARMED indicatorwill be lit.

Additionally,the ROYlighton XL4612RM and4612SMkeypadswill blink slowly

then rapidly. On the 7015 keypads both the INSTANT and STAYlights will be

ON-The 7005 keypad will contain the following message;

yF5Fmiq r \

“.

. You cannot exit the premises through an exit/entry zone while the

system is armed in this mode.

9. BYPASS

Bypasses areperformedto eliminate burglary zonesthat arenot readyorfaulty

from activating the security system.

BYPASS PROCEDURE: BYPASS [USER] ZN

Depress the BYPASS key followed by your user code and two digit zone

number(01-12)to be bypassed. Example: BYPASS [USER] 02 bypasses zone

2. Ifthe zone has beenbypassed already,the sequencewill unbypassthe zone

(except if the system is armed and the unbypassed zone is still not ready).

Unbypass returnsthe zone to protected status.

After the bypass (or unbypass) command has been accepted the unit will emit

a continuous beep and bypassed zones appear in a slow blinking mode in the

zone status area on the XL4612RM, XL4612SM or 7015 keypads. The 7005

LCD keypad displays the zone bypasses as a secondary display after the

SYSTEM READY or SYSTEM NOT READY as shown below:

-1

If multiple zones are bypassed then more than one display will appears ,

Remember: Zones which are bypassed are not protected when the system is

armed.Temporaryusers (i.e.babysitters) shallbe shownthe bypassprocedure.

XL-3 USER’S MANUAL Page Q

Inhaltsverzeichnis

Andere Fire Burglary Instruments Sicherheitssystem Handbücher

Fire Burglary Instruments

Fire Burglary Instruments STAR XL4600DL Bedienungsanleitung

Fire Burglary Instruments

Fire Burglary Instruments XL-2T Bedienungsanleitung

Fire Burglary Instruments

Fire Burglary Instruments Star XL 4800 EZ Bedienungsanleitung

Fire Burglary Instruments

Fire Burglary Instruments OMNI-848 Handbuch

Fire Burglary Instruments

Fire Burglary Instruments LEGEND series Bedienungsanleitung

Fire Burglary Instruments

Fire Burglary Instruments XL1236 Installationshandbuch

Beliebte Sicherheitssystem Handbücher anderer Marken

Inner Range

Inner Range Concept 2000 Bedienungsanleitung

Climax

Climax Mobile Lite R32 Montageanleitung

CADDX

CADDX NX-6 Bedienungsanleitung

FBII

FBII XL-31 Series Bedienungsanleitung

Johnson Controls

Johnson Controls PENN Connected PC10 Bedienungsanleitung

Aeotec

Aeotec Siren Gen5 Bedienungsanleitung

Blaupunkt

Blaupunkt SA 2700 Bedienungsanleitung

IDEAL

IDEAL Accenta Betriebsanleitung

AJAX

AJAX DoubleButton Bedienungsanleitung

Swann

Swann SW-P-MC2 Bedienungsanleitung

Ecolink

Ecolink Siren+Chime Bedienungsanleitung

Digital Monitoring Products

Digital Monitoring Products XR150 Bedienungsanleitung

EDM

EDM Solution 6+6 Wireless-AE Bedienungsanleitung

Highway Safety Group

Highway Safety Group EA401 Bedienungsanleitung

Siren

Siren LED GSM Bedienungsanleitung

Detection Systems

Detection Systems 7090i Montageanleitung

Se-Kure Controls

Se-Kure Controls MicroMini SK-4841 Bedienungsanleitung

Siemens

Siemens FDM273 Bedienungsanleitung
