Firesense 63689 Bedienungsanleitung

WARNING

Before returning to your retailer, our Florida-based customer service team is available to help:

866

10112021

(/(&7521,&,*1,7(5

5HTXLUHV$$$%DWWHU\QRWLQFOXGHG

Jackson Round Aluminum LPG Fire Pit .YJR63689

M N R

Stud (8x30mm)

Qty: 5

(4 for assy. +1 extra)

Washer/Spring

Washer/Nut (8mm)

Qty: 5

(4 for assy. +1 extra)

Stud (6x40mm)

Qty: 13

(12 for assy. +1 extra)

Bolt (6x16mm)

Qty: 4

(3 for assy. +1 extra)

Washer (M6)

Qty: 16

(15 for assy. +1 extra)

Spring Washer (M6)

Qty: 13

(12 for assy. +1 extra)

Nut (6mm)

Qty: 13

(12 for assy. +1 extra)

Plastic Cap (M8)

Qty: 4

Screwdriver

Qty: 1

Wrench

Qty: 1

Hex Wrench

Qty: 1

Spare Adjustable Foot

Qty: 1

1Assemble the ﬁre pit base: Locate Door Panel D, 3 Side

Panels E, Door Frame Leg F, and 2 Support Legs G.

Screw Studs O into the holes in the sides of all four Legs,

including the leg pre-assembled to the door.

Beginning with Door Frame Leg F join the Legs and Panels

together by ﬁtting the holes on the sides of the Side Panels onto

the Studs installed earlier.

To secure the Legs to the Panels, place a Washer Q, then a

Spring Washer Ronto each Stud, then thread a Nut S onto

each Stud. Do not tighten the hardware until the entire base is

assembled. Then, ﬁrmly tighten all Nuts with the Wrench V,

but DO NOT OVERTIGHTEN.

Nut

Leg

Panel

Spring

Washer

Hardware Used:

Once all panels are bolted together,turn the table base

upside-down,then attach Tank Support Bar to Leg F/Gby

aligning the holes at each end of Tank Support Bar with the

holes at the bottom of each Leg.

Insert Bolt Pthrough Washer Qthen into holes.Tighten gently

with Hex Wrench W. Then attach Tank Support Ring to the leg

of Door Panel Dby aligning the hole in front of Tank Support

Ring with the hole in the leg.

Insert Bolt Pthrough Washer Qand then into the hole. Tighten

with Hex Wrench W.

Place Table Top Cso underside faces up. Screw 4 Studs Minto

the holes on the Table Top using Screwdriver U.

Then carefully turn the assembled ﬁre pit base upside-down

and align the holes in the top of the Legs with the Studs

in the Table Top.

Place the holes over the Studs and secure each with Washer/

Spring Washer/Nut Nas illustrated.

Tighten with Wrench V. Then place Plastic Caps T over Nuts.

5Fire Glass Burner

Removable Burner

Cover Burner.

Tank Access Door

Burner Control

(controls should

face door, rotated

toward left side

of opening.)

6Connect hose and regulator to cylinder. The propane gas and

cylinder are sold separately. Use a standard 20lb propane cylinder

have this book.

Storage of an appliance indoors is permissible only if the cylinder is

disconnected and removed from the appliance. A cylinder must be

stored outdoors in a well-ventilated area out of the reach of children. A

disconnected cylinder must have dust caps tightly installed and must not

be stored in a building, garage or any other enclosed area. The maximum

inlet gas supply pressure: 250 , the minimum inlet gas supply

pressure: 5 .

for automatic operation at ratings less than full input rating. The pressure

regulator and hose assembly supplied with the appliance must be used.

The installation must conform with local codes, or in the absence of local

codes, with national fuel gas code, ANSI Z223.1/NFPA54, natural gas and

propane Installation Code, CSA B 149.1, or propane storage and handling

code, B149.2.

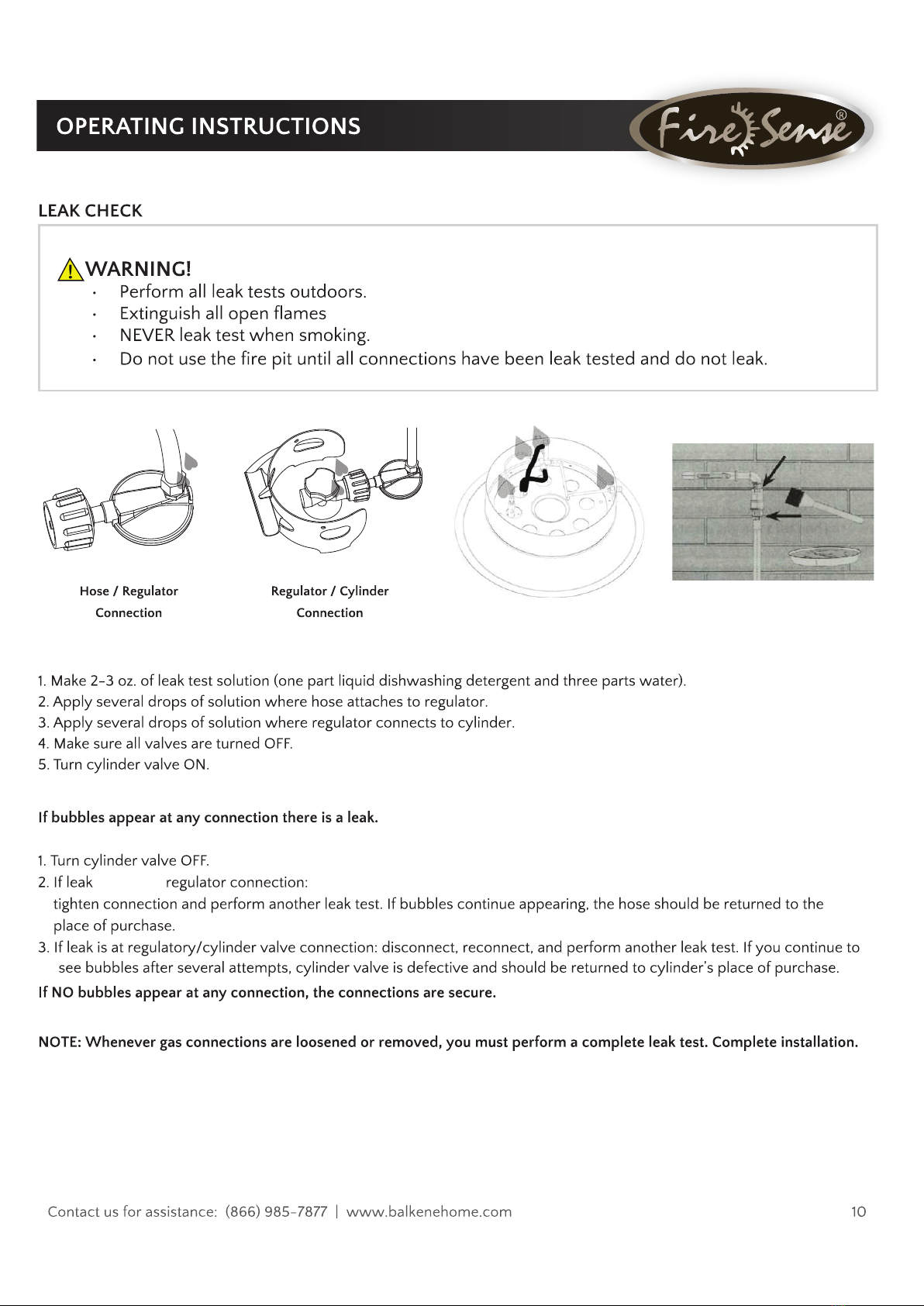

is at hose/
