Firich Enterprise BP-325 Bedienungsanleitung

User's Manual

BP-325

Version 1.1

All other brand names are registered trademarks of their respective owners.

reserves the right to make improvements of the product described in this manual at any

time without notice.

No part of this manual may be reproduced, copied, translated, or transmitted in any form

or by any means without the prior written permission from Firich Enterprise Co., Ltd.

Information provided in this manual is intended to be accurate and reliable. However,

Firich Enterprise Co., Ltd assumes no responsibility for its use, nor for any infringements

upon the rights of third parties, which may result from its use.

The material in this document is for product information only and is subject to change

without notice. While reasonable efforts have been made in the preparation of this

document to assure its accuracy, Firich Enterprise Co., Ltd, assumes no liabilities

resulting from errors or omissions in this document, or from the use of the information

contained herein.

Safety and Warranty

1. Read these safety instructions carefully.

2. Keep this user's manual for later reference.

3. Disconnect this equipment from any AC outlet before cleaning. Do not use liquid or spray

detergents for cleaning. Use a damp cloth.

4. For pluggable equipment, the power outlet must be installed near the equipment and must be

easily accessible.

5. Keep this equipment away from humidity.

6. Put this equipment on a reliable surface during installation. Dropping it or letting it fall could

cause damage.

7. The openings on the enclosure are for air convection. Protect the equipment from

overheating. DO NOT COVER THE OPENINGS.

8. Make sure the voltage of the power source is correct before connecting the equipment to the

power outlet.

9. Position the power cord so that people cannot step on it. Do not place anything over the

power cord.

10. All cautions and warnings on the equipment should be noted.

11. If the equipment is not used for a long time, disconnect it from the power source to avoid

damage by transient over-voltage.

12. Never pour any liquid into an opening. This could cause fire or electrical shock.

13. Never open the equipment. For safety reasons, only qualified service personnel should open

the equipment.

14. If any of the following situations arises, get the equipment checked by service personnel:

a. The power cord or plug is damaged.

b. Liquid has penetrated into the equipment.

c. The equipment has been exposed to moisture.

d. The equipment does not work well, or you cannot get it to work according to the user’s

manual.

e. The equipment has been dropped and damaged.

f. The equipment has obvious signs of breakage.

15. DO NOT LEAVE THIS EQUIPMENT IN AN UNCONTROLLED ENVIRONMENT WHERE

THE STORAGE TEMPERATURE IS BELOW -20° C (-4°F) OR ABOVE 60° C (140° F). IT

MAY DAMAGE THE EQUIPMENT.

Table of Content



Chapter1 1

Introduction 1

BP-325 Characteristics………………………………………………………………………………. 1

BP-325 Dimensions…………………………………………………………………………………… 2

Rear I/O Panel…………………………………………………………………………………………..3

Packing List……………………………………………………………………………………………. 4

Chapter2 5

Hardware Installation and Upgrading 5

2.5 inches Hard Disk Drive Installation…………………………………………………………… 5

Memory (DDRIII RAM) Installation…………………………………………………………………. 7

Cash Drawer Installation…………………………………………………………………………….. 8

Chapter3 9

Software Installation and Setup 9

Driver Download from FEC Website Model………………………………………………………. 9

Intel ATOM D525 Chipset Installation Utilities for Windows XP…………………………….. 10

VGA Driver Installation……………………………………………………………………………... 12

LAN Driver Installation……………………………………………………………………………… 15

Audio Driver Installation…………………………………………………………………………… 16

Wireless LAN (optional) Driver Installation…………………………………………………….. 17

Chapter4 20

Specifications 20

BP-325 System Specifications……………………………………………………………………. 20

I/O Pin Definition…………………………………………………………………………………….. 21

Chapter5 25

Troubleshooting 25

Display Shows “No Signal” Before Loading into Windows OS…………………………….. 25

Cannot Detect HDD…………………………………………………………………………………. 25

Cash Drawer Port Is Not Functioning Properly………………………………………………… 25

BP-325 System manual version 1.1

About this Manual

This manual contains all the information you need to set up and use BP-325.

Chapter 1 Provides an introduction to BP-325 and this manual.

Chapter 2 Provides all necessary information for all hardware setup.

Chapter 3 Provides the necessary information for installing for chipset and its accessories.

Chapter 4 Lists all BP-325 specifications.

Chapter 5 Troubleshooting of BP-325.

BP-325 System manual version 1.1

Chapter1

Introduction

BP-325 Characteristics

BP-325, with Atom D525 1.8GHz and great heat dissipation ability for any

harsh environment, is specially designed for POS application. Its stylish

mechanical design with feature of easy maintenance and abundant I/O

access make it a decent choice for POS application.

System: Equipped with Intel D525 and ICH8M chipset.

Housing: BP-325 is made with strong metal housing suitable

Extensibility: Low profile design with abundant I/O access, BP-325 is ideal for

connecting a variety of system devices:

DC 12V out supported — For Display

Abundant I/O allowed the box for different kinds of peripherals or devices

BP-325

BP-325 System manual version 1.1

BP-325 Dimensions

BP-325 System manual version 1.1

Rear I/O Panel

I/O Port Connector Type Description

DC-12V in AC Power

Connector AC power in connector

DC-12V out 12V DC-out

connector This DC-out port can sustain the power of the

monitor or any other devices which need 12V DC

power input.

VGA D-Sub 15 Pin

Connector The VGA port is used for connecting LCD or CRT

monitors

LAN LAN RJ45

Connector The LAN port is applied to hook the terminal to a

local area network.

USB Port USB Type A Standard USB connector for external device

LPT Port D-Sub 25 Connector The parallel port LPT1 can be used to connect

parallel devices, such as a printer.

K/B / Mouse PS/2 Keyboard

Connector The port is for connecting an external keyboard or

mouse.

Cash Drawer RJ11 Connector Cash Drawer Connector, 12V supported

COM1,

COM2,

COM3,

COM5, COM6

D-Sub 9 Pin

Connector The serial ports can be used to connect serial

devices.

Line-Out Earphone connector This port is used for audio-out

MIC in Earphone connector This port is used for Microphone

COM4 RJ-45 Connector The serial ports can be used to connect serial

devices or VFD.

Wireless

Antenna Antenna Connector This port is for Wireless Antenna

BP-325 System manual version 1.1

Packing List

The following items are standard with BP-325:

AC Power Cord x 1

12V DC 60W Power Adaptor

BP-325 System manual version 1.1

Chapter2

Hardware Installation and Upgrading

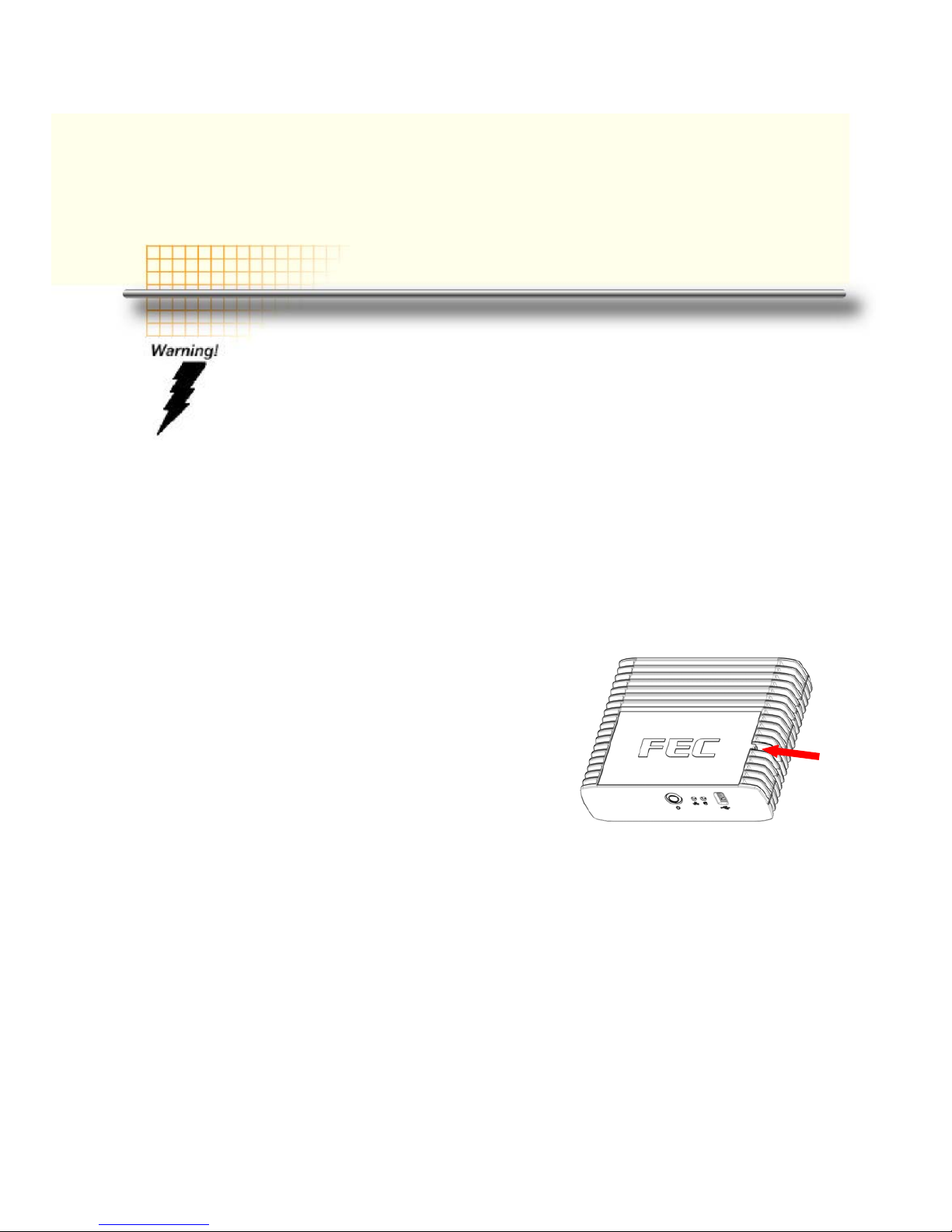

2.5 inches Hard Disk Drive Installation

A standard BP-325 comes with a 2.5” hard disk drive (HDD), unless it is pre-requested.

BP-325 (2.5” HDD or other storage disassembly process)

1. Turn off the system and remove power cable from main unit.

2. Unlock the screw and open the HDD door.

Do not remove the top cover until you have verified that no power is

supplied to the system. The system must be switched off and the power

cord must be unplugged. Every time you service the system, you should

be aware of this.
