Fisher & Paykel OR90SDBSX Montageanleitung

UAE

Installation instructions

and User guide

Freestanding cooker

OR90SDBSX models

Safety and warnings

Installation instructions

Using your seven-function oven for the first time

Setting the clock

Using your oven

Cooking functions

Using the rotisserie

Using the timer

Automatic cooking

Using your ceramic glass cooktop

Cooktop frequently asked questions

Cooktop troubleshooting

Care and cleaning

Warranty and service

Important!

SAVE THESE INSTRUCTIONS

The models shown in this document may not be available in all markets and are

subject to change at any time. For current details about model and specification

availability in your country, please go to our website www.fisherpaykel.com or

contact your local Fisher & Paykel dealer.

Contents

2Safety and warnings

Important safety precautions

General

To avoid hazard, follow these instructions carefully before installing or using this product.

Please make this information available to the person installing the product as it could

reduce your installation costs.

Installation must comply with your local building and electricity regulations.

Failure to install the cooker correctly could invalidate any warranty or liability claims.

Some appliances have a protective lm. Remove this lm before using the cooker.

WARNING!

Electrical Shock Hazard

If the ceramic glass cooktop surface becomes cracked, switch the appliance

o at the mains power supply and call an Authorised Service Agent.

Always disconnect the cooker from the mains electricity supply before

carrying out any maintenance operations or repairs.

Failure to do so may result in death or electrical shock.

Installation

WARNING!

Cut Hazard

Take care - panel edges are sharp.

Failure to use caution could result in injury or cuts.

Safety and warnings

Electrical

This cooker is to be installed and connected to the electricity supply only by an authorised

person.

If the installation requires alterations to the domestic electrical system call, a qualified

electrician. The electrician should also check that the electrical system is suitable for the

electricity drawn by the cooker.

The appliance must be connected to the mains, checking that the voltage corresponds to the

value given in the rating plate and that the electrical cable sections can withstand the load

specified on the plate.

A suitable disconnection switch must be incorporated in the permanent wiring, mounted

and positioned to comply with the local wiring rules and regulations. The switch must

be of an approved type installed in the fixed wiring and provide a 3 mm air gap contact

separation in all poles in accordance with the local wiring rules.

The switch must always be accessible.

The power supply cable must not touch any hot parts and must be positioned so that it does

not exceed 75 °C at any point.

To connect the cooker to the mains, do not use adapters, reducers or branching devices as

they can cause overheating and burning.

This cooker must be connected to a suitable double pole control unit adjacent to the cooker.

No diversity can be applied to this control unit.

If the electrical supply cord is damaged, it must only be replaced by an authorised person.

The cooker must be earthed.

4Safety and warnings

Operation

Your freestanding cooker has been carefully designed to operate safely during normal

cooking procedures. Please keep the following guidelines in mind when you are using it:

WARNING!

Explosion Hazard

Do not store ammable materials such as gasoline near the cooktop.

Do not store ammable material in the oven or storage compartment.

Do not spray aerosols near the cooktop during use.

Failure to follow this advice may result in death or serious injury.

WARNING!

Electrical Shock Hazard

Switch the power to the cooker o at the wall before replacing fuses or the

oven lamp.

If the cooktop surface is cracked, switch the appliance o at the wall. Contact

an accredited service provider to repair it, and do not use until it has been

repaired.

Failure to follow this advice may result in death or electrical shock.

WARNING!

Hot Surface Hazard

Accessible parts may become hot when this cooker is in use.

To avoid burns and scalds keep children away.

Do not touch the cooktop surface when the hot surface indicator lights are on.

Do not touch hot surfaces inside the oven.

Use oven mitts or other protection when handling hot surfaces such as oven

shelves or dishes.

Handles of saucepans may be hot to touch. Check saucepan handles do not

overhang other cooking zones that are on. Keep handles out of reach of

children.

Take care when opening the oven door.

Let hot air or steam escape before removing or replacing food.

Before cleaning, turn the cooker o and make sure it is cool.

Failure to follow this advice could result in burns and scalds.

Safety and warnings

Important safety precautions

Never leave the appliance unattended when in use. Boilover causes smoking and greasy

spillovers that may ignite.

Isolating switch: make sure this cooker is connected to a circuit which incorporates an

isolating switch providing full disconnection from the power supply.

Household appliances are not intended to be played with by children.

Children of less than 8 years old must be kept away from the appliance unless continuously

supervised. This appliance can be used by children aged from 8 years and above, and

persons with reduced physical, sensory or mental capabilities or lack of experience and

knowledge, if they have been given supervision or instruction concerning the use of the

appliance in a safe way and they understand the hazards involved. Cleaning and user

maintenance shall not be done by children without supervision.

Safe food handling: leave food in the oven for as short a time as possible before and after

cooking. This is to avoid contamination by organisms which may cause food poisoning. Take

particular care during warmer weather.

Do not place aluminium foil, dishes, trays, water or ice on the oven floor during cooking as

this will irreversibly damage the enamel.

Do not line the walls with aluminium foil.

Do not stand on the oven door or cooktop, or place heavy objects on them.

Do not use harsh abrasive cleaners or sharp metal scrapers to clean the ceramic glass

cooktop and the oven door glass since they scratch the surface, which may result in

shattering of the glass.

Some heavy-duty and nylon scourers can scratch the ceramic glass cooktop. Always read the

label to check if your scourer is suitable for cleaning ceramic glass cooktops.

Do not use a steam cleaner to clean any part of the cooker.

Do not use glassware on the ceramic glass cooktop. Do not use pans with rough circular

machined base as these may scratch the glass surface.

Do not place aluminium foil or plastic dishes on the ceramic glass cooktop.

Do not let large saucepans or frying pans overlap the bench as this can deflect heat onto

your benchtop and damage the surface.

Do not let large saucepans, frying pans or woks push any other pans aside. This could make

them unstable or deflect heat onto your benchtop and damage the surface.

Handles of saucepans may be hot to touch. Check saucepan handles do not overhang other

elements that are on. Keep handles out of reach of children.

If the electrical supply cord is damaged, it must only be replaced by an authorised person.

This cooker is not to be used as a space heater.

Do not drop heavy objects onto the cooktop.

6Installation instructionsInstallation instructions

Cooker overall dimensions [mm]

• height: min 892 - max 917

• product width: 898

• depth: 600

• cavity width 900

Fig. 1 Dimensions and

distances from cooker

Dimensions and clearances

The cooker must be installed no less than 50 mm away from any side walls which exceed the

height of the cooktop.

The cabinetry surrounding the cooker must be made of heat-resistant material and must be able

to withstand temperatures of 65 °C above room temperature.

Do not install the cooker near flammable materials (eg curtains).

If you stand the cooker on a pedestal, make sure you provide safety measures to keep it in place.

Installing the cooker above a plinth without fitting the adjustable feet

In that case the cooker stands directly above the plinth; make sure you provide safety measures

to keep it in place. Revise the installation dimensions accordingly considering that the feet have

the following measures: min 155 mm - max 180 mm.

Installation instructions

Fig. 4 Top of feet to be

screwed in tightly

256.5 - 281.5

mm (*)

(*) Depending on

feet adjustment

Fitting the adjustable feet

Important!

It is possible to install the cooker above a plinth without fitting the adjustable feet.

In that case the cooker will stand directly above the plint; make sure you provide safety measures to

keep it in place.

Fit the adjustable feet before using the cooker.

Rest the rear of the cooker on a piece of the polystyrene packaging, exposing the base for

fitting the feet.

Fit the four feet by screwing them tight into the support base as shown.

Levelling the cooker

Level the cooker by screwing the feet in or out,

as shown in Fig.5.

Fig. 3 Location of feet Fig. 5 Levelling the cooker

Locating the area for electrical connection

Dotted line showing

the position of the

cooker when installed

Area for electrical

connection

Fig. 2 Area for electrical connection

Installation instructionsInstallation instructions

Important!

To prevent damaging the adjustable feet, ensure

the cooker is always lifted by two people.

Do not lift the cooker by the door handle.

DO NOT DRAG the cooker. Lift the feet clear of the

floor.

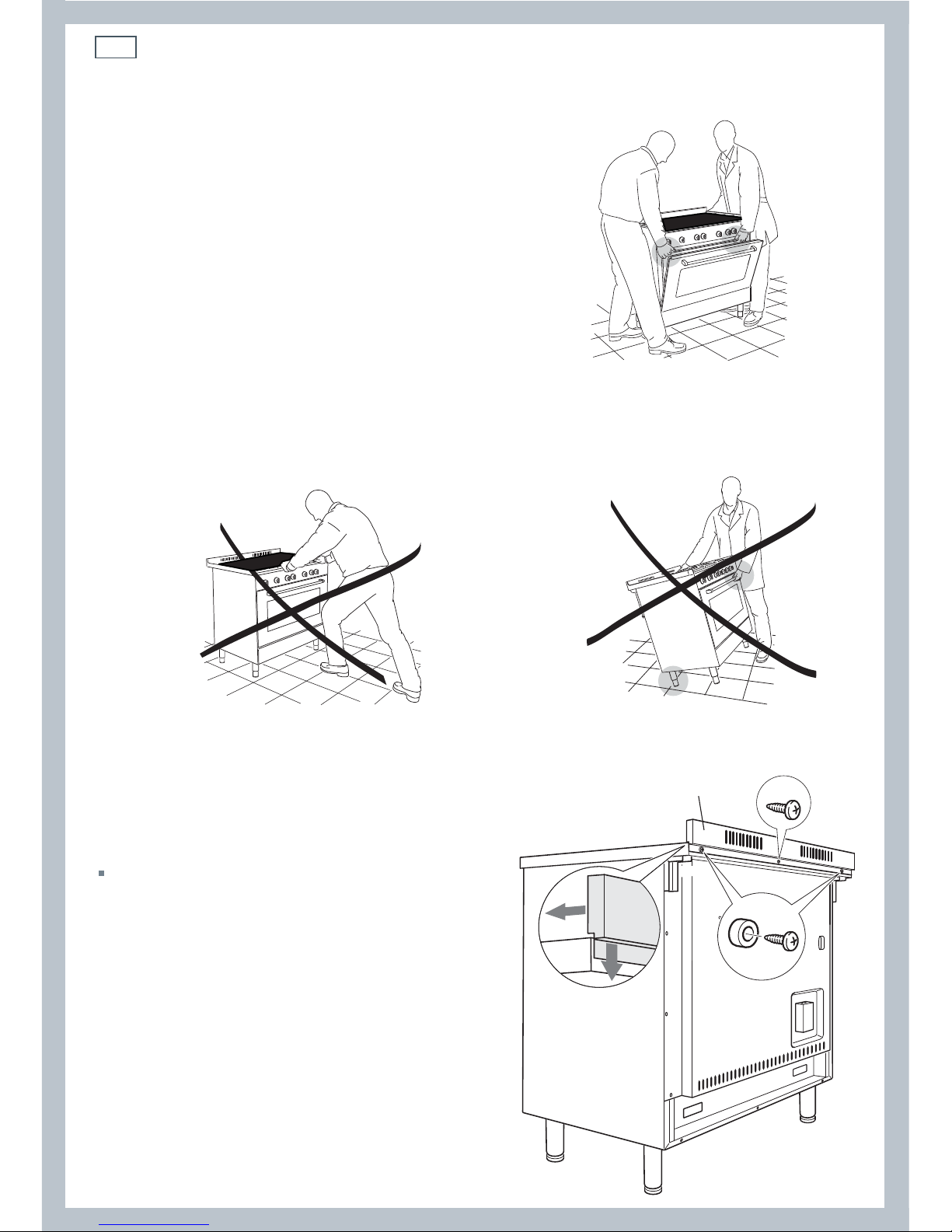

Moving the cooker

Fig. 6 Correctly lifting the cooker

Fig. 8 Incorrectly lifting the cookerFig. 7 Incorrectly moving the cooker

Fixing the backguard

Before installing the cooker, assemble the

backguard “C” .

The backguard “C” can be found packed

at the rear of the cooker.

Before assembling, remove any protective

film/adhesive tape.

Remove the two spacers “A” and the

screw “B” from the rear of the cooktop.

Assemble the backguard as shown and

fix it by screwing the central screw “B”

and the spacers “A”.

Fig. 9 Fixing

the backguard
