Installation instructions

and User guide

Vented dryer

DE60F60EW1 model

Contents

Safety and warnings 2

Installation instructions 4

Before drying 6

Selecting a programme and operating your machine 7

Maintenance and cleaning 12

Troubleshooting 13

Manufacturer’s Warranty 14

Customer Care 16

Important!

SAVE THESE INSTRUCTIONS

The models shown in this User Guide may not be available in all markets and are

subject to change at any time. For current details about model and specification

availability in your country, please visit our local website listed on the back cover

or contact your local Fisher & Paykel dealer.

Caution, risk of fire – this is a safety symbol.

Failure to follow the warnings outlined in these user instructions can cause

a fire hazard.

2Safety and warnings

WARNING!

Fire Hazard

Please read the following information. Otherwise, there may be the

risk of personal injury or material damage. Moreover, any warranty

and reliability commitment will become void.

General safety

Never place your machine on a carpet covered floor. The lack of airflow from below your

machine may cause electrical parts to overheat.

Your machine is designed to stop operating in the event of power resuming after a power failure.

You must press START/PAUSE/CANCEL button to resume the programme.

Press the START/PAUSE/CANCEL button for 3 seconds to cancel the programme

(See ‘Ending the programme through cancelling’ page 11).

Your machine should be operated at temperatures between +5°C and +35°C.

This appliance is not intended for use by persons (including young children) with reduced

physical, sensory or mental capabilities, or lack of experience and knowledge, unless they

have been given supervision on instruction concerning the use of the appliance by a person

responsible for their safety.

First use

When operating your machine for the first time, partly load it with wet items (eg old towels) and

let it run approximately for 15 minutes.

You may smell an unpleasant odour and excessive fibre/lint may accumulate during first

drying cycle.

For safety and performance purposes, clean the filter after each drying cycle.

Intended use

This product has been designed for home use.

The appliance may only be used for drying textiles that are marked accordingly.

Do not operate this product without the lint filter in place.

Do not dry unwashed items in the dryer.

Safety instructions

Unplug the machine when it is not in use.

Never wash down the appliance with water. There is the risk of electric shock!

Never touch the plug with wet hands. Never pull from the cable to unplug the machine.

Do not operate the machine if the power cord or plug is damaged.

Never attempt to repair the machine yourself.

For malfunctions that cannot be solved by information in the User Guide:

Turn off and unplug the appliance and contact a Fisher & Paykel Authorised Repairer.

Lint must not be allowed to accumulate around the tumble dryer.

To minimise the risk of fire in a tumble dryer, the following should be observed:

Items that have been soiled with substances such as cooking oil, acetone, alcohol, petrol,

kerosene, dry cleaning solvents, spot removers, turpentine, waxes or wax removers, should be

washed in hot water with an extra amount of detergent before being dried in the tumble dryer.

Oil-affected items can ignite spontaneously, especially when exposed to heat sources such as

in a tumble dryer. The items become warm, causing an oxidation reaction in the oil. Oxidation

creates heat. If the heat cannot escape, the items can become hot enough to catch fire. Piling,

stacking or storing oil-affected items can prevent heat from escaping and so create a fire hazard.

If it is unavoidable that fabrics that contain vegetable or cooking oil or have been contaminated

by hair care products be placed in a tumble dryer they should first be washed in hot water with

extra detergent - this will reduce, but not eliminate, the hazard.

The ‘cool down’ cycle of tumble dryers should be used to reduce the temperature of the items to

ensure they will not be damaged. They should not be removed from the tumble dryer or piled or

stacked while hot.

Important!

Never stop the tumble dryer before the end of the drying cycle unless all items are quickly

removed and spread out so that the heat can dissipate.

The dryer should not be used for items cleaned using industrial chemicals.

Items containing foam rubber (also known as latex foam) or similarly textured rubber

like materials should not be dried in a tumble dryer.

Foam rubber materials can, when heated, produce fire by spontaneous combustion.

Fabric softeners or similar products should not be used in a tumble dryer to eliminate the effects

of static electricity unless this practice is specifically recommended by the manufacturer of the

fabric softener or product.

Undergarments that contain metal reinforcements should not be placed in a tumble dryer.

Damage to the tumble dryer can result if metal reinforcements come loose during drying.

Plastic articles such as shower caps and waterproof textiles should not be placed in a tumble

dryer.

Rubber-backed articles, fibre glass, clothes fitted with foam rubber pads, pillows, galoshes and

rubber-coated tennis shoes should not be placed in a tumble dryer.

If there are children in your house...

Electrical appliances may be dangerous for children. Keep children away from the machine when

it is operating. Do not let them tamper with the machine.

Close the loading door when you leave the area where the machine is located.

Young children should be supervised to ensure that they do not play with the appliance.

Safety and warnings

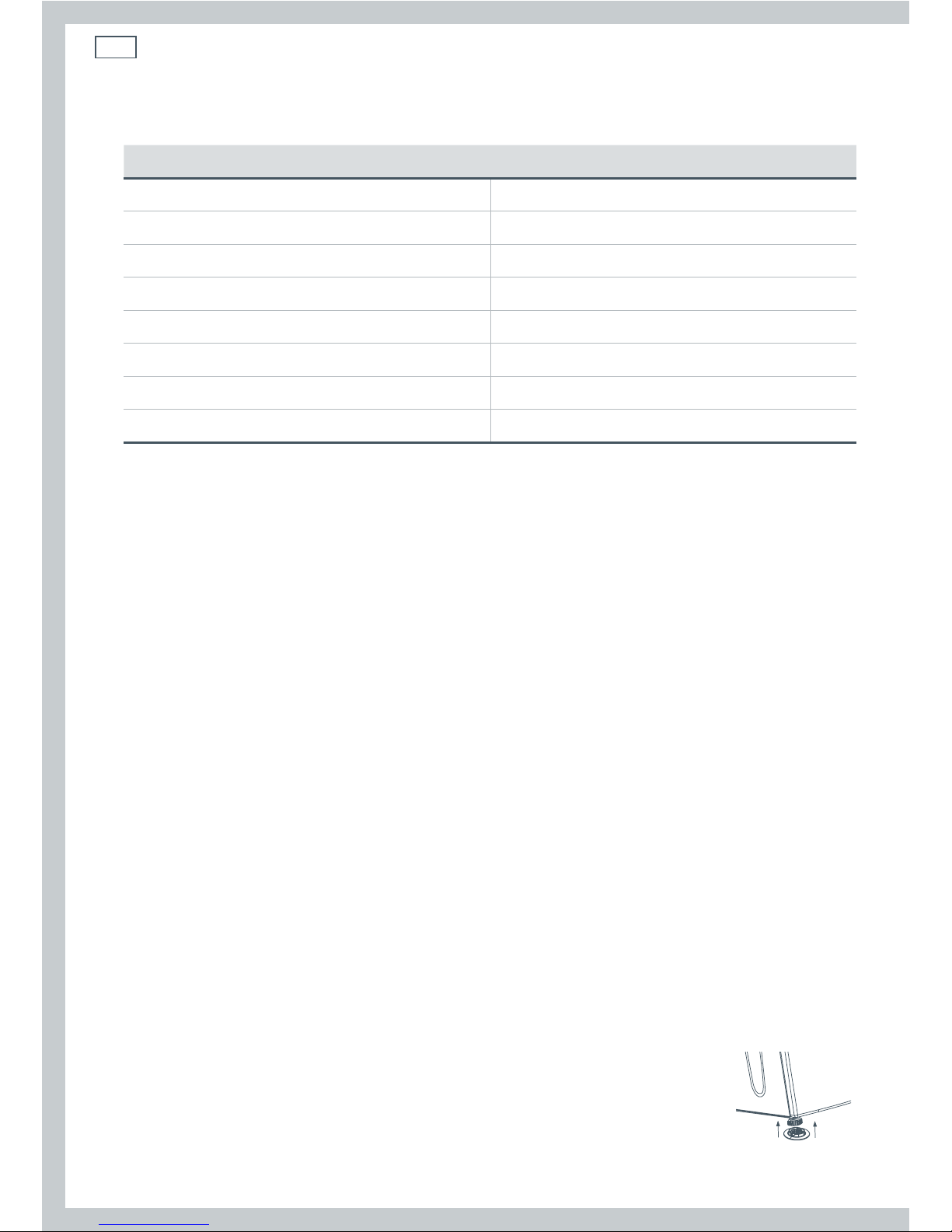

Technical specifications

Models Specification

Height / Height for built-under installation (mm) 850 / 820

Width (mm) 595

Depth / Depth for built-under installation (mm) 540

Height adjustment of feet (mm) 5

Weight, unpacked (kg) 29

Voltage 230 - 240V, 50Hz

Connected load 2000 - 2200W

Fuse protection 16A

The proper location

Install your machine in environments which have no risk of freezing and in a stable and

level position.

Do not install the machine behind lockable door, a sliding door, or a door that is hinged on the

opposite side to that of the dryer, in such a way that the door of the machine cannot be opened fully.

Do not place your machine on a carpet covered floor, a long pile rug or on similar surfaces.

Operate your machine in a well ventilated, dust-free environment.

Make sure that your machine is not placed on the power cable.

Place it at least 30 mm away from the edges of other furniture and walls.

Place the machine on a sound floor.

A special part (Part No. 791746) must be used if the machine is to be installed under a counter or

in a cupboard. This replaces the top trim and must be installed by a Fisher & Paykel Authorised

Repairer. Never operate the machine without the top trim.

If the machine is to be placed on top of a washing machine, the approximate weight together

may reach 180 kg when they are full.

A stacking kit should be used between the products, fitted to the washing machine.

Stacking Kit White Part No. 790691

Levelling

In order to ensure that your machine operates quietly and vibration-free, it must stand level and

balanced on its feet.

Balance the machine by adjusting the front feet. Loosen the feet by hand, and adjust them until

the machine stands level and does not rock.



Never unscrew the adjustable feet from their housings.

Two plastic pieces supplied together with the Installation Instructions and User

Guide prevent your machine from slipping on wet and slippery surfaces. Tilt your

machine to backwards to install these plastic parts. Fit the plastic parts to the

front adjustable feet. Press on the plastic parts to fix them in their places. Check

the balance of your machine again and readjust the adjustable feet if necessary.

Installation instructions

Fig.1 Fitting the

non-slip foot caps

Hose Pipe

Maximum length 4 m 5 m

1 elbow 45 -1.0 m -0.3 m

1 elbow 90 -1.8 m -0.6 m

1 elbow 90 short –-2.7 m

1 wall passage -2.0 m -2.0 m

Fig.2 Fitting the vent hose

Ventilation hose and connection

The ventilation hose assures exhausting of the air from inside the machine. The vented dryer has

one air outlet. Stainless sheet metal or aluminium pipes can be used instead of the hose.

The diameter of the pipe to be used should be of 100 mm minimum.

Maximum hose and pipe lengths are given in the table below.

Each elbow and other passages should be subtracted from the above maximum length.

Connect the air outlet hose to the hose spacer piece by turning it anti-clockwise in order to

connect the ventilation hose. Make the hose passages as shown below.

Installation instructions

The exhaust of humid air from the dryer into the room is not recommended.

The air outlet hose must be extended directly to the outdoors.

The ventilation hose can be routed outdoors via a window or it can be connected to the air

outlet in the bathroom.

To prevent water accumulation in the hose, make sure that it is not folded on the floor.

The air ventilation hose should not be connected to the chimney of a stove or a fireplace.

The exhausted air must not be discharged into a flue which is used for exhausting fumes from

appliances burning gas or other fuels.

Ensure that the air inlet openings are clear of obstruction.

Do not operate your machine at the same time with heaters such as a coal or gas stove.

Ensure adequate ventilation is provided to avoid the backflow of gasses into the room from

appliances burning other fuels including open fires.

Electrical connection

Connect the machine to an earthed outlet protected by a fuse of suitable capacity.

Important!



Connection should comply with national regulations.



Power cord plug must be within easy reach after installation.



The voltage and the allowed fuse protection are specified in the section ‘Technical specifications’

(page 4).



The stated voltage must match with your mains voltage.



Connection via extension cords or multi-plugs should not be made.



The main fuse and switches must have a contact distance of minimum 3 mm.



If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or

similarly qualified persons in order to avoid a hazard.



The appliance must not be operated unless it is repaired! There is the risk of electric shock!

6Before drying

Always follow the advice on the garment labels. With this dryer, dry only items where the label

states that they are suitable for drying in a dryer by selecting the appropriate programme.

Laundry items with metal attachments such as belt buckles and metal buttons can damage

your machine.

Do not dry items such as woollen, silk garments and nylon stockings, delicate embroidered

fabrics, garments with metal accessories and items such as sleeping bags in the machine.

Garments made of delicate and valuable fabrics as well as lace curtains can be creased. Do not

dry these in your machine!

Do not dry items made of hermetic fibres such as pillows and quilts in the dryer.

Do not dry clothes containing rubber in the machine.

Do not dry clothes which have been exposed to petroleum, oil, combustible or explosive agents

in the machine even if they are washed beforehand.

Overly wet laundry or laundry that is dripping water must not be put into the machine.

Preparing clothes to be dried

All laundry must be spun at the highest possible spin speed your washing machine allows for the

textile type.

Laundry may be tangled after washing. Separate items before placing them into your dryer.

Sort your laundry according to their types and thicknesses. Dry the same types of items together.

Correct load capacity

The maximum capacity of the dryer is 6 kg.

Adding laundry to the machine more than the level shown in Fig.4 is

not recommended.

The drying performance of the product will decrease when the machine

is overloaded.

Overloading may also cause damage to the product and your clothes.

Place your items into the drum loosely so that they will not get tangled.

Large pieces may bunch-up during drying. Stop the machine 1 – 2 times

the during the drying process to separate bunched-up laundry.

Loading door

Open the loading door. Place laundry items loosely into the machine. Push the loading door to

close. Ensure that no items are caught in the door.

Fig.3 Garment care indicators

Fig.4 Loading the laundry

Selecting a programme and operating your machine

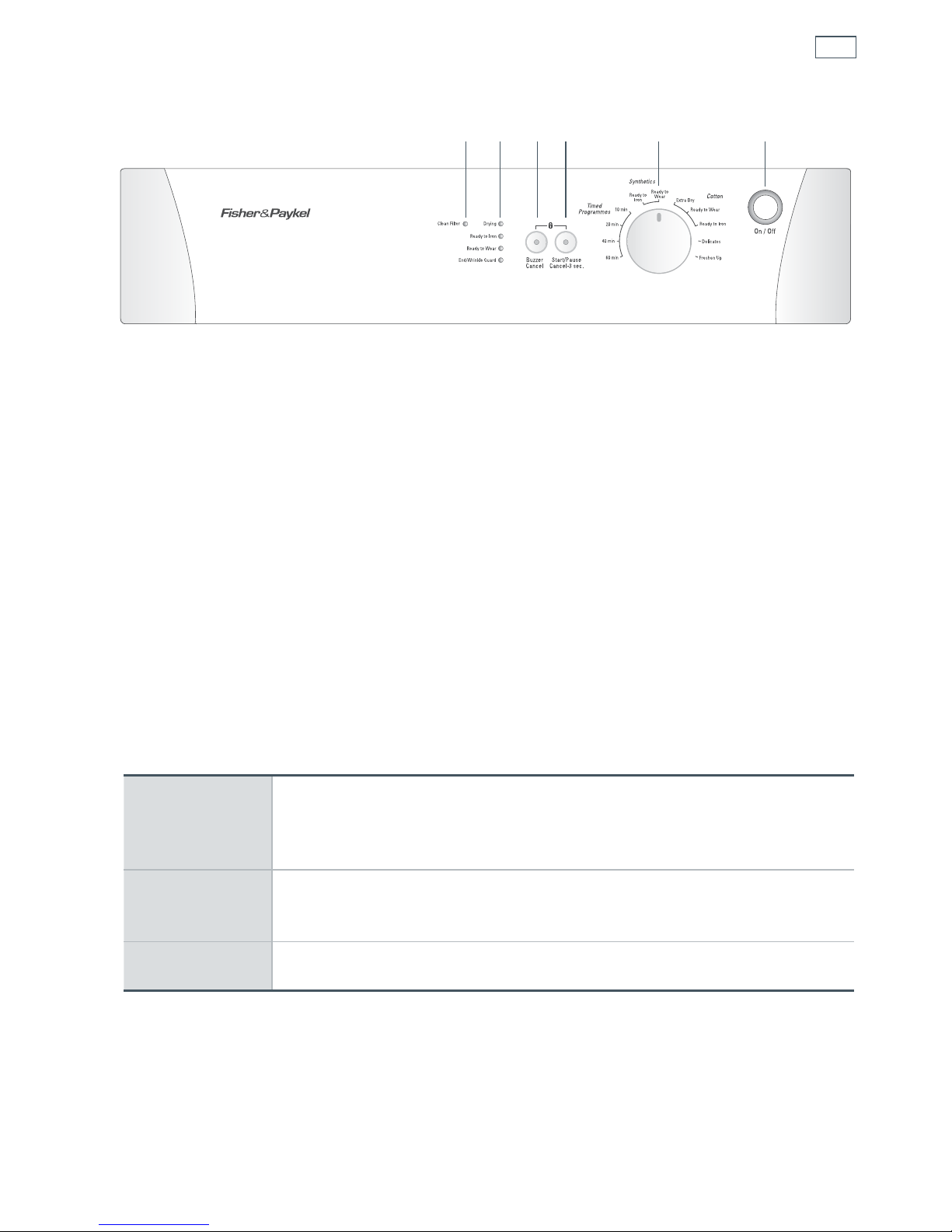

Control panel

Turning the machine on

Prepare the machine for programme selection by pressing the ON/OFF button.

Pressing the ON/OFF button does not necessarily mean the programme has started.

Press the START/PAUSE/CANCEL button to allow the machine to start the programme.

Programme selection

Choose the appropriate programme from the table below. Select the desired programme

with the programme selection button.

Extra dry

Dry at high temperature only for cotton laundry. Thick and multi layered

laundry (eg: towels, linens, jeans) are dried in a way that they do not

require ironing.

Ready to Wear

Normal laundry (eg: tablecloths, underwear) are dried in a way that they

do not require ironing before placing in drawers.

Ready to Iron

Normal laundry (eg: shirts, dresses) are dried ready to be ironed.

Always select the highest temperature that is safe for the type of items in the load (check care

labels). A high temperature will ensure energy and time saving, but may be unsuitable for some

items and cause damage.

ON/OFF button

Programme selection knob

START/PAUSE/CANCEL button

Cancel Audio Warning

Programme follow-up indicator

CLEAN FILTER warning LED

Fig.5 Control panel features

123456

8Selecting a programme and operating your machine

Main programmes

Depending on the type of textile, the following main programmes are available:

Cottons

You can dry your durable clothes with this programme as it dries at a higher temperature.

It is recommended to use for your cotton items (such as bed sheets, quilt cover,

underclothing, etc).

Synthetics

You can dry your less durable clothes with this programme, as it uses a lower temperature

compared to the cottons programme. It is recommended for your synthetic clothes (such as

shirts, blouses, synthetic/cotton blended garments, etc).

Do not dry curtains and lace in your machine.

Wrinkle Guard

A two-hour anti creasing programme to prevent laundry from creasing will be activated if you do

not take the laundry out after the programme has come to an end. This programme rotates the

laundry in 60-second intervals to prevent creasing.

Delicates

A lower temperature for your very delicate laundry (silk blouses, fine underwear, etc) that is

suitable for tumble drying or laundry which is recommended to be hand-washed.

Freshen up

This 10 minute airing cycle blows cool air through your clothes. It is used to freshen clothes

and deodorise unpleasant odours on items that have been kept in closed environments for

long periods.

Timed programmes

Select one of the 10 min, 20 min, 40 min and 60 min timed programmes to achieve the desired

final drying level at low temperatures. The machine dries for the selected time regardless of

the level of moisture in your clothes. It is important to check the clothes throughout the longer

timed programmes to avoid overdrying.

Inhaltsverzeichnis

Andere Fisher & Paykel Trockner Handbücher

Fisher & Paykel

Fisher & Paykel Smartload DEGX1US Bedienungsanleitung

Fisher & Paykel

Fisher & Paykel SMARTLOAD DRYER DGGX2 US FP Bedienungsanleitung

Fisher & Paykel

Fisher & Paykel DC8060P Bedienungsanleitung

Fisher & Paykel

Fisher & Paykel 428104B Bedienungsanleitung

Fisher & Paykel

Fisher & Paykel DE09 Bedienungsanleitung

Fisher & Paykel

Fisher & Paykel DH8060C1 Bedienungsanleitung

Fisher & Paykel

Fisher & Paykel DE8060P2 Bedienungsanleitung

Fisher & Paykel

Fisher & Paykel DE4024P1 Bedienungsanleitung

Fisher & Paykel

Fisher & Paykel DE6060P1 Bedienungsanleitung

Fisher & Paykel

Fisher & Paykel Smartload DEGX1 Montageanleitung

Fisher & Paykel

Fisher & Paykel DH9060P1 Betriebsanleitung

Fisher & Paykel

Fisher & Paykel DE8060P Bedienungsanleitung

Fisher & Paykel

Fisher & Paykel DE7060G1 Bedienungsanleitung

Fisher & Paykel

Fisher & Paykel DE40F56AW1 Bedienungsanleitung

Fisher & Paykel

Fisher & Paykel Smartload DGGX1US Bedienungsanleitung

Fisher & Paykel

Fisher & Paykel DE7027J1US Bedienungsanleitung

Fisher & Paykel

Fisher & Paykel DE7060M Bedienungsanleitung

Fisher & Paykel

Fisher & Paykel Smartload DGGX1 Service-Handbuch

Fisher & Paykel

Fisher & Paykel Smartload DGGX1US Bedienungsanleitung

Fisher & Paykel

Fisher & Paykel Intuitive DEIX2 Bedienungsanleitung

Fisher & Paykel

Fisher & Paykel DE4060M1 Bedienungsanleitung

Fisher & Paykel

Fisher & Paykel DE6060P1 Bedienungsanleitung

Fisher & Paykel

Fisher & Paykel DE8060P Bedienungsanleitung

Fisher & Paykel

Fisher & Paykel DE7060P1 Bedienungsanleitung

Beliebte Trockner Handbücher anderer Marken

Bosch

Bosch WTA79200GB Bedienungsanleitung

Amana

Amana W10233410A Bedienungsanleitung

Miele

Miele TWH 780 WP Bedienungsanleitung

Asko

Asko T760 Bedienungsanleitung

Alliance Laundry Systems

Alliance Laundry Systems 25 Series Bedienungsanleitung

Bosch

Bosch Logixx 10 WTB76556GB Technisches Datenblatt

STIEBEL ELTRON

STIEBEL ELTRON Ultronic S Bedienungsanleitung

Electrolux

Electrolux EW2H328R2 Bedienungsanleitung

Beko

Beko DS8433RX1M Bedienungsanleitung

Dawlance

Dawlance Spinner DS 6000 C Bedienungsanleitung

Electrolux

Electrolux TP5080TW Bedienungsanleitung

AEG

AEG TR838P4OB Bedienungsanleitung

Indesit

Indesit IDV 75 Bedienungsanleitung

Infiniton

Infiniton SD-DG85C Bedienungsanleitung

BOMANN

BOMANN WT 5019 Bedienungsanleitung

Alliance Laundry Systems

Alliance Laundry Systems TMB795C Bedienungsanleitung

Asko

Asko T793C Bedienungsanleitung

Kenmore

Kenmore 8041 - 5.8 cu. Ft. Capacity Electric Dryer Bedienungsanleitung
