Fisher & Paykel ActiveSmart E402B Montageanleitung

E402B, E442B, E522B, RF540A

Ice & Water refrigerator

Installation instructions

and user guide (EN)

Ice & Water køleskab

Installationsanvisninger

og brugsanvisning (DA)

Ice & Water-kylskåp

Installationsinstruktioner

och användarmanual (SV)

Ice & Water -kühlschrank

Installationsanweisungen

und Bedienungshandbuch (DE)

Ice & Water-kjøleskap

Installasjonsanvisninger

og brukerhåndbok (NO)

Koelkast met waterdispenser en ijsblokjesmaker

Installatievoorschriften

en gebruiksaanwijzing (NL)

Réfrigérateur Ice & Water

Conseils d’installation

et guide d’utilisation (FR)

Frigorifero Ice & Water

Istruzioni per l’installazione

e guida per l’utente (IT)

Ψυγείο Ice & Water

Οδηγίες εγκατάστασης

και οδηγίες χρήσης (EL)

EN English Page 1 – 41

DA Dansk Side 43 – 83

SV Svenska Sidan 85 – 125

DE Deutsch Seite 127 – 167

NO Norsk Side 169 – 209

NL Nederlands Pagina 211 – 251

FR Français Page 253 – 293

IT Italiano Pagina 295 – 335

EL Ελληνικά Σελίδα 337 – 377

Contents

Safety and warnings 2

Installation instructions 4

All about the display 14

Using your water dispenser 16

Using your ice maker 17

Using the display options 18

Fast Freeze and Bottle Chill 18

The temperature of your refrigerator and freezer 19

Settings 20

User warnings 21

Active Smart™ special features 22

Water filter 25

Active Smart™ maintenance 27

Cleaning and caring for your refrigerator 28

On vacation/holiday 31

Refrigerator sounds 32

Storing food in your refrigerator 33

Storing food in your freezer 35

Problem solving checklist 37

Customer care 41

Filter performance data sheet 378

Important!

SAVE THESE INSTRUCTIONS

The models shown in this User Guide may not be available in all markets and are

subject to change at any time. For current details about model and specification

availability in your country, please visit our local website listed on the back cover

or contact your local Fisher & Paykel dealer.

Note that the word “refrigerator”, throughout this User Guide, refers to combination refrigerator/

freezer products.

2Safety and warnings

WARNING!

Electric Shock Hazard

Read and follow the SAFETY AND WARNINGS outlined in this User Guide

before operating this appliance.

Failure to do so can result in death, electric shock, fire or injury to persons.

To reduce the risk of fire, electric shock, or injury to persons read the IMPORTANT SAFETY

INSTRUCTIONS before operating this appliance.

Use this appliance only for its intended purpose as described in this User Guide.

Important!

When using this appliance always exercise basic safety precautions including the following:

Danger

This appliance is not intended for use by young children or infirm persons without supervision.

Young children should be supervised to ensure they do not play with the appliance.

Risk of child entrapment. Before you throw away your old refrigerator:

– Take off the doors

– Leave the shelves in place so that children may not easily climb inside.

Disposal

Extreme care must be taken when disposing of your old appliance to avoid hazards. The

refrigerant gas must be safely removed and for the safety of young children, remove doors.

Your Fisher & Paykel Appliances Authorised Service Centre will be able to give advice on

environmentally friendly methods of disposing of your old refrigerator.

Electrical

This appliance must be properly installed in accordance with the installation instruction before

it is used.

Never unplug your refrigerator by pulling on the power cord.

Always grip the plug firmly and pull straight out from the outlet.

Do not plug in any other appliance at the same power point as your refrigerator or use

extension cords or double adapters.

Repair or replace immediately all electric service cords that have become frayed or otherwise

damaged. Do not use a cord that shows cracks or abrasion along its length or at either the plug

or appliance end.

If the power supply cord is damaged, it must only be replaced by your Fisher & Paykel

Appliances Authorised Service Centre because special purpose tools are required.

Safety and warnings

When moving your appliance away from the wall, be careful not to roll over or damage

the power cord.

Unplug your refrigerator before cleaning or replacing the lightbulb.

Storing food and drinks

Never store volatile or flammable materials in your refrigerator as they may explode.

Never freeze liquids in glass containers. Liquid expands during freezing, which may cause the

container to explode.

Never freeze carbonated drinks. They may explode.

Do not consume food if it is too cold. Food removed from the freezer compartment may be

cold enough to cause damage when brought into contact with bare skin e.g. frozen

ice cubes.

Power Failure – Food safety

Do not refreeze frozen foods that have thawed completely. Follow the recommendations below

if you discover food in your freezer has thawed:

1) Ice crystals still visible – food may be refrozen but should be stored for a shorter period than

recommended.

2) Thawed but refrigerator cold – refreezing generally not recommended. Fruits and some

cooked food can be refrozen but use as soon as possible. Meat, fish, poultry – use immediately

or cook then refreeze. Vegetables – discard as they usually go limp and soggy.

3) Thawed and warmer than 5˚C (41˚F). Discard all food.

Do not refreeze frozen foods that have thawed completely. The food may be dangerous to eat.

Cleaning

Many commercially available cleaning products contain solvents which may attack plastic

components of your refrigerator and cause them to crack. Please refer to the cleaning care

section of this booklet for further advice.

SAVE THESE INSTRUCTIONS

4Installation instructions

Contents of filter kit

4 m (13 ft) white 6 mm (¼”) tubing

1 x 200 mm (8”) blue tubing

1 x pressure reducing valve (PRV)

1 x double sided foam

2 x locking keys

1 x water filter cartridge and head (where fitted).

1 x tap connection – 15 mm (½”) BSP

1234567

Important!

It is imperative the pressure reducing valve (PRV) is fitted prior to the filter. This valve ensures

the water will not flow back into the mains from the refrigerator water system. If the PRV is not

fitted to the connection line your Ice & Water refrigerator features may not function in some

circumstances.

It is recommended that an authorised plumber in your state or town is used to install the water

connection.

The new tubings supplied with the machine are to be used, old tubings should not be used.

Installation precautions/warning

DO NOT use with water that is microbiologically unsafe or of unknown quality without

adequate disinfection before or after the system.

WARNING – connect to potable water supply only.

DO NOT install on line pressure above 900 kPa (130 psi) or below 150 kPa (22 psi).

DO NOT use on hot water supply (38°C [100°F max.]).

DO NOT install near electrical wires or water pipes that will be in the path of drilling when

selecting the location of filter system.

DO NOT mount filter in such a position so that it will be struck by other items, such as

wastebaskets, etc.

DO NOT install the filter in direct sunlight as prolonged exposure to light can weaken plastic

components.

DO NOT install in a location that is susceptible to freezing temperatures as damage to the

housing could occur.

DO NOT screw filter to fridge.

AVOID contamination of pipes during installation.

DO NOT use copper tubing. The plastic tubing supplied should always be used.

Fig.1 Water connection kit

Installation instructions

Installation instructions:

Ensure that refrigerator is not plugged into a power supply.

Locate isolation tap for water connection – cold water feed

only (dishwasher or sink mixer taps) – if you can’t find the

connection tap, contact an authorised plumber in your state

or town to fit your water connection. Tee and tap fitting is

not supplied.

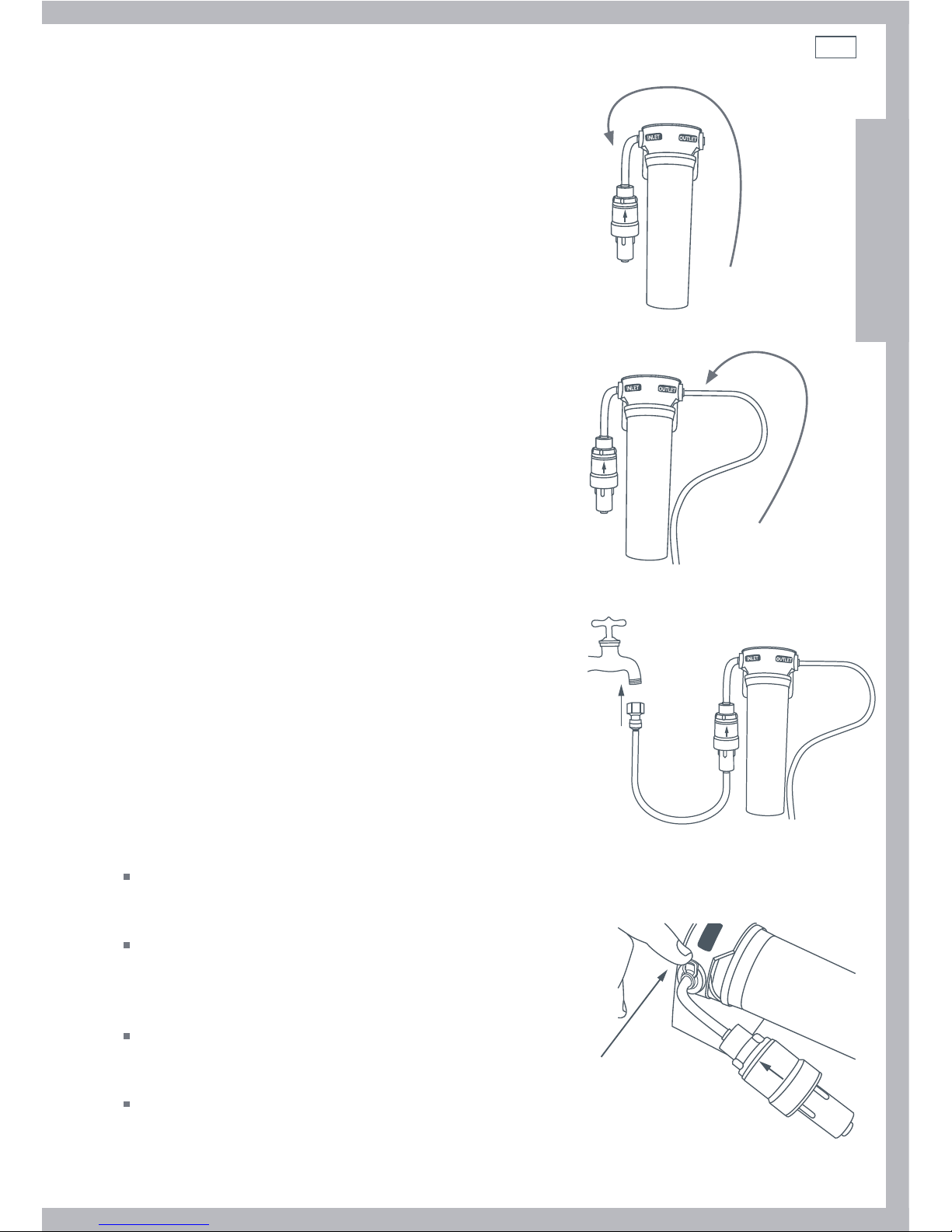

Connect the 200 mm (8”) blue tubing to the outlet of the

PRV (blue collet) and the inlet connection of the water filter

cartridge as shown in Diagram 1. Gently pull on both ends

to ensure it is locked.

Connect the white 6 mm (¼”) tubing to the outlet of the

water filter cartridge as shown in Diagram 2. Gently pull to

ensure it is locked.

Measure the required length of tubing to run from the PRV

to the water connection point.

Cut the tubing making sure the ends are square and clean.

Connect the tubing to the tap connection and the base

of the PRV (white collet) and then to the tap as shown in

Diagram 3. Please note that the tap connection supplied

should fit most installation situations. If your tap requires

a different fitting, please contact an authorised plumber in

your state or town to purchase the correct fitting.

Connect one locking key to each side of the water filter

cartridge in between the cartridge and the locking collet as

shown in Diagram 4.

To flush the water filter and check for leaks, aim the end of

the tubing into a bucket, turn isolating tap on and run at

least 8-10 litres (8-10 qt) of water through. Once complete,

turn isolating tap off.

Locate desired position for water filter noting carefully the

following points:

It is recommended to fit the water filter in a vertical

orientation with the water filter head at the top. This will

minimise water leakage when replacing cartridge.

Ensure the filter is in a convenient location to access

every 6 months for replacement. We suggest that

this location is beside the water filter supply tap in the

cupboard beside the refrigerator.

A minimum clearance of 64 mm (2 ½”) from the

bottom of the filter cartridge is required to perform

cartridge removal.

Do not screw water filter to refrigerator.

Diagram 1

Diagram 2

Diagram 3

INLET

Diagram 4

Fig.2 PRV connection

Fig.3 Waterline connection

Fig.4 Tap connection

Fig.5 Locking key

6Installation instructions

Attach double sided foam to the back of the water filter head as shown

in Diagram 5. Write the date to be replaced on the filter (date installed +

6 months). Remove double sided foam backing and attach filter to the

desired position as located in step 10 (refer to previous page).

Run the 6 mm (¼”) tubing to back of the fridge ensuring there is enough

tubing to pull out the refrigerator for service.

Connect tubing into the water (solenoid) valve located on the right hand

side of the unit (compressor) compartment as shown in Diagram 7. Beware

of hot pipes.

Pull gently on tubing to ensure it is locked in as shown in Diagram 8.

The completed installation should look like Diagram 9 on page 7.

Diagram 7

Diagram 6

Diagram 8

Turn isolating tap on and check that all connections are dry and free of drips.

Coil water line tubing behind the fridge. Push your refrigerator into place being careful not to

kink or squash the water line running into the water (solenoid) valve.

The first time you require water out of the dispenser, there will be a delay while the water

reservoir fills up.

Run a further 8-10 litres (8-10 qt) through the system to ensure the reservoir is flushed out.

You are now ready to enjoy chilled water and ice dispensing from your Active Smart™ refrigerator.

Diagram 5

Fig.6 Double sided

foam attachment

Fig.7 Waterline connection

to refrigerator

Installation instructions

Important!

All connections must be checked for leaks.

If unsure of connection process and/or leaks then contact your local plumber to install and check

the system for you.

Ensure white 6 mm (¼”) tubing is routed away from sharp objects, sharp corners (beware of

kinking tube as this will stop water flow), clear of the refrigerator unit compartment and not in a

location where it can be squashed.

Ensure all push-fit connections are firmly pushed into place. The tube should push in 20 mm (¾”)

before reaching the stop.

If tubing is removed at any point, re-cut the end and re-insert. Tubing must be fully inserted to

avoid leaks.

To remove tube from connection points, turn off the isolating tap, push in the collet and gently

pull tubing at the same time.

Diagram 9

System tested and certified by NSF International against NSF/ANSI Standard 53 for the reduction

of Asbestos, Atrazine, Benzene, Cyst, Carbofuran, Lead, Lindane, Mercury, P-Dichlorobenzene,

Toxaphene & Turbidity; against Standard NSF/ANSI 42 for the reduction of Chlorine Taste and

Odour and Nominal Particulate Class I to a capacity of 2,838 Litres (750 gallons).

Fig.8 Connection to water supply

8Installation instructions

Please follow the steps for installation to ensure your appliance operates correctly.

1. Power

The appliance must be installed so the plug is accessible.

To ensure that the appliance is not accidentally switched off, connect your refrigerator to its own

power point. Do not plug in any other appliance at this power point or use extension cords and

double adaptors, as the combined weight of both power cords can pull the double adaptor from

a wall outlet socket.

For power requirements, refer to the information on the serial plate located at the front bottom

right-hand side of the refrigerator when the door is open.

It is essential that the appliance be properly grounded (earthed).

2. Location

Your refrigerator should not be located in direct sunlight or next to any heat generating

appliance such as a cooktop, oven or dishwasher.

Andere Handbücher für ActiveSmart E402B

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Sprachen:

Andere Fisher & Paykel Kühlschrank Handbücher

Fisher & Paykel

Fisher & Paykel RX216DT7XV2 Montageanleitung

Fisher & Paykel

Fisher & Paykel RS90A Bedienungsanleitung

Fisher & Paykel

Fisher & Paykel ACTIVESMART RS9120W Bedienungsanleitung

Fisher & Paykel

Fisher & Paykel ActiveSmart RF135B Montageanleitung

Fisher & Paykel

Fisher & Paykel ACTIVESMART RS80A Bedienungsanleitung

Fisher & Paykel

Fisher & Paykel RS6121S Bedienungsanleitung

Fisher & Paykel

Fisher & Paykel IZONA CoolDrawer RB90S Bedienungsanleitung

Fisher & Paykel

Fisher & Paykel ActiveSmart E402B Montageanleitung

Fisher & Paykel

Fisher & Paykel RS2484S Bedienungsanleitung

Fisher & Paykel

Fisher & Paykel E522BRXFD2 Bedienungsanleitung

Fisher & Paykel

Fisher & Paykel ACTIVESMART RS32A72 Bedienungsanleitung

Fisher & Paykel

Fisher & Paykel ACTIVESMART RS9120W Bedienungsanleitung

Fisher & Paykel

Fisher & Paykel RS2484WRUK1 Bedienungsanleitung

Fisher & Paykel

Fisher & Paykel ACTIVESMART RF172G Bedienungsanleitung

Fisher & Paykel

Fisher & Paykel E402BRX Bedienungsanleitung

Fisher & Paykel

Fisher & Paykel CoolDrawer RB90S64MKIW1 Bedienungsanleitung

Fisher & Paykel

Fisher & Paykel ActiveSmart RF522A Bedienungsanleitung

Fisher & Paykel

Fisher & Paykel 790 Active Smart Bedienungsanleitung

Fisher & Paykel

Fisher & Paykel E522BLE4 Bedienungsanleitung

Fisher & Paykel

Fisher & Paykel RS6019BRU Bedienungsanleitung

Fisher & Paykel

Fisher & Paykel RS6121FRJK2 Bedienungsanleitung

Fisher & Paykel

Fisher & Paykel ACTIVESMART RS80AU Bedienungsanleitung

Fisher & Paykel

Fisher & Paykel RS90AU1 Bedienungsanleitung

Fisher & Paykel

Fisher & Paykel RF540ADUSX5 Bedienungsanleitung

Beliebte Kühlschrank Handbücher anderer Marken

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Bedienungsanleitung

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Bedienungsanleitung

Sharp

Sharp SJ-BA31IEXW2-EU Bedienungsanleitung

CORBERO

CORBERO CC2300MCW Bedienungsanleitung

KitchenAid

KitchenAid 2205264 Bedienungsanleitung

Stengel

Stengel KU 1101 A++ Bedienungsanleitung

NEFF

NEFF KI181 Series Bedienungsanleitung

Hoshizaki

Hoshizaki Reach-In Bedienungsanleitung

Amana

Amana ASD2524VES00 Bedienungsanleitung

BOMANN

BOMANN KGC 213 Bedienungsanleitung

Danby

Danby DAR044A1SLDD Montageanleitung

Samsung

Samsung RF323TE Bedienungsanleitung

Beko

Beko CSA31022 Bedienungsanleitung

IKEA

IKEA FROSTIG C 185 E Bedienungsanleitung

Electrolux

Electrolux ER 6821 D Bedienungsanleitung

True

True TS-28 Bedienungsanleitung

Frigidaire

Frigidaire FSC23R5DW9 Bedienungsanleitung

Beko

Beko LSP4579W Bedienungsanleitung
