Fisher & Paykel ActiveSmart E522B Montageanleitung

P4g 45 _88

_ntroduction

Safety and warnings

_nstallation instructions

Before you start using your Ice & Water refrigerator

AH about the display

Using your water dispenser

Using your ice maker

Using the display options

Bottle Chl!

Fast Freeze

The temperature of your refr gerator and freezer

Active Smart _' special features

Water filter

Active Smart _' maintenance

Cleaning and caring for your refrigerator

On vacat on/hoIiday

Refrigerator sounds

Storing food in your refrigerator

Storing food in your freezer

Limited warranty

Filter performance data sheet

133

SAVE THESEINSTRUCTIONS

sut_j_,(t toch(_g_ st (;£y tim_.fbr curmt_tdelcJ[Isc;t_ou8modelcmd p_d_co8io£

c;w[/ob[/[ty [r7your courttG p/_os_visitour/occ;/webs[t_.,/M_.'don thebookcover

or contc_ctyour /occ;/Usher&P;_ykelde(;le_

Thank you for buying a Fisher & Paykd Active Smart '_refrigerator with chilled water through the

door and automatic ice dispensing.

At Fisher & Paykel we are very proud of this refrigerator. We feel we have achieved water

dispensing through the door without compromising storage space or access in the refrigerator.

During our testing we have enjoyed the health benefits of having easily accessible cool filtered

water, while minimizing the number of door openings.

Thousands of hours of food care research and 70 years of refrigeration experience has been

programmed into your refrigerator to give you the best possible performance,

We hope you enioy your new refrigerator,

Fig, 7Ice & Water Refrigerators

It Lsimportant that this User Guide shoMd be retained with your £e & Water refrigerator for

future reference° Should the appfiance be sold or transferred to another owner, please ensure

that the User Guide Lste# with the applianCeo ThL_wilt ensure that the new owner can familiarize

themsdves with the information and warnings contained within the Guide.

Safety and warnings

Electdc Shock Hazard

Read and follow the SAFETYAND WARNINGSoutlined in this User Guide

before operating this app[ianceo

Failure to do so can result in death, electric shock fire or injury to persons°

Use this appliance only for its intended purpose as described in this User Guide,

When using this appliance Mways exercise basic safety precautions including the foflowing:

This appliance is not intended for use by chitdren or infirmed persons without supervision° This

is espedally important when using the freezer drawer compartment. Young children shoMd be

supervised to ensure they do not play with the appliance.

Risk of ch#d entrapment° Before you throw away your old refr@erator or &eezer:

-Take offthe doors

-Leave the shrives in place so that children may not easily climb inside°

Extreme care must be taken when disposing of your old appliance to avoid hazards° The

re&@erant gas must be safdy removed and for the safety of young children, remove doors.

}&ourFisher & Paykd Appliances Authorized Service Center wifl be abte to give advice on

env#onmentaNy &iendly methods of disposing of your old refrigerator or freezer,

Electrical

This appJiance must be property instafied in accordance with the instafladon instructions before

it is used°

Never unplug your refrigerator or freezer by pulting on the power cord,

Always grip the plug firmly and pun straight out from the oudet socket°

Do not plug in any other appliance at the same power point oudet socket as your refrigerator or

freezer is using° Do not use extension cords or douMe adapters with these products°

Repair or replace immediately aft dectric service cords that have become frayed or otherwise

damaged, Do not use acord that shov_s cracks or abrasion Mong its tength or at either the plug

or appliance an&

if the power supply cord is damaged) it must only be replaced by your Fisher & Paykel Appliances

Authorized Service Center because speda_ purpose too_s are required.

Safety and warnings

When moving your appliance away from the wall, be careful not to roll over or damage the

power cord,

Unplug your refrigerator or freezer before cleaning or repladng the interior t@htbutb.

Storing food and drinks

Never store volatile or flammable materials in your refrigerator or freezer as they may explode.

Never freeze tiquids in glass containers. Liquid expands during #eezin¢ which may cause the

container to expk_de.

Never freeze carbonated drinks. They may explode.

Do not consume food ff it is too cold, Food removed f_om the freezer compartment may be cold

enough to cause damage when brought into contact with bare skin, eg. frozen ice cubes.

Power failure - food safety

Do not regeeze gozen foods that have thawed completely, Follow the recommendations below ff

_ou discover food in your geezer has thawed:

1)ice crystals still visible -food may be refrozen but should be stored for ashorter period than

recommended.

2) Thawed but refrigerator cold ,- refreezing generally not recommended, Fruits and some

cooked food can be refrozen but use as soon as possible. Meat, fish, poultry ,_use immediately or

cook then refreeze. Vegetables -discard as they usually go limp and soggy,

3) Thawed and warmer than 41 °F (5°G. Discard a# food,

Do not refreeze frozen foods that have thawed completely, The food may be dangerous to eat.

Many commercially available cleaning products contain solvents wh£h may attack plastic

components of your refrigerator or freezer and cause them to crack° Please refer to the cleaning

care section of this booklet for further advice.

_nsta_ation instructions

Contents of filter kit

1 13 ft (4 m) white ¼"(6 ram) tubing

2 1 x8"(200 ram) bluetubing

s 1 x pressure reducing valve (PRV)

4 1 x double sided tape

s 2 xlocking keys

6 1 x water filter cartridge and head

7 1 xfaucet connection

It is imperative the pressure redudng vaIve (PR_ js _tted p_r t_ the _Iter° Thjs vaIve ensures

the water will not flow back into the mains from the retTigerator water system, ff the PRV is not

fitted to the connection tine your ice &Water retTigerator t_atures may not funcdon in some i

circumstances.

it L_recommended thatan authorizedplumber inyour stateor town L_used toinstallthewater

connection.

, The new tubings suppliedwith the refrigerator are to be used, old tubings from old Ice & Water

connectionsshodd notbeused.

oInstaHadonprecaudon#waming

DO NOT use with wa_er that is microbiologicaHy unsafe or of unknown quality without

.dequate disinfection before or after the system.

oWARNING-connecttopotabtewatersupptyonly.

oDo.oTinstaNontinepressuroaho_J30£_i(_00kPa_orbeto.,22psi,:_50k_a_. i

oDONOTuseonhotwatersupply(looFr38cma_4_.

oDONOTinstaNnearelectricalwiresorwaterpipesthatwittbeinthepathofdriNingwhen

selectingthelocationoffiltersystem, ii[

DO NOT mount fitter in such aposition so that it wilt be struck by other items, such as

wastebaskets,etc. _/

, DO NOT instatl the filter in direct sunlight as prolonged exposure to light can weaken plastic

components. //:

oDONOTinstaNinatocationthatissusceptibletofreezingtemperaturesasdamagetothe _:

housingcoutdoccur.

oDO,OTscre,,filtertotherefrigerator.

AVOID contamination of pipes during installation.

DO NOT use copper tubing. The plastic tubing supplied should always be used.

Installation instructions

Installation instructions:

1 Ensure that refrigerator is not plugged into a power supply.

2 Locate a cold water supply/feed only suitable for a water

connection.]ee & tap fitting is not suppled. If you can't find

the connection faucet, contact an authorized plumber in

your state or town to fit your water connection.

s Connect the 8" (200 ram) blue tubing to the outlet of the

PRV (blue collet) and the inlet connection of the water filter

cartridge as shown in Diagram 1. Gently pull on both ends

to ensure it is locked.

4 Connect the white ¼"(6 ram) tubing to the outlet of the

water filter cartridge as shown in Diagram 2. Gently pull to

ensure it is locked.

5 Measure the required length of tubing to run from the PRV

to the water connection point.

6 Cut the tubing making sure the ends are square and dean.

7 Connect the tubing to the faucet connection and the base

of the PRV (white toilet) and then to the faucet as shown

in Diagram 3. Please note that the faucet connection

supplied should fit most installation situations. If your

faucet requires a different fitting, please contact an

authorized plumber in your state or town to purchase

the correct fitting.

s Connect one locking key to each side of the water

filter cartridge in between the cartridge and the

locking collet as shown in Diagram 4.

To flush the water filter and check for leaks, aim the

end of the tubing into a bucket, turn isolating faucet

on and run at least 3 qt (3 L) of water through. Once

complete, turn isolating faucet off.

lo Locate desired position for water filter noting carefully the

following points:

It is recommended to fit the water filter in a vertical

orientation with the water filter head at the top. This will

minimize water leakage when replacing cartridge.

Ensure the filter is in a convenient location to access

every 6 months for replacement. We suggest that

this location is beside the water filter supply faucet in

a cupboard beside the refrigerator.

A minimum clearance of 2 V£'(64 ram) from the

bottom of the filter cartridge is required to perform

cartridge removal.

Do not screw water filter to refrigerator.

Diagram 2

Fig4 Waterlineconnection

to reg_igemtor

Diagram 3

F-ig.5Faucetconnection

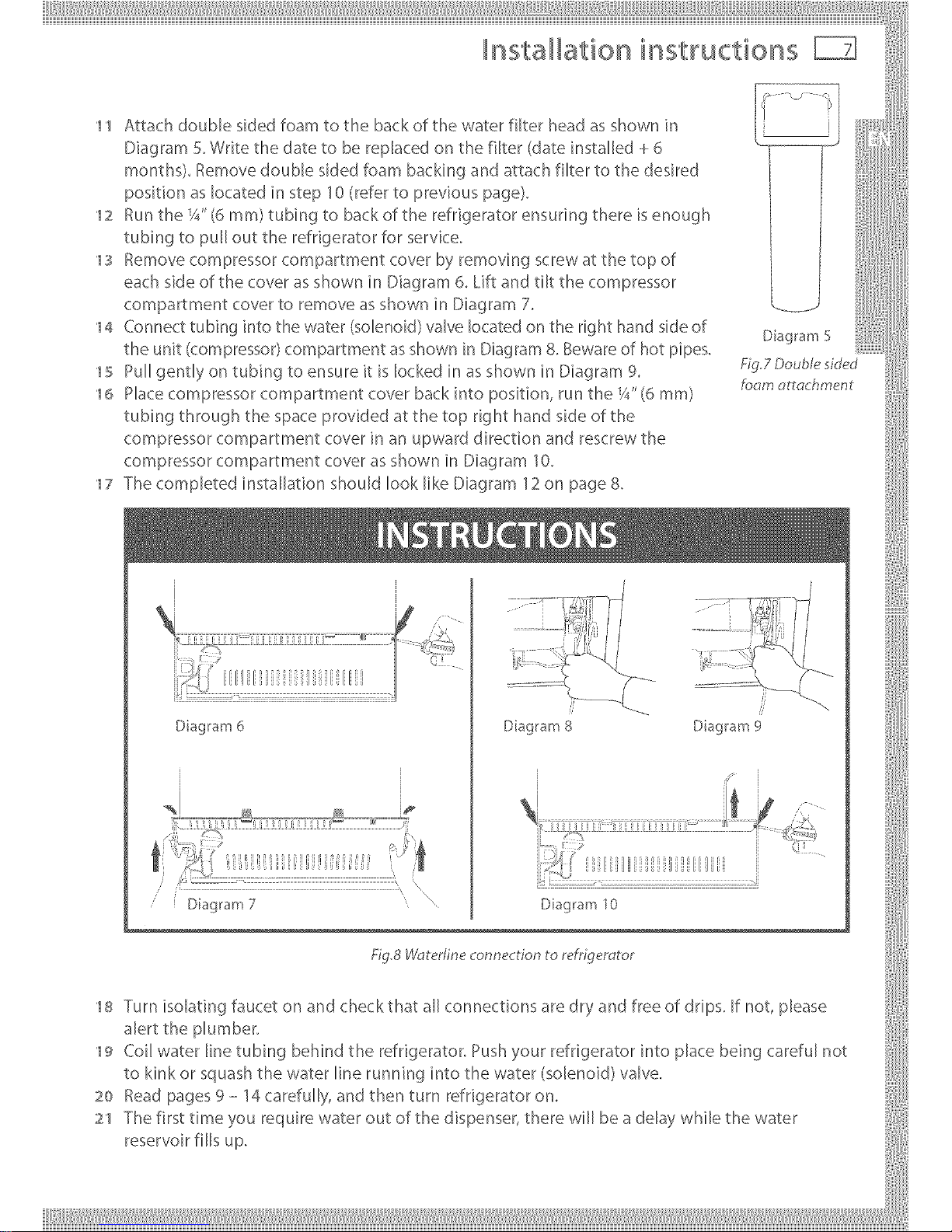

Installation i structions

22 Run a further 3 qt (3 L) through the system, stopping intermittently to ensure the reservoir is

flushed out. Failure to do this will result in excessive dripping from your dispenser.

23 Press _ until the Ice menu is highlighted then press _ to turn on the ice maker. Press _ _

together to force a cycle. The ice tray will flip. Force another cycle. The ice tray will flip and spill

the water into the ice bin. Empty water and replace bin.

24 You are now ready to enjoy chilled water and ice dispensing from your Active 5murt _rdrigerator.

Please note that once installation is complete a few drips may appear out of the dispenser over

the next few days as the remaining trapped air is cleared.

oAll connections must be checked for leaks,

if unsure of connection process and/or leaks then contact your tocM plumber to instafl and check

the system for you°

Ensure white W' (6 ram) tubing is routed away from sharp objects, sharp corners (beware of

kinking tube as this wifl stop water flow), dear of the refrigerator unit compartment and not in a

tocation where it can be squashed°

Ensure Mt push-fit connecdons are firmty pushed into placeo The tube should push in ¾" (2Omm)

before reaching the stop,

if tubing is removed at any point, re-cut the end and re,dnsert. Tubing must be fully inserted to

avoid leaks.

To remove tube from connection points, turn off the

isolating faucet, push in the coffer and gendy puff

tubing at the same time, as shown in Diagram 11.

Diagram 11

",,, iLi /

Fig,9 Connection to w¢_tersupply Diagram "l2

System tested and certified by NSF International against NSF/ANS[ Standard 53 for the reduction

of Asbestos, Atrazine, Benzene, Cyst, Carbofuran, Lead, Lindane, Mercury, P-Dich[orobenzene,

Toxaphene &Turbidity; against Standard NSF/ANS[ 42 for the reduction of Ch[odne Taste and

Odor and Nominal Particulate Class [to a capacity of 750 gallons (2,838 liters).

Andere Handbücher für ActiveSmart E522B

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Sprachen:

Andere Fisher & Paykel Kühlschrank Handbücher

Fisher & Paykel

Fisher & Paykel ActiveSmart RF135 Montageanleitung

Fisher & Paykel

Fisher & Paykel Refrigerator & Freezer Leitfaden

Fisher & Paykel

Fisher & Paykel Refrigerator & Freezer Bedienungsanleitung

Fisher & Paykel

Fisher & Paykel RS7621SLK2 Bedienungsanleitung

Fisher & Paykel

Fisher & Paykel ACTIVESMART RS80A Bedienungsanleitung

Fisher & Paykel

Fisher & Paykel RS6121FLJK2 Bedienungsanleitung

Fisher & Paykel

Fisher & Paykel ACTIVESMART RS36A72 Bedienungs- und Wartungsanleitung

Fisher & Paykel

Fisher & Paykel RS6121FLJK2 Bedienungsanleitung

Fisher & Paykel

Fisher & Paykel RS36A80U1 Bedienungsanleitung

Fisher & Paykel

Fisher & Paykel RS6121S Bedienungsanleitung

Fisher & Paykel

Fisher & Paykel RS6019S2 Bedienungsanleitung

Fisher & Paykel

Fisher & Paykel ActiveSmart E522B Montageanleitung

Fisher & Paykel

Fisher & Paykel ActiveSmart RF135B Montageanleitung

Fisher & Paykel

Fisher & Paykel ActiveSmart RS80AU1 Bedienungsanleitung

Fisher & Paykel

Fisher & Paykel RF540ADUSB5 Bedienungsanleitung

Fisher & Paykel

Fisher & Paykel E522BLT-21926A Bedienungsanleitung

Fisher & Paykel

Fisher & Paykel RF381T Verdrahtungsschema

Fisher & Paykel

Fisher & Paykel E522BRE2 Stücklistenhandbuch

Fisher & Paykel

Fisher & Paykel RS90A Bedienungsanleitung

Fisher & Paykel

Fisher & Paykel RF540ADUSX5 Bedienungsanleitung

Fisher & Paykel

Fisher & Paykel ACTIVESMART RF730Q Bedienungsanleitung

Fisher & Paykel

Fisher & Paykel IZONA CoolDrawer RB90S Montageanleitung

Fisher & Paykel

Fisher & Paykel ActiveSmart E402B Montageanleitung

Fisher & Paykel

Fisher & Paykel ActiveSmart E402B Bedienungsanleitung

Beliebte Kühlschrank Handbücher anderer Marken

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Bedienungsanleitung

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Bedienungsanleitung

Sharp

Sharp SJ-BA31IEXW2-EU Bedienungsanleitung

CORBERO

CORBERO CC2300MCW Bedienungsanleitung

KitchenAid

KitchenAid 2205264 Bedienungsanleitung

Stengel

Stengel KU 1101 A++ Bedienungsanleitung

NEFF

NEFF KI181 Series Bedienungsanleitung

Hoshizaki

Hoshizaki Reach-In Bedienungsanleitung

Amana

Amana ASD2524VES00 Bedienungsanleitung

BOMANN

BOMANN KGC 213 Bedienungsanleitung

Danby

Danby DAR044A1SLDD Montageanleitung

Samsung

Samsung RF323TE Bedienungsanleitung

Beko

Beko CSA31022 Bedienungsanleitung

IKEA

IKEA FROSTIG C 185 E Bedienungsanleitung

Electrolux

Electrolux ER 6821 D Bedienungsanleitung

True

True TS-28 Bedienungsanleitung

Frigidaire

Frigidaire FSC23R5DW9 Bedienungsanleitung

Beko

Beko LSP4579W Bedienungsanleitung
