Fisher & Paykel E331T Montageanleitung

NZ AU UK IE PAC

Installation instructions

and User guide

Refrigerator & Freezer

ActiveSmart™ models

635mm wide E331T, E372B, E381T, E402B, E411T, E415H

680mm wide E406B, E413T, E440T, E442B

790mm wide E521T, E522B, RF522W, RF522A

Cyclic and Compact models

525mm wide P120, E169T, C170T, C190, E240B, E249T, C270

635mm wide C373, C450, E373, E450

Vertical freezer models

525mm wide E150, E210

635mm wide E308, E388

Chest freezer models

Slimline H215, H275, H320

Standard H160, H220, H280, H360, H510, H701

Important!

This User Guide is to be used for all refrigerator/freezers. It contains all the general

information required for the operation of your refrigerator/freezer.

A User Guide is provided with the Ice & Water refrigerator. This booklet contains

additional specific information about the ice and water functions on the refrigerator.

Introduction 2

General operating instructions – all products

Safety and warnings 3

Installation instructions 5

Moving or storing your appliance 13

Door conversion 14

ActiveSmart™ refrigerators

Operating instructions 15

Special features 17

Cleaning care 20

Cyclic and Compact refrigerators

Operating instructions 24

Special features and maintenance 25

Cleaning care 26

Vertical freezer

Operating instructions 29

Chest freezers

Operating instructions 30

Special features and maintenance 31

Food care – all products

Storing food in your refrigerator 32

Storing food in your freezer 34

Problem solving checklist 36

Manufacturer’s Warranty 38

Customer Care 40

Contents

Important!

SAVE THESE INSTRUCTIONS

The models shown in this User Guide may not be available in all markets and are

subject to change at any time. For current details about model and specification

availability in your country, please visit our local website listed on the back cover or

contact your local Fisher & Paykel dealer.

2Introduction

Thank you for buying this Fisher & Paykel ActiveSmart™ refrigerator. At Fisher & Paykel we aim to

provide innovative products that are simple to use, ergonomic and kind to the environment.

This refrigerator combines size and storage space with the latest features and functions.

Thousands of hours of food care research and 75 years of refrigeration experience has been

programmed into your refrigerator to give you the best possible performance.

We hope you enjoy your new refrigerator.

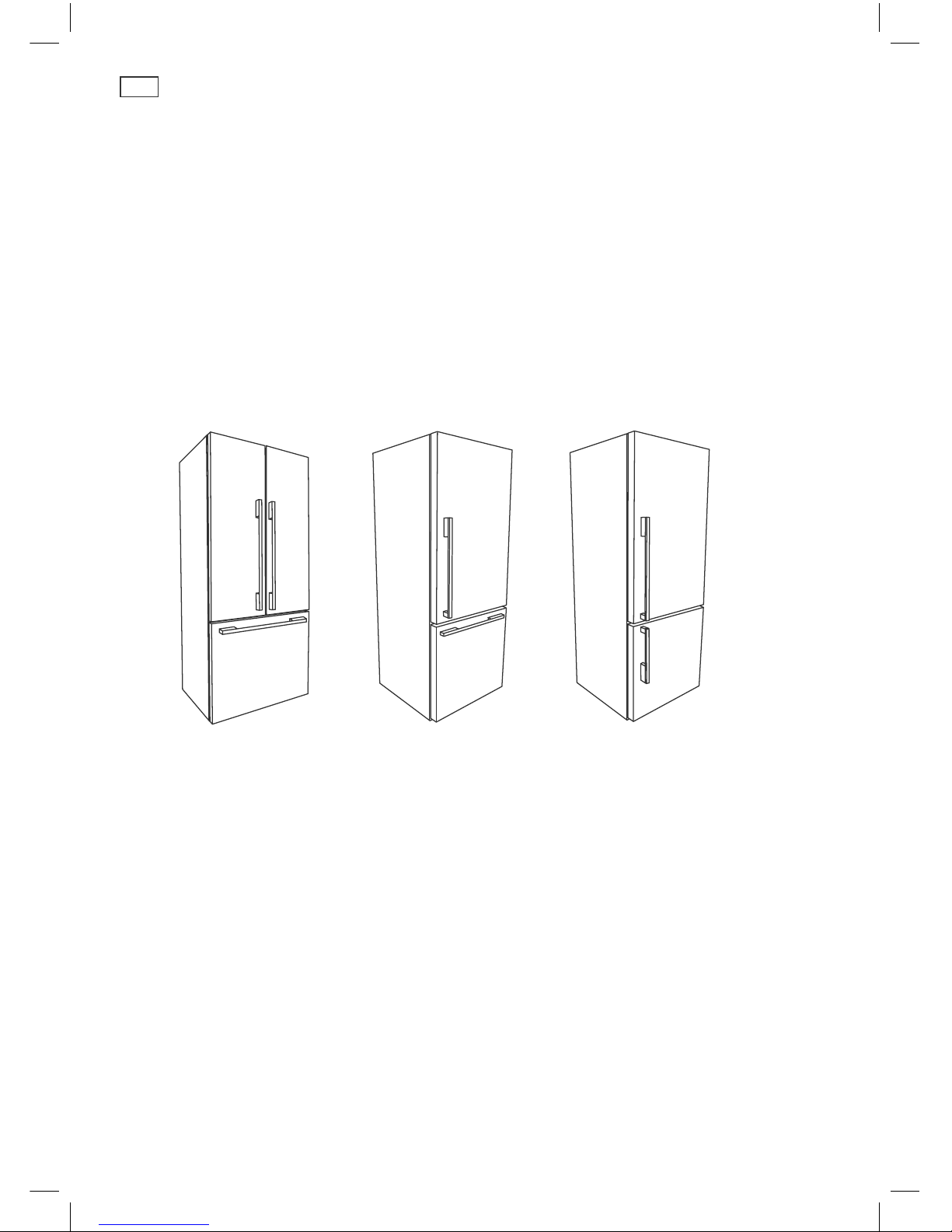

Fig.1 ActiveSmart™ refrigerators

Refrigerator French door

and freezer drawer

Refrigerator door

and freezer door

Refrigerator door

and freezer drawer

Safety and warnings

To reduce the risk of fire, electric shock, or injury to persons read the IMPORTANT SAFETY

PRECAUTIONS before operating this appliance.

Use this appliance only for its intended purpose as described in this User Guide.

Important safety precautions

Warning

When using this appliance always exercise basic safety precautions including the following:

Danger



This appliance is not intended for use by persons (including children) with reduced physical,

sensory or mental capabilities, or lack of experience and knowledge, unless they have been given

supervision or instruction concerning use of the appliance by a person responsible for their safety.



Young children should be supervised to ensure they do not play with the appliance.



The manufacturer’s installation instructions for product and cabinetry ventilation must be

followed when installing the appliance.



Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of

obstruction.



Do not use mechanical devices or other means to accelerate the defrosting process.



Do not damage the refrigerant circuit.

Disposal



Extreme care must be taken when disposing your old appliance to avoid hazards:

– The refrigerant gas must be safely removed.

– The doors should be removed and the shelves left in place so that children may not easily

climb inside.



Your Fisher & Paykel Authorised Repairer will be able to give advice on environmentally friendly

methods of disposing of your old refrigerator or freezer.

Electrical



Your new appliance must be installed in accordance with the installation instructions before use.



Never unplug your refrigerator or freezer by pulling on the power cord.



Always grip the plug firmly and pull straight out from the outlet.



Do not plug in any other appliance at the same power point as your refrigerator or freezer or use

extension cords or double adapters.



Repair or replace immediately all electric service cords that have become frayed or otherwise

damaged. Do not use a cord that shows cracks or abrasion along its length or at either the plug

or appliance end.

If the power supply cord is damaged, it must only be replaced by your Fisher & Paykel Authorised

Repairer because special purpose tools are required.



When moving your appliance be careful not to roll over or damage the powercord.



Unplug your refrigerator or freezer before cleaning or replacing the lightbulb.



Do not use electrical appliances inside the food storage compartments of the appliance.

Important!

Your refrigerator is designed to operate for many years without the need for service checks.

However, if your refrigerator is malfunctioning, have it attended to by your Fisher & Paykel

Authorised Repairer as soon as possible. All electrical repairs must be carried out by an

adequately trained service technician or qualified electrician.

Storing food and drinks



DO NOT store explosive substances such as aerosols cans with a flammable propellant in this

appliance.



Never store volatile or flammable materials in your refrigerator or freezer as they may explode.



Never freeze liquids in glass containers. Liquid expands during freezing, which may cause the

container to explode.



Never freeze carbonated drinks. They may explode.



Do not consume food if it is too cold. Food removed from the freezer compartment may be cold

enough to cause damage when brought into contact with bare skin, eg frozen ice cubes.

Power failure – food safety



Do not refreeze frozen foods that have thawed completely. Follow the recommendations below if

you discover food in your freezer has thawed:

1) Ice crystals still visible – food may be refrozen but should be stored for a shorter period than

recommended.

2) Thawed but refrigerator cold – refreezing generally not recommended. Fruits and some

cooked food can be refrozen but use as soon as possible. Meat, fish, poultry – use immediately

or cook then refreeze. Vegetables – discard as they usually go limp and soggy.

3) Thawed but warmer than 5°C – discard all foods.



Do not refreeze frozen foods that have thawed completely. The food may be dangerous to eat.

Important!

Cleaning



Many commercially available cleaning products contain solvents which may attack plastic

components of your refrigerator or freezer and cause them to crack. Please refer to the cleaning

care section of this booklet for further advice.

SAVE THESE INSTRUCTIONS

Safety and warnings

Installation instructions

Please follow the steps for installation to ensure your appliance operates correctly.

1. Power



The appliance must be installed so the plug is accessible.



To ensure that the appliance is not accidentally switched off, connect your refrigerator or freezer

to its own power point. Do not plug in any other appliance at this power point or use extension

cords and double adaptors, as the combined weight of both power cords can pull the double

adaptor from a wall outlet socket.



For power requirements, refer to the information on the serial plate located at the front bottom

right-hand side of the refrigerator when the door is open. On chest freezers the serial plate is

located on the right-hand-side at the bottom.



It is essential that the appliance be properly grounded (earthed).

2. Location



Your refrigerator or freezer should not be located in direct sunlight or next to any heat

generating appliance such as a cooktop, oven or dishwasher.

3. Ventilation and installation

For all products with a freezer ‘drawer’ (RF522W and RF522A), refer to pages 8 – 9 for installation

instructions. For all products with a freezer ‘door’ refer to page 6 – 7 for installation instructions.



To ensure adequate ventilation for your refrigerator or vertical freezer, see recommended

cabinetry dimensions below.



To ensure adequate ventilation for chest freezers, allow a minimum of 20mm of airspace on each

side of the cabinet, and 30mm at the rear.



If integrating your refrigerator, follow installation instructions provided with the integration kits.

Installation instructions

Flush with refrigerator chassis – full door rotation

Flush with refrigerator door – 90° door rotation

Flush with refrigerator door – full door rotation

Installation instructions

Cabinetry dimensions (mm)

(including minimum clearances)

P120

C190/

E150

C270/

E210

C170T

E169T

E249T

E240B

C373

E373/E308

C450

E450/E388

E331T

E372B

E381T

E402B

E411T

E415H

E406B

E413T

E440T

E442B

E521T

E522B

inside height 853 1255 1635 1255 1635 1475 1735 1465 1635 1735 1635 1735 1735

Flush with refrigerator chassis – full door rotation

inside width 565 565 565 565 565 675 675 675 675 675 720 720 830

inside depth 502 502 502 502 502 620 620 620 620 620 620 620 620

Flush with refrigerator door – full door rotation

inside width 680 680 680 680 680 790 790 790 790 790 835 835 945

inside depth flush to curved door 552 552 552 552 552 680 680 680 680 680 680 680 680

inside depth flush to flat door n/a n/a n/a n/a n/a n/a 695 n/a n/a 695 n/a 695 695

Flush with refrigerator door – 90° door rotation

(for full drawer/shelf access, the doors need to be open past 90°)

inside width 635 635 635 635 635 745 745 745 745 745 790 790 900

inside depth flush to curved door 552 552 552 552 552 680 680 680 680 680 680 680 680

inside depth flush to flat door n/a n/a n/a n/a n/a n/a 695 n/a n/a 695 n/a 695 695

Minimum clearances

side clearance 20 20 20 20 20 20 20 20 20 20 20 20 20

side clearance – hinge

side flush with door – full rotation 135 135 135 135 135 135 135 135 135 135 135 135 135

side clearance – hinge

side flush with door – 90° rotation 90 90 90 90 90 90 90 90 90 90 90 90 90

rear clearance

(incl. evaporator tray) 30 30 30 30 30 30 30 30 30 30 30 30 30

vent (above refrigerator cabinet

or around top of cupboard) 50 50 50 50 50 50 50 50 50 50 50 50 50

door clearance – hinge side flush

with chassis – full rotation 425 425 425 425 425 520 520 520 520 520 555 555 645

door clearance – hinge side flush

door – full rotation 310 310 310 310 310 405 405 405 405 405 440 440 530

8Installation instructions

RF522W RF522A

Flush with refrigerator chassis – full door rotation Flush with refrigerator chassis – full door rotation

Flush with refrigerator door – full door rotation Flush with refrigerator door – full door rotation

Flush with refrigerator door – 90° door rotation Flush with refrigerator door – 90° door rotation

3. Ventilation and installation – Freezer drawer models

Andere Handbücher für E331T

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Fisher & Paykel Kühlschrank Handbücher

Fisher & Paykel

Fisher & Paykel ACTIVESMART RF203Q Bedienungsanleitung

Fisher & Paykel

Fisher & Paykel RF610ADW4 Bedienungsanleitung

Fisher & Paykel

Fisher & Paykel IZONA CoolDrawer RB36S Bedienungsanleitung

Fisher & Paykel

Fisher & Paykel ACTIVESMART RS32A72 Bedienungsanleitung

Fisher & Paykel

Fisher & Paykel RB60V18 Montageanleitung

Fisher & Paykel

Fisher & Paykel RF175WCLW1 Montageanleitung

Fisher & Paykel

Fisher & Paykel RS90AU1 Bedienungsanleitung

Fisher & Paykel

Fisher & Paykel 790 Active Smart Bedienungsanleitung

Fisher & Paykel

Fisher & Paykel RS2484WRUK1 Bedienungsanleitung

Fisher & Paykel

Fisher & Paykel ACTIVESMART RS9120WRJ1 Bedienungsanleitung

Fisher & Paykel

Fisher & Paykel RF540ADUSX5 Bedienungsanleitung

Fisher & Paykel

Fisher & Paykel E522BLE4 Bedienungsanleitung

Fisher & Paykel

Fisher & Paykel ACTIVESMART RF605Q Fehlerbehebungshandbuch

Fisher & Paykel

Fisher & Paykel ActiveSmart E372B Bedienungsanleitung

Fisher & Paykel

Fisher & Paykel ActiveSmart E402B Montageanleitung

Fisher & Paykel

Fisher & Paykel RS36A80U1 Bedienungsanleitung

Fisher & Paykel

Fisher & Paykel RS6121S Bedienungsanleitung

Fisher & Paykel

Fisher & Paykel RS2484SLK1 Bedienungsanleitung

Fisher & Paykel

Fisher & Paykel RS6019B Bedienungsanleitung

Fisher & Paykel

Fisher & Paykel RS90A1 Bedienungsanleitung

Fisher & Paykel

Fisher & Paykel ACTIVESMART RS80A Bedienungsanleitung

Fisher & Paykel

Fisher & Paykel RS7621SRK1 Bedienungsanleitung

Fisher & Paykel

Fisher & Paykel ActiveSmart RF522A Bedienungsanleitung

Fisher & Paykel

Fisher & Paykel CoolDrawer RB90S64MKIW1 Betriebsanleitung

Beliebte Kühlschrank Handbücher anderer Marken

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Bedienungsanleitung

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Bedienungsanleitung

Sharp

Sharp SJ-BA31IEXW2-EU Bedienungsanleitung

CORBERO

CORBERO CC2300MCW Bedienungsanleitung

KitchenAid

KitchenAid 2205264 Bedienungsanleitung

Stengel

Stengel KU 1101 A++ Bedienungsanleitung

NEFF

NEFF KI181 Series Bedienungsanleitung

Hoshizaki

Hoshizaki Reach-In Bedienungsanleitung

Amana

Amana ASD2524VES00 Bedienungsanleitung

BOMANN

BOMANN KGC 213 Bedienungsanleitung

Danby

Danby DAR044A1SLDD Montageanleitung

Samsung

Samsung RF323TE Bedienungsanleitung

Beko

Beko CSA31022 Bedienungsanleitung

IKEA

IKEA FROSTIG C 185 E Bedienungsanleitung

Electrolux

Electrolux ER 6821 D Bedienungsanleitung

True

True TS-28 Bedienungsanleitung

Frigidaire

Frigidaire FSC23R5DW9 Bedienungsanleitung

Beko

Beko LSP4579W Bedienungsanleitung
