Fishman FLUENCE SB1 Bedienungsanleitung
INSTALLATION GUIDE
FLUENCE BASS SOAPBAR PICKUPS
1. Determine the rotary controls (Volume, Tone, etc.) and switches to be used in your
installation, including those included with your purchase. Test fit the components to
make sure that each will fit in the allocated locations or modify the instrument until the
fit is correct and all controls can be located without issue. Fishman Fluence Pickups are
active and require 25K audio taper potentiometers.
2. Fishman Fluence multi-voice pickups require a 9V power supply.
• If using a standard 9V battery, test fit cavity locations for simple installations or
consider installing an externally accessible battery compartment (available separately.)
Note that it is important the battery is not allowed to short contacts between controls
in the instrument.
• If using a separately purchased Fishman rechargeable battery, refer to those instruc-
tions to complete this part of your installation.
• Note that it may be possible to combine other active pickups with Fishman Fluence
pickups, but all pickups will need to use the same 9V power source. Only active pickup
combinations are supported.
Getting Started
2
These instructions provide installation options for the Fishman Fluence series of multi-voice
pickups, but these instructions are not comprehensive. A skilled electronics technician
can simply interpret this overview to create a wide range of custom wiring options. Please
consult with your installer for alternate switching and control components or options not
specifically detailed in this guide or included with your pickup purchase. Please visit www.
fishman.com for additional wiring diagrams.
By self-installing and/or misusing this product, you understand and agree that and such uses
are high risk activities and, to the extent permitted by law, YOU EXPRESSLY AND VOLUN-
TARILY ASSUME THE RISK OF DEATH OR OTHER PERSONAL INJURY SUSTAINED WHILE
PARTICIPATING IN SUCH ACTIVITIES WHETHER OR NOT CAUSED BY THE NEGLIGENCE
OR ANY OTHER FAULT of Fishman, including but not limited to equipment malfunction from
whatever cause, or any other fault of Fishman. Additionally, you agree to indemnify, defend
and hold Fishman harmless from any third party claims arising from such activities.
System Requirements
Installation Warning!
3
3. The various pickup voicing options are easily activated by connecting the corresponding
control wires to Ground. Any of these options can be made switch selectable using the includ-
ed push-pull pots or other preferred switches. They can also be permanently wired by either
connecting to Ground or leaving “open” (unconnected). See the “Connection Points and
Functions” section for helpful details.
4. Review your planned scheme for errors, complete the soldering, mount and secure all your
components, and test your completed installation before assembly. Consider a popular wiring
option as shown on the reverse side of this guide or visit
www.fishman.com for additional wiring diagrams.
4
Voice – 1: (2kHz) Classic, Fat, and Round tone, use for all vintage type sounds, with-
out excess high end string noise and with a fat low end that moves a lot of air.
Voice – 2 Mid Contour: (7kHz w/500Hz mid-scoop ) The most extreme high fidelity,
clarity, percussiveness, and articulation you’ve ever experienced in a magnetic bass
pickup. Equally suitable for slapping and funk as it is the most aggressive metal.
Voice – 2 Mid Flat: (7kHz w/mid-flat ) The same fidelity, clarity, and articulation as
Voice 2 but with the midrange opened up for a more vocal quality, especially suitable
for Modern Jazz Bass tones in single coil mode
(Single Coil mode can be used with any of the three voices)
5
PAT. 8,519,251
Rev3.1
BridgeNeck
Coil Tap Mode Select
BASS-SB1
GND
Voice-2
Coil Tap
V2 MC Off
+9-18V
GND
OUTPUT
4-String Bridge
4-String Neck
5-String Bridge
5-String Neck
1
2
3
4
5
6

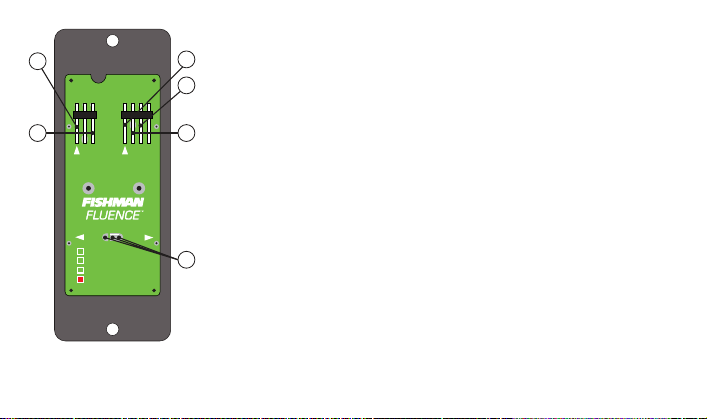

Fluence Bass – Connection Points & Functions
1. Mid Flat - This feature bypasses the mid contour on Voice 2, and
works in both Humbucking and Single Coil mode.
To activate, connect the Mid Flat wire to ground, either wired
through a switch or permanently to a ground source within the cavity.
2. Voice-2 Select Wire - To select Voice-2, connect this pin to ground
through a switch contact or permanently by soldering it to any
ground or by using one of the included jumpers across the pins.
This pin is an electronically controlled switch and has no signal on
it. It can share a switch contact with other voice select wires without
interaction.
6
7
Note: the Single Coil select pin does not override the Voice select. Therefore, you are
free to use the single coil mode with Voice 1, Voice 2, and Voice 2 Mid Flat
3. Single Coil Select Wire - To select Single Coil mode, connect this pin to ground
through a switch contact.
In Single Coil mode, the default setting are the inside coils.
4. Single Coil Mode Select - A row of three solder pads is used to select the active
coil in Single Coil mode
The active coil is selected by a solder bridge connecting the corresponding outer pad
to the center one.
The pickups ship from the factory with the inner coils (when used as a Bridge/Neck
pair) set as the default. To change the active coils to the outer ones, remove the
solder bridge and create a new one from the other outer pad to the center. To avoid
8
damaging the pads, solder wick or a desoldering pump are strongly recommended for
removing the solder bridge.
5. +9-18V - This is the + dc power input pin. Fluence pickups are designed to have a
wide dynamic range running from a 9V supply, however they are 18V compatible for
instruments already set up that way.
6. Output - The main output pin has a 8.2k ohm output impedance and is suitable for
driving low impedance volume and tone pots, typically 25k.
9

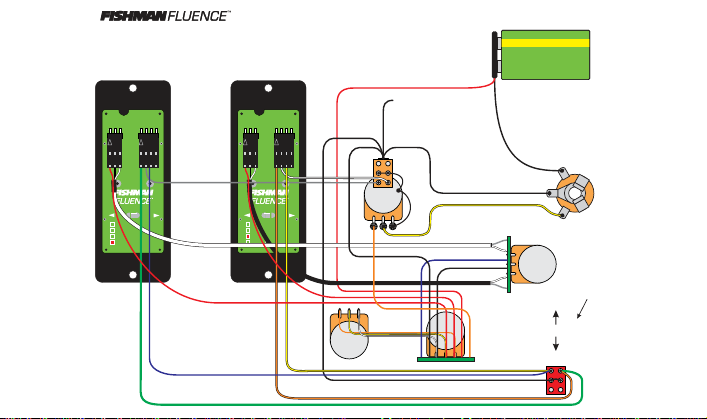

Neck PickupBridge PickupPAT. 8,519,251Rev3.0BridgeNeckCoil Tap Mode SelectBASS-SB1
GODVoice-2Coil TapV2 MC Off+9-18VGODOUTPUT
4-String Bridge4-String Neck5-String Bridge5-String NeckPAT. 8,519,251Rev3.0BridgeNeckCoil Tap Mode SelectBASS-SB1
GODVoice-2Coil TapV2 MC Off+9-18VGODOUTPUT
4-String Bridge4-String Neck5-String Bridge5-String NeckVoice SelectDPDTOn-On-On2-Band EQVolume(Pull for SingleCoil Mode)BassTreble25k9V BatteryOutputJackRingTipSleeveSB1 Soapbar Bass Pickup SetVolume & Blend Control w 2-Band EQ
GNDGND
Shield/GNDShield/GNDBridge INNeck INOUTOUTINGNDGNDx2Bridge GNDVoice-2 - Mid FlatVoice-2 - Mid CutVoice-1Blend25k(x2)+9Vx3
