FitTrack T30-FO-01 Bedienungsanleitung
T30-FO-01 - 30ft Trade Show Display Formulate Fabric 01
HEX KEY SET x1 TC-30-90T x2
Tools, Components, & Connectors
PLT-BP-LN114-S2-650 x3 LN114-SCRW x3
Included In Your Kit
Graphics
FMLT-DS-30-01-G x1
Included In Your Kit
Tubes
WS10-T1 x12
WS10-T7 x2
WS10-T4 x3
WV20-01-T2 x2
WS10-T2 x18
WV20-01-T1 x2
WS10-T5 x3
WV20-01-T7 x2
WS10-T6 x2
WS10-T4-B x1
Exploded View
FRAME A

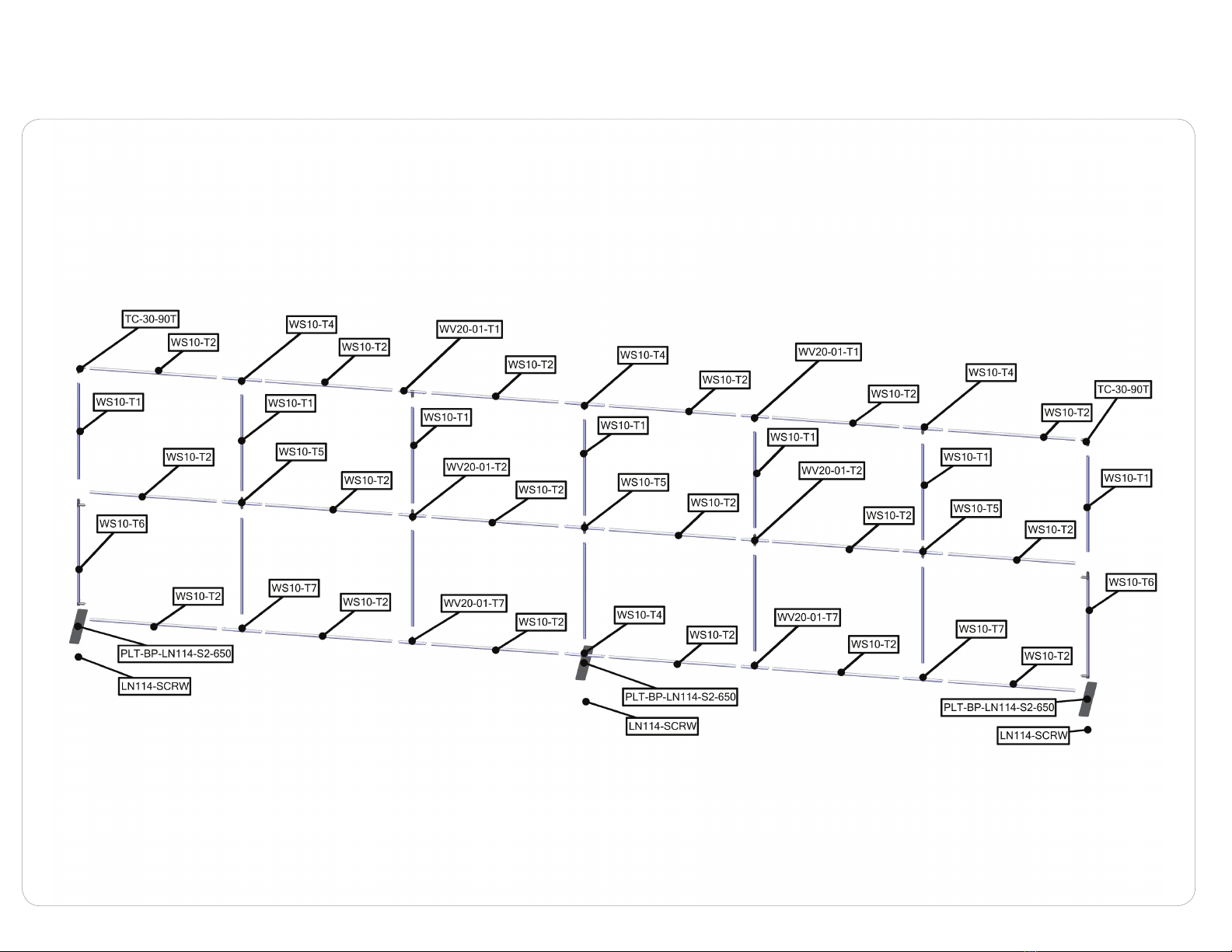

Labeling Diagram
FRAME A
Connection Methods
Connection Method 1:
ES30 / ES50 / ES75
Connection Method 4:
Tube Clamps
Connection Method 2:
Snap Buttons & Swage
Connection Method 3:
ES30-90B / ES30-I / ES30-C
Compress the unlocked connector and slide one tube onto each end.
Lock both screws carefully using your hex key tool. Be sure to lock
securely, but do not overtighten.
Be sure to fully assemble all frames before using clamps. With the clamp unlocked, place one tube of the
first frame into the mouth of the clamp. Place the second tube (if applicable) into the second mouth of the
clamp. With both frame’s tubes in the clamp, be sure to lock securely, but do not overtighten.
Locate the snap button on the connector or swage tube. Locate the
hole on the corresponding tube. Press the snap button with your thumb
and slide the tube and connector together so that the snap button
snaps fully into the lock hole. To disassemble, press the snap button and
pull apart.
Compress one unlocked end of the connector and slide it through
one tube end. Compress the other end of the connector and slide the
second tube on. Lock both screws carefully using your hex key tool. Be
sure to lock securely, but do not overtighten.
Swage Snap Buttons
TCP TC TCH
ES30-90B ES30-90B
Kit Assembly
Step by Step:
Assemble Frame A according to
the Labeling Diagram.
Please reference Connection
Method 2 for more details.
Step 1.
Apply FMLT-DS-30-01-G graphic
to the frame by pulling the
pillowcase over the top.
Zipper located to the bottom of
the Graphic.
Step 2.
FMLT-DS-30-01-G x1
bottom of frame
Apply the PLT-BP-LN114-S2-650
to the Left, Right, and center of
Frame A using your hex key tool.
See image right.
Step 3.
PLT-BP-LN114-S2-650
LN114-SCRW
