Precautions
Please read before using
F700A front panel description
F710A front panel description
Main menu
Radio
Bluetooth (phone)
BT music
Settings
Steering wheel control settings
Video playing menu
Audio playing menu
AUX
File manager
Easy Connection Mode
Navigation
Sound settings
Web browser
Google play market
Diagram circuit
Specifications
Troubleshooting guide
Simple trouble shooting
4
5
6
7
8
10
11
13
14
15
16
16
17
17
18
19
20
21
22
23
24
25
27
СO N T E N T S
P R E C O U T I O N S
A T T E N T I O N !
If you encounter any difficulties in operating the device, contact an authorized service center.
The device has a built-in liquid crystal monitor, so be extremely careful when transporting and
installing it.
It is not recommended to wipe the surface of the device with abrasive detergents. The operating
voltage of the receiver is 12V (+ / - 2V), DC. If the voltage is lower or higher, it is not recommended
to use the device, as it can easily be damaged.
Before turning on the device, make sure that the temperature inside the car is in the range from
0 to +45 degrees.
For replacement, use fuses that are rated for the current shown on the fuse holder. If the fuse
blows several times in a row, carefully check the electrical connections for short circuits. Also
check the voltage in the vehicle's on-Board network.
To avoid damage, do not expose the unit to direct sunlight, heat radiation, or hot air. If the
temperature inside the car is too high, do not turn on the machine until the temperature inside
the car is too high. Do not expose the appliance to sudden changes in temperature decreases.
The receiver is equipped with an interactive touch
screen. Remove the protective film before using it for
the first time. Otherwise, the touch screen may not
work properly. Settings are controlled by tapping and
moving your fingers on the screen.
ATTENTION!
Do not use metal or sharp objects to control of the touch interactive display. Also, do not use
excessive efforts when touching the screen.
4
P L E A S E R E A D
B E F O R E U S I N G
5
In order to improve traffic safety, do not distract your attention by performing complex system
control operations.
Any operations requiring increased attention of the driver should be performed only after the
vehicle has come to a complete stop in a safe place. Failure to comply with this requirement may
result in a ROAD TRANSPORTATION ACCIDENT.
Adjust the volume so that you can hear external noises while driving.
Failure to comply with this requirement may result in a TRAFFIC ACCIDENT.
Minimize viewing of the display while driving.
Failure to comply with this requirement may result in a ROAD ACCIDENT.
Do not disassemble or modify this unit.
Doing so may result in accident, fire, or electric shock.
Connect the system to 12V DC only.
Using other power sources may result in fire, electric shock, or other damage.
When replacing fuses - use only those of the same rating.
Using an incorrect fuse can damage the device.
6
F 7 0 0 A F R O N T P A N E L
D E S C R I P T I O N
11
2
3
4
5
6
7
8
9
10
1
1. Microphone (used for Bluetooth)
2. Encoder - volume control
3. Bluetooth communication button, answer incoming calls
4. Scroll forward button in Multimedia mode / skip to next radio station
in radio mode
5. Backward button in Multimedia mode / skip to previous radio station
in radio mode
6. Menu - button to go to the main menu screen
7. USB slot
8. Reset - button to reset the receiver
9. AUX - audio input
10. Touch screen
11. IR receiver (for models with remote control).
7
F 7 1 0 A F R O N T P A N E L
D E S C R I P T I O N
11
2
3
4
5
6
7
8
9
10
1
1. Microphone (used for Bluetooth)
2. Button on / off the receiver / mute sound MUTE
3. Bluetooth communication button, answer incoming calls
4. Volume control button (+)
5. Volume control button (-)
6. Menu - button to go to the main menu screen
7. USB slot
8. Reset - button to reset the receiver
9. AUX - audio input
10. Touch screen
11. IR receiver (for models with remote control).
When you turn on the device, the main page is loaded by default. For selection the function or
application you are interested in, click the corresponding icon. To remove an icon or application,
touch and hold and drag it to the delete icon that appears.
Main functions:
1. Navigation
2. Bluetooth
3. Radio
4. Music
5. Settings
6. APPs
7. Time/date
To go to the application menu, touch the icon.
To launch the required application, touch the corresponding icon.
M A I N M E N U
8
To create a link on the main screen, touch the icon, and hold, drag to an empty space on the
home screen. In app mode to change pages touch the display and slide your finger across the
display left or right to select desired mode.

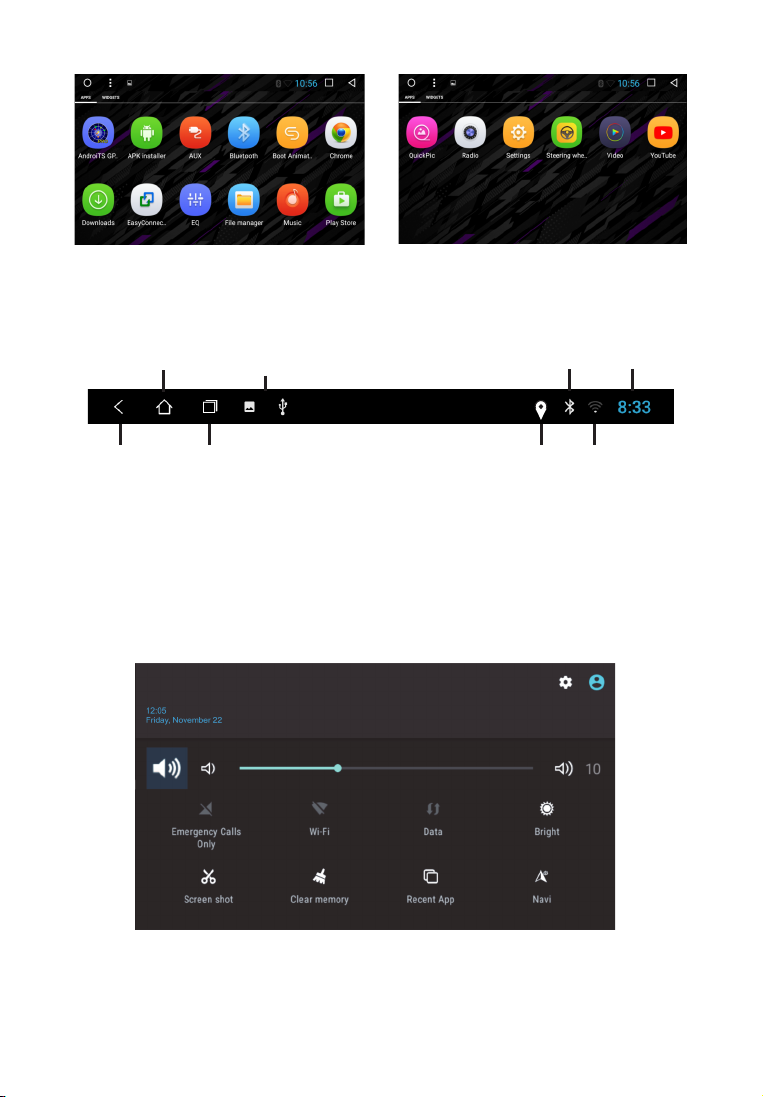

Top panel (status bar)
Icons at the top left of the screen - notifications about messages, events.
The icons at the top right are device status indicators.
When a message arrives or a new event will be displayed on the top bar on the left, tap and
swipe down from the status bar. Then you can choose message or event and view its content.
Quick settings and notifications panel
Pull down from the top edge of the display to open the panel.
9
MAIN page
Back
Notifications about
messages and events
GPS
BT
Wi-Fi
Current time
Hiory menu
Device keyboard
Input on the virtual keyboard is done in the same way as on the physical one.
To change the language, press or hold:
The Radio settings menu provides the user with the ability to configure the basic modes according
to personal preference.
Automatic station search
To start searching, touch the icon The receiver starts scanning from the beginning of the range.
At the end of the scan, the stations found will be stored in the memory cells. To stop scan, touch one
of the number icons 1-18 at the bottom of the display, while the frequency on the display stops
flashing. In each of the FM1 / FM2 / AM subbands, you can save - 18 stations. In total, you can store up
to 54 stations (36 FM stations and 18 AM stations).
Manual setting
For manual configuration, use the icons When you click on the icons , you move along
the range scale with a step of 0.05 MHZ. To stop, click on the icon again. In this way, an accurate tuning
to the desired radio station. To store a tuned station in memory, press and hold the number button (1-18).
10
R A D I O
This receiver is equipped with a high quality radio that supports reception in band FM/AM with
automatic band scanning, frequency indication the received radio station, etc.
