NESHAP 319

2 and 3 Stage Compliant System

Flanders-Precisionaire offers several choices for

NESHAP filtration systems. These systems comply

with EPA (Environmental Protection Agency) Test

Method 319 as it applies to the National Emissions

Standards for Hazardous Air Pollutants (NESHAP).

Reference 63 Fed. Reg. 59 (March 27, 1998) and 40

C.F.R. 9, 63.

The EPA Test Method 319 is a testing protocol in

which potassium chloride and oleic acid are substi-

tuted for chromate paint. These chemical sub-

stances attempt to simulate dry and wet overspray

characteristics of the chromate paint. This testing

protocol verifies that an air filtration system has met

minimum efficiency requirements, under laboratory

conditions, utilizing potassium chloride and oleic

acid.

If a spraybooth existed before 1999, its filtration sys-

tem must comply with the two stage standards, and

if it was built after 1999, it must comply with the

three stage standards. Tables 1 and 2 show the

required compliance efficiency levels by micron size.

Recent legislation has shown that two or three

stages are not necessary as long as the final stage

has been certified to comply with the minimum effi-

ciency levels outlined in the table above..

Method 319: Determination of Filtration

Efficiency for Paint Overspray Arrestors

Quote: “For a paint arrestor system or subsystem

which has been tested by this method, adding addi-

tional filtration devices to the system or subsystem

shall be assumed to result in an efficiency of at least

that of the original system without the requirement

for additional testing. (For example, if the final stage

of a three-stage paint arrestor system has been test-

ed by itself, then the addition of the other two stages

shall be assumed to maintain, as a minimum, the fil-

tration efficiency provided by the final stage alone.”

FLANDERS 319 COMPLIANT SYSTEM

Flanders Precisionaire’s final stage options have

been tested and comply with NESHAP regulations.

This allows a large range of interchangeable prod-

ucts for the earlier stages

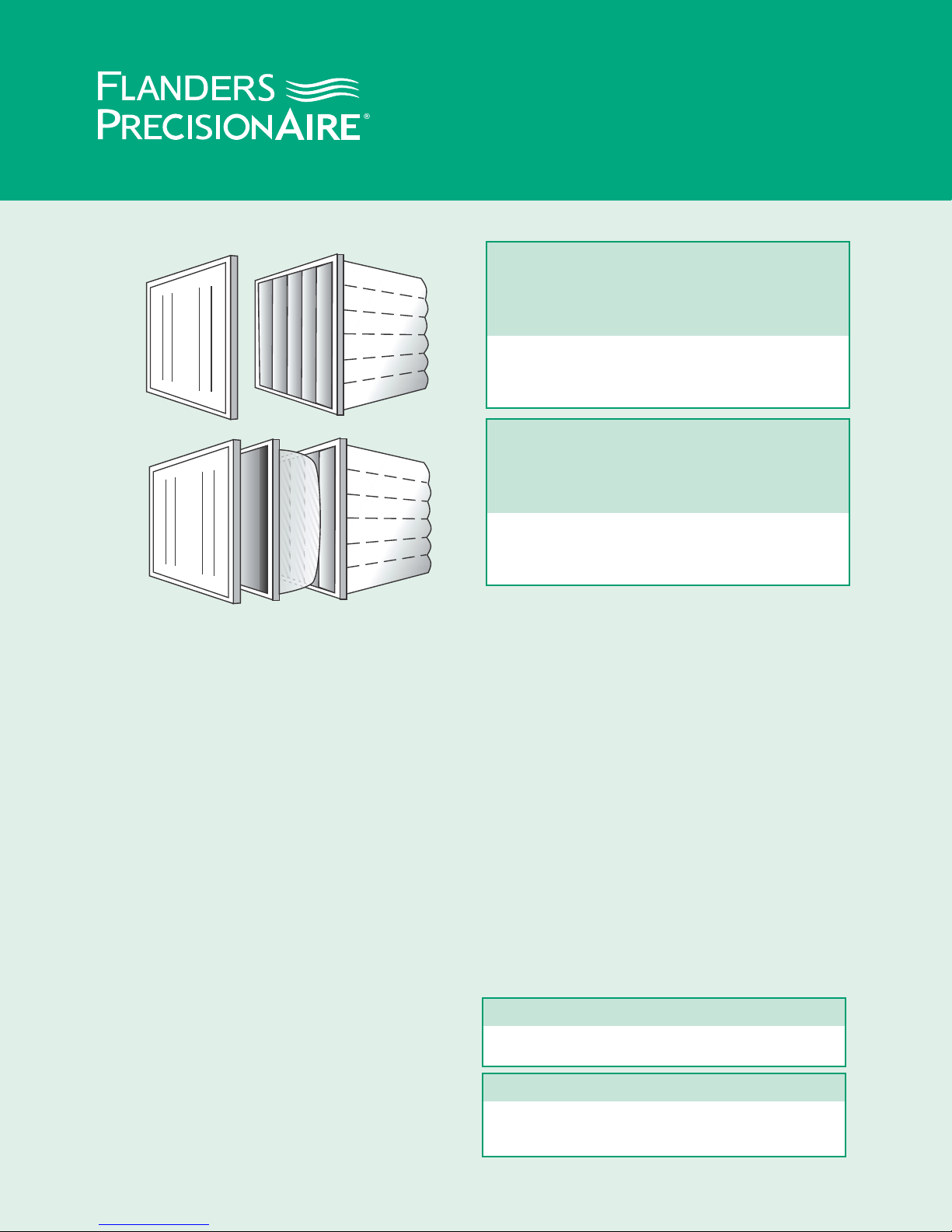

Flanders Precisionaire 2-Stage System

Stage 1 Varies

Stage 2 325T 2-Pocket cube

Flanders Precisionaire 2-Stage System

Stage 1 Varies

Stage 2 Varies

Stage 3 319A 95% Bags

Two-Stage System Existing Before 1999

Minimum NESHAP efficiency ratings by particle size

Oleic Acid (Liquid) Postassium Chloride (Dry)

Efficiency Particle Size Efficiency Particle Size

>90% >5.7µm >90% >8.1µm

>50% >4.1µm >50% >5.0µm

>10% >2.2 µm >10% >2.6 µm

Two-Stage System Existing Before 1999

Minimum NESHAP efficiency ratings by particle size

Oleic Acid (Liquid) Postassium Chloride (Dry)

Efficiency Particle Size Efficiency Particle Size

>95% >2.00µm >95% >2.50 µm

>80% >1.00µm >85% >1.10 µm

>65% >0.42 µm >75% >0.70 µm

Recommended Change-Out Procedures

1. When the entire system is installed, obtain a static pressure reading for the clean system

2. Change out the first stage when the static pressure rises a1.0 w.g. above the initial resistance.

3. Repeat this procedure until the static pressure remains at 1.0 w.g. even with a clean first stage

installed. At that time, replace the first and second stage. If a three-stage system is used, continue

replacing stage 1 and 2 until the third stage maintains a 1.0 w.g. reading with both clean first and sec-

ond stages installed, then replace the entire system.

Initial pressure for a system can be estimated for an airflow velocity of 150 FPM by totalling the initial

pressure drop for each stage. This data is available in the technical performance data in this catalog.

Item No. Item Model Description Qty/Cs

DP PA1438 FP319A395S2415 12x24x15 PAK FP319A 95% 3Stage 4

DP PA1439 FP319A695S0015 20x20x15 PAK FP319A 95% 3Stage 4

DP PA1440 FP319A695S4415 24x24x15 PAK FP319A 95% 3Stage 4

Stage 1 FP3 332 331Y 330G PA100

Options PA 200 PA 300 PA 400 PA500 PA600

PS 125 225T Panel 325T Panel 425 Panel ST55 Panel

Stage 2 Cube 2325T Cube Filter (2-Pocket 325T Series Cube)

Mandatory

2-Stage System Options

All products listed are located within this catalog.

Flanders Precisionaire Products

Stage 1 FP3 332 331Y 330G PA100

Media Pad PA 200 PA 300 PA 400 PA500 PA600

Options PS 125

Stage 2 225T Panel 325T Panel 425T Panel ST55 Panel

Options 225T Cubes 325T Cubes 425T Cubes Any Stage 1 Option

Stage 3 319A 95% Bags

Mandatory

3-Stage System Options

All products listed are located within this catalog.

Flanders Precisionaire Products

NESHAP 319

2 and 3 Stage Compliant System

FP319A Cube

PA1431 FP319A202015 20X20X15 CUBE FP319A 2

PA1433 FP319A202515 20X25X15 CUBE FP319A 2

PA1434 FP319A242415 24X24X15 CUBE FP319A 2

FP319A Media Pad

PA1379 FP319A2020PAD 20x20 FP319A MEDIA PAD 24

PA1380 FP319A2424PAD 24x24 FP319A MEDIA PAD 24

FP319A Prelock

PA1432 FP319A2020PRK 20x20 FP319A RING PANEL 24

PA1435 FP319A2424PRK 24x24 FP319A RING PANEL 24

FP319A Media Rolls

PA1369 FP319A2090RL 20"x90' FP319A MEDIA ROLL 1

PA1370 FP319A2590RL 25"x90' FP319A MEDIA ROLL 1

PA1371 FP319A3090RL 30"x90' FP319A MEDIA ROLL 1

PA1372 FP319A3690RL 36"x90' FP319A MEDIA ROLL 1

PA1373 FP319A4090RL 40"x90' FP319A MEDIA ROLL 1

PA1374 FP319A4590RL 45"x90' FP319A MEDIA ROLL 1

PA1375 FP319A5090RL 50"x90' FP319A MEDIA ROLL 1

PA1376 FP319A5590RL 55"x90' FP319A MEDIA ROLL 1

PA1377 FP319A6090RL 60"x90' FP319A MEDIA ROLL 1

PA1378 FP319A9690RL 96"x90' FP319A MEDIA ROLL 1

FP319A 2-Stage 65% Precision Pak

PA1436 FP319A665S0015 20X20X15 PAK FP319A 65% 2STAGE 4

PA1437 FP319A665S4415 24X24X15 PAK FP319A 65% 2STAGE 4

FP319A 3-Stage 95% Precision Pak

PA1438 FP319A395S2415 12X24X15 PAK FP319A 95% 3STAGE 4

PA1439 FP319A695S0015 20X20X15 PAK FP319A 95% 3STAGE 4

PA1440 FP319A695S4415 24X24X15 PAK FP319A 95% 3STAGE 4

FP319A Custom Media Pad

PA1381 FP319AP00099 MEDIA FP319A CUSTOM 000-099 12

PA1382 FP319AP00199 MEDIA FP319A CUSTOM 100-199 12

PA1383 FP319AP00299 MEDIA FP319A CUSTOM 200-299 12

PA1384 FP319AP00399 MEDIA FP319A CUSTOM 300-399 12

PA1385 FP319AP00499 MEDIA FP319A CUSTOM 400-499 12

PA1386 FP319AP00599 MEDIA FP319A CUSTOM 500-599 12

NESHAP 319

2 and 3 Stage Compliant System

Item No. Model Description Qty/Case

FP319A Custom Media Pad (continued)

PA1387 FP319AP00699 MEDIA FP319A CUSTOM 600-699 12

PA1388 FP319AP00799 MEDIA FP319A CUSTOM 700-799 12

PA1389 FP319AP00899 MEDIA FP319A CUSTOM 800-899 12

PA1390 FP319AP01199 MEDIA FP319A CUSTOM 900-1199 12

PA1391 FP319AP01399 MEDIA FP319A CUSTOM 1200-1399 12

PA1392 FP319AP01599 MEDIA FP319A CUSTOM 1400-1599 12

PA1393 FP319AP01799 MEDIA FP319A CUSTOM 1600-1799 12

PA1394 FP319AP01999 MEDIA FP319A CUSTOM 1800-1999 12

PA1395 FP319AP02499 MEDIA FP319A CUSTOM 2000-2499 12

PA1396 FP319AP02999 MEDIA FP319A CUSTOM 2500-2999 12

PA1397 FP319AP03499 MEDIA FP319A CUSTOM 3000-3499 12

PA1398 FP319AP03999 MEDIA FP319A CUSTOM 3500-3999 12

PA1399 FP319AP04499 MEDIA FP319A CUSTOM 4000-4499 12

PA1400 FP319AP04999 MEDIA FP319A CUSTOM 4500-4999 12

PA1401 FP319AP05499 MEDIA FP319A CUSTOM 5000-5499 12

PA1402 FP319AP05999 MEDIA FP319A CUSTOM 5500-5999 12

PA1403 FP319AP06499 MEDIA FP319A CUSTOM 6000-6499 12

PA1404 FP319AP06999 MEDIA FP319A CUSTOM 6599-6999 12

PA1405 FP319AP07499 MEDIA FP319A CUSTOM 7000-7499 12

PA1406 FP319AP07999 MEDIA FP319A CUSTOM 7500-7999 12

PA1407 FP319AP08499 MEDIA FP319A CUSTOM 8000-8499 12

PA1408 FP319AP08999 MEDIA FP319A CUSTOM 8500-8999 12

PA1409 FP319AP09499 MEDIA FP319A CUSTOM 9000-9499 12

PA1410 FP319AP09999 MEDIA FP319A CUSTOM 9500-9999 12

PA1411 FP319AP10499 MEDIA FP319A CUSTOM 10000-10499 12

PA1412 FP319AP10999 MEDIA FP319A CUSTOM 10500-10999 12

PA1413 FP319AP11499 MEDIA FP319A CUSTOM 11000-11499 12

PA1414 FP319AP11999 MEDIA FP319A CUSTOM 11500-11999 12

PA1415 FP319AP12499 MEDIA FP319A CUSTOM 12000-12499 12

PA1416 FP319AP12999 MEDIA FP319A CUSTOM 12500-12999 12

PA1417 FP319AP13499 MEDIA FP319A CUSTOM 13000-13499 12

PA1418 FP319AP13999 MEDIA FP319A CUSTOM 13500-13999 12

NESHAP 319

2 and 3 Stage Compliant System

Item No. Model Description Qty/Case

NESHAP 319

2 and 3 Stage Compliant System

FP319A Custom Media Pad (continued)

PA1419 FP319AP14499 MEDIA FP319A CUSTOM 14000-14499 12

PA1420 FP319AP14999 MEDIA FP319A CUSTOM 14500-14999 12

PA1421 FP319AP15499 MEDIA FP319A CUSTOM 15000-15499 12

PA1422 FP319AP15999 MEDIA FP319A CUSTOM 15500-15999 12

PA1423 FP319AP16499 MEDIA FP319A CUSTOM 16000-16499 12

PA1424 FP319AP16999 MEDIA FP319A CUSTOM 16500-16999 12

PA1425 FP319AP17499 MEDIA FP319A CUSTOM 17000-17499 12

PA1426 FP319AP17999 MEDIA FP319A CUSTOM 17500-17999 12

PA1427 FP319AP18499 MEDIA FP319A CUSTOM 18000-18499 12

PA1428 FP319AP18999 MEDIA FP319A CUSTOM 18500-18999 12

PA1429 FP319AP19499 MEDIA FP319A CUSTOM 19000-19499 12

PA1430 FP319AP19999 MEDIA FP319A CUSTOM 19500-19999 12

Item No. Model Description Qty/Case
