Flash BEAM 2R Moving Head Bedienungsanleitung

USER MANUAL / INSTRUKCJA OBSŁUGI

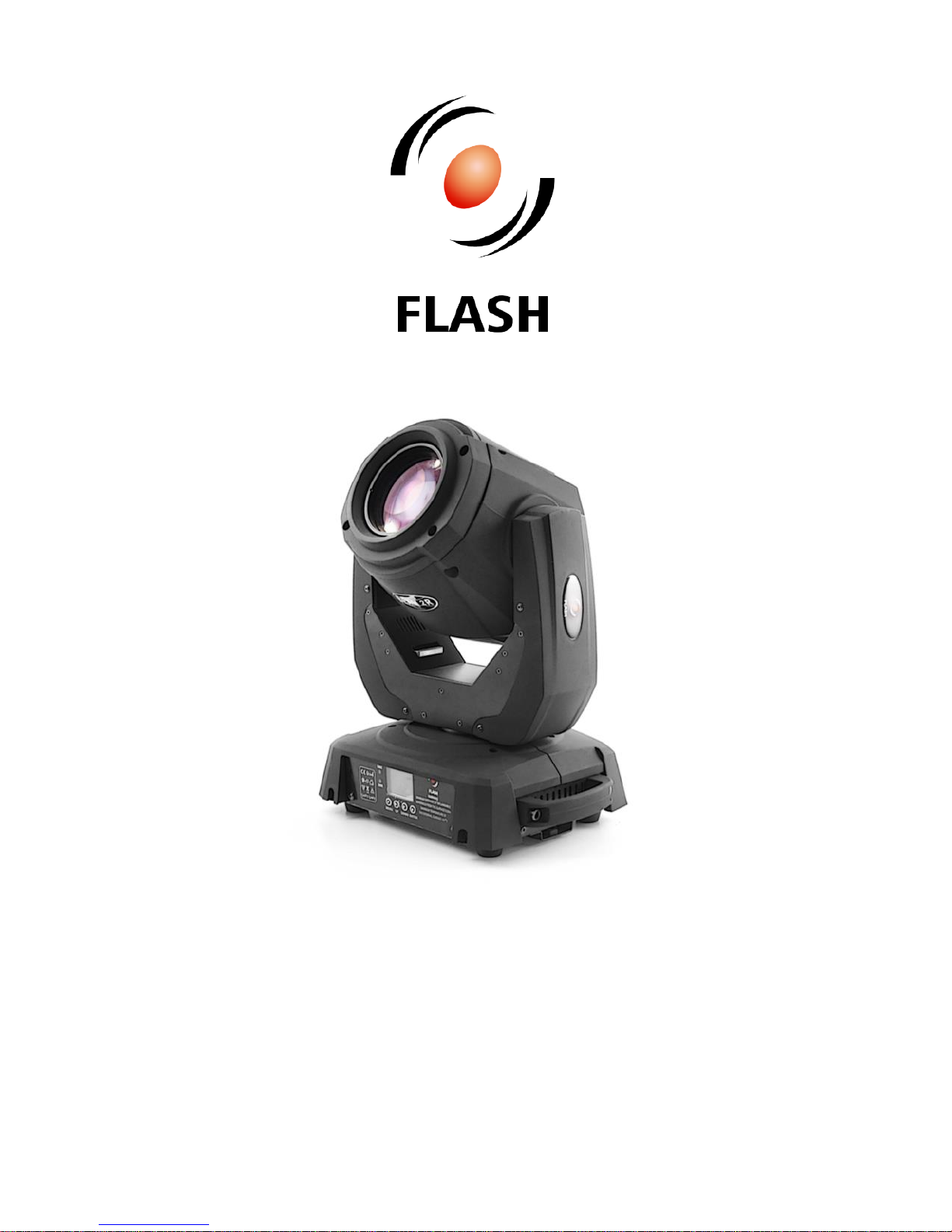

BEAM 2R Moving Head

F1000087

BEAM 2R Moving Head F1000087

www.flash-butrym.pl

Table of contents

1Introduction......................................................................................................................................................2

2Safety information ...........................................................................................................................................2

3Product information ........................................................................................................................................2

3.1 Specification................................................................................................................................................2

4Installation........................................................................................................................................................3

5Connections......................................................................................................................................................3

5.1 Connecting DMX signal.............................................................................................................................4

5.2 Voltage specification..................................................................................................................................4

5.3 Connecting power supply........................................................................................................................4

6DMX channel list..............................................................................................................................................5

Spis treści

1Wprowadzenie...............................................................................................................................................11

2Zasady bezpieczeństwa ................................................................................................................................11

3Informacje o produkcie .................................................................................................................................11

3.1 Specyfikacja...............................................................................................................................................11

4Instalacja .........................................................................................................................................................12

5Połączenia.......................................................................................................................................................12

5.1 Podłączenie sygnału DMX ......................................................................................................................12

5.2 Specyfikacja zasilania...............................................................................................................................13

5.3 Podłączanie zasilania...............................................................................................................................13

6Lista kanałów DMX.......................................................................................................................................14

www.flash-butrym.pl

1INTRODUCTION

Thank you for purchasing BEAM 2R Moving Head. For safety reasons and to ensure the trouble-free

operation, carefully read the instructions.

2SAFETY INFORMATION

1. CAUTION ! Avoid looking directly into the light source (meant especially for epileptics)!

2. CAUTION ! Keep away from fire!

3. Before connecting the unit to the mains, make sure it is not damaged mechanically. If you

notice any signs of damage you should contact your dealer immediately. Do not connect the

device to the mains.

4. Do not use the device in high humidity conditions and at temperatures above 40° C

5. The device must be installed on stable structures

6. WARNNING! Minimum distance of inflammable materials from the surface: 12m.

7. To reduce the risk of electrical shock or fire, do not expose this unit to rain or moisture.

8. Do not spill water or other liquids into or on to your unit.

9. During long periods of non-use, disconnect the units main power.

10. It should be installed in a well-ventilated place, at a distance of 15cm or more with the walls.

At the same time, please check if the fan and ventilation holes are unobstructed.

11. Disconnect the power supply before installation.

12. Never plug this unit in to a dimmer pack.

The product has perfect performance and integrity packing. All users should be strictly comply with the

warning and operating instructions as stated. Or we aren't in charge of any result by misusing. Any damage

resulting by misuse is not within the company’s warranty.

WARNING! THE BULB IS HOT!

Please turn off or restart the device only after 20 minutes after turning off the lamp, once it is fully cooled

down. Frequent switching will reduce the life span of lamps and bulbs.

CAUTION! The head and yoke must be unlocked before operation! Check the pan/tilt locks!

3PRODUCT INFORMATION

3.1 Specification

Power consumption: 150W

Power supply voltage: 100 - 240V

Voltage frequency: 50/60Hz

Lamp type: 2R

Display: Color LCD

Color: Color wheel - 13 colors + white

ZOOM: No

Beam angle (min): 3,8°

Beam angle (max): 3,8°

Dimming: Linear: 0 - 100%

Prism: 8-facet, rotating

FROST filter: Yes

FOCUS: Electronic

BEAM 2R Moving Head F1000087

www.flash-butrym.pl

GOBO wheel: 14 + open

PAN range: 540°

TILT range: 220°

Number of DMX channels: 16 / 20

DMX standard: DMX 512

Control interface: 4 buttons

Operating modes: DMX512, Auto, Sound-controlled, Master / Slave

AC IN: powerCON

DMX IN: XLR - 3 pin

DMX OUT: XLR - 3 pin

IP Rating: IP20

Housing made: ABS

Cooling: Active

Height [cm]: 42

Width [cm]: 33

Depth [cm]: 32

Weight [kg]: 11,5

4INSTALLATION

After removing the packaging, check if the device was not damaged during transport. Before connecting to

the mains, make sure that the device is securely mounted. The manufacturer is not responsible for damage

caused by unstable mounting.

Ensure proper connection to the mains and proper grounding. Make sure that the electrical parameters are

consistent with device requirements. All activities, including connecting the device to the mains must be

performed by qualified personnel.

5CONNECTIONS

The device is equipped with the following interfaces:

1. DMX (in/out): XLR 3-pin

2. Power (in): powerCON socket

www.flash-butrym.pl

5.1 Connecting DMX signal

The connection is performed using cable with XLR-female -> XLR-Male plugs.

CAUTION: At the last fixture, the DMX signal has to be terminated with a terminator. Solder a 120Ohm

8486 resistor between signal (-) and signal (+) into a XLR plug and plug it in the DMX output of the last

fixture.

5.2 Voltage specification

Input Voltage

Total Power

Frequency

100~240V

150W

50/60Hz

5.3 Connecting power supply

The connection is performed using power cable with PowerCon connector (included).

The device must be operated by qualified personnel. Make sure that the power grid supply parameters are

consistent with device parameters and limitations are not exceeded.

CAUTION! In the case of cable damage do not attempt to repair. Replacement or repair can be made only

on the manufacturer or by a person with appropriate permissions.

BEAM 2R Moving Head F1000087

www.flash-butrym.pl

6DMX CHANNEL LIST

16CH mode

Channel

Function

Effect

CH 1

Color wheel

0-4: White

5-9: White-Red

10-14: Red

15-19: Red- Yellow

20-24: Yellow

25-29: Yellow- Blue

30-34: Blue

35-39: Blue- Green

40-44: Green

45-49: Green- Orange

50-54: Orange

55-59: Orange- Light blue

60-64: Light blue

65-69: Light blue- Magenta

70-74: Magenta

75-79: Magenta- Light yellow

80-84: Light yellow

85-89: Light yellow- Pink

90-94: Pink

95-99: Pink- Dark blue

100-104: Dark blue

105-109: Dark blue- Light orange

110-114: Light orange

115-119: Light orange-Warm white

120-124: Warm white

125-129: Warm white- Cold white

130-134: Cold white

135-139: Cold white-White

140-255: Color wheel rotation, slow-fast

CH 2

Shutter

0-3: Closed

4-103: Strobe, slow-fast

104-107: Open

108-207: Pulse, slow-fast

208-212: Open

213-251: Random strobe, slow-fast

525-255: Open

CH 3

Dimmer

0-255: 0-100%

CH 4

GOBO wheel

0-4: Open

5-9: Gobo 1

10-14: Gobo 2

15-19: Gobo 3

20-24: Gobo 4

25-29: Gobo 5

30-34: Gobo 6

35-39: Gobo 7

40-44: Gobo 8

45-49: Gobo 9

50-54: Gobo 10

www.flash-butrym.pl

55-59: Gobo 11

60-64: Gobo 12

65-69: Gobo 13

70-74: Gobo 14

75-129: Gobo wheel rotation forward, fast-slow

130-134: No function

135-185: Gobo wheel rotation backward, slow-fast

186-190: Gobo 1 shake, slow-fast

191-195: Gobo 2 shake, slow-fast

169-200: Gobo 3 shake, slow-fast

201-205: Gobo 4 shake, slow-fast

206-210: Gobo 5 shake, slow-fast

211-215: Gobo 6 shake, slow-fast

216-220: Gobo 7 shake, slow-fast

221-225: Gobo 8 shake, slow-fast

226-230: Gobo 9 shake, slow-fast

231-235: Gobo 10 shake, slow-fast

236-240: Gobo 11 shake, slow-fast

241-245: Gobo 12 shake, slow-fast

246-250: Gobo 13 shake, slow-fast

251-255: Gobo 14 shake, slow-fast

CH 5

Prism

0-127: Prism OFF

128-255: 8-facet prism ON

CH 6

Prism rotation

0: No function

1-63: Rotation index

64-127: Prism rotation effect (cyclic change of rotation

direction)

128-190: Prism rotation backward, fast-slow

191-192: Stop rotation

193-255: Prism rotation forward, slow-fast

CH 7

Macro

0-10: No function

11-15: Color effect 1

16-20: Color effect 2

21-25: Color effect 3

26-30: Color effect 4

31-35: Color effect 5

36-40: Color effect 6

41-45: Color effect 7

46-50: Color effect 8

51-55: Color effect 9

56-60: Color effect 10

61-65: Color effect 11

66-70: Color effect 12

71-75: Color effect 13

76-80: Color effect 14

81-85: Macro 1

86-90: Macro 2

91-95: Macro 3

96-100: Macro 4

101-105: Macro 5

106-110: Macro 6

111-115: Macro 7

116-120: Macro 8

121-125: Macro 9

BEAM 2R Moving Head F1000087

www.flash-butrym.pl

126-130: Macro 10

131-135: Macro 11

136-140: Macro 12

141-145: Macro 13

146-150: Macro 14

151-155: Macro 15

156-160: Macro 16

161-165: Macro 17

166-170: Macro 18

171-175: Macro 19

176-180: Macro 20

181-185: Macro 21

186-190: Macro 22

191-195: Macro 23

196-200: Macro 24

201-205: Macro 25

206-210: Macro 26

211-215: Macro 27

216-220: Macro 28

221-225: Macro 29

226-230: Macro 30

231-235: Macro 31

236-240: Macro 32

241-245: Macro 33

246-250: Macro 34

251-255: Macro 35

CH 8

Frost filter

0-127: No function

128-255: Frost filter ON

CH 9

Focus

0-255: Set Focus, far-close

CH 10

PAN

0-255: 0-540°

CH 11

PAN fine

0-255: Fine adjustment

CH 12

TILT

0-255: 0-220°

CH 13

TILT fine

0-255: Fine adjustment

CH 14

PAN / TILT speed

0-255: Fast-slow

CH 15

Reset

0-25: No function

26-76: Dimmer / Focus / Color reset

77-127: PAN / TILT reset

128-255: Reset

CH 16

Lamp control

0-9: No function

10-100: Lamp OFF

101-255: Lamp ON

www.flash-butrym.pl

20CH mode

Channel

Function

Effect

CH 1

Color wheel

0-4: White

5-9: White-Red

10-14: Red

15-19: Red- Yellow

20-24: Yellow

25-29: Yellow- Blue

30-34: Blue

35-39: Blue- Green

40-44: Green

45-49: Green- Orange

50-54: Orange

55-59: Orange- Light blue

60-64: Light blue

65-69: Light blue- Magenta

70-74: Magenta

75-79: Magenta- Light yellow

80-84: Light yellow

85-89: Light yellow- Pink

90-94: Pink

95-99: Pink- Dark blue

100-104: Dark blue

105-109: Dark blue- Light orange

110-114: Light orange

115-119: Light orange-Warm white

120-124: Warm white

125-129: Warm white- Cold white

130-134: Cold white

135-139: Cold white-White

140-255: Color wheel rotation, slow-fast

CH 2

Shutter

0-3: Closed

4-103: Strobe, slow-fast

104-107: Open

108-207: Pulse, slow-fast

208-212: Open

213-251: Random strobe, slow-fast

525-255: Open

CH 3

Dimmer

0-255: 0-100%

CH 4

GOBO wheel

0-4: Open

5-9: Gobo 1

10-14: Gobo 2

15-19: Gobo 3

20-24: Gobo 4

25-29: Gobo 5

30-34: Gobo 6

35-39: Gobo 7

40-44: Gobo 8

45-49: Gobo 9

50-54: Gobo 10

55-59: Gobo 11

60-64: Gobo 12

65-69: Gobo 13

BEAM 2R Moving Head F1000087

www.flash-butrym.pl

70-74: Gobo 14

75-129: Gobo wheel rotation forward, fast-slow

130-134: No function

135-185: Gobo wheel rotation backward, slow-fast

186-190: Gobo 1 shake, slow-fast

191-195: Gobo 2 shake, slow-fast

169-200: Gobo 3 shake, slow-fast

201-205: Gobo 4 shake, slow-fast

206-210: Gobo 5 shake, slow-fast

211-215: Gobo 6 shake, slow-fast

216-220: Gobo 7 shake, slow-fast

221-225: Gobo 8 shake, slow-fast

226-230: Gobo 9 shake, slow-fast

231-235: Gobo 10 shake, slow-fast

236-240: Gobo 11 shake, slow-fast

241-245: Gobo 12 shake, slow-fast

246-250: Gobo 13 shake, slow-fast

251-255: Gobo 14 shake, slow-fast

CH 5

Prism

0-127: Prism OFF

128-255: 8-facet prism ON

CH 6

Prism rotation

0: No function

1-63: Rotation index

64-127: Prism rotation effect (cyclic change of rotation

direction)

128-190: Prism rotation backward, fast-slow

191-192: Stop rotation

193-255: Prism rotation forward, slow-fast

CH 7

Macro

0-10: No function

11-15: Color effect 1

16-20: Color effect 2

21-25: Color effect 3

26-30: Color effect 4

31-35: Color effect 5

36-40: Color effect 6

41-45: Color effect 7

46-50: Color effect 8

51-55: Color effect 9

56-60: Color effect 10

61-65: Color effect 11

66-70: Color effect 12

71-75: Color effect 13

76-80: Color effect 14

81-85: Macro 1

86-90: Macro 2

91-95: Macro 3

96-100: Macro 4

101-105: Macro 5

106-110: Macro 6

111-115: Macro 7

116-120: Macro 8

121-125: Macro 9

126-130: Macro 10

131-135: Macro 11

136-140: Macro 12

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Sprachen:

Andere Flash DJ-Equipment Handbücher

Flash

Flash Virtuoso 420 Bedienungsanleitung

Flash

Flash F7100503 Bedienungsanleitung

Flash

Flash F7300240 Bedienungsanleitung

Flash

Flash F7100098 Bedienungsanleitung

Flash

Flash LED MOONTH FLOWER LIGHT Bedienungsanleitung

Flash

Flash LASER 2000mW RGB Bedienungsanleitung

Flash

Flash F7001013a Bedienungsanleitung

Flash

Flash F7100077 Bedienungsanleitung

Flash

Flash F7000048B Bedienungsanleitung

Flash

Flash F7000542 Bedienungsanleitung

Flash

Flash F7100305 Bedienungsanleitung

Flash

Flash F71000269 Bedienungsanleitung

Flash

Flash F7300215 Bedienungsanleitung

Flash

Flash LED FRAME 700W Bedienungsanleitung

Flash

Flash F7000579c Bedienungsanleitung

Flash

Flash F7300248 Bedienungsanleitung

Flash

Flash F7100514 Bedienungsanleitung

Flash

Flash F7100336 Bedienungsanleitung

Flash

Flash LIGHT BOX MOON 1 Bedienungsanleitung

Flash

Flash STROBO FL-1500SC DMX Bedienungsanleitung

Flash

Flash LED Spyder Mini Moving Head 8x15W 4in1 RGBW- No Limit... Bedienungsanleitung

Flash

Flash LED MOVING HEAD 60W Bedienungsanleitung

Flash

Flash LED PAR 56 7X15W RGBWA+UV 6IN1 Bedienungsanleitung

Flash

Flash F1000510 Bedienungsanleitung

Beliebte DJ-Equipment Handbücher anderer Marken

ALPHA LITE

ALPHA LITE ALPHA 1500 Betriebsanleitung

Chauvet

Chauvet OVATION E-930VW Bedienungsanleitung

Zumtobel

Zumtobel APHRODITE Home Bedienungsanleitung

Snow Masters

Snow Masters Zig Oscillator Bedienungsanleitung

EuroLite

EuroLite 50530554 Bedienungsanleitung

Beamz

Beamz BUV243 Bedienungsanleitung

thomann

thomann Stairville DJ Lase 40-G MK-III Bedienungsanleitung

Eagletone

Eagletone 6 Eyes Flower Bedienungsanleitung

EuroLite

EuroLite FLD-1508 Bedienungsanleitung

Technical Pro

Technical Pro LG8xSEA Bedienungsanleitung

JB Systems

JB Systems Lounge Laser DMX Bedienungsanleitung

Lightmaxx

Lightmaxx Vega Halo 90 Bedienungsanleitung

Elation

Elation FUZE WASH Z350 Bedienungsanleitung

Maverick

Maverick MK3 WASH Bedienungsanleitung

Infinity

Infinity TF-260C7 Fresnel Bedienungsanleitung

Chauvet

Chauvet EVE E-50Z Bedienungsanleitung

Eliminator Lighting

Eliminator Lighting E 138 Bedienungsanleitung

EuroLite

EuroLite Mini Multicolor LED Flashing Light SC Bedienungsanleitung
