Fly Products Thrust Bedienungsanleitung

VERSION 1.1 – 01/2013

FLY

Products s.r.l.

Via Perù n. 30

63013 GROTTAMMARE (AP) - ITALY

tel./fax +39.735.632486

www.flyproducts.com - [email protected]

ASSEMBLY MANUAL

ASSEMBLY MANUAL __ REL . 1.1

___________________________________________________________________________

FLY

PRODUCTS s.r.l. Pag.

INDEX

1 FRAME ASSEMBLY

2HARNESS SIZE ADJUSTMENT

3 FITTING THE HARNESS HIGH ATTACK

FITTING THE HARNESS LOW ACTIVE ATTACK (ACTIVE

LOW HANG POINT) OPTIONAL

FITTING THE HARNESS FIXED (FIXED HANG POINT)

OPTIONAL

6 PROP MOUNTING

7 MULTIFUNCTION HANDGRIP

8 WARRANTY

ASSEMBLY MANUAL __ REL . 1.1

___________________________________________________________________________

FLY

PRODUCTS s.r.l. Pag.

Photo frame Assembly common to paramotors: Thrust, Race c, Kompress, Sprint,

Jet.

• Step 1: assembling the outer frame

Supports

Starter manual section

(only manual starter)

Support Assembly

Step 2: Assembling the top section of the external frame

Assemble the two semicircles

Assemble the cage from top

grafts

Continue side grafting over

and then the lower teeth on

each side

1 FRAME ASSEMBLY

ASSEMBLY MANUAL __ REL . 1.1

___________________________________________________________________________

FLY

PRODUCTS s.r.l. Pag.

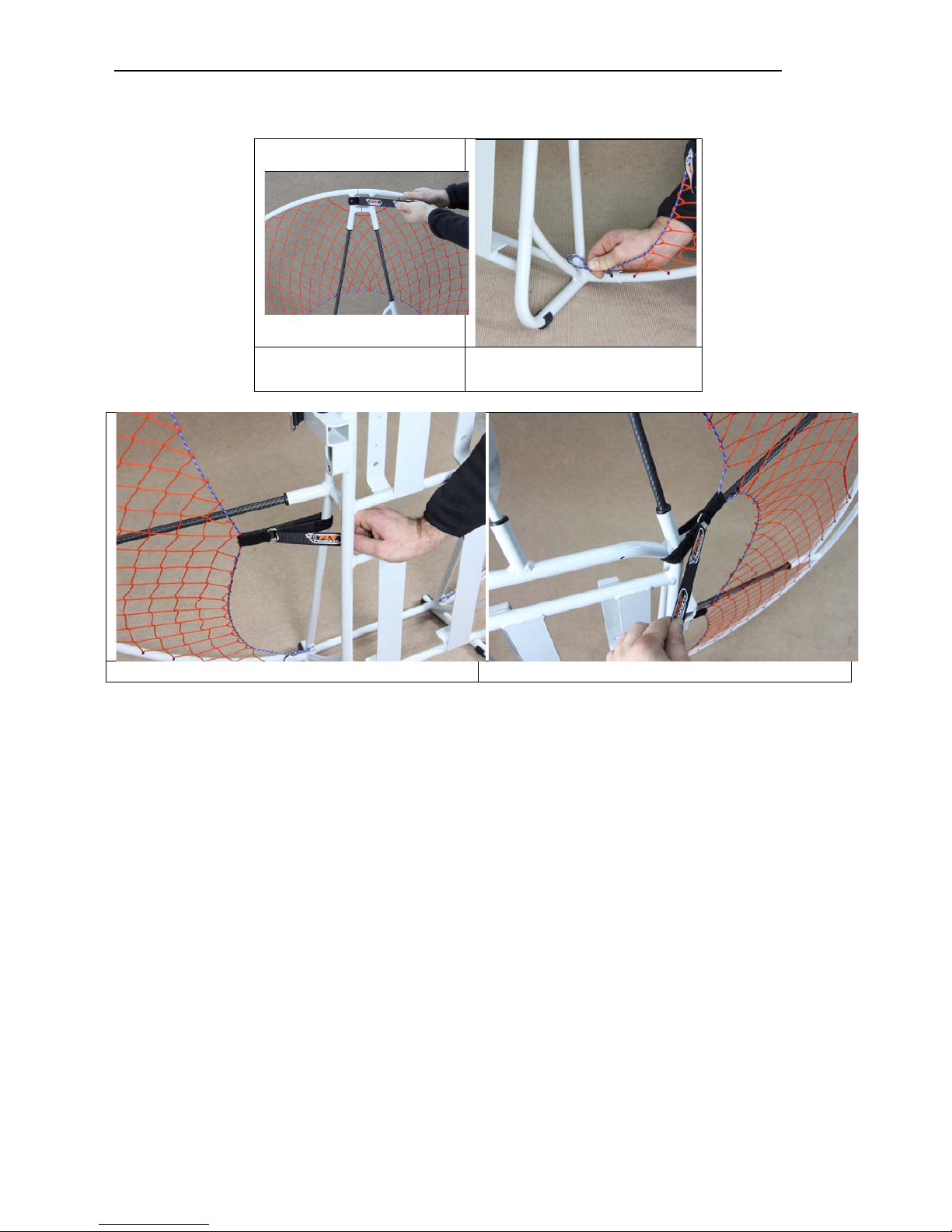

Punto 3 : Bloccaggio dei velcri

Upper Velcro Hook network cord on both

sides

Tighten the bottom with velcro tape on both sides

Tighten the upper with velcro tape on both sides

ASSEMBLY MANUAL __ REL . 1.1

___________________________________________________________________________

FLY

PRODUCTS s.r.l. Pag.

Find the most suited to your needs and verify in the Simulator

Cut along the dotted line to get size M.

Adjusting harness zip size M.

Zip harness adjustment size L.

A Position the harness shallower.

B position the harness deeper

2 HARNESS SIZE ADJUSTMENT

ASSEMBLY MANUAL __ REL . 1.1

___________________________________________________________________________

FLY

PRODUCTS s.r.l. Pag.

La selletta viene fissata al telaio su tre punti di ancoraggio:

in alto con due bulloni a farfalla, di lato con due distanziali, in basso con due cinghie regolabili.

1) Upper hooks harness with two

Butterfly bolts

Attach the harness to the chassis with the plate

and tighten the two bolts with the butterflies.

ATTENTION

Mount the plate as is indicated on the sticker of

your paramotor

Asymmetric distance bar for:

Rider Thrust.

Anticlockwise rotation of the propeller

Asymmetric distance bar for:

Rider Jet, Rider Race C,

Clockwise rotation of the propeller

3 FITTING THE HARNESS HIGH ATTACK

ASSEMBLY MANUAL __ REL . 1.1

___________________________________________________________________________

FLY

PRODUCTS s.r.l. Pag.

2) Assembly of the distance bars

Insert the distance bar

into the square slot

located on the Central frame and close the

Velcro straps.

3) Lateral belt attachment

Fasten the webbing at maximum length

4) Fastening shoulder webbing

Attach the webbing to the right and left of the

frame

ASSEMBLY MANUAL __ REL . 1.1

___________________________________________________________________________

FLY

PRODUCTS s.r.l. Pag.

The harness is fastened to the frame on three anchor points: at the top with two Butterfly bolts sideways

with two distance bar and bottom with three belts.

1) Upper hooks harness with two Butterfly

bolts

Attach the harness to the chassis with the plate and

tighten the two bolts with the butterflies.

ATTENTION

Mount the plate as is indicated on the sticker of your

paramotor

2) Fixing the frame distance bars

Mount distance bars according to two

regulations:

Regulation 1: 1A = Pilots over 85 kg.

1B = Pilots less 85 kg.

Regulation 2:

Direction 2A (forward) Heavy Pilots

Direction 2B (back) Light Pilots

3) Bottom bracket of the frame with three straps

4 ASSEMBLY OF (LOW ACTIVE HANG POINT)

ASSEMBLY MANUAL __ REL . 1.1

___________________________________________________________________________

FLY

PRODUCTS s.r.l. Pag.

Configuration for:

Rider Sprint, Rider Race C, Rider Jet.

Clockwise rotation of the propeller

Configuration for:

Rider Thrust.

Anticlockwise rotation of the propeller

ASSEMBLY MANUAL __ REL . 1.1

___________________________________________________________________________

FLY

PRODUCTS s.r.l. Pag.

The harness is fastened to the frame on three anchor points: at the top with two Butterfly bolts sideways

with two distance bar and bottom with three belts.

1) Upper hooks harness with two

Butterfly bolts

Attach the harness to the chassis with the plate and

tighten the two bolts with the butterflies.

ATTENTION

Mount the plate as is indicated on the sticker of

your paramotor

2) Assembly of the spacer bars

Insert the distance bar into the square slot located

on the Central frame and secure them with bolts

and butterflies

Assemble the distance bar in one of two holes

according to the pilot weight.

5 ASSEMBLY OF: (FIXED HANG POINT)
