Flyron Technology Co., Ltd. FN-AS72 Triggerable MP3 Sound Player
www.flyrontech.com E-mail: info@flyrontech.com
2. Technical parameters
Working voltage: 6V-30V DC
Working Current: 500mA
Standby Current: 10mA
Power Consumption: ≤3W
Flash Memory Size: 4MBytes
Audio Format: MP3 (32Kbps-192Kbps)
3. Option of Trigger Modes
There are 3 trigger modes available for users to choose according to the actual needs. Any of these 3 trigger modes
can be set / acquired through a configuration file named “read.cfg”, which comes from a text file(.txt) originally. Users
just need to fill in a digit / parameter that is corresponding to a trigger mode in a new built text file. Save it and
rename it “read.cfg”, then put it in the root directory of the flash memory together with the 4 audio files. Please refer
to the sheet below about the digits and the associated trigger modes.
Pulse interruptible one-on-one playback: In this mode, a single negative pulse will start playback.
It is possible to interrupt the playback by pressing the same button used to activate. Once
playback is interrupted, it will automatically restart the audio file immediately. It’s also
possible to interrupt the play back by pressing any of the other 3 buttons. Once playback is
interrupted, it will automatically start the sound that is associated with the button pressed.
Level hold loop playback: In this mode, the negative pulse must be held/maintained to the
sound module trigger for audio file to complete. The audio file will only playback while button,
or negative pulse, is held/maintained during playback. Once the button being held, or
negative pulse, is removed, the playback will be stopped/cancelled. Once the button is kept
holding, when the playback of the audio file is finished, it will start to play it repeatedly(loop
playback).
Pulse non-interruptible one-on-one playback: In this mode, a single negative pulse will start
playback.It's not possible to interrupt the playback by pressing the same button or the other
buttons. Once an audio file is triggered, the audio file will not be able to be
interrupted/cancelled during playback. The playback will only end when the audio file has
played its entirety.

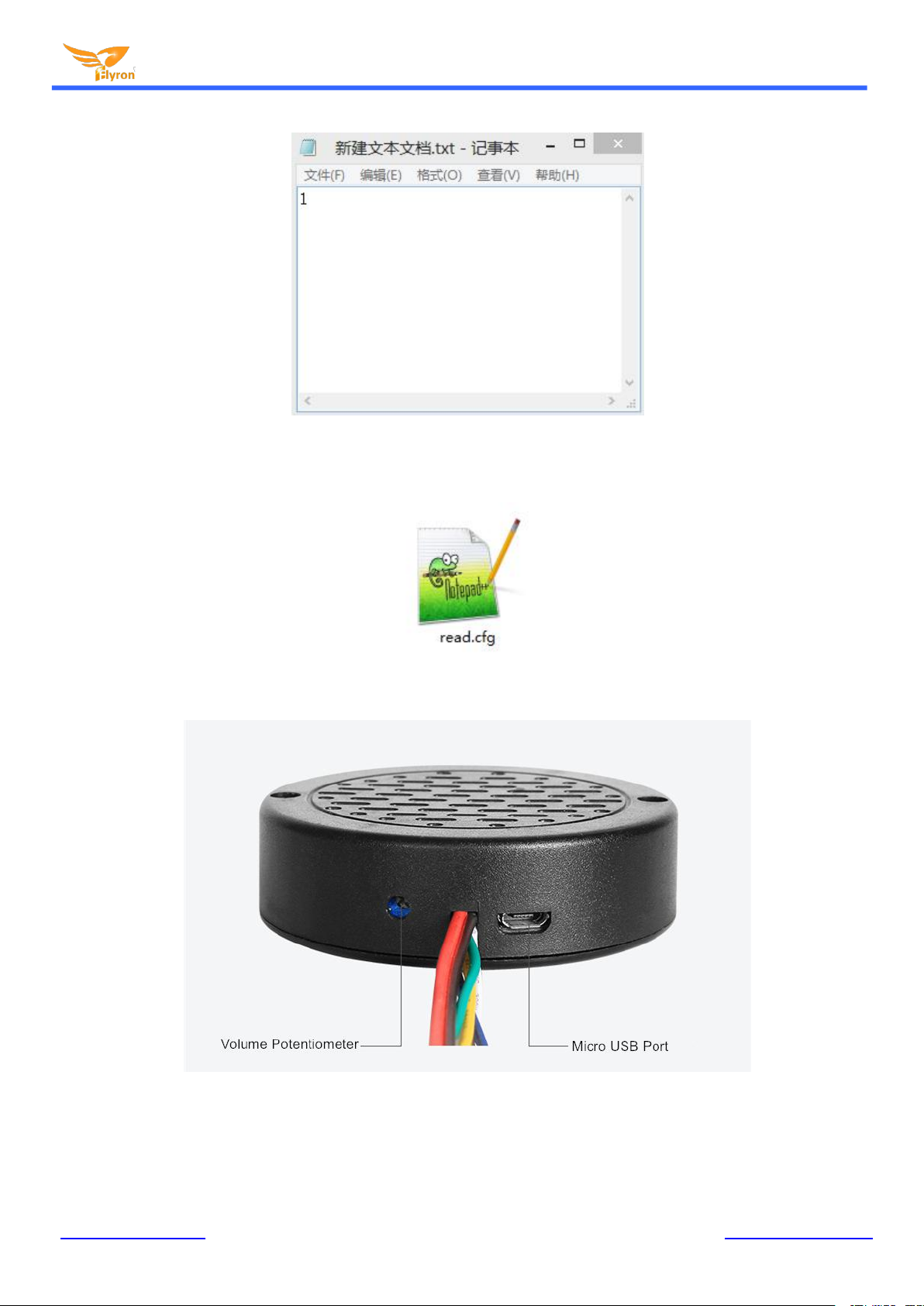

For example, if the trigger mode of level hold loop playback is needed, firstly build a new TXT file on the computer, and
simply enter the digit “1” as below, and save the file.
Corresponding Trigger Mode
Pulse interruptible one-on-one playback
Pulse non-interruptible one-on-one playback
