www.fmiproducts.com 126414-01A6
REMOTE
NO
OFF
LEARN
Requires 4-AA 1.5V
alkaline batteries
Learning
button
Remote Receiver
Battery cover slides on/o
Slid e
Switch
ON
REMOTE
OFF
Figure 17 - Installing Batteries
Figure 15 - Communication-Safety
COMMUNICATION - SAFETY
This remote control has a COMMUNICATION
–SAFETY function built into its software. It
provides an extra margin of safety when the
Transmitter is out of the normal 20-foot operat-
ing range of the receiver.
At all times and in all OPERATING MODES,
the transmitter sends an RF signal every 15
minutes, to the receiver, indicating that the
transmitter is within the normal operating
range of 20 feet. Should the receiver NOT
receive a transmitter signal every 15 minutes,
the receiver will begin a 2-hour (120 minute)
countdown timing function. If during this
2-hour period, the receiver does not receive
a signal from the transmitter, the receiver will
shut down the appliance being controlled
by the receiver. The receiver will then emit
a series of rapid “beeps” for a period of 10
seconds. Then after 10 seconds of rapid beep-
ing, the receiver will continue to emit a single
“beep” every 4 seconds until a transmitter
MODE button is pressed to reset the receiver.
MODE
MODE
SET
PROG

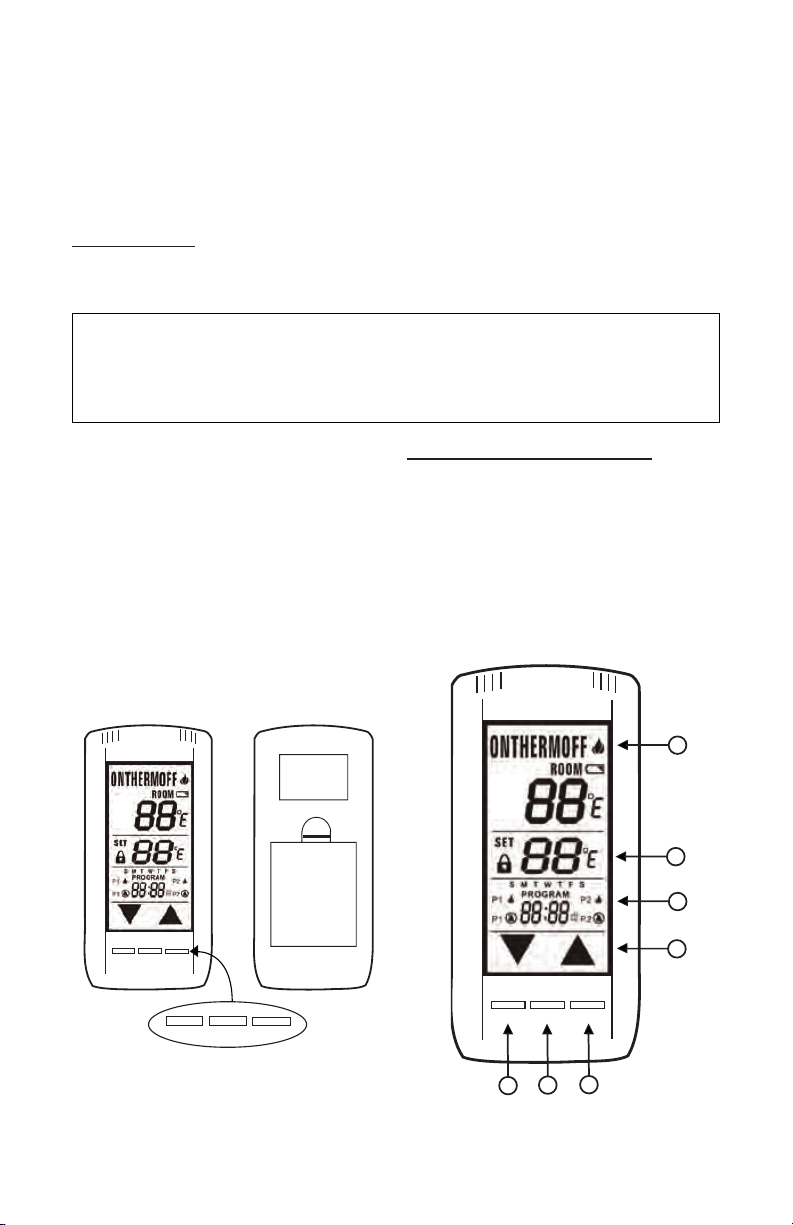

CHILDPROOF ''LOCK-OUT''
This remote control includes a CHILDPROOF
“LOCK-OUT” feature that allows the user to
“LOCK-OUT” operation of the appliance from
the TRANSMITTER.
• To activate the “LOCK-OUT” feature, press
and hold the UP touch button and the SET
button together for 5 seconds. The “LOCK”
icon will appear on the LCD screen.
• To disengage the “LOCK-OUT”, press
and hold the UP touch button and the
SET button together for 5 seconds or
more, the “LOCK” icon will disappear
from the LCD screen and the transmit-
ter will return to its normal operating
condition.

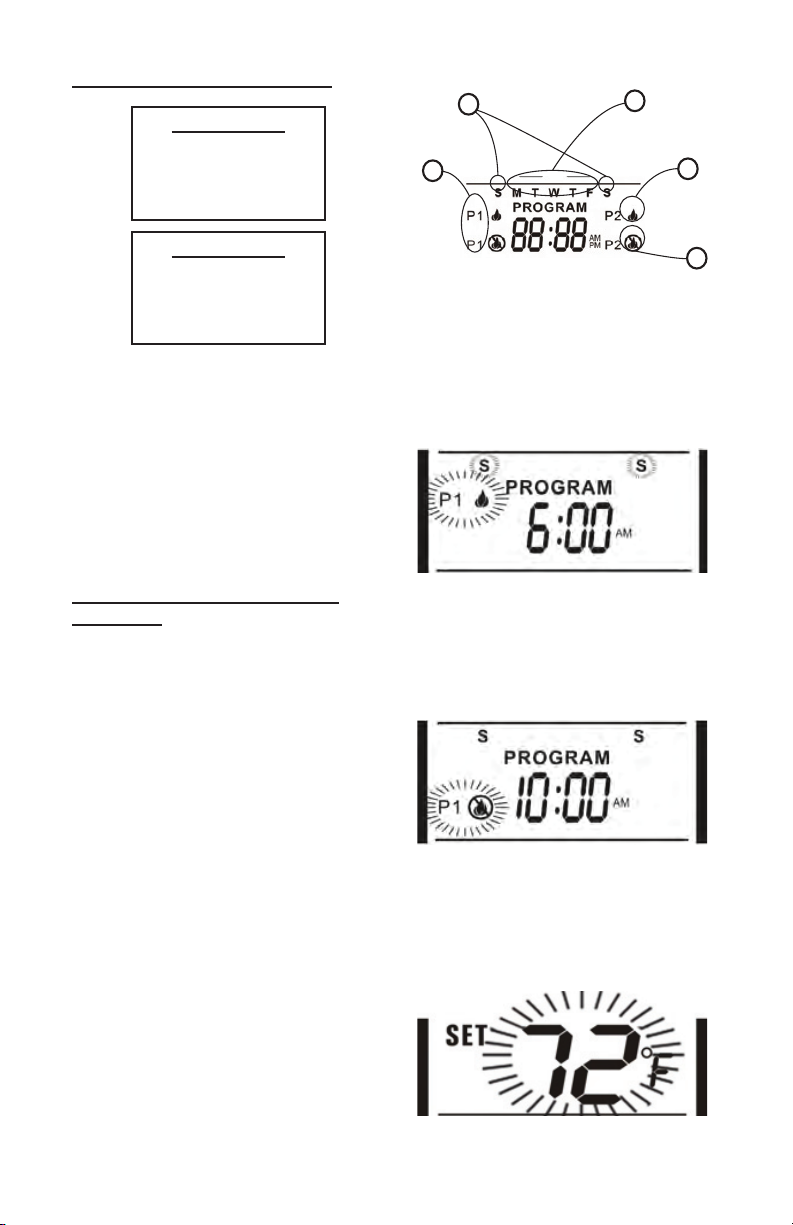

• When the Transmitter is in “LOCK-OUT”
mode, programmed functions will go on
without interruption; Only manual func-
tions are prevented.
RECEIVER
Install the 4 AA-size batteries supplied with
the unit. It is recommended that ALKALINE
batteries always be used for this product. Be
sure the batteries are installed with the (+) and
(-) ends facing the correct direction.
The remote receiver has a 3-position slide
switch for selecting the mode of operation
ON/REMOTE/OFF
• ON: will manually turn ON the appliance.
• REMOTE: will allow use of handheld
transmitter. If the system does not re-
spond to the transmitter on initial use,
check the battery positions in the remote.
If that does not work, see the LEARNING
TRANSMITTER TO RECEIVER section.
• OFF: will disable the remote receiver.
• It is suggested that the slide switch be
placed in the OFF position if you will be
away from your home for an extended
period of time.
Figure 16 - Childproof ''Lock-out''
