INTRODUCTION

Thank you for investing in the Focusrite RedNet system.

RedNet is a powerful, low latency, digital audio networking system designed speciﬁcally for music,

recording studio and broadcast applications. It is based on Audinate’s Dante™, a well-established

audio networking technology known for its extreme robustness. Dante - and the RedNet system -

is capable of transporting up to 512 channels of bidirectional audio (at 48 kHz sample rate) over a

single Ethernet link. The number of channels available in your DAW will depend on the host method

being used.

RedNet brings Dante technology into the studio as the basis of a complete system. RedNet is a

range of extremely high quality analogue and digital audio interfaces and components that do a

great deal more than simply allow you to connect your digital studio through an Ethernet network:

they will revolutionise the way you work in other ways too. Importantly, Dante is non-proprietary;

this means it will work with any ASIO- or Core Audio-compliant DAW software, including Pro Tools,

Logic, Cubase and Nuendo.

If you are a musician or an engineer currently using USB or FireWire-based interfaces, RedNet will

give you a more reliable, powerful and professional system infrastructure. RedNet is a great solution

in facilities where long cable runs are involved and/or there is a requirement to routinely reconﬁgure

the various rooms making up a facility. It also has the advantage of only needing a standard network

cable to interconnect all the I/O throughout the system, minimising installation time and impact on

a building.

RedNet allows system components to be controlled remotely via RedNet software on a host

computer. Input and output interfaces can be placed anywhere on the network and hot-swapped:

RedNet automatically recognises and reconﬁgures replacement units as soon as they appear.

ABOUT THIS USER GUIDE

A copy of this System User Guide is packed with each of the hardware interfaces in the RedNet range.

The Guide provides a detailed explanation of the RedNet system to help you achieve a thorough

understanding of its capabilities; this includes the installation and use of the RedNet PCIe card, which

will be a central component in many RedNet systems. We recommend that all users, including those

already experienced in digital audio networking, take the time to read through this Guide so that you

are fully aware of all the possibilities that RedNet and its software has to offer. If the Guide does not

provide the information you need, be sure to consult www.focusrite.com/rednet, which contains a

comprehensive collection of common technical support queries.

Note that this System User Guide does not include a detailed description of the various interfaces; a

separate User Guide speciﬁc to each interface is supplied with every unit, in addition to the System

User Guide. Much of the installation and operation of a RedNet system revolves around setting up and

conﬁguring the system itself – these are factors which are common to all RedNet components. The

examples used in this System User Guide necessarily use particular RedNet units, but you should

not be concerned if your system does not include the same units – the principles of operation as far

as the overall system concept is concerned is applicable to all RedNet hardware.

OVERVIEW

Focusrite RedNet Audio Networking - key features

• Digital audio networking developed speciﬁcally for studios

• Scalable, up to 512 bidirectional audio channels per link (at 48 kHz)

• Choice of various analogue and digital I/O interfaces

• Supports as many interfaces as required

• Pristine audio quality with low latency

• Round trip latency less than 3 ms with RedNet PCIe card

• Based on DanteTM - proven reliability and robustness

• 24-bit, up to 192 kHz sample rate

• Very simple to conﬁgure

• Hot-swappable interfaces

• Remote control of all interfaces via included RedNet control software

• Supports any open DAW package, including ProTools, Logic and Nuendo

• Mac and Windows compatible

REDNET SYSTEM COMPONENTS

A RedNet system requires both hardware and software components. The RedNet hardware range

currently consists of various models of I/O interface and a PCIe digital audio interface card which

is installed in the system’s host computer. All the I/O units can be considered as “Break-Out” (and/

or “Break-In”) boxes to/from the network, and all are built in mains-powered, 2U 19” rackmounting

housings.

There are three software items for installation on the host computer: RedNet Control, Dante Controller

and Dante Virtual Soundcard. RedNet Control is required for all systems and Dante Controller is a

useful accessory but familiarity with it is not absolutely essential for operation of simpler systems.

Dante Virtual Soundcard is an optional software alternative to the RedNet PCIe card, and allows

the creation of RedNet systems without a dedicated computer interface card. Systems based on

Dante Virtual Soundcard have a lower channel capacity and a slightly inferior latency performance

compared to systems using the PCIe card.

RedNet I/O interfaces

A variety of audio interfaces is available for the RedNet system, including mic preamps, analogue

line level I/O and various interfaces catering for digital protocols. For more information please visit:

www.focusrite.com/rednet

Full details of each RedNet interface can also be found in the User Guides supplied with each unit.

RedNet PCIe card

The RedNet PCIe (PCI Express) card is an optional hardware interface between the Ethernet network

interconnecting the various I/O units in a RedNet system, and the host computer. When installed in

a 4-lane (minimum) PCIe card slot in either a PC or Mac, it allows up to 128 channels to be sent to/

from the DAW through its on-board Ethernet port. A system latency of less than 3 ms is possible with

the PCIe card, but to achieve this, we recommend the use of a 16-lane PCIe card slot. Note also that

system latency in all cases will be dependent on buffer size, sample rate and processor power.

The computer into which the card is ﬁtted will require RedNet Control to be installed. The Ethernet

port on the PCIe card should be connected to the network via a Gigabit Ethernet switch, and the host

computer’s native Ethernet port should be connected to another port on this same switch. In this

arrangement, the PCIe card’s Ethernet port handles all the audio and the native port handles the

control data between RedNet Control and the remote RedNet I/O units.

RedNet Control

RedNet Control is the software application which lets the user conﬁgure the RedNet system and

control each individual RedNet I/O device, whatever its physical location. RedNet Control versions

for both PC and Mac are available as downloads from the Focusrite website – see “Installing RedNet

Control” on page 13.

All RedNet devices on the network are auto-detected by the RedNet Control software, and visualised

on-screen along with their various controls and settings. Blocks of audio channels can be re-routed

and system conﬁgurations can be saved and reloaded as required.

Dante Controller

Dante Controller software is Audinate’s proprietary generic audio routing application for use with

Dante digital audio networked devices. Installation of Dante Controller is automatic; it will be

installed as part of the RedNet Control software installation. Many simple RedNet conﬁgurations

will not require its use, as the control capabilities of RedNet Control will be adequate. However,

additional, advanced routing possibilities, which cannot be achieved with RedNet Control alone are

possible with Dante Controller.

Dante Virtual Soundcard

Dante Virtual Soundcard is a software alternative to the RedNet PCIe card. It allows users who do

not require the extremely low latency and high channel count possible with the RedNet PCIe card to

implement and control RedNet systems. A maximum of 64 channels (in each direction) is possible,

at a typical latency of 7 ms (buffer size and sample rate dependent).

Dante Virtual Soundcard can be downloaded directly from www.audinate.com. (On-line registration

is required.)

Using RedNet with other Dante-compatible products

As RedNet is based on Audinate’s Dante system, it is compatible with Dante-enabled devices from

other manufacturers. However, note that when using RedNet devices with other Dante-enabled

products, you may be limited to sample rates of 48 or 96 kHz, as many other devices do not support

the full range of sample rate options offered by RedNet.

MINIMUM SYSTEM REQUIREMENTS

In general terms, computers running the following operating systems will allow a RedNet system to

deliver satisfactory performance (but see important note below):

Mac

Apple Mac with OSX 10.7 (Lion), 10.8 (Mountain Lion) or later. Please note that RedNet is not supported

by Mac PPC.

Min. 2 GB RAM

Dual core Intel Processor (Quad core recommended)

PC running Windows 7 or Windows 8 (32- or 64-bit). Please note that RedNet is not supported by

Windows Vista.

Min. 2 GB RAM

Dual Core processor (Quad core recommended)

IMPORTANT: Focusrite have evaluated a number of speciﬁc models of computer for use with RedNet

systems, and recommend the use of one of these if highest system performance is essential (i.e.,

lowest latency at maximum channel count). Users should check www.focusrite.com/rednet for the

latest information regarding speciﬁcations of suitable computers.

NETWORK REQUIREMENTS

The Audinate DanteTM protocol on which RedNet is based uses standard Ethernet technology for the

network. Although RedNet trafﬁc can be mixed with other network data, we recommend that for

maximum performance the Ethernet network used for RedNet audio should be self-contained and

not used for other IT purposes.

The network topology employed will be dictated by user requirements and building layout.

RedNet is compatible with both CAT 6 and CAT 5e cabling, though CAT 6 STP is preferred. RJ45

connectors with metal screens should be used, with the cable screen bonded to the connector screen.

Gbit Switch requirements

The switches used in a RedNet network should be of the ‘managed’ type, and designed for use in

1000 Mbps (Gigabit) systems. Un-managed switches may prevent correct RedNet network

conﬁguration. A switch with an internal PSU (i.e., requiring direct connection to AC mains) is

also recommended; the external “plug-top” PSUs supplied with cheaper units may be prone to

interference which could generate audible artefacts in the audio.

Numerous makes/models of Gigabit switch have been found to operate satisfactorily with Dante

systems. Recommended manufacturers include Linksys, Dell, HP and Cisco. Note the following

features are required when selecting a switch for use with a RedNet network:

• Gigabit (1000 Mbps) ports

• Quality of Service (QoS) with 4 queues

• Diffserv (DSCP) QoS, with strict priority

• A managed switch is also recommended, to provide detailed information about the operation

of each network link: port speed, error counters, bandwidth used, etc.

Additional information on switch requirements can be found at www.focusrite.com/rednet.

A note about Latency

No digital audio system is “instantaneous”; the term “latency” is used to express the time by which

the audio is delayed in travelling through the system. In practice, latency only becomes a problem

when mixing signals from systems having signiﬁcantly different delays. The Dante protocol used by

RedNet exhibits very low latency, and you should not experience any problems in normal recording

practice when using it for multichannel audio transport between a DAW and sources or monitoring.

With the RedNet PCIe card in use, round-trip latency can be less than 3 ms (depending on buffer

size and sample rate). If you are using Dante Virtual Soundcard instead of the RedNet PCIe card,

additional processing time is required by the computer. However, you should achieve the same order

of latency as with a FireWire interface.

The precise latency of any given system will be determined by a number of factors, including the

processing speed of the computer, the number of switches in the network, the make/model of switch

used and the network topology.

INSTALLATION GUIDE

UNIT CONNECTIONS AND FEATURES

RedNet I/O interfaces

Full details of the front panel controls, indicators and rear panel connections of the various RedNet

hardware interfaces will be found in the separate User Guide supplied with each unit.

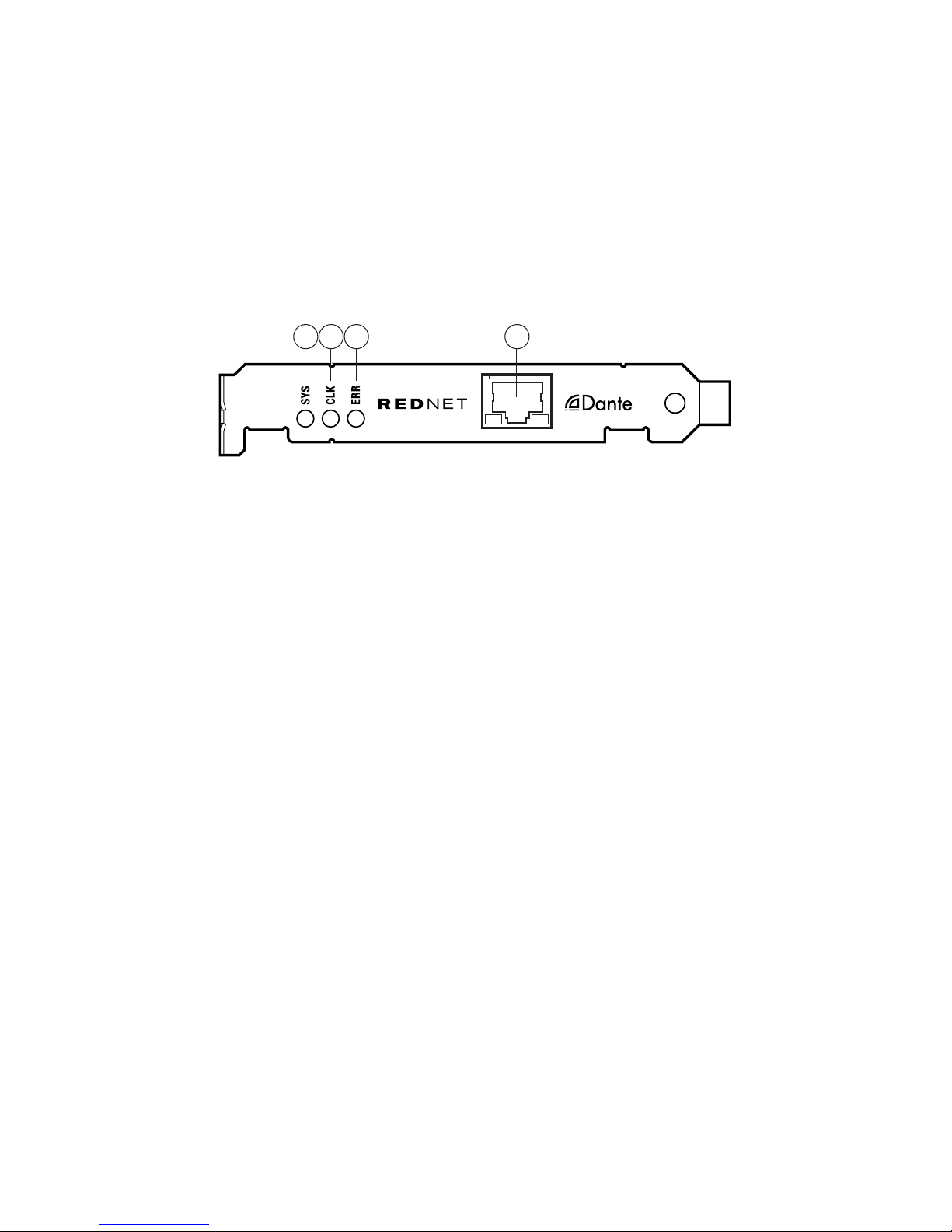

Rednet PCIe card

1432

1. RJ45 network socket. Connect this to the Gigabit network switch local to the computer. The

port is the primary interface for all the channels of audio on the RedNet network. The socket

has integral LEDs which illuminate to indicate connection to an active network port, and

network activity.

2. SYS – multi-colour LED indicating the card’s Dante system status:

• Green – normal operation

• Orange – system failure

3. CLK – multi-colour LED indicating the card’s sync status:

• Green (steady) – conﬁrms card is a Dante PTP slave; the card will sync to the clock embedded

in the incoming Dante bitstream

• Green (blinking) – conﬁrms card is a Dante PTP master; the card is set (in Dante Controller)

to generate the Dante clock which will be used by other units.

• Orange – sync failure

4. ERR – reserved for future use.

NOTE: additional LED displays are thus:

• All LEDs red – card has entered failsafe mode. If this situation occurs, users are recommended

to contact Focusrite Customer Support.

• All LEDs blinking green – identify function has been activated from Dante Controller.

The RedNet PCIe card is a standard single-width PCIe card which will ﬁt an empty card slot in a PC

or Mac. The slot used must be “4-lane” minimum, though 16-lane is necessary to achieve maximum

performance. Please check your computer’s motherboard documentation if you are unsure of the

slot speciﬁcation.

The RedNet PCIe card is powered by the computer in which it is installed. It conforms to the PCIe

card supply voltage standard, and provided your computer’s PSU is working normally, you should

experience no power-related issues with any computer.

Andere Handbücher für RedNet

Inhaltsverzeichnis

Andere Focusrite Aufnahmegeräte Handbücher

Focusrite

Focusrite Clarett 4 Pre USB Bedienungsanleitung

Focusrite

Focusrite Scarlett 18i6 Bedienungsanleitung

Focusrite

Focusrite Clarett 4 Pre USB Bedienungsanleitung

Focusrite

Focusrite Second Generation Series Bedienungsanleitung

Focusrite

Focusrite iTrack Solo Bedienungsanleitung

Focusrite

Focusrite Scarlett 4i4 Bedienungsanleitung

Focusrite

Focusrite iTrack Solo Bedienungsanleitung

Focusrite

Focusrite Blue Range Modules Bedienungsanleitung

Focusrite

Focusrite Clarett 8PreX Bedienungsanleitung

Focusrite

Focusrite Saffire 6 USB Bedienungsanleitung

Focusrite

Focusrite clarett octopre Bedienungsanleitung

Focusrite

Focusrite Scarlett Studio Bedienungsanleitung

Focusrite

Focusrite Scarlett 8i6 Bedienungsanleitung

Focusrite

Focusrite Liguid MX Bedienungsanleitung

Focusrite

Focusrite Scarlett Solo Bedienungsanleitung

Focusrite

Focusrite Scarlett 2i2 Studio 4th Gen Bedienungsanleitung

Focusrite

Focusrite OctoPre Digital Option Bedienungsanleitung

Focusrite

Focusrite Clarett 8 Pre Bedienungsanleitung

Focusrite

Focusrite Rednet A8R Bedienungsanleitung

Focusrite

Focusrite Clarett+ 4Pre Bedienungsanleitung

Focusrite

Focusrite Scarlett Third Generation Series Bedienungsanleitung

Focusrite

Focusrite Scarlett 2i2 Bedienungsanleitung

Focusrite

Focusrite Scarlett 18i8 Bedienungsanleitung

Focusrite

Focusrite vocaster two Bedienungsanleitung

Beliebte Aufnahmegeräte Handbücher anderer Marken

KV2 Audio

KV2 Audio 500 Series Bedienungsanleitung

Robotics Technologies

Robotics Technologies microBus-Cam II Bedienungsanleitung

Seca

Seca 460 Bedienungsanleitung

Cognex

Cognex MVS-8000 Series Bedienungsanleitung

Mect

Mect MPNC006 Series Bedienungsanleitung

Bad Caf

Bad Caf THE LEASH Bedienungsanleitung

Strymon

Strymon NIGHTSKY Bedienungsanleitung

Mitsubishi Electric

Mitsubishi Electric 16CH DIGITAL RECORDER DX-TL5000U Bedienungsanleitung

Tews Technologies

Tews Technologies TPMC465 Bedienungsanleitung

Honeywell

Honeywell Excel 50 Bedienungsanleitung

SeaLevel

SeaLevel COMM+8.LPCI Bedienungsanleitung

Arturia

Arturia AUDIOFUSE STUDIO Bedienungsanleitung

Rukra

Rukra RK-1240 Bedienungsanleitung

Samson

Samson SCOM Bedienungsanleitung

Dynacord

Dynacord DPS260 Bedienungsanleitung

Nice

Nice Core Bedienungsanleitung

Pyle Pro

Pyle Pro PSS8 Bedienungsanleitung

RF-System

RF-System TinyGate Gebrauchs- und Pflegehandbuch
