Horizon Elite™1412 Ice Machine Installation Instructions

for Remote Condensing Unit

HMF1412R _ _

01519131R00

801 Church Lane • Easton, PA 18040, USA

Toll free (877) 612-5086 • +1 (610) 252-7301

www.follettice.com

2REMOTE CONDENSING UNIT

Horizon Elite 1412 series

W1 Width 39.6” (100.6 cm)

D1 Depth 28.2” (71.6 cm)

H1 Height 26.0” (66.0 cm)

Electrical three phase – 208-230/60/3 (Emerson/Copeland)

Minimum circuit ampacity three phase – 12A

Maximum overcurrent protection three phase – 20A

Outdoor condensing unit operating limits

(air temperature)

min –20 F (–29 C)

max 120 F (49 C)

Maximum refrigerant line run length 100' (30,5 m)

Maximum line rise above evaporator 35' (10,7 m)

Evaporator mounting above condenser 15' (4,6 m)

Maximum refrigeration line drop without oil trap 15' (4,6 m)

Refrigerant charge 8 lb

Approximate ship weight three phase – 265 lbs (120.2 kg)

Approximate net weight three phase – 230 lbs (104.3 kg)

REMOTE CONDENSING UNIT

Prior to installation, carefully unpack and inspect the

contents of your condensing unit!

Site preparation

2.1

To ensure proper performance, ease of service and warranty coverage, it is critical that you follow

the requirements detailed in this manual. If you cannot meet these requirements or have questions,

call our technical service group at 877.612.5086 for installation support.

• Position condenser unit as shown.

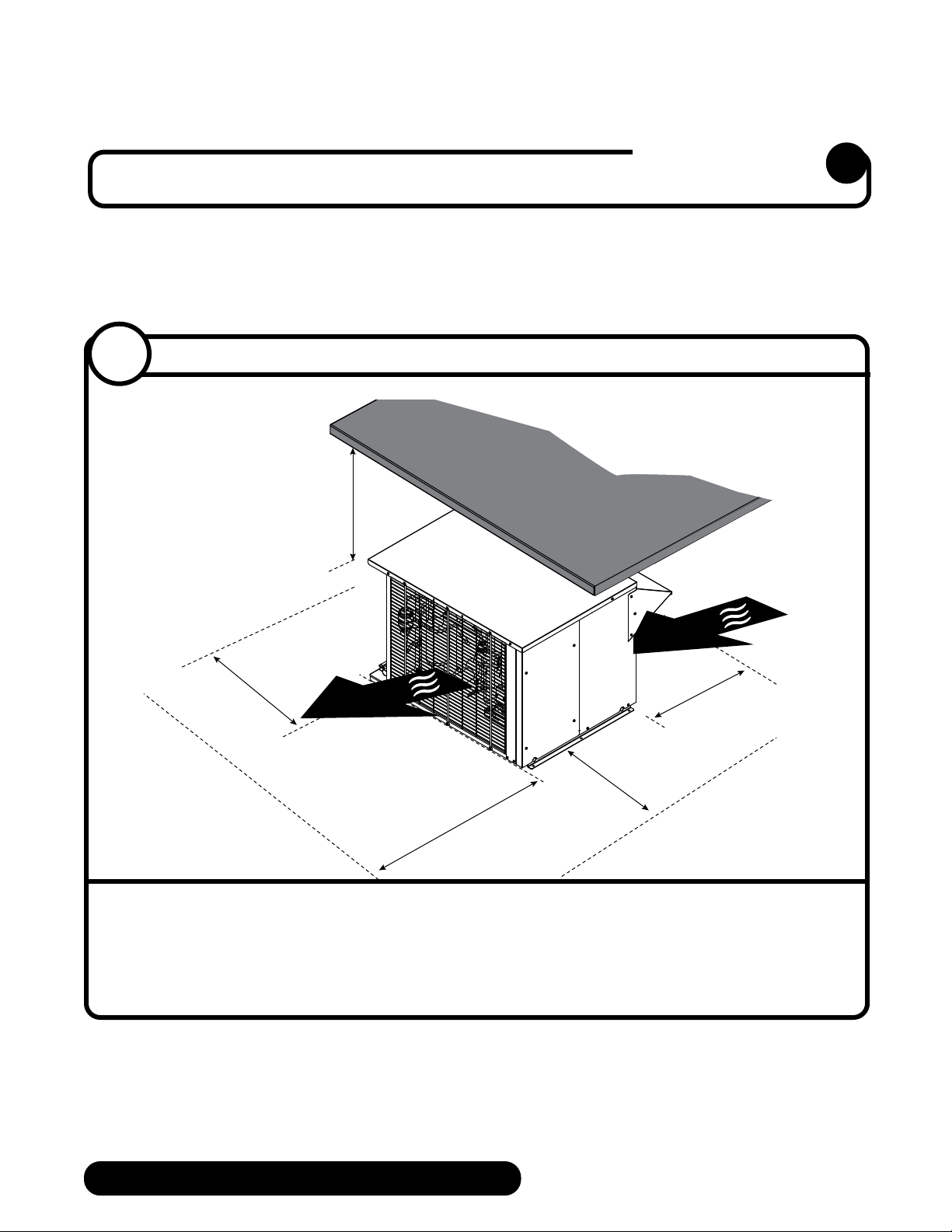

Required clearances:

§Mininum 48” (121.9 cm) front and back

§Minimum 24” (61.0 cm) left and right

§Minimum 36” (91.4 cm) above

Condenser Unit Clearances

1. 1

48.00"

(121.9 cm)

24.00"

(61.0 cm)

48.00"

(121.9 cm)

24.00"

(61.0 cm)

min. 36.00"

(91.4 cm)

air in

exhaust

4REMOTE CONDENSING UNIT

+20'

(+6.1 m)

+35'

(+10.7 m)

EVAPORATOR UNIT LEVEL

EVAPORATOR

UNIT

CONDENSER UNIT

maximum

line rise

100' max.

(30.5 m)

100' max.

(30.5 m)

➊

➋

➍

➌

Low voltage control (24 Vac) required

PSIG

THEUSA

MADEIN

PHASE

SINGLE

LOWSIDE

CHARGE

PARTNO

EastonPennsylvania

208264

AMPS

VOLTS

SERIALNO

CORPORATION

MODEL

ServiceNo.

Product

ModuleNo.

REFRIGERANT

FULLLOADAMPS

StockModuleIdentificationPlate

DESIGNPRESSUREHIGHSIDE

MAX.BRANCHCIRCUITFUSESIZE

MIN.BRANCHCIRCUITAMPACITY

MOTORCOMPRESSORTHERMALLYPROTECTED

NSF

ULUL

S-trap

required

P-trap

required

P-trap

required

Site layout:

• Outdoor ambient temperature range: –20 F to 120 F (–29 C to 49 C)

• Installation with condenser unit elevations above 20' (6.1 m) require an S-trap at the midpoint

of the rise and a P-trap at the top of the rise ➊

• Maximum line rise must not exceed 35' (10.7 m) ➋

• Maximum line set length must not exceed 100' (30.5 m) ➌

• Low voltage control (24 Vac signal wire) must be connected ➍

2.1 Condenser installation specications

1. 2

REMOTE CONDENSING UNIT

Rack system

2.2

• Level unit

• Securely attach base of unit using holes found in base plate

Condenser installation 2

Install condensing unit

2.1

• 1412N not compatible with rack system. Consult Technical Service.

Electrical requirements

2.3

CAUTION

• Electrical disconnects required

• Electrical disconnects installed in accordance with NEC and local electrical codes

Horizon Elite 1412 series

Minimum circuit ampacity three phase – 12A

Maximum overcurrent protection three phase – 20A

Outdoor condensing unit operating limits

(air temperature)

min –20 F (–29 C)

max 120 F (49 C)

6REMOTE CONDENSING UNIT

L1 L2 L3

T1 T2 T3

208COM 240

BLK

BRN

GRN/YEL FAN 2

BLK

BRN

GRN/YEL

A1 A2

GND

(L3)

(L2)

(L1)

DISCH

T-STAT

10 RED 16AWG

11 BLK 16AWG

12 BLU 18AWG

13 YEL 18AWG

F1x12CU

CRANKCASE

HEATER

CRANKCASE

T-STAT

MAIN

POWER

17 RED 18AWG

18 WHT 18AWG

22 BRN 18AWG

23 ORN 18AWG

21 BLK 16AWG

20 RED 16AWG

16 BLU 16AWG

GRN / YEL

COMPRESSOR

01449735R03

19 BLU 16AWG

15 RED 16AWG

14 BLK 16AWG

FAN 1

LT GRY

DK GRY

BLK

TB1

TB2

PM1

GRN/YEL

L1 L2 L3

123 4 56

BLK H1

BLK TS2

BLK TS1

HTR

BLK H2

GRN / YEL

PS1

PS2

TS3

TS4

IMS1

IMS2

3-PHASE, 208-230 VAC OUTDOOR CONDENSING UNIT

ICE MAKER

SIGNAL, FIELD

WIRED,CLASS 2

TB2-1, TB2-2

GRN / YEL

DISCH

HIGH

PRESS SW

LOW

SIDE

RELAY

DOCKING

STATION

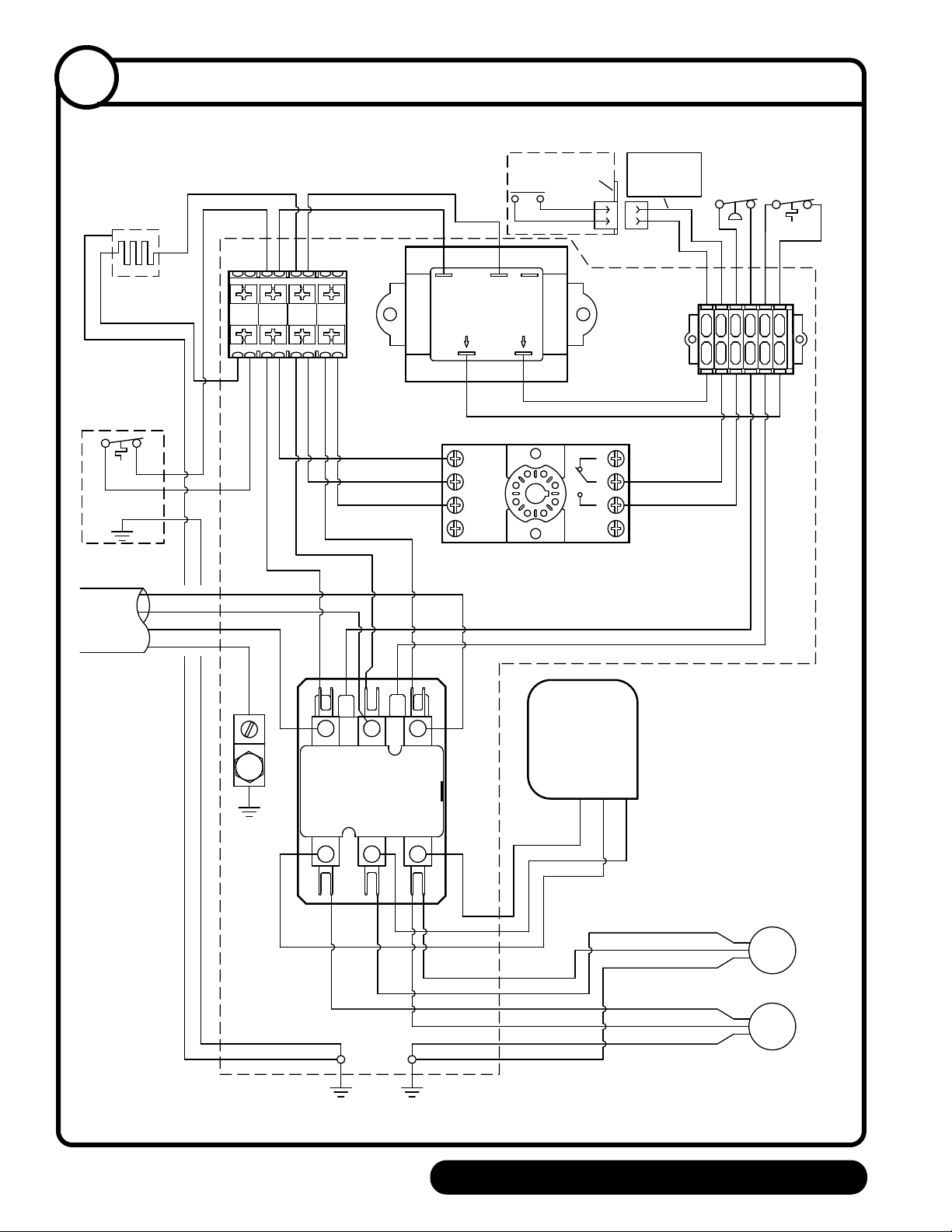

Electrical schematic

2.3

REMOTE CONDENSING UNIT

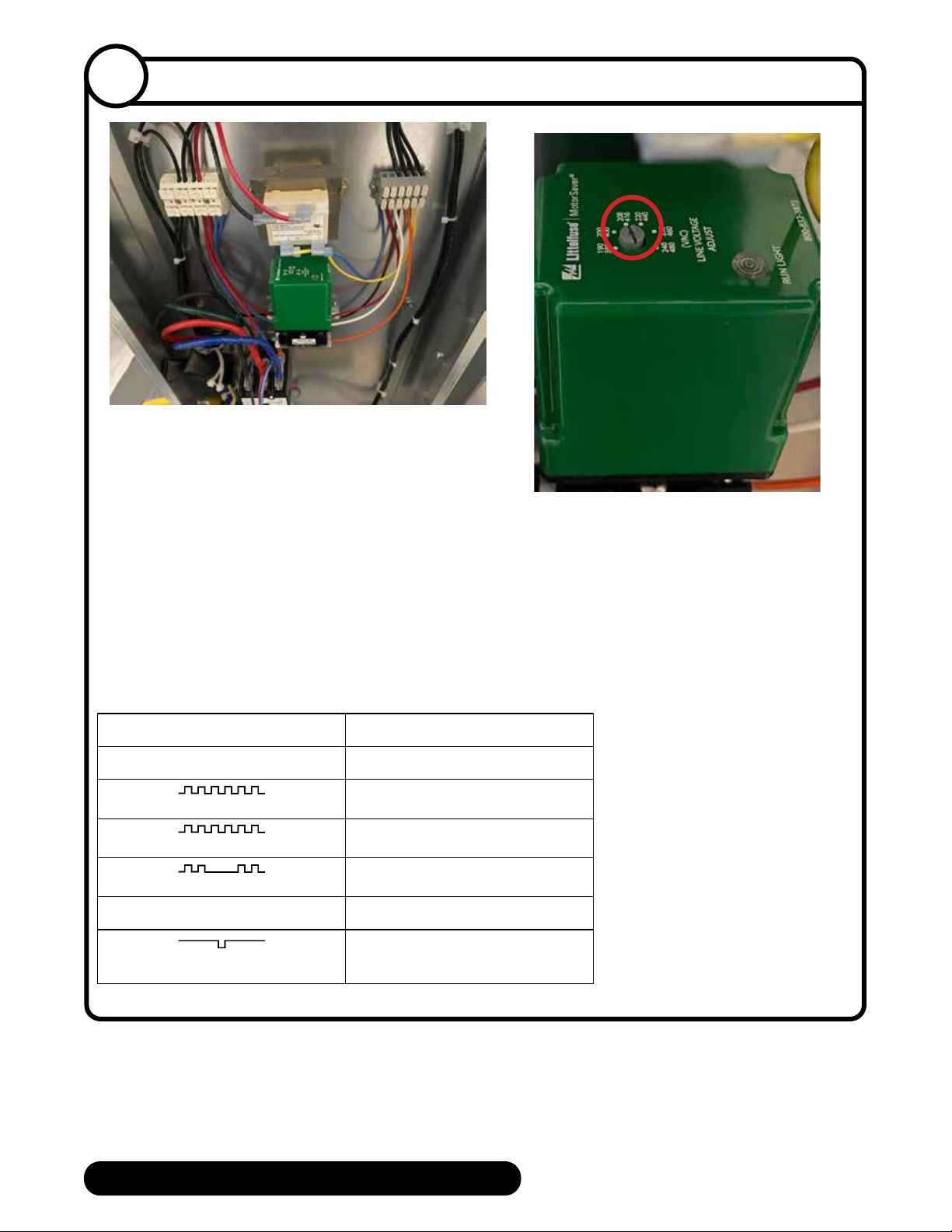

Phase monitor adjustments (if necessary)

2.4

1. The phase monitor is preset to 208 Vac from the factory.

2. If building voltage is less than 208 Vac, consult technical service.

3. See below chart for phase monitor diagnostics.

PLEASE NOTE THAT ANY TIME POWER IS APPLIED TO THE CONDENSING UNIT, OR THE

UNIT COMES OUT OF A FAULT STATE, IT WILL TAKE APPROXIMATELY 200 SECONDS FOR

THE UNIT TO POWER ON.

INDICATOR LIGHT STATUS

GREEN RUN

GREEN RESTART DELAY

RED REVERSE PHASE

RED

UNBALANCE / SINGLE PHASE

(SEE EXAMPLE BELOW)

RED LOW VOLTAGE

RED HIGH VOLTAGE (201A-9 ONLY)

8REMOTE CONDENSING UNIT

Condensing unit refrigeration line-set connection point

2.5

1412:

7/8" OD suction line

3/8" OD liquid line

REMOTE CONDENSING UNIT

Refrigeration line installation 3

Refrigeration line installation: 7/8" OD suction line / 3/8" OD liquid line

3.1

CAUTION

• The installer of the refrigeration line set must be USA Government Environmental Protection Agency

(EPA) certied in proper refrigeration handling and service procedures

• A qualied person must perform all roof or wall penetration

• Do not form unwanted traps in refrigeration lines. A service loop is not considered an oil trap.

• Never coil excess refrigeration tubing

• The compressor oil rapidly absorbs moisture. Minimize the exposure of the refrigeration system by not

releasing the condenser unit or evaporator unit holding charge until all line connections are nished

and the system is ready for evacuation.

WARNING

• This unit contains a full charge of R449A.

1. Make and connect line set run from the condensing unit to the evaporator unit with all

specications found in the installation specications section. Do not overheat shut off valves on

the condenser unit or evaporator unit.

Note: Insulate entire suction line (not the liquid line) including shut off valves to prevent

condensation.

2. Leak check eld joints via the evaporator unit service valves.

3. Evacuate line set via the evaporator unit service valves.

R449A Ice Machine Charge Specications

Line Run Total Charge 1412R three phase

0 - 100' (0 - 30.5 m) 8 lb (3.63 kg)

100’ + (30.5 m+) Consult Technical Service

Note: Condensing unit shipped fully charged with 8 lb R449A.

5. Ensure all valves are open on condensing unit and ice machine.

9. Turn on power to condensing unit and evaporator unit.

10 REMOTE CONDENSING UNIT

Low Voltage Control 4

24 Vac signal wire

Run 24 Vac signal

wire to connector,

then plug connector

into socket at ice

machine.

Ice Machine

Outdoor Condensing Unit

Run 24 Vac signal

wire to TB2 terminals

1 and 2 of condens-

ing unit.

The low voltage control (24 Vac signal wire) must be run and connected at the back of the ice machine

and to the condensing unit. Route low voltage wire through the upper knockout at the condensing unit

and secure with appropriate connector per NEC.

Follett suggests the following wire for the ice machine signal wire (2 conductor, 18 gauge thermostat

wire), but be sure to follow NEC guidelines:

Southwire: 553020507, Johnston Supply: G80-220, United refrigeration: UL1825

Low voltage control (24 Vac)

4.1
