REFVAC2

Welcome to Follett Products LLC

Follett Products equipment enjoys a well-deserved reputation for excellent performance, long-term reliability and

outstanding after-the-sale support. To ensure that this equipment delivers that same degree of service, review this

guide carefully before you begin your installation.

Should you need technical help, please call our Technical Service group at (877) 612-5086 or (610) 252-7301.

Please have your model number, serial number and complete and detailed explanation of the problem when

contacting Technical Service.

Getting Started

After uncrating and removing all packing material, inspect the equipment for concealed shipping damage. All

freight is to be inspected upon delivery. If visible signs of damage exist, please refuse delivery or sign your delivery

receipt "damaged." Follett Customer Service must be notied within 48 hours. Wherever possible, please include

detailed photos of the damage with the original packaging so that we may start the freight claim process.

Order parts online:

www.follettice.com

01441468R00

801 Church Lane • Easton, PA 18040, USA

Toll free (877) 612-5086 • +1 (610) 252-7301

www.follettice.com/healthcare

REFVAC2

High-Performance Compact Refrigerators

HEALTHCARETM

Installation Guide

Please visit https://www.follettice.com/technicaldocuments

for the Operation and Service manual for your unit

Specications

Dimensions

REFVAC2

Dimensions (external) 18.6" W x 24" D x 27.93" H

(47 cm x 61 cm x 71 cm)

Dimensions (internal) 14.5" W x 10" D x 21.25" H

(37 cm x 26 cm x 54 cm)

Shelf Size 13.75 W x 9 D

(35 cm x 23 cm)

Capacity 1.8 cu ft (51 L)

Usable Space 1.21 cu ft (0.3 m3)

Weight (uncrated)* 87 lbs (39 kg)

* Add 22 lbs/10 kg for packaging.

Electrical Specications

§115 V, 60 Hz, 1 phase

§Full load: 1.8A

§Minimum circuit ampacity: 15A

§Connect to dedicated circuit, fuse or breaker

§Maximum size of branch circuit overcurrent device: 15A

§Follett recommends circuit be protected by GFCI.

Refrigeration Specications

Refrigerant Charge Size (oz) Maximum Design Pressures (psi)

High Side Low Side

R134A 3.4 240 88

Heat Rejection

§190 BTU/hr (56 W) maximum

Ambient Information

CAUTION!

The REFVAC2 are for indoor use only.

Optimum Maximum

Air Temperature ≤80 F (27 C) 100 F (38 C)

Relative Humidity 60% max

Installation

Locating the Refrigerator

Performance of REFVAC2 is affected by ambient temperature and location. To ensure proper performance,

please refer to the following drawings and conrm that the clearance requirements are met. There is no

clearance requirement for the back of the refrigerator so it can be placed against the wall.

80 F (27 C) and 60% RH – located under overhanging cabinet or shelf with zero top clearance

Requires 6" (15.3 cm) clearance on either right or left side

2 REFVAC2 Compact Refrigerators

HEALTHCARETM

6" (15.3 cm) minimum air

clearance required right

or left side

SHELF

80 F (27 C) and 60% RH – unrestricted topclearance location

Requires 2" (5.1 cm) clearance on both sides and unrestricted top clearance (12" (30.5 cm) min above unit)

UNRESTRICTED TOP

CLEARANCE

2" (5.1 cm) minimum air

clearance required on

both sides

2" (5.1 cm) minimum air

clearance required on

both sides

UNRESTRICTED TOP

CLEARANCE

100 F (38 C) – maximum temperature location with zero top clearance

Requires 6" (15.3 cm) clearance on both sides

6" (15.3 cm) minimum air

clearance required on

both sides

6" (15.3 cm) minimum air

clearance required on

both sides

SHELF

REFVAC2 Compact Refrigerators 3

HEALTHCARETM

Installing Shelves

1. Remove shelves and shelf brackets packed inside refrigerator.

(If ordered, nd additional shelf accessory in separate box.)

2. Install shelf brackets in pilasters (insert top tab, squeeze and

push in lower tab) (Fig. 1).

Fig. 1

Installing Glycerine Solution in Product Simulation Bottle

(glycerine not included - P/N00959296)

ATTENTION INSTALLER

§It is imperative that the top/bottom probe bottle be lled with a solution

that your facility uses to ensure proper operation of unit.

§Units are equipped with a third-party monitor installation port.

Customers are required to refer to CDC Vaccine and Handling Toolkit

(cdc.gov) for proper placement of the probe within the cabinet to

ensure proper performance.

§NSF 456 requires the temperature display probe (P4-RTD1 in

REF12, REF20/25, FZR20/25, and REF45 models) to be replaced or

recalibrated. Follett recommends replacement/recalibration 12 months

from the original date of calibration on the Certicate of Traceability

supplied with your equipment at the time of purchase. Recalibration

or purchasing a new calibrated probe is not covered by the original

equipment warranty. To purchase a new Probe with Certicate of

Traceability, please contact our Parts Department @ 1-877-612-5086 or

partsales@follettice.com

1. Remove the bottle from the bracket located in the upper left side

of the refrigerator (Fig. 2).

2. Remove the top and ll the bottle with a 50/50 solution of

glycerine and water.

3. Replace the top (and probe).

4. Reinsert bottle into the bracket.

Fig. 2

5. Plug in the refrigerator and return the power switch to ON

(Fig.3).

Fig. 3

4 REFVAC2 Compact Refrigerators

HEALTHCARETM

Battery Backup (KP models only)

1. Provide power to the unit and turn the power switch to the ON

position.

2. Open the door using the keypad lock and prop the door open so

it doesn’t close during the battery installation.

3. Turn power switch to the OFF position or unplug the unit from

the power supply.

4. Remove the two screws (Fig. 4.1) on the front panel at the

bottom of the unit.

5. Remove the front panel.

Note: Take care when removing, some wires are connected to the

front panel (Fig. 4.2).

6. Find the battery pack on the right-hand side of the front panel.

7. Pull the battery pack and the battery connector away from the

hook and loop patch on the front panel (Fig. 4.3).

8. Connect the battery connector with the black and red wires to

the top of the battery pack.

9. Place the battery pack back in place rmly on the hook and loop

patch.

10. Re-install the front panel.

11. Close the door.

12. Test operation of the keypad lock while the power to the unit is

OFF to conrm back-up battery connection.

13. Turn the power switch ON or plug the unit back into the power

supply.

Fig. 4

Reversing the Door Swing – Optional

WARNING!

For protection, safety goggles (and/or face shield) should be

worn when removing and/or installing the hinge spring.

1. Use at screwdriver to carefully remove hinge covers (Fig. 5).

Fig. 5

REFVAC2 Compact Refrigerators 5

HEALTHCARETM

2. Using a small Phillips screwdriver, allen key or drift pin, rotate

top of spring assembly (counter-clockwise for right-hand hinged

doors) (Fig.6.1) to remove the pin (Fig.6.2).

3. Relieve torque on the spring.

Fig. 6

4. With a at-head screwdriver, simultaneously push down and pry

the top of the spring from out of the top of the hinge (Fig.7).

Fig. 7

5. Support door and remove screws attaching hinge to refrigerator

cabinet and remove the door (Fig. 8).

6. Cover hinge screw holes with screws removed from opposite

side of door and door frame.

Fig. 8

6 REFVAC2 Compact Refrigerators

HEALTHCARETM

7. Remove screws holding lock strike-bracket at "bottom" inside of

door (Fig. 9.1).

8. Remove screws from inside of door "top" and install bracket.

9. Plug "bottom" holes with retained screws and install lock strike-

bracket to "top" inside of door (Fig. 9.2).

10. Reverse door 180° so that lock strike-bracket is on the bottom

inside of door (Fig. 9.3).

Fig. 9

11. Reinstall the door on the opposite side of the doorframe. Adjust

if needed.

12. Reinstall screws (torqued to 25 in-lbs) (Fig. 10).

Fig. 10

13. Insert bottom of spring kit onto bottom hinge pin (Fig.11).Fig. 11

REFVAC2 Compact Refrigerators 7

HEALTHCARETM

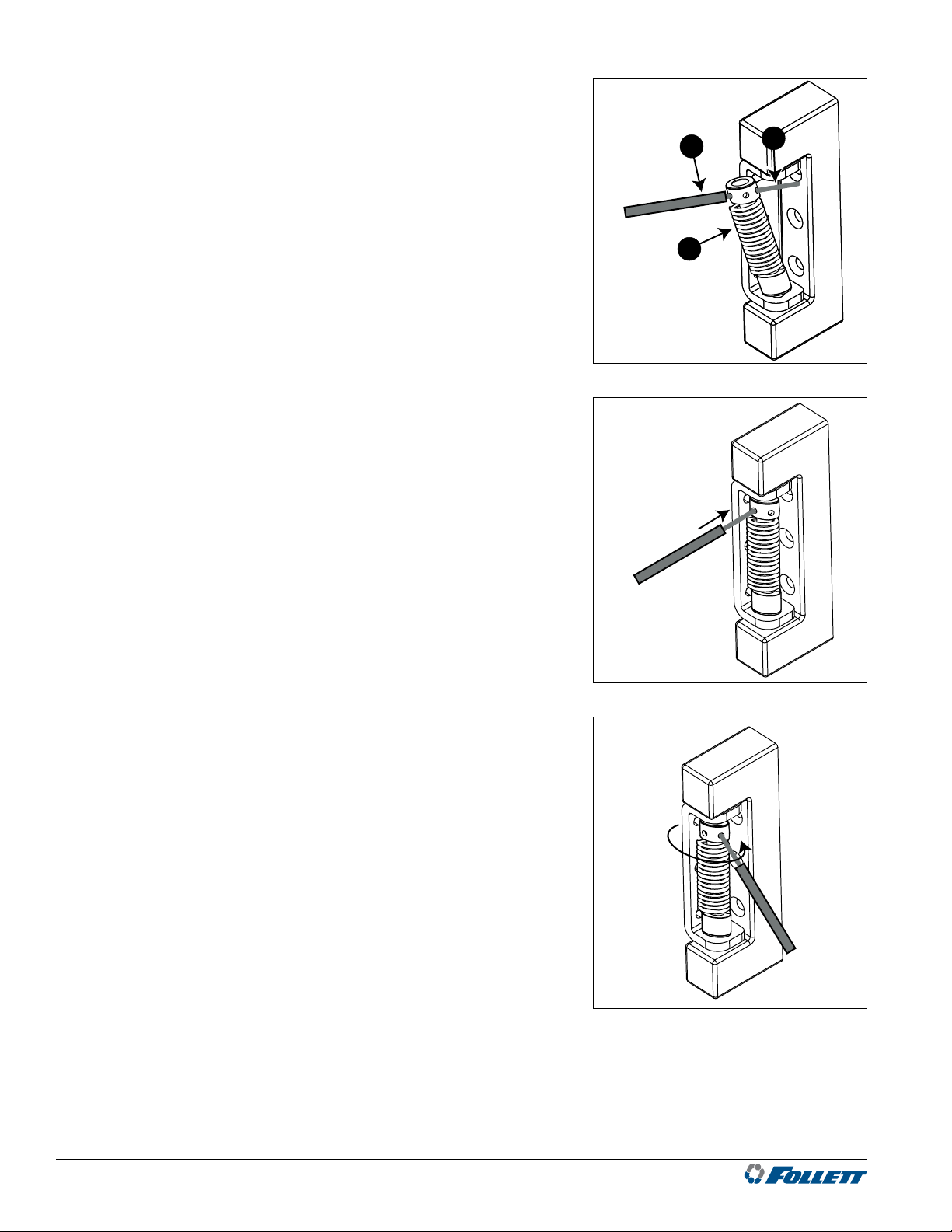

14. Insert tool as shown and press down on both sides of tool

(Fig.12.1) to compress spring kit, then insert top of spring kit

onto top hinge pin (Fig. 12.2).

Fig. 12

Adjusting Hinge Closure Force

1. Remove the tool and insert it (Phillips screwdriver, Allen key,

drift pin) into hole nearest the hinge bracket (Fig.13).

Fig. 13

2. Rotate top of spring counter-clockwise to increase the spring

torque (Fig.14).

Fig. 14

8 REFVAC2 Compact Refrigerators

HEALTHCARETM

3. Insert pin into an open hole nearest the hinge bracket

(Fig.15.1), and remove the tool used to torque the spring

(Fig.15.2).

4. Repeat Steps 2 and 3 until desired closure force is achieved.

CAUTION!

Do not overtorque the spring unnecessarily. Minimum closure

force should close door when door is opened 1" (2.5 cm).

Fig. 15

5. Reinstall hinge cover (Fig. 16).Fig. 16

Installing Third-party Temperature Probe

Facilities using a third-party alarming and/or temperature monitoring

system need to install the third-party probe in the refrigerator. Follett

recommends removing any stored product before performing this

procedure.

1. Move the power switch on lower rear panel to OFF and unplug

the refrigerator.

2. Remove the rear panel of the refrigerator (Fig. 17).

3. Open front door of refrigerator and remove shelf/shelves, if

installed, for better access.

Fig. 17

REFVAC2 Compact Refrigerators 9

HEALTHCARETM

4. From inside the refrigerator, push and fold the perforated cut

out located on the inside, upper-right hand corner (Fig.18).

5. Use a long screwdriver or drill to create a hole (up to 1"

(25.4mm) diameter) through the exposed foam insulation.

6. From inside the refrigerator, feed non-probe end of wire through

opening (Fig. 19).

7. Secure probe to interior cabinet wall to avoid product

interference.

8. Gently pull on non-probe end of wire to remove slack from

inside of refrigerator.

9. Use Permagum* or equivalent sealant to replace foam

insulation (removed in Step 5) to ensure proper performance of

refrigerator.

10. Remove any debris that may have fallen into the drain pan or

condensor area.

11. Route non-probe end of wire through appropriate ventilation

hole in refrigerator rear panel.

12. Reinstall the rear panel.

13. Connect non-probe end of wiring to monitoring device.

14. Plug in the refrigerator and return the power switch to ON.

* Permagum is a registered trademark of the Presstite Engineering Company.

Fig. 18

Fig. 19

10 REFVAC2 Compact Refrigerators

HEALTHCARETM

Inhaltsverzeichnis

Andere Follett Kühlschrank Handbücher

Follett

Follett REF Series Beilage

Follett

Follett Edge Series Bedienungsanleitung

Follett

Follett EREF Series Einrichtungshandbuch

Follett

Follett REFVAC5P Einrichtungshandbuch

Follett

Follett Performance Plus REF4P Einrichtungshandbuch

Follett

Follett REFVAC20-LB Einrichtungshandbuch

Follett

Follett REF5-BB Bedienungsanleitung

Follett

Follett REF20-LB Einrichtungshandbuch

Follett

Follett REF5-BB Einrichtungshandbuch

Follett

Follett K25541 Einrichtungshandbuch

Follett

Follett 18688 Einrichtungshandbuch

Follett

Follett Advantage REFADV5-SD Bedienungsanleitung

Follett

Follett REF4P Einrichtungshandbuch

Follett

Follett REF1 Bedienungsanleitung

Follett

Follett REF 12-LB Series Einrichtungshandbuch

Follett

Follett REF Series Beilage

Follett

Follett REF2 Einrichtungshandbuch

Follett

Follett Performance Plus REF5P Einrichtungshandbuch

Follett

Follett REF20i-4S Bedienungsanleitung

Follett

Follett REF1 Einrichtungshandbuch

Follett

Follett REF5BBP-T Einrichtungshandbuch

Follett

Follett Symphony REF Series Einrichtungshandbuch

Follett

Follett REFVAC4P Bedienungsanleitung

Beliebte Kühlschrank Handbücher anderer Marken

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Bedienungsanleitung

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Bedienungsanleitung

Sharp

Sharp SJ-BA31IEXW2-EU Bedienungsanleitung

CORBERO

CORBERO CC2300MCW Bedienungsanleitung

KitchenAid

KitchenAid 2205264 Bedienungsanleitung

Stengel

Stengel KU 1101 A++ Bedienungsanleitung

NEFF

NEFF KI181 Series Bedienungsanleitung

Hoshizaki

Hoshizaki Reach-In Bedienungsanleitung

Amana

Amana ASD2524VES00 Bedienungsanleitung

BOMANN

BOMANN KGC 213 Bedienungsanleitung

Danby

Danby DAR044A1SLDD Montageanleitung

Samsung

Samsung RF323TE Bedienungsanleitung

Beko

Beko CSA31022 Bedienungsanleitung

IKEA

IKEA FROSTIG C 185 E Bedienungsanleitung

Electrolux

Electrolux ER 6821 D Bedienungsanleitung

True

True TS-28 Bedienungsanleitung

Frigidaire

Frigidaire FSC23R5DW9 Bedienungsanleitung

Beko

Beko LSP4579W Bedienungsanleitung
