Follett A36000 Leitfaden

English Español Française

Installation, Operation and Parts Manual

After Service Number A36000

Ice Storage and Transport Systems

with SmartGATE® Ice Shield

208992R07

ITS1350-60

ITS3250-90

ITS2250-60

ITS700-31

801 Church Lane • Easton, PA 18040, USA

Toll free (877) 612-5086 • +1 (610) 252-7301

www.follettice.com

ITS500-31

ITS1700-90

Following installation, please forward this manual to the

appropriate operations person.

Order parts online

www.follettice.com

Contents

Welcome to Follett ..................................................................................................................... 3

Installation ................................................................................................................................. 4

Operation................................................................................................................................... 6

Cleaning .................................................................................................................................... 9

English

Welcome to Follett

Follett Ice Storage and Transport Systems enjoy a well-deserved reputation for excellent performance and long-

term reliability. To ensure that your equipment delivers this same degree of service, please read this manual

carefully before installing or operating the system. If you have questions during installation or operation of this

system, please call our technical service group at (877) 612-5086 or +1 (610) 252-7301.

Before you begin

After uncrating and removing all packing material, inspect the equipment for concealed shipping damage. If

damage is found, notify your shipper immediately and contact Follett Corporation for help in ling a claim, if

necessary.

Important cautions and operating rules

Read this manual completely before assembling or operating Ice Transport System

and follow cautions and instructions listed below.

To avoid damage to Ice Transport System and injury during operation:

• Do not move Ice Transport System once icemaker has been installed

• Anchor anged feet to oor as instructed on page 4

• Only use paddle provided to assist ice ow

• Only use cart to transport ice and reinstall carefully in bin bay when not in use

To avoid injury during operation of unit:

• Keep entire body clear of bin when breaking up ice

• Keep head and face away from paddle handle when breaking up ice

• Lock caster before scooping or shoveling ice from cart and when parked in bay

• Keep oor around Ice Transport System free of ice and water

• Always operate cart at a slow, reasonable speed

For best operation and to ensure delivery of clean, sanitary ice:

• Be sure bin system is level in both directions to provide proper drainage

• Position cart in bay before opening hopper door

• Install charcoal water lter on inlet water for icemaker

• Hang paddle implement in supplied bracket after each use

• Keep paddle clean and in good repair to avoid ice contamination

• Cover ice with cart lid when transporting

• Follow instructions in this manual for bin and cart cleaning and maintenance

• Drain melt water from cart when positioned in bay by opening drain valve

• Keep glass, dirt and other foreign objects out of bin and cart at all times

Installation

Uncrating cart

1. Remove paddle from skid by cutting plastic straps.

2. Cut strap holding front axle to skid.

3. Remove wheel chocks from skid at handle end of cart.

4. Roll cart(s) out of base section.

5. Remove tape holding lid to cart.

6. Remove lid storage bracket(s) from inside cart. (Brackets may be installed on left or right side of bin.

See Installing Bin section.)

Uncrating and installing base section

1. Remove screws holding anged feet and tie-down straps to skid and remove skid.

2. Remove packing material from inside of legs and around shutter door.

3. Position base in intended position and adjust feet to level unit in both directions.

4. Mark position of each anged foot anchoring hole.

5. Move base out of way and install anchors for 1/4" bolts in oor (supplied by others).

6. Reposition unit in intended position and anchor base unit to oor through anged feet.

Installing bin

1. Remove 4 bolts fastening skid to underside of bin.

2. Remove all protective wrap from exterior.

3. Run 1/8" bead of supplied silastic in center of each gasket

band on base.

4. Install bin section on base section, taking care that locating

pins in base engage holes in bin.

5. Use fasteners provided to install paddle support bracket on

right or left side of bin in holes provided.

6. Remove paper from back of cart lid storage bracket(s) and position

brackets on side of bin.

7. Remove all tape and temporary fastenings from door assemblies

and outside of bin.

8. Mount icemaker(s) on top of bin in accordance with icemaker

manufacturer's instructions.

9. Install tie-down straps.

Installing tie-down straps

1. Remove screws from rivnuts on each side of bin section.

2. Reposition tie-down strap up until slot matches rivnut opening.

3. Reinstall screws in rivnuts and tighten.

When leveling, do not extend any leg more than 1" (26mm) for total leg height no greater than

2.125" (54mm).

Legs must be secured to oor through feet to avoid possible movement and resulting injury.

bin

section

base

section

locating pin

bead of

silastic

gasket gasket

bead of

silastic

Tie-down straps to secure bin to base are provided on each side of unit. Straps MUST be

installed to avoid possible injury should unit move. Bolt unit to wall for increased stability, and

bolt to oor to prevent side-to-side movement.

English

Sealing bin interior

1. Support shutter door(s) with one hand and remove thumbscrews from side of shutter door(s) at underside

of base.

2. Pivot door(s) downward to remove.

3. Gain access through this opening and seal entire perimeter of seam between bin and base with provided

sealant or equivalent.

4. After sealant has set but before shutter door(s) have been reinstalled, clean inside of bin following instructions in

this manual.

5. Reinstall shutter door(s).

Plumbing connections

Note: It is recommended that a full width grated oor drain be installed in front of bin.

1. Units are shipped for a right side exiting drain. To drain to left, switch positions of screws in trough brackets

from lower hole to upper hole on left bracket and upper hole to lower hole on right bracket.

2. Remove plug from left side of drain trough and insert in right side.

3. Connect drain line to 1 1/4" PVC slip t drain tting.

4. Make nal connections to icemaker.

Affixing operating labels

Operating labels taped to base front educate staff to shutter door operation. If desired, these labels can be affixed

permanently by peeling off back paper and affixing in locations desired.

Note: Adhesive backing is extremely strong and labels cannot be easily removed once installed.

Removing lower door assembly

(only if required for access through narrow doors)

1. With lower access door closed remove Phillips

head screw and washer from hinge area on each

side of lower access door.

2. Insert screwdriver between door and hinge bracket

on one side of door and gently push against bracket

to provide room for door stud to clear bracket.

3. Remove access door.

4. Pull up on SmartGATE to remove.

5. Remove three or four (3 or 4) screws along top of

door assembly.

6. Pull forward on assembly and remove.

Use sealant provided to seal entire

perimeter of seam where base and

bin section join.

The joint between base and bin sections must be sealed with silastic to prevent leakage and/

or ice contamination and potential voiding of warranty. One or more shutter doors may need

to be removed to seal bin.

bin

section

base

section

interior

exterior

completely

seal gasket

access

door

SmartGATE

lower door

assembly

Cross section of ITS sections joined

Reinstalling door assembly

1. Reinstall lower door assembly in bin opening.

2. Reinstall three or four (3 or 4) screws in hood at top of door assembly.

3. Reinstall SmartGATE in side panel tracks and push down to seat.

4. With door closed insert one door stud through hinge bracket.

Note: For proper operation the access door must be reinstalled in the closed position.

5. On other side, insert screwdriver between door and hinge bracket and gently push against bracket to provide

room for door stud to clear bracket.

6. Reinstall washers and screws in lift door and tighten.

7. Check door to ensure proper operation.

Ice guide adjustment

Some ice types are very “slippery” and may ow over sides of cart when exiting hopper. Ice guides hang down below

hopper and help contain owing ice inside cart.

Guides are installed in highest position at factory, providing 3/4" clearance to top of cart when legs are in full

down position. If legs are adjusted up during leveling of Ice Transport System, ice guides should be lowered to

maintain 3/4" (19mm) clearance. Access to sides of Ice Transport System is required to perform operation.

To reposition ice guides after legs have been adjusted:

1. Position cart (with totes, if so equipped) in bay below shutter door opening.

2. Determine amount guides must be lowered to maintain 3/4" (19mm) clearance.

3. Remove thumbscrews holding guides.

4. Select hole to reposition guide at proper level and resecure with thumbscrew.

5. Repeat process for each bay in system.

Operation

Cart drain operation

1. Position cart all the way in bay.

2. Lock caster to prevent cart movement.

3. To open drain, pull knob out.

4. To close, push knob in.

Cart lids

1. Hang cart lids on brackets on bin side when carts positioned in bay.

2. Remove from bracket and place lid on cart when transporting ice.

3. To avoid placing lid on oor, position lid horizontally on cart lip, resting lid against cart handle when unloading ice

from cart.

4. Reinstall lid in bracket on side of bin before placing cart in bay.

PUSH TO CLOSE

brackets on underside of hopper to which

ice guides are secured

English

Pushing cart into bay

1. PUSH cart all the way to back.

2. PULL cart drain open.

3. Lock brake on caster DOWN.

Loading ice

1. PULL shutter handle open.

2. Store handle up against bin.

Pulling cart out

1. PUSH shutter handle closed.

2. PUSH cart drain closed.

3. Release brake on caster.

Transporting ice

1. PULL cart from base.

2. Place lid on cart.

Ice Transport System operation

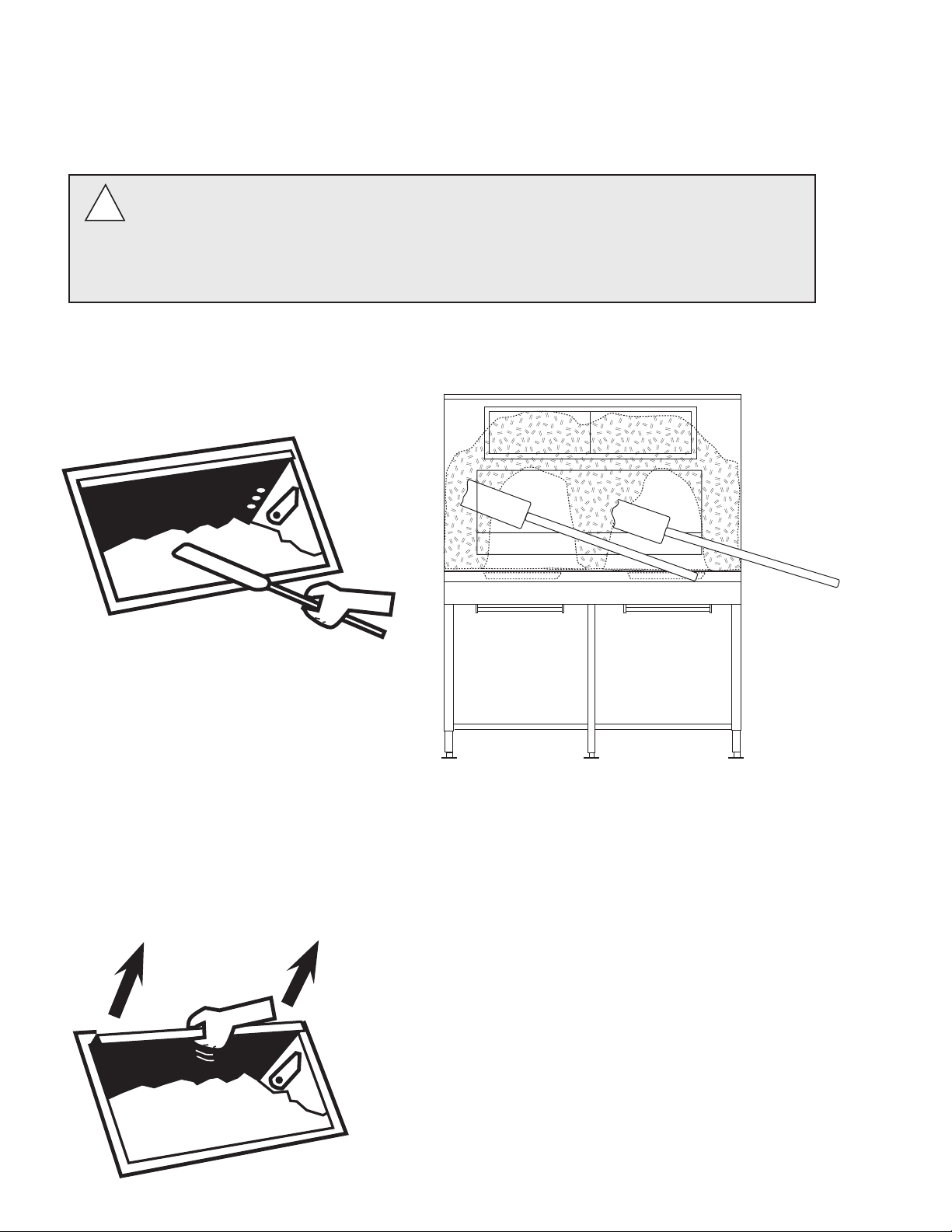

Breaking ice bridges

It may be necessary to use the paddle to break up ice bridges that occur along the sides and in the middle of the bin.

This often happens if ice has been held in storage for a period of time without use. Use supplied paddle accessory to

break up bridges.

1. Completely knock down all ice from sides and back of bin.

2. Knock down any bridge that has occurred in middle.

3. Agitate paddle back and forth to break up congealed ice mass.

SmartGATE operation

SmartGATE can be adjusted and locked at one of several levels to accommodate ow characteristics of different

types of ice.

Bin is shipped with SmartGATE in full down position. SmartGATE can be raised and locked in higher position for

better ow or when more access is needed.

Do NOT dig up at ice. Instead, break away “legs” that are holding bridges. Ice above will

then fall.

To avoid injury, do not attempt to break up bridged ice through upper windows or hopper

shutter door. A falling ice bridge can cause paddle to lift. Keep head and face away from

paddle handle to avoid injury.

English

Cleaning

Bin drain system cleaning

1. Remove upper tray(s) and wash with cleaning solution, rinse and reposition in brackets.

2. Saturate a cloth with cleaning solution and insert through a loop in end of a piece of wire.

3. Feed wire through vertical drain tube, and pull wire and cloth through tube.

4. Pour 1 gallon (4L) hot water into lower drain trough.

Drain tray cleaning

1. Remove two thumbscrews on side of drain tray and pull drain tray forward to remove.

2. Wash with an approved cleaner.

Shutter doors and rails

1. Support hopper shutter door with one hand and remove thumbscrews from side of hopper shutter door at under

side of base section.

2. Pivot door down to remove.

3. Wash door, rinse thoroughly and sanitize.

4. Remove thumbscrews holding front and rear of shutter tracks.

5. Wash tracks, rinse thoroughly and sanitize.

Cart and cart drain system

1. Wash cart liner with an approved cleaner.

2. Rinse and sanitize.

Cleaning bin before use and ongoing bin maintenance

Interior of bin must be cleaned and sanitized prior to use and should be cleaned on routine basis during use

(see next page).

Clean and sanitize bin and cart(s) interiors prior to use and on regular schedule as

needed. Use non-chlorine based cleaner and sanitizer suitable for use in a food zone. Do

NOT use chlorine-based cleaners, which can cause staining and pitting of stainless steel

components. Do not run Totes through a dishwasher. Turn off icemaker(s) and remove ice

from bin before beginning.

Interior bin care

Follett ice storage bins with SmartGATE are equipped with polyethylene liner walls which should be cleaned and

sanitized periodically with Ecolab Mikro-chlor Cleaner or any product suitable for use in a food zone.

Important: Follett Corporation recommends installing a properly-sized, activated carbon (charcoal) water lter

on water supply to icemaker to remove chlorine.

1. Remove upper inspection windows by sliding windows to one side. Grasp the end of the front window and pull

toward you as the window is slid to the opposite side. Repeat for rear window.

2. Wash bin walls, hopper, access door plate and partition (if any), rinse and sanitize.

Exterior bin care

Exterior stainless steel surfaces can be cleaned with a stainless steel cleaner such as 3M Stainless Steel Cleaner &

Polish or equivalent.

Technical assistance available toll free

Should you have any questions concerning installation or maintenance of Follett ice storage bins, please call our

technical service department at (877) 612-5086 or +1 (610) 252-7301 between 8 a.m. and 5 p.m. Eastern time.

rear window

front window

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Sprachen:

Andere Follett Lagerung Handbücher

Follett

Follett ITS500-31 Leitfaden

Beliebte Lagerung Handbücher anderer Marken

QNAP

QNAP TS 32PXU Series Bedienungsanleitung

LaCie

LaCie RUGGED RAID Bedienungsanleitung

Freecom

Freecom CLS DOCK Bedienungsanleitung

PNY

PNY Attache P-FD64MBATT3 Bedienungsanleitung

HP StorageWorks MSL2024 Bedienungsanleitung

OLT

OLT 6x6 Maximizer Bedienungsanleitung

Transcend

Transcend JetFlash 160 Bedienungsanleitung

LaCie

LaCie RUGGED MINI Bedienungsanleitung

Thunderbolt

Thunderbolt 600 Bedienungsanleitung

Panasonic

Panasonic LB-DH8 series Handbuch

Intel

Intel RAID High Availability Bedienungsanleitung

LaCie

LaCie 12big Thunderbolt 3 Bedienungsanleitung

Spectra Logic

Spectra Logic T-Series Spectra T50e Bedienungsanleitung

Panasonic

Panasonic LKM-F931-1 Bedienungsanleitung

Tabernus

Tabernus Enterprise Erase E2400 Bedienungsanleitung

Rocstor

Rocstor COMMANDER 3F series Bedienungsanleitung

HP P9000 Bedienungsanleitung

Western Digital

Western Digital Ultrastar Data60 Bedienungsanleitung
