Column washbasin 55
3
1
4
2
Assembly instructions
Tools needed
Pencil Tape
measure
Spirit level SiliconeTrowel
The simple warnings shown below ensure correct installation of the column
washbasin, ensuring the washbasin a long life and compliance with the warranty
conditions.

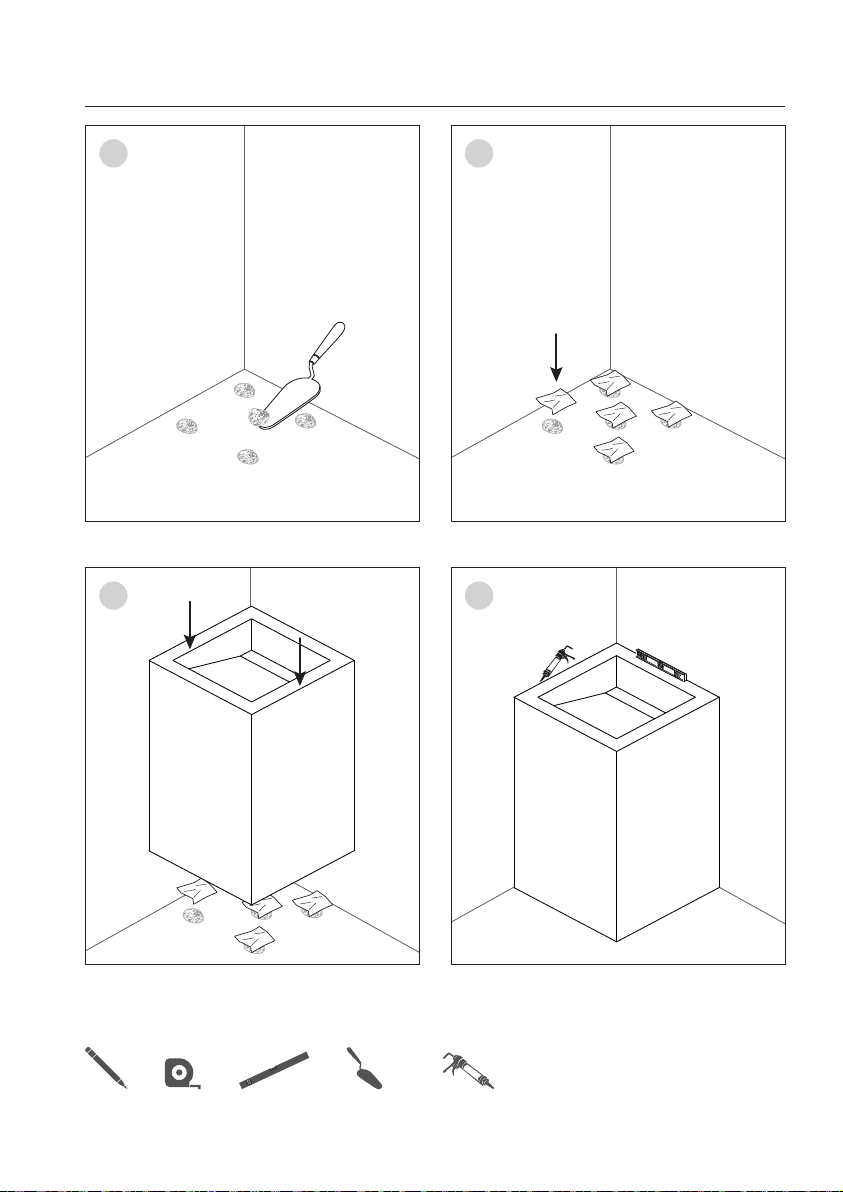

Preparation
Prepare a lean mortar bed with polystyrene foam strips on all four sides and in the
centre, as a support for the column washbasin.
Place a sheet of plastic or paper between the ceramic and the mortar to prevent the
surfaces sticking together.
Installation
Position the column washbasin, checking that it is level using a spirit level (N.B. rst of
all, level out the surfaces where the column washbasin will be resting).
Once the mortar has set, seal everything with white mould-proof silicone or elastic
mortars.
1
2
3
4
Use protective gloves
RECOMMENDATIONS
Floor-anchored column washbasin with inspection hatch.
Rear view with rear wall drainage
Tipologia
Sloping with pop-up plug and trim base
Mixer tap
Wall - mounted
Included
GFB SIFON 00056742 stainless steel drain
FAO-approved crate packaging
height: 800 mm
size: 700x1300 mm
weight: 110 kg
Washbasin dimensions
550
550
850
140
64 64
R2
300400
422
