Force 10 S50 Bedienungsanleitung

Version 2.3 December 2006 101-00173-01

S50 Quick Reference

Force10 Networks reserves the right to change, modify, revise this publication without notice.

Trademarks

SFTOS, and TeraScale are trademarks of Force10 Networks, Inc. All other brand and product names are registered trademarks or trademarks

of their respective holders.

Statement of Conditions

In the interest of improving internal design, operational function, and/or reliability, Force10 Networks reserves the right to make changes to

products described in this document without notice.

Force10 Networks does not assume any liability that may occur due to the use or application of the product(s) described herein.

Danger: To prevent electrical shock, make sure the S50 is grounded properly. If you do not

ground your equipment correctly, excessive emissions may result. Use a qualified electrician to

ensure the power cables meet your local electrical requirements.

Warning: As with all electrical devices of this type, take all the necessary safety precautions to prevent

injury when installing this system. Electrostatic discharge (ESD) damage can occur if components are

mishandled. Always wear an ESD-preventive wrist or heel ground strap when handling the S50 and its

components.

Warning: For fan maintenance and proper ventilation, position the S50 in an equipment rack (or cabinet)

with a minimum of five inches (12.7 cm) of clearance around the side intake and exhaust vents.

Warning: The site where the S50 is placed should be a dry, clean, well-ventilated and

temperature-controlled room, away from heat sources such as hot air vents or direct sunlight and have an

environmental temperature between 32° – 122°F (0° – 40°C).

S50 Quick Reference 3

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Contents of the S-Series CD-ROM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Documentation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Training Material . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Installing the Hardware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Inserting the 10-Gigabit Module (optional) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Inserting the DC Power Module (optional) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Attaching the S50 to the Rack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Connecting Stacking Ports (optional) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Installing SFP Modules (optional) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Installing XFP Modules (optional) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Connecting a Cable to the Console Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Basic Software Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Creating a User and Password . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

Setting the Enable Password . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

Enabling Ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

Setting the Management IP Address . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Enabling Telnet to the Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Managing a Stack of S50 Switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Installing New Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Enabling and Using the SFTOS Web User Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Creating a Simple Configuration using VLANs and STP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Enabling Spanning Tree Protocol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Notable Differences between S-Series and E-Series . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Interface Nomenclature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

The iSupport Website . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Contents

4Overview

Overview

Thank you for purchasing a Force10 Networks S50 switch!

This S50 Quick Reference document is printed and included in the S50 shipping box to provide you with a

quick way to access basic installation and configuration instructions and to tell you how to get more

information.

In addition to the S50 with its SFTOS operating system (basic Layer 2 package) loaded in its default

configuration, the shipping box also contains the AC power cord, a DB9 to RJ45 connector, and a small

bag with rack-mounting screws, plastic feet for table-top mounting, and the S-Series Documentation and

Software CD-ROM (hereafter simply referred to as the “S-Series CD-ROM”).

Other purchased components are shipped separately.

The hardware installation section (Installing the Hardware on page 6) in this guide contains a subset of the

information in Installing the S50 System, a book stored as a PDF both on the S-Series CD-ROM and at the

iSupport website.

The software configuration section here (see “Basic Software Configuration on page 10”) contains a subset

of the configuration information in the SFTOS Configuration Guide, which is also on the S-Series

CD-ROM and at the iSupport website.

In fact, all of the S50 documentation that is on the S-Series CD-ROM is also available on the iSupport

website.

For more information about the S-Series CD-ROM, see the next section, Contents of the S-Series

CD-ROM on page 5.

For more information about the iSupport website (login required), see The iSupport Website on page 20.

Note: This S50 Quick Reference is specific to SFTOS Version 2.3 for the S50.

S50 Quick Reference 5

Contents of the S-Series CD-ROM

The S-Series CD-ROM launches a Web page from the CD-ROM containing the links described in the

following sections.

Documentation

Force10 Literature: This is a link to the Force10 Literature folder on the CD-ROM. It contains links to

data sheets for all Force10 products.

Installing the S50 System:This book contains details of installation options.

Release Notes: This document contains release notes for the SFTOS operating system and S-Series

hardware. In addition to a list of open and closed caveats, the document contains a replication of the Secure

Communications document listed above. It also contains a discussion of differences in the behavior

between SFTOS for the S-Series and FTOS for the E-Series switches.

SFTOS Command Reference: This book contains syntax statements for all SFTOS commands in the

Layer 2 and Layer 3 software.

SFTOS Configuration Guide: This book is designed to help you perform the most common configuration

tasks, with examples of the most commonly used commands.

Software

Note: The software image is no longer on the CD-ROM. You can check the iSupport website of Force10 for

the latest image. See The iSupport Website on page 20.

MIBs: This is a link to a folder on the CD-ROM containing the S-Series MIBs.

Secure Communications (SSH/SSL/HTTPS): This link opens an HTML page containing a link to the

S-Series Secure Management application note on the CD-ROM, describing how to enable secure

communications through SSH, SSL, and HTTP. The page also contains links to folders on the CD-ROM

containing example keys and shell scripts that you can use to generate your own SSH keys and SSL

certificates.

Training Material

The Training Material link on the CD-ROM home page is to a folder on the CD-ROM containing sets of

slides, in PDF format, that are used in the S-Series training.

6Installing the Hardware

Installing the Hardware

To install the S50 system, Force10 Networks recommends that you complete the installation procedures in

the order presented below, before attaching a power source:

• Insert the 10-Gigabit Module (optional)

• Insert the DC Power Module (optional)

• Attach the S50 to the Rack

• Connect Stacking Ports (optional)

Inserting the 10-Gigabit Module (optional)

The S50 has a slot at the right rear of the chassis, for which there are two types of 10-Gigabit module

available—fiber (optical) and copper (10GBase-CX4). Both have two ports (the system numbers them 49

and 50). The fiber module requires additional XFP inserts (see Installing XFP Modules (optional) on

page 9). The ports in the copper module use the same kind of stacking cable that you use for the stacking

ports. To install a 10-Gigabit module, follow the steps below:

Inserting the DC Power Module (optional)

The S50 system includes an optional DC power module that you can install in the back of the S50 chassis.

Connect it to your AC power source through an external S50 power converter module. To install these

optional components, see Chapter 4 in Installing the S50 System. Force10 also supplies a power shelf for

housing up to eight power converter modules, for use with an S50 stack.

Warning: Before starting the installation, be sure thatthe installation conditions conform to those

specified in Installing the S50 System.

Step Task

1. Remove the 10-Gigabit module faceplate located at the far right rear of the S50.

2. Remove the 10-Gigabit module from its packaging and slide the module into the 10-Gigabit slot.

3. Secure the captive screws on either side of the module.

n00144s50

S50 Quick Reference 7

Attaching the S50 to the Rack

The S50 is shipped with universal front-mounting brackets (rack ears) attached. The screws for attaching

those ears to a standard 19-inch rack are in the bag that also contains the S-Series CD-ROM.

Ensure that there is adequate clearance surrounding the rack to permit access and airflow. If you are

installing two S50 systems side-by-side, position the two S50 chassis at least 5 inches (12.7 cm) apart to

permit proper airflow.

Position the S50 chassis in the rack. Secure the chassis with two screws through each bracket and onto the

rack post.

Figure 1 Front-mounting the S50

Note: The front-mounting installation above is one of several installation options contained in the

book Installing the S50 System. Other options include rear mounting, four-post mounting, and

table-mounting.

8Installing the Hardware

Connecting Stacking Ports (optional)

You can connect S50 systems together to configure them to act as a unified system.

Stack limitations — The number of S50s in a stack is limited by the number of S50s with 10Gb modules:

— If zero or one S50 has a 10Gb module, the stack is limited to seven S50s.

— If three S50s have a 10Gb module, the stack is limited to six S50s.

— If four or more S50s have 10Gb modules, only five S50s are allowed in the stack.

Use the optional stacking cables to connect the systems through Stack Ports A and B, as depicted below.

Note: The diagram shows a connection between the top and bottom S50s, from Stack Port A on

unit 1 to Stack Port B on unit 3. That connection completes a topology called a ring. While that ring

connection is not necessary, it provides redundancy in case of a failure of stacking cable or port.

fn00152s50

Stacking Port A Stacking Port B

S50 Quick Reference 9

Installing SFP Modules (optional)

Installing XFP Modules (optional)

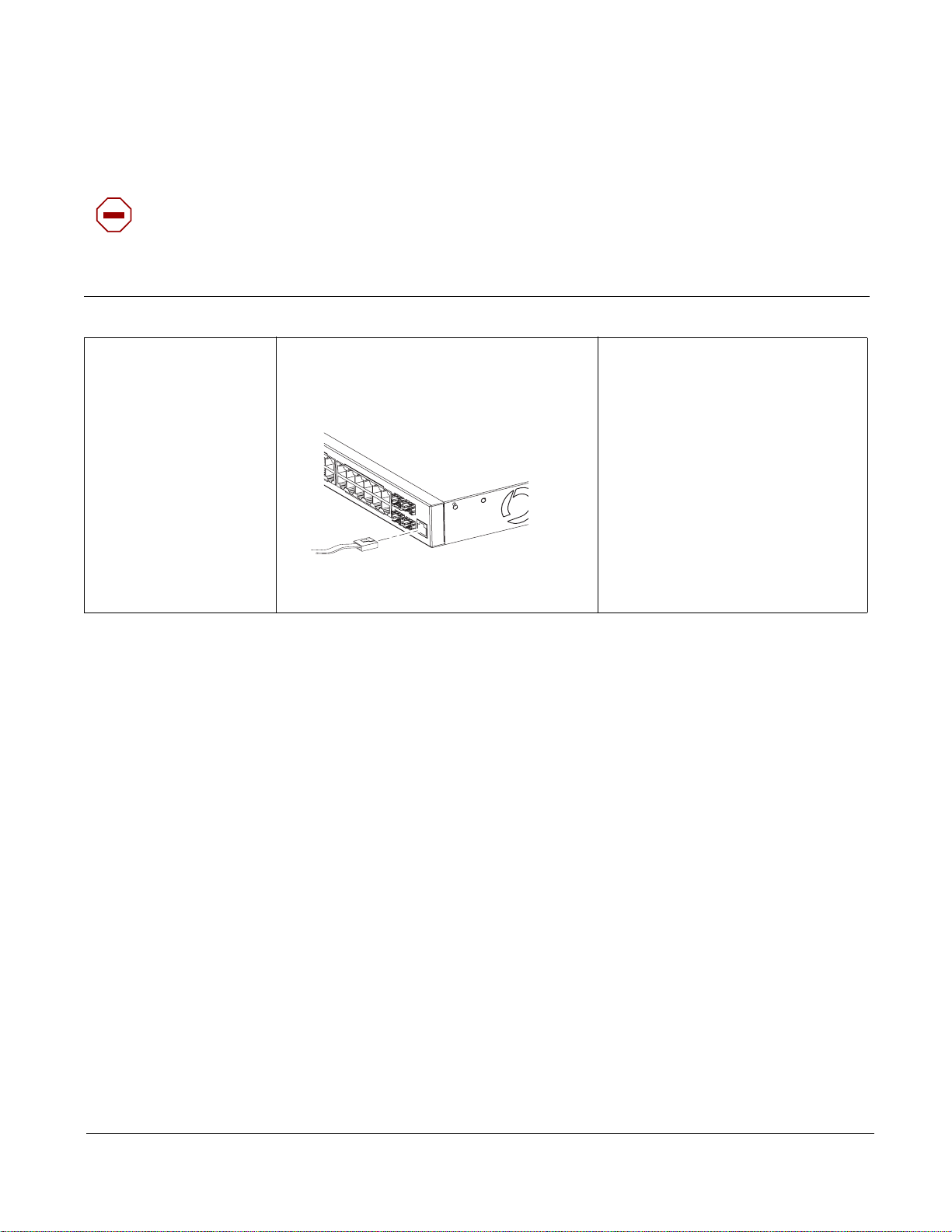

To install SFPs (Small

Form-factor Pluggable

modules) into the four open

ports at the right front of the

S50:

1. Position the SFP so that

the bail is closed and on

top of the SFP.

2. Insert the SFP into the

port until it gently snaps

into place.

Note: The four SFP ports

shown in the graphic, when

populated, automatically

preempt the four copper ports

labeled 45 through 48.

In other words, while you use

a particular optical port, you

cannot use the equivalent

copper port.

Warning: Do not look directly into any optical port. Failure to follow this warning could result in

physical harm.

The two 10-Gigabit ports (identified by the system as

ports 49 and 50) on the back of the S50 require the

optional 10-Gigabit module. See Inserting the

10-Gigabit Module (optional) on page 6.

To install XFPs into the two open ports that are in the

fiber (optical) version of the 10-Gigabit module:

1. Position the XFP so that the bail is closed and on

top of the XFP.

2. Insert the XFP into the port until it gently snaps

into place.

fn00162s50

fn00160s50

10 Basic Software Configuration

Connecting a Cable to the Console Port

See the Getting Started chapter of the SFTOS Configuration Guide for other console port details, such as

setting the console timeout and the baud rate.

Basic Software Configuration

This S50 Quick Reference contains a small subset of the information that is provided in the Getting Started

chapter of the SFTOS Configuration Guide. That guide is available PDF format on the S-Series CD-ROM

and on the Documents tab of the iSupport website.

This section discusses the following configuration topics for the S50:

•Creating a User and Password on page 11

•Setting the Enable Password on page 11

•Enabling Ports on page 11

•Setting the Management IP Address on page 12

•Enabling Telnet to the Switch on page 12

•Managing a Stack of S50 Switches on page 13

•Installing New Software on page 13

•Enabling and Using the SFTOS Web User Interface on page 14

Caution: Install a straight-through RJ-45 copper cable (a standard Ethernet cable)into the console

port. This is different from many other implementations that require a crossover (rollover) cable. If

connecting to a terminal server and using an Ethernet crossover cable, daisychain another crossover

cable to effectively get a straight-through cable connection. Many console terminal servers use

octopus cables that are crossover cables. As above, connect an additional crossover cable.

Connect the RJ-45/DB-9

adapter that is shipped

with the S50 system to

the RJ-45 cable.

Note: The console port

pinout:

Pin 1 = NC

Pin 2 = NC

Pin 3 = RXD

Pin 4 = GND

Pin 5 = GND

Pin 6 = TXD

Pin 7 = NC

Pin 8 = NC

Set your console terminal settings

to:

• 9600 baud rate

•noparity

• 8 data bits

• 1 stop bit

• no flow control

fn00162s50

Andere Handbücher für S50

Inhaltsverzeichnis

Andere Force 10 Schalten Handbücher

Force 10

Force 10 S2410 Installationshandbuch

Force 10

Force 10 S-Series Bedienungsanleitung

Force 10

Force 10 S50 Bedienungsanleitung

Force 10

Force 10 Traverse 2000 Montageanleitung

Force 10

Force 10 S25P Bedienungsanleitung

Force 10

Force 10 S2410 Bedienungsanleitung

Force 10

Force 10 E600i TeraScale Bedienungsanleitung

Force 10

Force 10 C300 Montageanleitung

Force 10

Force 10 Traverse Series Bedienungsanleitung

Force 10

Force 10 S2410 Bedienungsanleitung

Beliebte Schalten Handbücher anderer Marken

URC

URC Total Control MFS-8 Bedienungsanleitung

Azbil

Azbil HPQ-D11 Bedienungsanleitung

Sony

Sony DFS-900M Bedienungsanleitung

SICK

SICK i17S Bedienungsanleitung

F&F

F&F SZR-277 Bedienungsanleitung

Shure

Shure UAMS/BK Bedienungsanleitung

Dräger

Dräger X-zone Switch Off Bedienungsanleitung

Asco

Asco Joucomatic 349 Series Bedienungsanleitung

BT Mini Hub Bedienungsanleitung

D-Link

D-Link DES-1226G Bedienungsanleitung

Johnson Controls

Johnson Controls FS80-C Bedienungsanleitung

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Bedienungsanleitung

MicroNet

MicroNet SP1200A Bedienungsanleitung

Ruijie

Ruijie RG-PF2920 Series Installations- und Betriebsanleitung

Altinex

Altinex DA1914SX Bedienungsanleitung

MiLAN

MiLAN MIL-SM2401M Bedienungsanleitung

RJM

RJM MASTERMIND PBC/6X Bedienungsanleitung

Atlas

Atlas MMK-KVM8 Bedienungsanleitung
