Fosera TV 110 Bedienungsanleitung

fosera TV 110

digital 15.6’’ 12 V

User Manual

1. INTRODUCTION .....................................................................................4

1.1. CAUTION.........................................................................................4

1.2. COMMEN SHORTCUTS..........................................................................5

1.3. REMOTE CONTROL.............................................................................7

1.4. VIEWING THE CONTROL PANEL .................................................................8

1.5. EXTERNAL SCHEMATIC.........................................................................9

2. SETUP............................................................................................. 10

2.1. CONNECTING TO THE TV-SIGNAL INPUT .................................................. 10

2.2. INSTALLATION GUIDE.......................................................................... 10

3. MENU.............................................................................................. 13

3.1. INPUT SOURCE ............................................................................... 13

3.2. PICTURE........................................................................................ 13

3.2.1. PICTURE MODE............................................................................ 14

3.2.2. CONTRAST................................................................................. 14

3.2.3. BRIGHTNESS............................................................................... 14

3.2.4. COLOR ..................................................................................... 14

3.2.5. SHARPNESS................................................................................ 14

3.2.6. TINT........................................................................................ 14

3.2.7. COLOR TEMPERATURE................................................................... 14

3.2.8. ASPECT RATIO ............................................................................ 14

3.2.9. NOISE REDUCTION........................................................................ 14

3.3. SOUND MENU ................................................................................. 14

3.3.1. SOUND MODE ............................................................................. 15

3.3.2. TREBLE .................................................................................... 15

3.3.3. BASS........................................................................................ 15

3.3.4. BALANCE .................................................................................. 15

3.3.5. AUTO VOLUME (AVL)..................................................................... 15

3.3.6. SURROUND SOUND ....................................................................... 15

3.3.7. EQ.......................................................................................... 15

3.4. CHANNEL MENU............................................................................... 15

3.4.1. Channel Management.................................................................... 16

3.4.2. Favorite Management ................................................................... 16

3.4.3. Country.................................................................................... 16

3.4.4. TV connection ............................................................................ 16

3.4.5. Auto Search............................................................................... 16

3.4.6. Digital Manual Search.................................................................... 16

3.4.7. Analogue Manual Search ................................................................ 16

3.5. FEATURE MENU ............................................................................... 16

3.6. SETUP MENU .................................................................................. 17

3.6.1. OSD Timer................................................................................. 17

3.6.2. 3D Timer .................................................................................. 17

3.6.3. Auto SCART ............................................................................... 17

3.6.4. PC Setup................................................................................... 17

3.6.5. Blue Screen ............................................................................... 17

3.6.6. Home Mode ............................................................................... 17

3.6.7. Reset TV Setting ......................................................................... 17

3.6.8. Software Upgrade........................................................................ 17

4. USB Multimedia ................................................................................... 18

4.1. PHOTO PLAYER............................................................................... 18

4.2. MUSIC PLAYER................................................................................ 19

4.3. MOVIE PLAYER................................................................................ 19

4.4. TEXT PLAYER ................................................................................. 19

5. TROUBLESHOOTING ............................................................................. 20

6. SAFETY INFORMATION........................................................................... 21

7. RECYCLING ........................................................................................ 22

8. CONTACT .......................................................................................... 23

9. WARRANTIES ...................................................................................... 23

1. INTRODUCTION

Thank you for buying our TV. Please read this manual carefully.

1.1. CAUTION

To avoid the risk of electric shock, do not remove the back cover of the TV.

To prevent fire or electrical shock, do not expose the main unit to rain or moisture.

Please also do not:

-Drop or put an object on the TV

-Spill liquid on the TV

-Put the TV on a bed, soft, rug, wool or any other similar surfaces

-Place the TV too close to curtains/ walls, inside a shelf or any other closed places which may cause poor

ventilation.

Please note that minimum distances must be maintained for ventilation.

The TV should be placed where children are unable to stand on or push the unit.

Put the TV set on a stable stand, strong enough to carry it.

When the product is not in use, it is advisable to unplug it from the power outlet to save energy.

Avoid direct sunshine or other heat source onto the unit.

Avoid any impact with blows on the screen.

Please clean the TV regularly with a cloth. Never use harsh or abraisive chemicals

or solvents on the equipment.

1.2. COMMEN SHORTCUTS

Standby function:

When your TV is running, press “Power”to enter standby mode. When your TV is in standby mode, press

‘’Power’’ to start it.

Sleep function:

When your TV is running, press “Sleep” to enter sleep mode. This function allows you to turn off the TV for

a period of time. The supported time periods are: Off, 10 Mins, 20 Mins,30Mins, 60Mins, 90 Mins, 120

Mins, 180 Mins, 240 Mins,

Switching the input source:

After the normal startup process, press the button “source”, then the button “up/down” to choose the

preferred source, and the button “enter” or “->”.

Info function:

Information of the current source will be shown when pressing down the button “info”, number, color

system, sound system, (in TV source), current frequency, bandwidth, event information, etc (in DTV source)

Mute function：

The sound will be muted when pressing the button “mute”, and unmuted with another press on it.

Resolution of picture：

Parameters of the displayed picture, like luminance, contrast, sharpness, hue, color, can be changed when

pressing “PMODE”.

Sound：

Parameters of the sound, like balance, max volume, min volume, will be changed when pressing “SMODE”.

NICAM：

Switch on/off sound effect or switch between Mono,Dual I/Dual II by pressing “MTS/DUAL” on TV or DTV

source.

Aspect ratio：

Aspect ratio will be changed when pressing “PSIZE”.

Numeric buttons：

When in TV or DTV source,it’s a shortcut to change to the preferred channel pressing the numeric buttons.

Channel Swap：

You can change the channel back to the to the last selected channel by pressing ”ChannelSwap”.

Volume：

Volume can be adjusted by pressing “Vol＋/-.

Channel Switch：

Switch the channel by pressing “CH-/+”.

EPG：

In DTV source, EPG menu will pop up when pressing down the button “EPG”.

1.3. REMOTE CONTROL

1.4. VIEWING THE CONTROL PANEL

1. VOL+/VOL- BUTTON

Press to decrease or increase the volume. Also used to select items on the on-screen menu.

2. CH+/CH- BUTTON

Press to change channels or to highlight various items on the on-screen menu.

3. MENU BUTTON

Press to see an on-screen menu.

4. SOURCE BUTTON

Displays a menu of all the available input sources (TV, VIDEO, S-VIDEO, PC).

You can also use the SOURCE button on the TV’s control panel to make selections.

5. POWER BUTTON

Press to turn the TV on/off. Blinks and turns off when the power is on and lights up in standby mode. Light

Detecting sensor adjusts brightness of screen automatically by detecting brightness of the surrounding

environment. This sensor works when the Brightness sensor is on.

6. REMOTE SENSOR

Receives signals from the remote control. Power indicator: blue light when the TV is on, red light when the

TV is in standby.

1.5. EXTERNAL SCHEMATIC

1. Insert two AAA batteries with polarities matching the mark inside the battery compartment.

2. Point the remote control towards the IR sensor on the TV. The remote control may not work if it

is being blocked by an object.

3. Replace the battery once the remote control is no longer working.

4. If the remote control is not being used, please remove the batteries.

2. SETUP

2.1. CONNECTING TO THE TV-SIGNAL INPUT

Connect the TV signal cable (the antenna cable for example) to the Antenna Input Jack on the back of the

unit so that you can receive television programmes.

Then, turn on the power of the unit and press the INPUT button to select TV or DTV mode and conduct

program selection.

Note:

Whether and how many DVB-T2 channels can be received by this device is strongly depending on the

operational place, and the DVB-T2 signal strength in this area.

DVB-T2 radio in particular is very limited and not available in most locations.

Please note that for the use of DVB-T2 after each larger local change a new channel search should be

done.

Programs which are signed with “internet” cannot be utilized.

2.2. INSTALLATION GUIDE

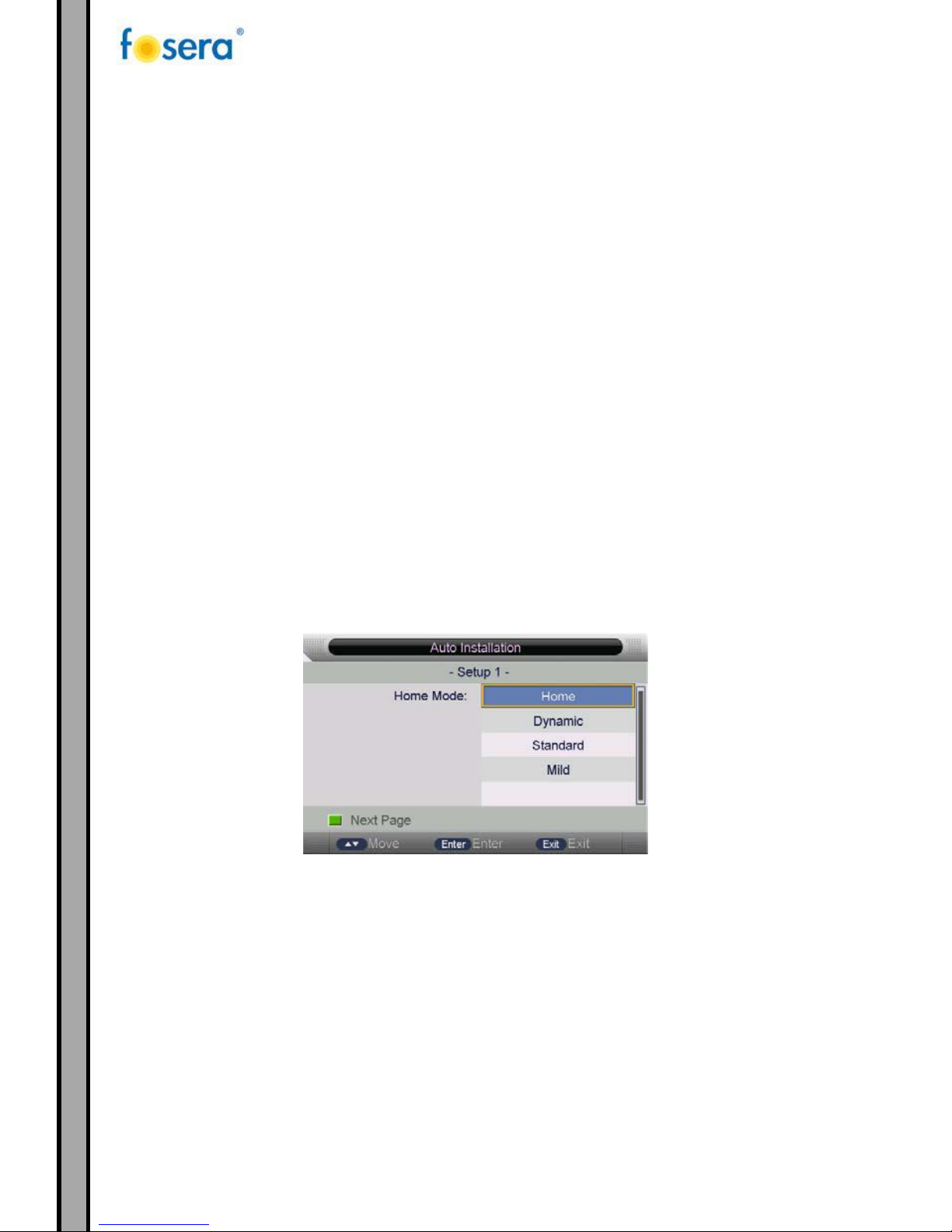

The First Time Setup screen will appear when the TV is switched for the first time or after a reset to the

factory setting.

1. Press the ▲▼ buttons to navigate the menu and the ◄► buttons to change the settings. Select your

desired Energy Mode, Home/Store Mode to be displayed on the menu. Confirm with OK.

Note:

a. Home Mode is an energy-saving mode. It is recommended for normal viewing setting.

b. Shop Mode is an option for retailers for advertising or product presentation. Shop Mode has a brighter

image than Home Mode, and can also pop up a pop menu every 30 seconds.

c. You may switch between Home or Shop Mode. If you choose Shop Mode, it will enter HDMI1 source

automatically and press EXIT key to exit POP menu.
