Safety Information

High voltages are used in the operation of

this product.to reduce the risk of electric

shock,do not remove cover of the cabinet,

refer servicing to qualified service personal

If the TV any changes or coarse adjustment, electric shocks

to be hurt, do not attempt to open a machine-maintenance,

customer contact centres needed overhaul.

The exclamation point within an equilateral

triangle is intended to alert the user to the

presence of important operting in the

literature accompanying the appliance.

Warning

The lightning flash with arrowhead symbol

within an equilateral triangle,is inten ded to

alert the user to the presence of uninsulated

dangerous voltage within the products

enclosure that may be of sufficient magnitude

to constitute a risk of electric shock to persons.

Important Safety Precautions

TV Bracket assemble

F ix t he T V o n the wall

1.First,put the TV on the table smoothly and put some soft cloth on the table to avoid

scratching the screen.

2.User the screw driver to take off the screws which are fixed on the bottom stand

(the direction of the arrow, refer to the ptoto1).And take off the bottom stand(please

take off the screws and bottom stand carefully).

3.Make one bracket which can fix on the wall according to the size of arrow direction

of photo2 and photo3.

4.Drill four holes properly on the wall (the size only for reference) and put into four

screws.(optional parts) Drill four holes properly on the wall (the size only for reference)

and put into four screws.(optional parts)

5.according to the step 4,use the screwdriver to lock the screw on the back of the TV.

then hang the TV on the wall.

Note:

1.The bracket fixed on the wall is optional part.

2.when you assemble the TV, there should be no other articles on the around and front

and please keep the distance from other articles.

3.When assemble the TV, please ask the career man to fix in order to avoid the danger.

4.The fixing picture is only for reference.

5.Please follow the use manual about bracket assemble to fix the TV.

6.Attach the mounting bracket from the VESA compatible wall mounting kit.

1 2

NOTE:

IF YOUR PROGRAM ON TV WILL BE INCLUDED BY CABLE TELEVISIONS,

PLEASE CHECK YOUR EARNING AND POTENTIAL EVALUATION ON THE CABLE OF YOUR

CABLE OPERATOR.

FOR THESE INFORMATION CONTACT YOUR CABLE OPERATOR.

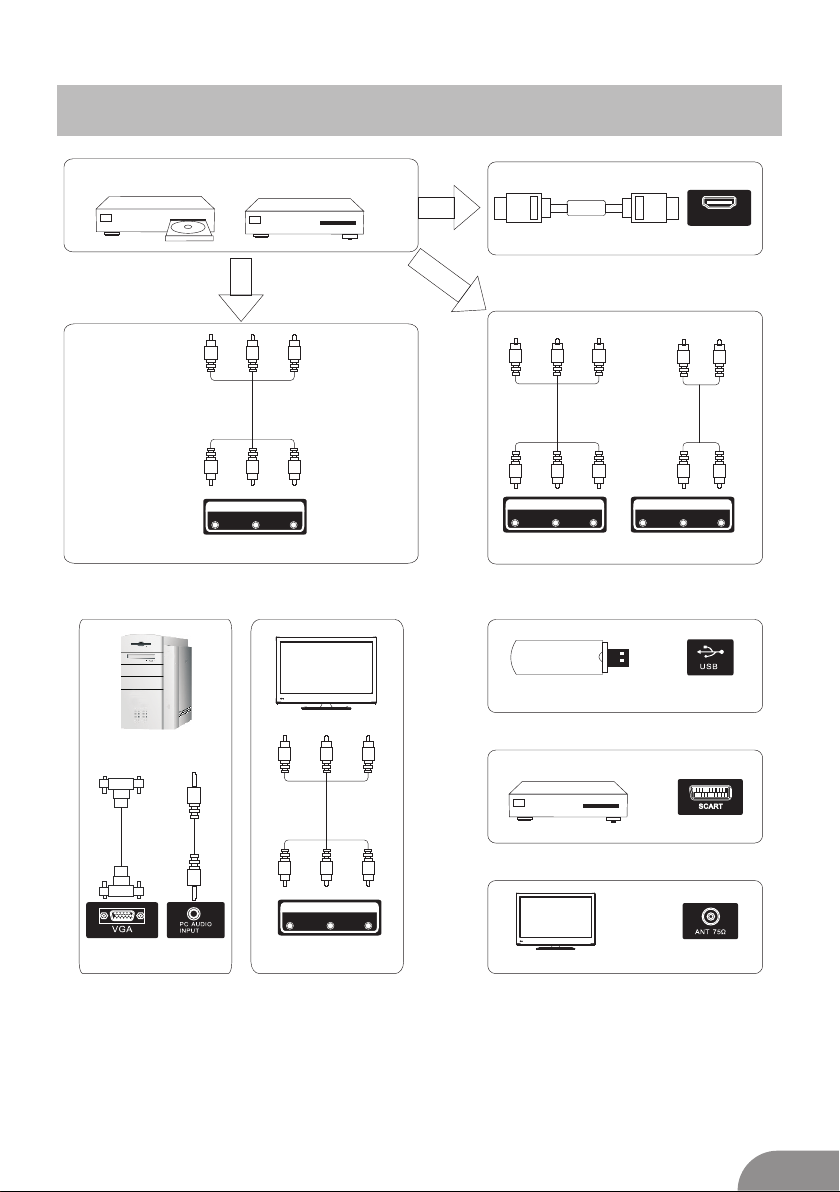

External device connection diagram

DVD Set-top boxes

HDMI

VIDEO R L

OUTPUT

HDMI input connection

VIDEO R L

INPUT

AV input connection

AV output connection

VIDEO R L

INPUT

Y Pb Pr

INPUT

Y Pb Pr input connection

USB connection

TV connection

Set-top boxes

SCART connection

AV input connection

VGA input connection

Install And Connect TV

TV ANT

FM ANT

TV signal output

Set your TV

To put your TV in a firm place which can

bear the weight of the TV.

To avoid danger, please don’t expose the

TV near water or heating place (such as

light, candle, heating machine),do not block

the ventilation at the back of TV.

Connect antenna and power

1.Connect the antenna cable to the antenna

socket on the back of the TV.

2.To plug the power cord of TV (AC 100-

240V~ 50/60Hz).

Turn on TV

3.Press the power button of the TV the

indication light will turn to green. if it is

on standby mode (the light is red),press

the power button on the remote control

to turn on the TV.

Note:

Picture for reference purposes only.

Note:

Picture for reference purposes only.

TV Stand Installation Instructions

TV Menu

Input Source

Press SOURCE to display the input source list.

Press ▼/▲ to highlight the input source

and press ENTER to confirm.

Press EXIT to hide the On-Screen menu.

Note: The Channel Menu is available only

in TV mode, and the item is the default

when pressing MENU, if you want view

the Picture/Sound/Time/Option Menu,

please press to select.

Tune Type Cable/Air

Channel Menu

Move Menu Enter Exit

ENTE R

CHANNEL Tune Type Air

Auto Tuning

NTSC Channel Menu

PAL Channel Menu

Move Menu Enter Exit

ENTE R

CHANNEL Auto Tuning

ATV Manual Tuning

Programme Edit

ATV Manual Tuning

Color System PAL

Sound System DK

Fine-Tune 49.75MHZ

AFC Off

Current CH 1

Current CH

Set the channel number

Color system

Select the color system(PAL/SECAM)

Sound System

Select the sound system(DK/BG/I)

Fine-Turn

Adjust the frequency of the channel finely.

AFC

Automatic Fine tuning.

Please press to select .

Auto Tuning

Auto Tuning will search for available

channels and programs. Press▼/▲ to

select Auto Tuning, then press to

start auto search. If you want to stop

searching, press MENU or EXIT.

Enter

Channel Tuning

TV : 5 Programme(s)

44%... 433.75MHZ (TV)

ATV Manual Tuning

Note: The above is for reference only, to

prevail any kind

Media1

Input Source

YPbPr

Enter

ENTER

HDMI1

HDMI2

Media2

TV Menu

Programm Edit

The four colored key is the shortcut key for

programming the channel.

First press ▼/▲ to highlight the channel

you want to delete or rename or move or

skip, then:

Press the Red button to delete the channel.

Press the Green button to enter the

rename state, then press to select

the word you want to change, and ▼/▲ to

select word.

Press the Yellow button to set the channel

to mo ving state.then press ▼/▲ to mo ve

it to the position you want to put.

Press the Blue button to skip the select

channel.

Fav Add or Delete the channel to your faver

ate list.

Dele te Rename Move Skip

FAV

Fav Menu

Programm Edit

Enter Menu

Enter

ENTE R FAV Fav

Picture Mode

Highlight the item and Press ENTER or

to enter the sub-menu, that shows

the picture mode you can choose:

Dynamic/Standard/ UserMild/

Press PMODE on the remote control

to select picture mode directly.

Contrast

Adjust the white level of the picture.

Brightness

Adjust darkness of black sections in the

picture.

Color

Adjust the color intensity of the picture.

Tint

Adjust the hue(Red,Green,Blue) of the

picture.

Sharpness

Object edges are enhanced for picture d

etail.

Color Temperature

Select the color temperature that you feel

comfortable.

Noise Reduction

Off/Low/Middle/High

You can clear up the input signal by

setting the item.

Picture Menu

Move Menu Enter

ENTE R


Picture Mode Standard

Contrast 50

Brightness 50

Color 50

Tint 50

Sharpness 50

Color Temperature Medium

Noise Reduction Middle

ECO Mode Off

ECO Mode

Exit

It is used to ON/OFF the ECO mode.
