FoxESS T Series Bedienungsanleitung
T SERIES
Quick Installation Guide
1
T SERIES
C D
A
B
E F
G H
J
K
L

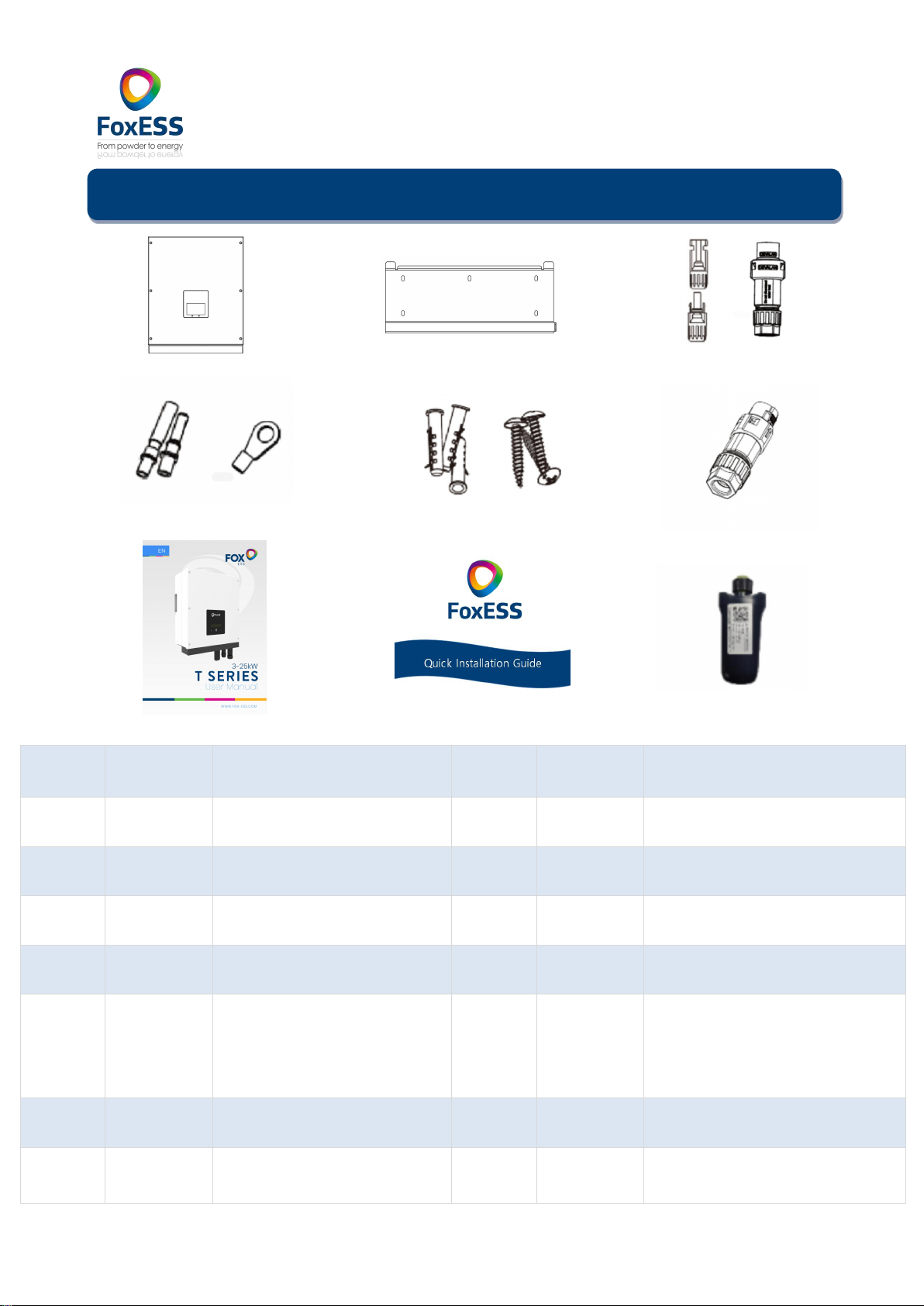

Object
Quantity
Description
Object
Quantity
Description
A
1
Inverter
H
5
Expansion screw
B
1
Bracket
I
1
Communication connector
C
2/3/4
DC connector (F/M)
J
1
Product manual
D
1
AC connector
K
1
Quick installation guide
E
2/3/4
DC pin contact
(1*positive, 1*negative)
L
1
WiFi/GPRS (Optional)
F
1
Earth terminal
G
5
Expansion tube
Packing List
I
2
T SERIES
Step 1: Fix the bracket on the wall
Inverter Installation
Drill holes with electric drill, make
sure the holes are at least 50mm
deep, and then tighten the expansion
tubes.
Choose the place you want to install
the inverter. Place the bracket on the
wall and mark the position of the 5
holes from bracket.

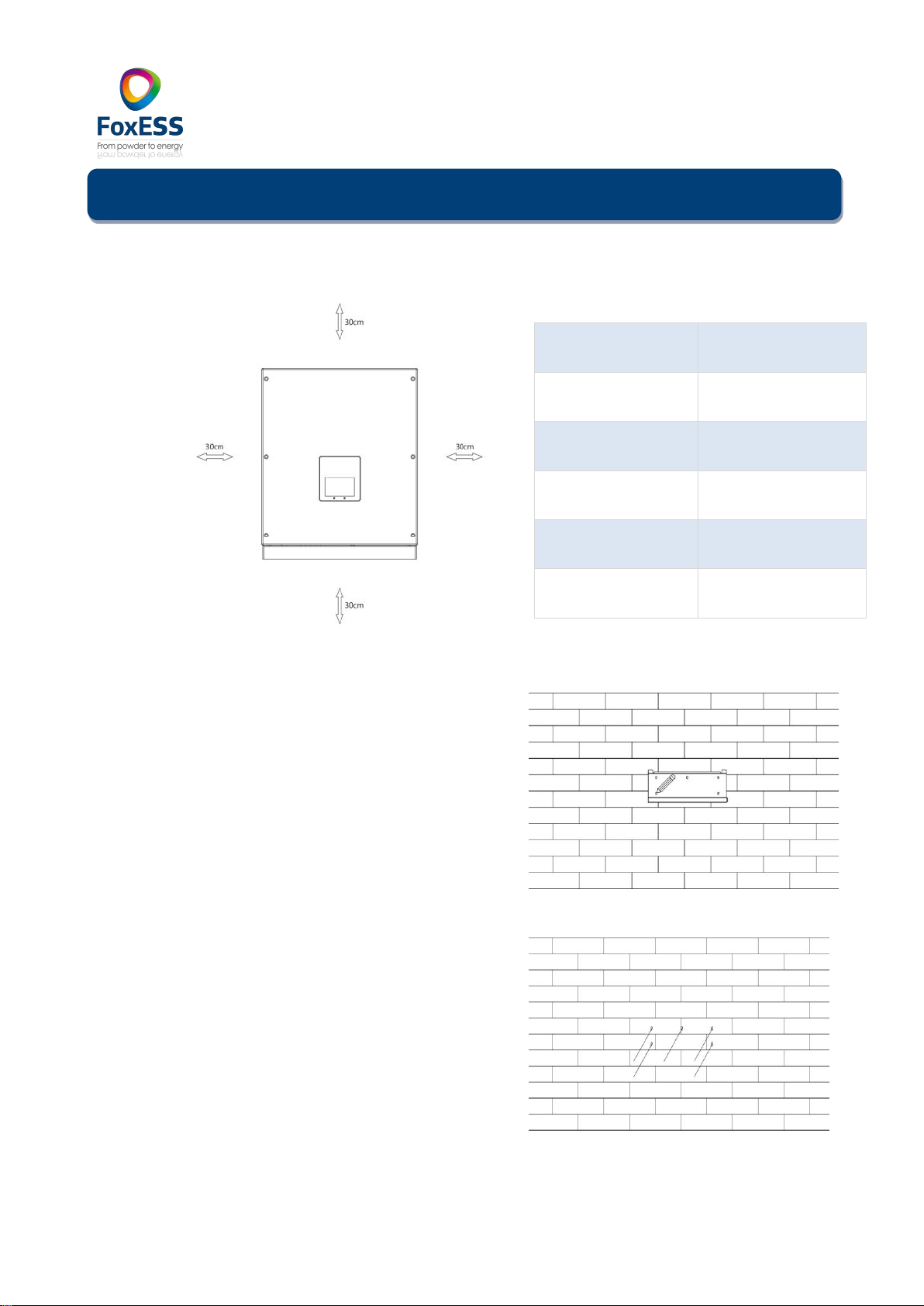

Please make sure the inverter will be installed with a proper distance
as shown below.
Position
Min Size
Left
30cm
Right
30cm
Top
30cm
Bottom
30cm
Front
30cm
3
T SERIES

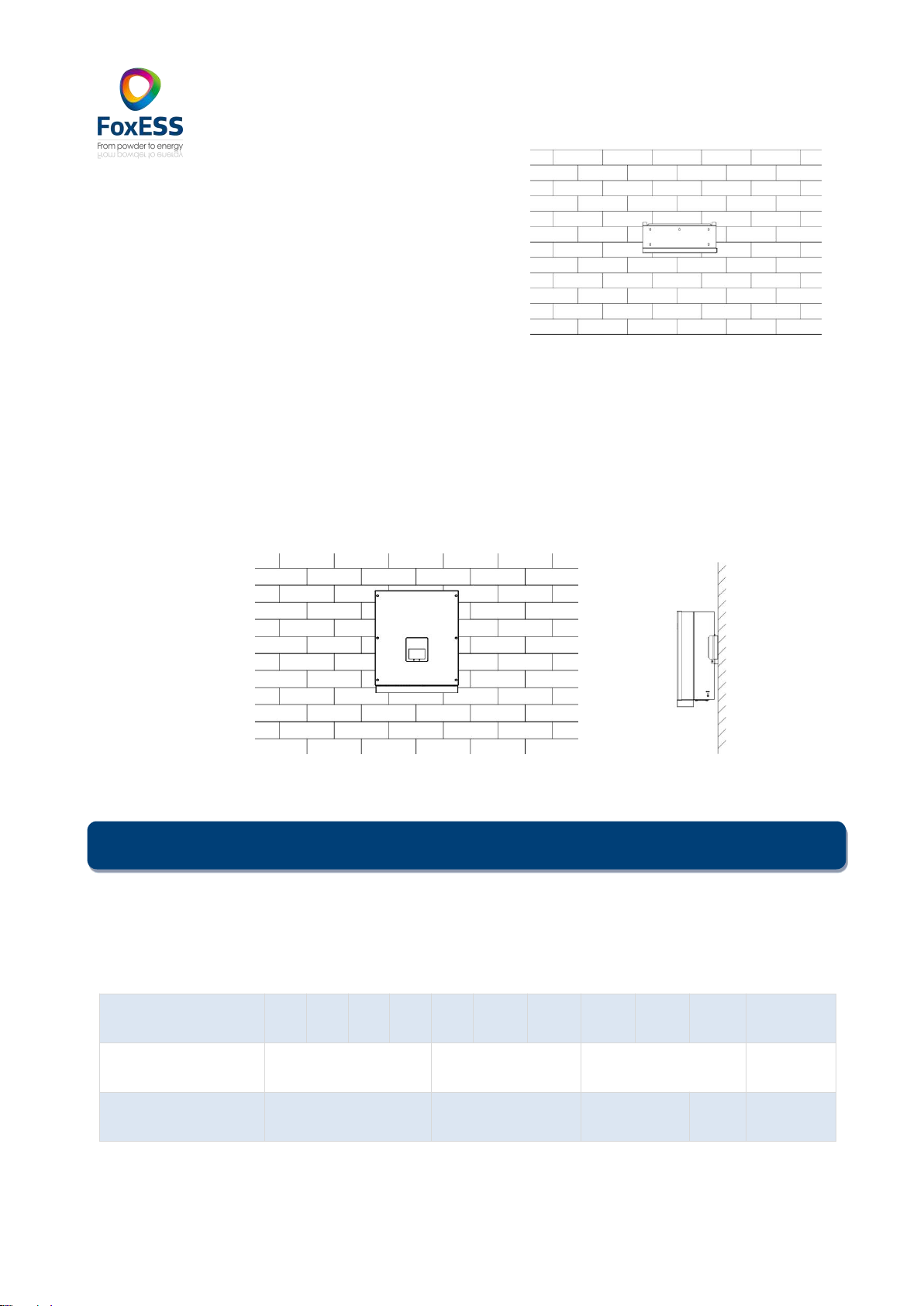

Step 2: Match the inverter with wall bracket
Hang the inverter over the bracket, slightly lower the inverter, and make
sure the 2 mounting bars on the back are properly fixed with the 2 bracket
grooves.
Insert the expansion tubes into the
holes and tighten them. Install the
bracket with the expansion screws.
Model
T3
T4
T5
T6
T8
T10
T12
T15
T17
T20
T25
Cable
2.5~6mm²
4~6mm²
6~10mm²
10mm²
Micro-Breaker
16A
25A
40A
50A
60A
Wiring Steps
AC Wiring
-
Cable dimensions
4
T SERIES

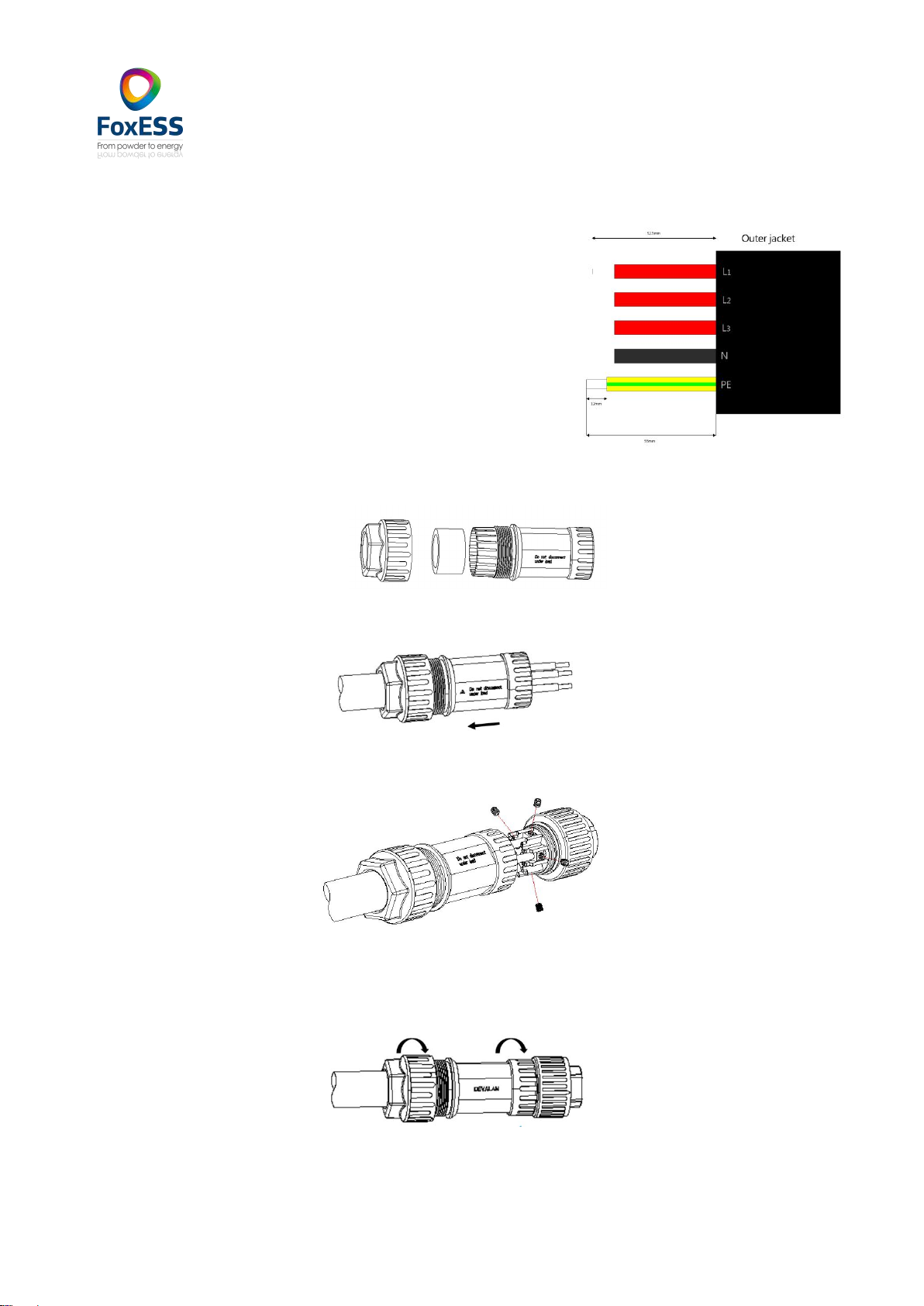

Insert the sleeve assembly into the cable.
Install the copper wire into the plug terminal and lock the screw.
Lock the lock nut and the sleeve(3~5N·m), lock the sleeve and the
plug(1.5~1.7N·m).
-
Trim all the wires to 52.5mm and the PE wire to 55mm.
-
Use the crimping pliers to trim 12mm of
insulation from all wire ends as shown in
the picture.
Separate the AC plug into three parts as below.
5
T SERIES
Insert the plug assembly into the socket (inverter end) and lock each
other by the coupling twist.
DC Wiring
Turn off the DC switch.
Choose 12 AWG wire to connect the PV module.
Trim 6mm of insulation from the wire end.

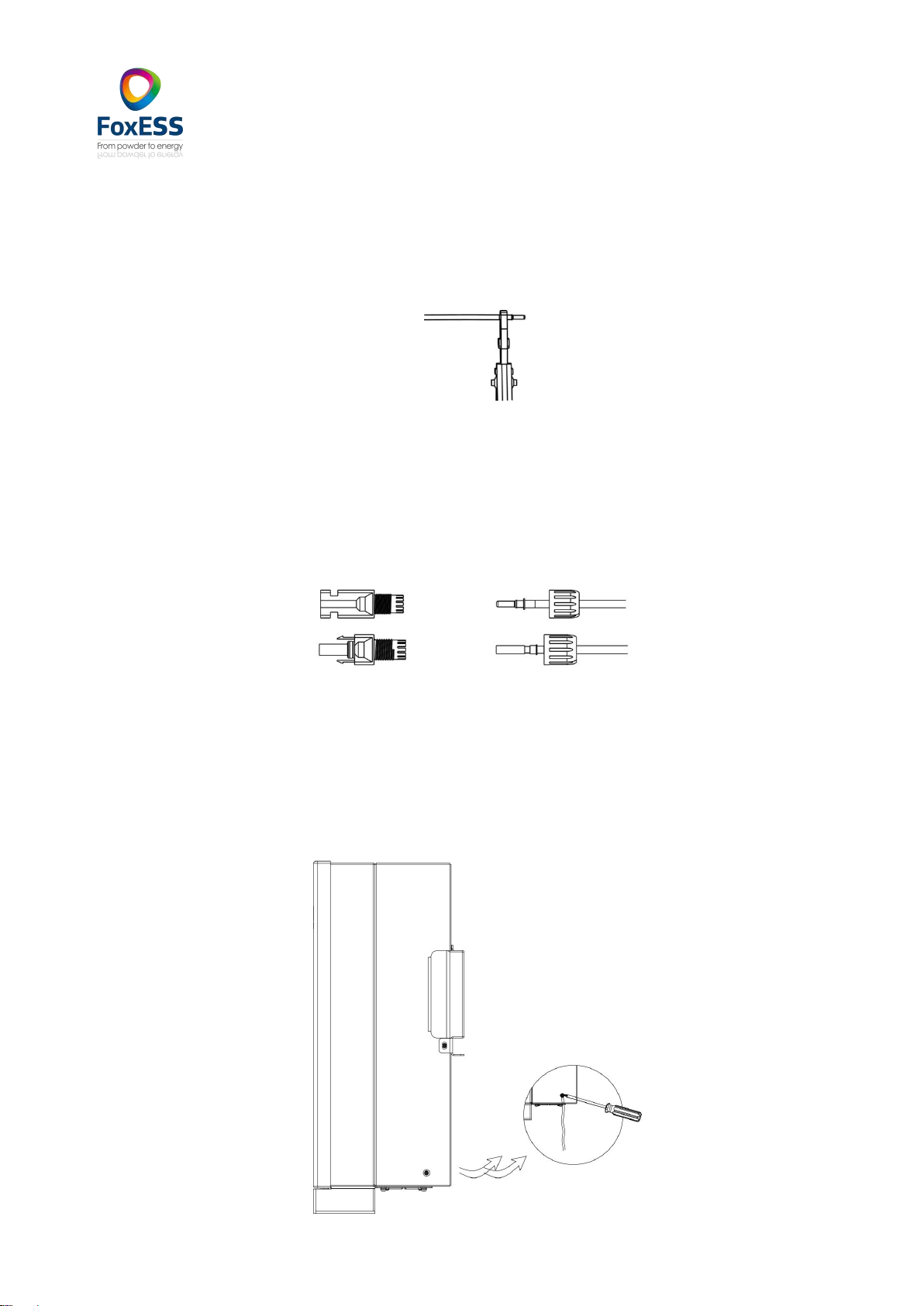

Separate the DC connector as below.
Plug Pin contact Cable nut
Insert striped cable into pin contact and ensure all conductor strands
are captured in the pin contact.
6
T SERIES
Crimp pin contact by using a crimping plier. Put the pin contact with
striped cable into the corresponding crimping pliers and crimp the
contact.
Insert pin contact through the cable nut to assemble into back of the
male or female plug. When you feel or hear a “click”the pin contact
assembly is seated correctly.
Grounding Wiring
Screw the ground screw with screwdriver as shown below.
7
T SERIES
-After checking all connections are correct, turn on the external DC /AC
breakers.
-Tum the DC switch to “ON”position.
-lnverter will start automatically when PV panels generate enough energy.
The LED will be green and the LCD screen will display the main interface.
Startup Procedure
