FRAME IT ALL Stack & Extend Bedienungsanleitung

200001003

ANIMAL BARRIER

*Stack & **Extend

Customer Service: 1800-914-9835 | support@frameitall.com

KIT CONTAINS:

x 2 x 4 x 1 x 1 x 1 x 1 x 2 x 1

x 4 x30

x 2 x 7

x 1

x 4

11 12

1.37”

1.37” 6

1.06”

x 1

x 1 x 1

15 17

910

Zip tie

Use this part only if

joining 2 or more kits

to extend animal

barrier

Each kit will protect a 2ft. x 2ft. garden to a height of 2 feet.

Additional kits provide more protection by increasing the

length or height of the basic 2ft x 2ft x 2ft high module..

*Stackable –combine or more

kits to create as high a barrier

as needed

21.65” 22.4”

Customer Service: 1800-914-9835 | [email protected]

ASSEMBLY INSTRUCTIONS

Your animal barrier kit goes together by sliding the ends of the metal tubes

into the plastic connectors to create a frame, then zip-tying netting to the

frame.

STEP 1: BUILD THE GATE

FIRST: Use connectors

2, 3, 4, & 9to form the

upper right gate hinge

(as shown in the box to

the right). Next, insert

round metal tube (15)

into the bottom of of

the hinge assembly.

(see diagram in the

small box.)

SECOND: Use connectors

5, 6& 16 to create the

lower hinge for the right

gate, as shown in the box

to the left.. Slide the

lower hinge about 6" past

the bottom end of metal

tube (15).

FIFTH: Finish the gate frame by

connecting tube 13 to the rest of the

frame to create a rectangle.

THIRD: Add two square tubes (14)

to create the top and the bottom

of the right gate frame. Insert one

square tube into the square

connector of the top hinge and

another into the square connector

of the bottom hinge.

FOURTH: Add an "L" connector (7)

to each end of square tube (13,

which has the gate-latch) with the L

connectors opening in the opposite

direction from the gate latch.

Customer Service: 1800-914-9835 | [email protected]

ASSEMBLY INSTRUCTIONS –continued

STEP 2: Attach the gates to the raised bed boards

FIRST: Slide the round tubes at the

bottom of each gate section into the

bracket connecting the raised bed

boards. (You may need to remove

the cap on top of these brackets--

the cap will be replaced with the cap

on the gate assembly (Part 16)

SECOND: Slide three round

tubes (15) into the

connectors to create the

remaining upper edges of

the animal barrier.

FIRST: Use connectors

(2, 1& 9) to form the

joints for each of the

back corners at the top

of the animal barrier.

Then, place a round tube

(15) into the bracket of

the raised bed and slip a

joint assembly onto this

vertical tube. (See

diagram in box)

STEP 3: Attach rest of framework to gate frame

Customer Service: 1800-914-9835 | [email protected]

ASSEMBLY INSTRUCTIONS –continued

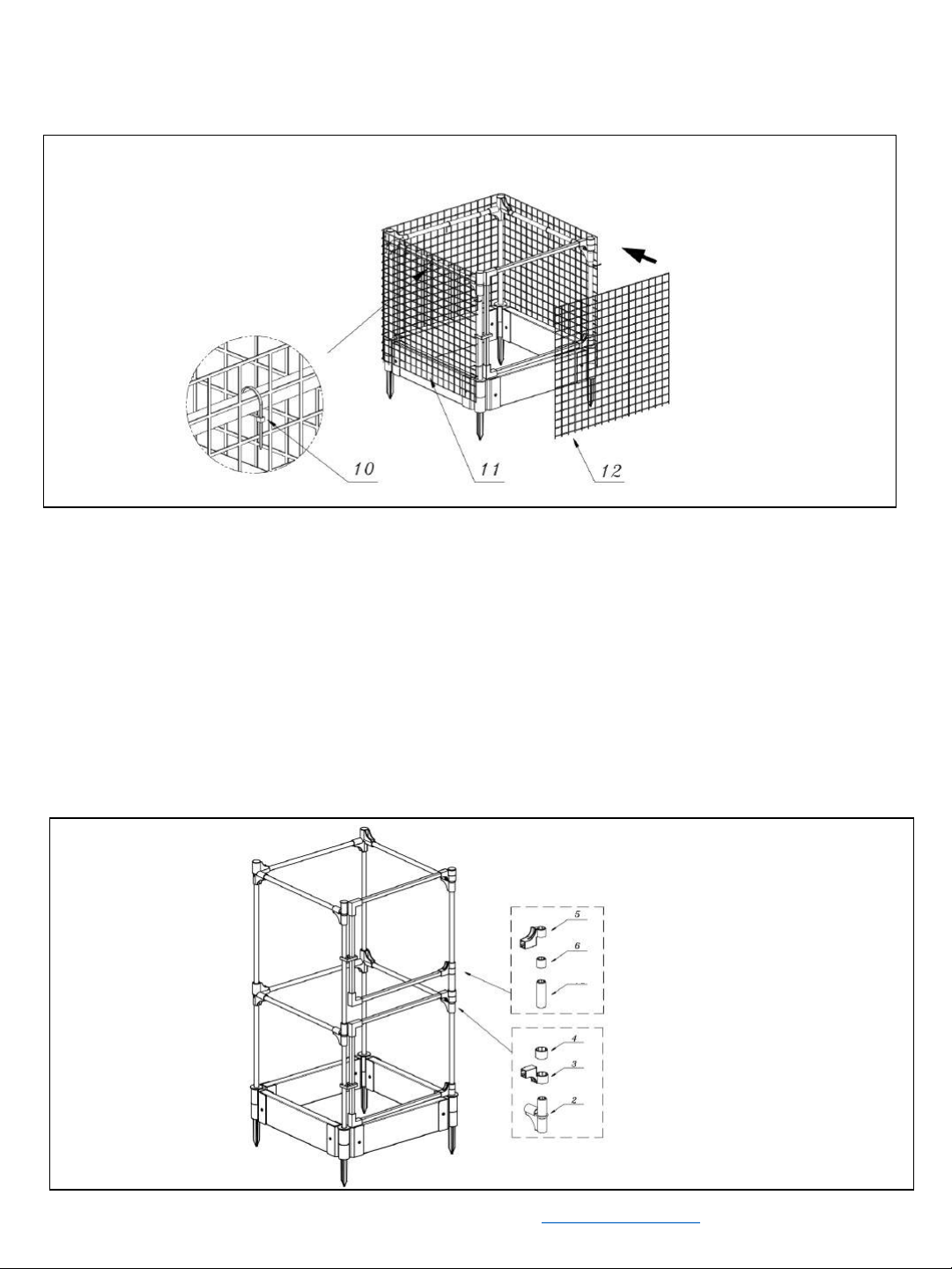

STEP 4: APPLY NETTING

Apply the netting to both the vertical and horizontal tubes of the gate and

main frame using zip ties. Attach the top of the netting flush with the upper

tubes so the netting hangs over your raised bed.

JOINING MULIPLE ANIMAL BARRIER KITS

Stacking kits to make a higher barrier –Assemble the kit for the upper level in the same way as for

the lower level except, before installing the gate assemblies, slide a round sleeve, (Part 17) onto the

corner post of the gate, below the gate hinge.

NOTE: Each Animal Barrier kit contains one Part 17, which is not needed unless stacking kits.

Slide the round sleeve

(17) below the short

sleeve.

Customer Service: 1800-914-9835 | [email protected]

EXPANDING BARRIER AREA WITH MULITPLE KITS - EXTENSION OPTION 1: PLACING GATES PLACED IN

DIFFERENT AREAS OF THE GARDEN BED

To extend your animal barrier

with additional kits, simply

connect them in a loop using

additional vertical poles and

Horizontal Poles (Part 15)

connected with Part 1 & 2 as

shown.

JOINING MULIPLE ANIMAL BARRIER KITS - Continued

EXTENSION OPTION 2: PLACING THE GATES NEXT TO EACH OTHER

Side by side gates can

easily be installed by

using the vertical pole

(Part 15) of 1 gate as the

latch point for the

second gate.
