Franke Frames FS 913 P BK DC TFT AUS Bedienungsanleitung

FS 913 P BK DC TFT AUS

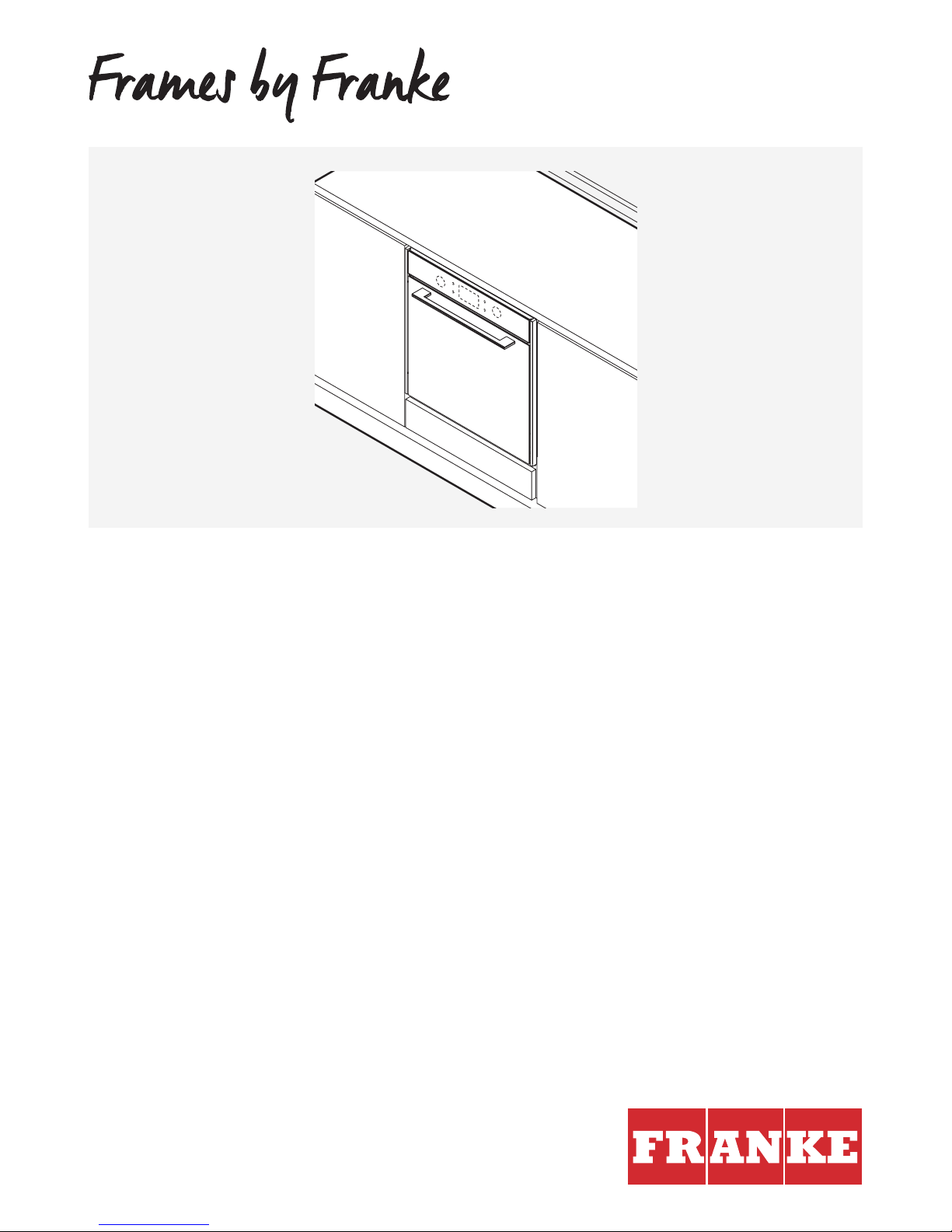

Multifunction OvenInstallation manual

FS 913 M BK DC TFT AUS

– 2 –

– 3 –

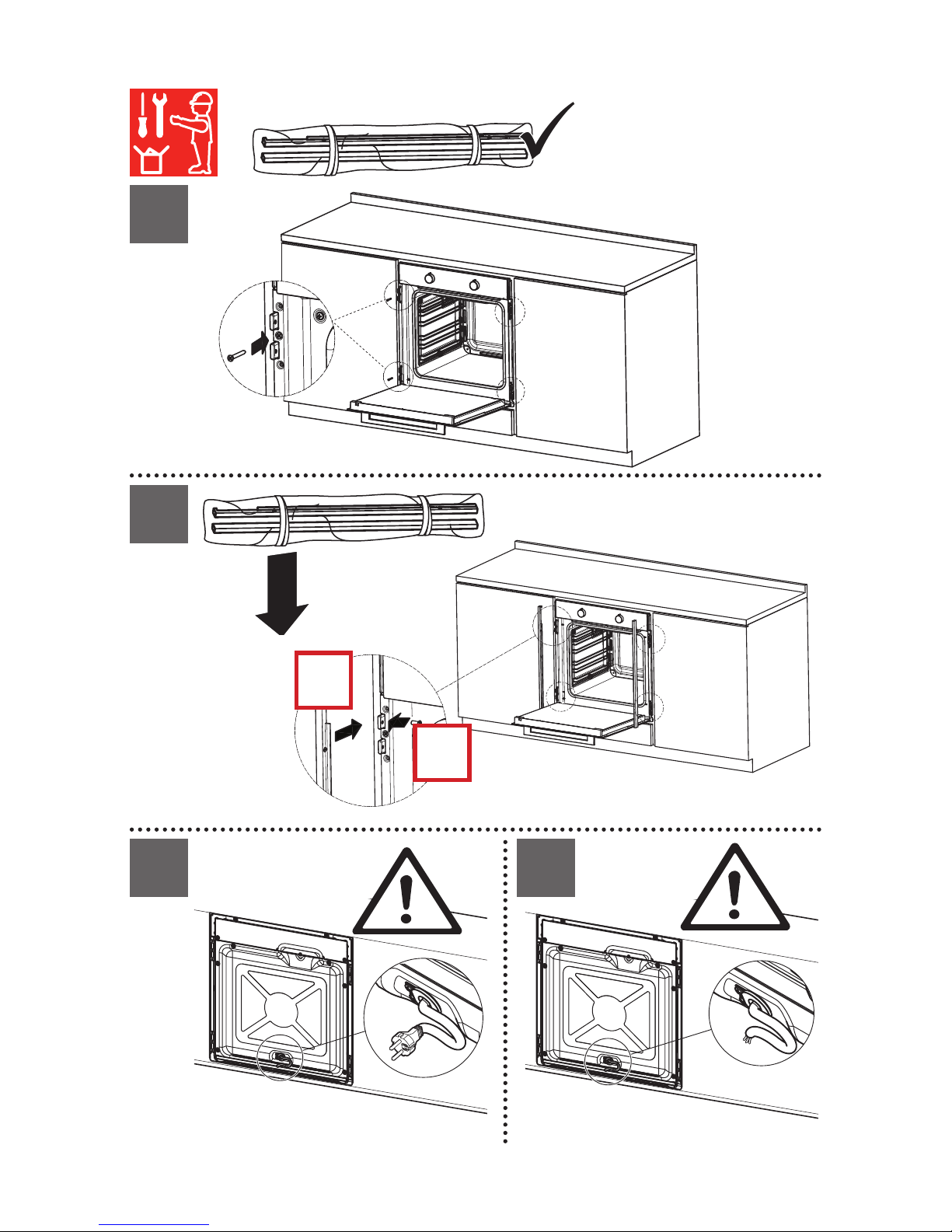

3a 3b

FS 913 P BK DCT TFT AUS/FS 913 M BK DCT TFT AUS

– 4 –

INSTALLATION

Installation must becarried out incompliance with current standards and

regulations.

Installation must only be carried out be a licensed electrician in accordance with the

latest wiring rules AS/NZS 3000.

Cabinet requirements

For fitted units, the components (plastic materials and veneered wood) must be

assembled with heat-resistant adhesives (min. 100°C): Unsuitable materials and

adhesives can result in warping and detachment.

The cabinet for the oven must allow sufficient room for the electrical connections of

the oven.

The cabinet for the oven must be sturdy enough to withstand the weight of the oven.

The oven must be securely installed in the recess. The oven can be installed in a

column housing unit or below the countertop of a modular unit, provided sufficient

ventilation isguaranteed.

Electrical connection

Franke ovens are supplied with a power cable.

Installation must only be carried out by a licensed electrician in accordance with the

latest wiring rules AS/NZS 3000

–

In this case the connection

polarities of the free terminals are

as follows: Brown = Line

Blue = Neutral

Yellow / Green = Earth

blue

yellow/green

brown

 Make sure the characteristics of the household electrical system (voltage,

maximum power and current) are compatible with those of the oven.

If the oven is to be permanently connected to the power supply:

 Install a device that enables disconnection from the power supply, with a contact

opening distance (3 mm) that ensures complete disconnection in category III

overvoltage conditions.

Three free terminals ( a three-pole power cable with free terminals) Fig.3b



The means for disconnection must be incorporated in the fixed wiring in

accordance with the wiring rules.

FS 913 P BK DCT TFT AUS/FS 913 M BK DCT TFT AUS

– 5 –

 Ensure the following:

– A 3 x 1.5 mm2H05V2V2-F type cable is used when replacing the power cable.

REPAIR

If the power cable is damaged, it must be replaced by the manufacturer or the

service or by a person with similar qualiﬁcations, in order to avoid any risks.

TECHNICAL DATA

Power supply 220-240 V, 50-60 Hz

Total power and fuse rating 2900 W, 16 A

Power and heating elements

Radial motor 27 ... 40 W

Light bulb 40 W (x2)

Tangential fan 15 ... 35 W

Heating element, roof 520 W / 124 V

Heating element, ﬂoor 1250 W

Heating element, grill 2100 W

DCT heating elements 2650 W

FS 913 P BK DCT TFT AUS/FS 913 M BK DCT TFT AUS
