Freecom FHD-3 Bedienungsanleitung

USB 2.0 / USB 2.0 & FireWire version

Rev. 426

Get user manuals: See SafeManuals.com

Freecom FHD-3

Warning !

cation purposes and may be trademarks or registered trademarks of the respective

companies. This device was designed for home or office use.

Freecom cannot be made liable for any damages, loss of data or damage

following thereof -whatsoever (including, without limitation, damages for loss of

business profits, business interruption, loss of business information, or other

pecuniary loss) arising out of the use of or inability to use this Freecom product,

even if Freecom has been advised of the possibility of such damages.

We reserve the right to upgrade our products in keeping with technological

advances.

Dear user!

Thank you for choosing the Freecom FHD-3 external hard drive. For optimal use

and performance we advise you to read this manual carefully before using this

product.

Freecom Technologies  Germany

www.freecom.com

Contents of the box

Please check the contents of the box; the following items should be included:

 Freecom FHD-3 external hard drive

 Power Adapter

 Interface Cable

 Footstand

 CD-ROM with manual, driver and application software

 Quick Install Guide

 Warranty card + envelope

Get user manuals: See SafeManuals.com

Table of Contents

User manual

General Information ........................................................................... page 4

Precautionary measures ..................................................................... page 5

Freecom FHD-3 external hard drive ................................................... page 6

Chapter 1:

Installation of the Freecom Personal Media Suite

software .............................................................................................. page 8

Chapter 2:

Hardware installation ......................................................................... page 12

Chapter 3:

Driver installation

FHD-3 USB 2.0 version ........................................................................ page 15

FHD-3 USB 2.0 & FireWire version ..................................................... page 18

Chapter 4:

Daily use of the FHD-3 with

Freecom Personal Media Suite software ........................................... page 22

Chapter 5:

The User Interface of the Freecom Personal Media Suite ................ page 24

Chapter 6:

Partitioning your FHD-3 ..................................................................... page 39

Chapter 7:

Troubleshooting ................................................................................. page 53

Get user manuals: See SafeManuals.com

Freecom FHD-3

General Information

The following hardware and software requirements must be fulfilled to ensure

trouble-free operation.

Hardware Requirements

In order to use the Freecom FHD-3, following components are needed:

 Intel Pentium II 233MHz or higher

 64MB RAM or higher

 CD-ROM drive for installing drivers and/or software

USB-2 version: Available USB 2.0 or USB 1.1 port*

USB-2 & FireWire version: Available USB 2.0 or USB 1.1 port*

and/or FireWire interface

 Internet connection for online warranty registration and driver/software

updates and downloads

Software Requirements

 Windows 98 SE

 Windows ME

 Windows 2000

 WindowsXP

* USB 2.0 is downwards compatible to USB 1.1. To achieve optimal performance from the

Freecom FHD-3 your PC should be equipped with an USB 2.0 port.

Get user manuals: See SafeManuals.com

General Information

Precautionary measures

To ensure that your Freecom FHD-3 functions properly, please take note of the

following precautions. If these are not followed, you may void your warranty

and damage the FHD-3.

 Safely remove the FHD-3 via your operating system (the "unplug or eject

hardware" option in the Windows taskbar) before disconnecting the Cable

or the power cable. Failing to do so may result in data loss.

 Do not drop the Freecom FHD-3 or expose it to other kinds of sudden

mechanical shocks as this may result in data loss and damage to the hard

drive.

 Do not use the Freecom FHD-3 when the ambient temperature is below 10°C

or above 45°C.

 If the Freecom FHD-3 is moved from a cool environment to a warmer

environment, please allow the drive to acclimatize to the ambient tempera-

ture before operating the device. Failing to do so may lead to condensation

within the drive enclosure, which in turn may cause the drive to malfunction.

 Do not place liquids or drinks on the FHD-3. When liquids are spilled and get

in contact with the electronics within the drive enclosure, it will damage the

drive and will cause the drive to malfunction.

 Do not use the FHD-3 in a dusty environment. Dust inside the enclosure may

damage the internal electronics and result in drive malfunction.

 Only use the power adapter that was supplied with the FHD-3.

 Opening the FHD-3 will void the warranty.

Note: Since USB 2.0 is backwards compatible with USB 1.1, the

FHD-3 can be connected to all USB ports. When connected to a USB

1.1 port, however, the performance (data transfer rate) of the

FHD-3 will be much lower than when the drive is connected to a

USB 2.0 port.

IMPORTANT

The SYNC button on the FHD-3 is designed to work with the

Freecom SYNC software, which can be found on the Manual and

Software CD. Freecom SYNC uses the Microsoft Briefcase to

synchronize files.

When using the Freecom SYNC software, please be aware that all

files in the SYNC folder on the FHD-3 are linked to the original files

on your PC or network. If you delete a file in the SYNC folder, its

original will be deleted during the next synchronization, too! To

avoid this, you have to Split From Original the file prior to

deleting it. Please refer to chapter 4 for further information on

Freecom SYNC and Microsoft Briefcase.

Get user manuals: See SafeManuals.com

Freecom FHD-3

Freecom FHD-3 external hard drive

If you are looking for maximum performance, maximum storage capacity and

maximum reliability from an external hard drive, the Freecom FHD-3 is the right

choice. The hi-speed data transfer through the USB 2.0 and/or FireWire interface

makes it ideally suitable for data-storage, file sharing, backup, archiving, digital

video editing, audio playback and all applications that need fast file access.

For your convenience, the Freecom FHD-3 has been partitioned (1 partition) and

pre-formatted (FAT32 file system). The FAT32 format ensures maximum inter-

changeability of the FHD-3 between different computers. Should you choose to

format the FHD-3 in another file system (e.g. NTFS), please be aware of possible

problems when connecting the FHD-3 to another computer than the one you

used for formatting.

Note: do not cover the ventilation holes; these are essential for

maintaining the correct operating temperature for the FHD-3.

Get user manuals: See SafeManuals.com

Footstand

The FHD-3 can be positioned both horizontally and verti-

cally. If you want to position the drive vertically you have to

use the supplied footstand.

Please note that the footstand can only be attached in one

way to the drive. The hooks on the footstand and the

corresponding slots in the FHD-3 are designed in such a way

that the footstand will only fit easlily when attached in the

right orientation.

Kensington Lock

The FHD-3 has a Kensington Lock slot at the rear of the

drive, to secure the drive to a fixed object (your desk for

instance). The Kensington system is one of the worlds most

used anti-theft hardware-lock systems.

Options:

 FireWire Cable for FHD-3

 Additional Cable USB

 Additional Power Adapter

See www.freecom.com for these and other Freecom products, or contact your

local Freecom reseller/dealer.

Recommended sequence of installation

1. Install Freecom Personal Media Suite software.

2. Connect the interface cable and the power cable to the drive and plug the

power supply unit into the socket. Plug the interface Cable into the appro-

priate slot of your computer.

3. (Only Windows 98 SE:) Install all necessary drivers.

Please refer to chapters 1-3 for a detailed description of the hardware and

software installation.

General Information

Get user manuals: See SafeManuals.com

Freecom FHD-3

Chapter 1: Installation of the Freecom Personal

Media Suite software

If you want to use the SYNC button on the FHD-3, you need to install the Freecom

Personal Media Suite software first.

Note: To use the functions of the Freecom Personal Media Suite

described in this handbook, your Freecom FHD-3 has to be connected

to your PC.

1.1 Installation of the Freecom Personal Media Suite

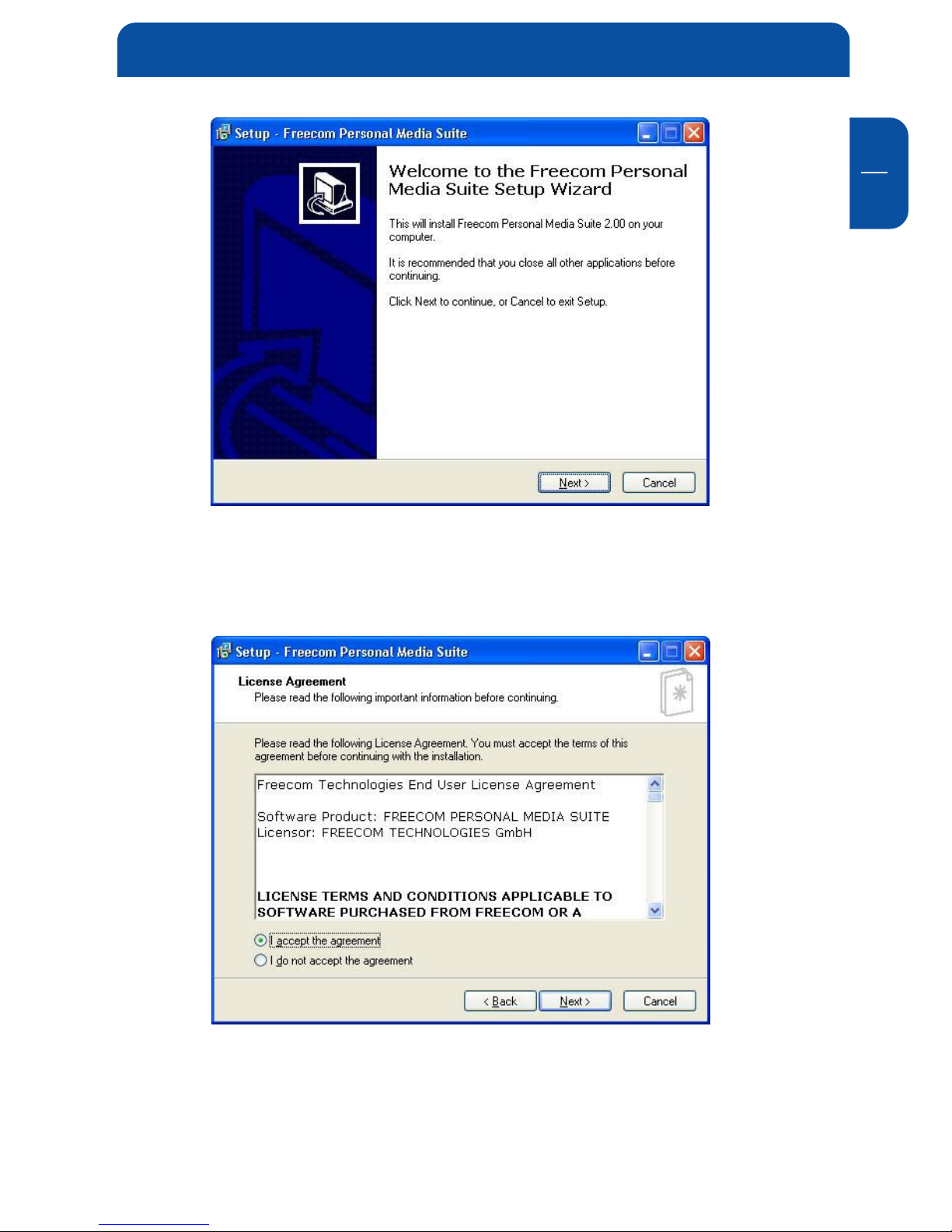

1. Insert the FHD-3 Software & Manual CD into your CD drive. The Freecom start

menu opens:

In case the software does not open automatically, please click on "Start" in

the main directory of the CD.

2. Click on "Install Software" and select "Freecom Personal Media Suite". The

installation of the Freecom Personal Media Suite starts now. Follow the

instructions on the screen, confirm with "Next" in order to continue with the

installation.

Get user manuals: See SafeManuals.com

3. Please read the licencing agreement carefully. To accept the licencing

agreement, confirm with "Yes". Note: Clicking on "No" ends the installation.

Select the target folder and program folder in the start menu in which the

Freecom Personal Media Suite symbol is to appear.

4. Default target folder is C:\Programs\Freecom Personal Media Suite. You can

select a different target folder for the program files by selecting another

folder on your hard drive.

Installation of the Freecom Personal Media Suite software

Get user manuals: See SafeManuals.com

Freecom FHD-3

5. In the dialogue "Options" you can select whether to create a link to the

Freecom Personal Media Suite Software on the desktop and whether the

program should be started automatically when starting Windows. It is

recommended to select both options for better operation of the Freecom

Personal Media Suite.

6. Click on "Next" to start the installation. All necessary program files are now

written on the hard drive of your computer.

7. In the last window, you will be asked whether you want to start Freecom

Personal Media Suite now. It is recommended to select this option so that you

can configure the software for your FHD-3. Please click on "Finish".

Get user manuals: See SafeManuals.com
