HOW DUCTLESS SYSTEMS WORK

Friedrich ductless split systems have the advantages of a ducted

installation without the high material and labor costs. Most systems can

be installed and running in a few hours.

Refrigerant lines and electrical pass through a 3” wall opening and run

along the exterior of the building to the condensing unit.

Electrical hard-wiring is required.

ELECTRICAL WIRING

REFRIGERANT LINES

INDOOR UNIT converts warm indoor

air to cold indoor air, conditioning and

dehumidifying the room while ﬁltering the

air. Unit is mounted high on the wall.

OUTDOOR CONDENSER transfers heat to

the outdoors. Compact unit can be placed

at ground level, hung on an outside wall or

placed on the roof of a building. Maximum

line lengths from 66 ft. to 164 ft.

NOTE: Maximum lengths vary by model.

Refrigerant

and electrical

lines pass

through 3 inch

hole.

DUCTLESS

SPLIT

SYSTEMS

Amazingly quiet indoors.

Ductless split systems offer many

advantages for residential and light

commercial applications.

One, two, three or four wall-mounted indoor units connected to

one outdoor unit for personalized zone cooling.

HEAT & COOL 1, 2, 3 —UP TO 4 AREAS

Each unit has its own

remote for individual

comfort control

Choose a single

zone wall-mounted

unit to condition one

area or a multizone

system for precise

comfort from one

system in up to four

different zones.

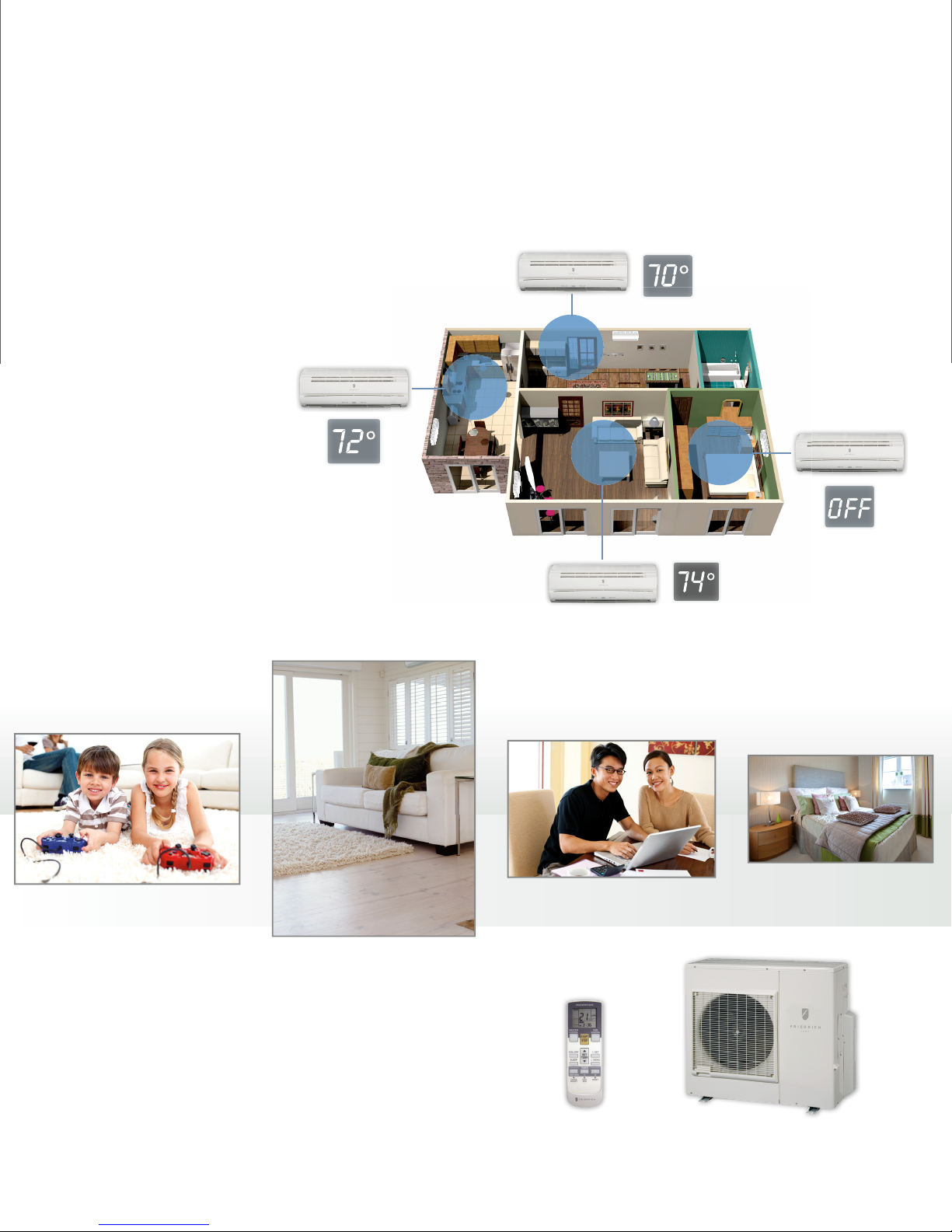

Up to 4 wall-mounted

indoor units with a single

outdoor condensing unit.

ZONE

ZONE COOLING AND HEATING

Occupants have the ability to set the temperature to

their preferred comfort level. And, you can turn off

units in unoccupied rooms. That’s the beauty– and

efficiency of a Friedrich multizone system.

ALL INVERTER

LINE WITH UP

TO 22.0 SEER

Full line of ductless products

Wall-mounted single and

multizone, ﬂoor/ceiling universal

models, ceiling cassette and

ceiling suspended.

All Inverter models including desirable, 115 volt 9000 and 12000 Btu

wall-mounted models.

Inverter technology

lets you reach the

desired temperature

faster, maintain it more

accurately, and reduce

energy costs.

Inverter technology

varies the compressor,

the condenser and

the indoor fan speeds,

eliminating constant

compressor start-ups/shut-downs

that traditional systems require to

maintain the set temperature.

This is especially beneficial in

multizone systems where room

temperature set points vary and

some indoor units may be turned

off in unoccupied rooms.

Each system can adjust capacity

and cooling output to provide only

the amount of cooling needed at a

given time. For example, an 18000

Btu system will operate even more

efficiently as a 15500 if that is all

that’s needed.

The Advantages of Friedrich Inverter Ductless Systems

TRADITIONAL SYSTEM INVERTER SYSTEM

At initial start up, fixed capacity

system slowly reaches the set

temperature.

At initial start up, utilizes

variable capacity to quickly

reach the set temperature.

Complete shutdown once set

temperature is achieved.

Reduces capacity as set

temperature is achieved.

Temperature within the space

rises until 2nd system start up.

Variable capacity maintains

set temperature keeping space

comfortable with reduced

energy consumption.

System works at full capacity to

again reach set temperature.

System cycles on and off

continually to maintain the set

temperature.

TECHNOLOGY

INVERTER

The high

efficiency and

zone cooling

abilities of

ductless

systems make

them the smart

choice to lower

energy costs.

ENERGY STAR®

QUALIFIED MODELS

All Friedrich ductless models

exceed the federal 13.0 SEER

requirements. And more than

50% of our models have ratings

ranging from 16.5 to 22.0 SEER.

Seven models are ENERGY STAR®

qualiﬁed with EERs up to 14.0.

VARIABLE CAPACITY

ADVANTAGES

Inverter Technology allows each

system to adjust capacity and

cooling output to provide only the

amount of cooling needed at a

given time. For example, an 18000

Btu system will operate even more

efﬁciently as a 15500 or less if

that's all that’s needed, reducing

energy consumption and expenses.

ZERO DUCT LOSS

The DOE reports that ducted

systems lose an average of 25-40%

in performance due to leaks, cracks

or disconnections in ductwork.

No ductwork means that ductless

systems do not experience duct

loss.

ZONE COOLING

FLEXIBILITY

Independently condition up to 4

separate zones using only a single

outdoor unit. Achieve the ultimate

in comfort and energy control by

cooling or heating only the zones

that are in use. And, because each

zone is independent of the others,

comfort settings can vary.

EXTREMELY QUIET

Ductless systems keep the

operating noise of the condensing

unit outdoors, while the blower fan

of the indoor unit remains whisper

quiet.

NO DIRTY AIR DUCTS

Now there’s no need to clean dirty air

ducts that can harbor dust, germs

and allergens that are eventually

blown into your home or ofﬁce.

Virtually silent

indoors and

no ductwork

to clean.

HIGH EFFICIENCY DUCTLESS SYSTEMS THAT ARE

ECO-FRIENDLY AND BUDGET FRIENDLY

Wall-mounted controller available

as an optional accessory on most

models

Units can be installed high on the wall well above eye level, on the ceiling or on

the ﬂoor against the wall.

• Room additions/renovations

• Homes without ductwork

• Bedrooms and family rooms

• Garage workshops

• Sunrooms

• Guest quarters

• Wine cellars

• Hotels and other lodging

• Computer rooms/server

rooms

• Restaurant kitchen and prep

areas

• Ofﬁces in warehouse spaces

• Storage facilities

• Buildings where security

concerns prevent the use

of window units

• Internal areas without

exterior wall access

APPLICATIONS

LIGHT COMMERCIAL AND RESIDENTIAL APPLICATIONS

MMER

IDENTIA

System Type Wall-mounted

Single Zone Wall-mounted

Multizone Universal Floor/

Ceiling Ceiling-Suspended Ceiling Cassette

ion

n th

n the ceilin

low against the

all

n the ceilin

lush with ceilin

ool onl

eat pum

115

t mo

N N

nverter com

ressor

EER U

to 16.

15.

'Whis

uiet' indoor

Auto-chan

eover

Low ambient o

eratio

Pro

rammable time

hr.

ntr

LCD

Auto restart when power is

nterru

Continuous

‘

Air Swee

p”

Washable

antimicrobial air ﬁlter

Auto shut ﬂa

s when unit is off

Fan s

eed

4-HEATIN

4- COOLIN

4-HEATIN

4- COOLIN

3-HEATING

- COOLIN

3-HEATING

- COOLIN

-HEATING

- COOLIN

Features you'll ﬁnd on our ductless systems:

Learn more about ductless

@www.friedrich.com

The Ultimate Room Air Conditioner

ur online video explains the advanta

f Friedrich ductless split

WALL-MOUNTED SINGLE ZONE

9000 and 12000 Btu variable capacity models use 115V power for superior residential

installation capability. Full line of 230V systems with capacities up to 3 tons.

COOL-ONLY MODELS

115 Volt

9000 and 12000 Btu

230/208 Volt

18000 to 33000 Btu

MW09C1H, MW12C1H

MW18C3F

MW24C3G, MW30C3G, MW36C3G

MR09C1H,

MR12C1H

MR18C3F

MR24C3G,

MR30C3G,

MR36C3G

DWC optional,

wired, wall-mounted

controller available

on 18000 Btu and

higher Btu models.

COOL

MW09C1H, MW12C1H

MW1

8C3

MW24C3G, MW30C3G, MW36C3G

Comfort & Convenience

• LCD wireless remote for each indoor unit

and secured remote control holder

• 24-hour timer and sleep timer

• Four fan speeds: high, medium, low, quiet,

plus autofan

• Multiple operating modes including:

Auto, cool, dry (dehumidiﬁcation) and fan

only

• Long-life, washable air ﬁlters

• Continuous ‘Air Sweep’ for even

distribution of air throughout the room

• Auto-shut ﬂaps close when unit is off

for a sleeker appearance

• Auto-restart after power interruptions

• Remote controllers have four different

transmitter codes to prevent

unintentional adjustment or programming

of nearby units when multiple units are

installed

• Low temperature operation

(See speciﬁcations)

WALL-MOUNTED SINGLE ZONE

Extensive features for comfort and convenience year 'round. In energy efficient heat

pump mode uses approximately 1/3 of the energy required by electric heat.

HEAT PUMPS

230/208 Volt

8500 to 22000 Btu

10000 to 27600 Btu

MW09Y3H, MW12Y3H

MW18Y3H, MW24Y3H

MR18Y3H,

MR24C3H

MR09Y3H,

MR12Y3H

COOL & HEAT

MW0

9Y3

MW1

2Y3H

MW18Y3H MW24Y3H

DWC optional,

wired, wall-mounted

controller available

on 18000 Btu and

higher Btu models.

Comfort & Convenience

• LCD wireless remote for each indoor unit

and secured remote control holder

• 24-hour timer and sleep timer

• Four fan speeds cooling or heating:

high, medium, low, quiet, plus autofan

• Multiple operating modes including:

Auto, cool, dry (dehumidiﬁcation), fan only

and heat

• Long-life, washable air ﬁlters

• Continuous ‘Air Sweep’ for even

distribution of air throughout the room

• Auto-shut ﬂaps close when unit is off

for a sleeker appearance

• Auto-restart after power interruptions

• Auto-changeover (heat pump models)

• Remote controllers have four different

transmitter codes to prevent

unintentional adjustment or programming

of nearby units when multiple units are

installed

• Low temperature operation

(See speciﬁcations)

WALL-MOUNTED MULTIZONE

Two, three or four wall-mounted indoor units connected to one outdoor unit for

personalized zone cooling.

MULTIZONE HEAT PUMPS

1-2-3-4 ZONE

HEAT PUMPS

Each unit has its own

remote for individual

comfort control

COOL & HEAT

DWC optional,

wired, wall-mounted

controller available

on 18000 Btu and

higher Btu models.

230/208 Volt

DUALZONE

Cooling

19000 to 24000 Btu

Heat pump

22000 to 28000 Btu

TRI-ZONE

Cooling

27600 to 35100 Btu

Heat pump

33600 to 38100

QUADZONE

Cooling

35200 Btu

Heat pump

38000 Btu

Comfort & Convenience

• LCD wireless remote for each indoor unit

and secured remote control holder

• 24-hour timer and sleep timer

• Four fan speeds cooling or heating:

high, medium, low, quiet, plus autofan

• Multiple operating modes including:

Auto, cool, dry (dehumidiﬁcation), fan only

and heat

• Long-life, washable air ﬁlters

• Continuous ‘Air Sweep’ for even

distribution of air throughout the room

• Auto-shut ﬂaps close when unit is off

for a sleeker appearance

• Auto-restart after power interruptions

• Auto-changeover (heat pump models)

• Remote controllers have four different

transmitter codes to prevent

unintentional adjustment or programming

of nearby units when multiple units are

installed

• Low temperature operation

(See speciﬁcations)

FLOOR/CEILING UNIVERSAL CEILING CASSETTE

HEAT PUMP

Indoor unit can be installed 2 ways:

low against the wall or on the ceiling.

Heat pump

S24YF 22200 Btu 15.0 SEER

24200 Btu

HEAT PUMP

Heat pump

C24YF 22200 Btu 15.0 SEER

24200 Btu

Low proﬁle indoor unit recedes into

ceiling for a clean look and greater

clearance.

DWC optional, wired, wall-mounted

controller available on Universal

ﬂoor/ceiling model

MR24UY3F MR24UY3F

MC24Y3F

COOL & HEAT

ON THE CEILING

OR LOW AGAINST THE WALL

MS24Y3F

Comfort & Convenience

• LCD wireless remote and secured remote control holder

• 24-hour timer and sleep timer

• Four fan speeds cooling or heating:

high, medium, low, quiet, plus autofan

• Multiple operating modes including:

Auto, cool, dry (dehumidiﬁcation), fan only and heat

• Long-life, washable air ﬁlters

• Continuous ‘Air Sweep’ for even distribution of air

throughout the room

• Auto-shut ﬂaps close when unit is off

for a sleeker appearance

• Auto-restart after power interruptions

• Auto-changeover

• Low temperature operation to 0° F

• Self-diagnostics including stored error codes

Comfort & Convenience

• Wall controller with 7-day programmable on/off timer

controls up to 16 units– individually or by zones

• Three fan speeds cooling or heating:

high, medium, low, plus autofan

• Multiple operating modes including:

Auto, cool, dry (dehumidiﬁcation), fan only and heat

• Long-life, washable air ﬁlters

• Continuous ‘Air Sweep’ for even distribution of air

throughout the room

• Auto-shut ﬂaps close when unit is off

for a sleeker appearance

• Auto-restart after power interruptions

• Auto-changeover

• Low temperature operation to 0° F

• Self-diagnostics including stored error codes

• Condensate pump: 31”maximum rise

•Two branch ducts for adjoining rooms (requires additional

fan)

• Fresh air intake (requires a separate in-line fan installation

and ducting)

COOL & HEAT

Andere Handbücher für MR09C1H

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Friedrich Klimaanlage Handbücher

Friedrich

Friedrich MW30C3G Bauanleitung

Friedrich

Friedrich OHS Series Bedienungsanleitung

Friedrich

Friedrich MW09Y3FM Bedienungsanleitung

Friedrich

Friedrich MWM18Y3J Bedienungsanleitung

Friedrich

Friedrich ZoneAire P09B Bedienungsanleitung

Friedrich

Friedrich Vert-I-Pak VEA09K Bedienungsanleitung

Friedrich

Friedrich CP05N10 Bauanleitung

Friedrich

Friedrich Room Air Conditioners Bedienungsanleitung

Friedrich

Friedrich Hazardgard SH20N50AT Bedienungsanleitung

Friedrich

Friedrich Ductless split system Bedienungsanleitung

Friedrich

Friedrich ZONEAIRE SELECT PZE07K3SA Leitfaden

Friedrich

Friedrich M12YG Bedienungsanleitung

Friedrich

Friedrich Uni-Fit UE10C33 Thru-the-Wall Series Bauanleitung

Friedrich

Friedrich Kuhl SQ05 Bedienungsanleitung

Friedrich

Friedrich QUIETMASTER 2008 Bedienungsanleitung

Friedrich

Friedrich ZoneAire P09B Bedienungsanleitung

Friedrich

Friedrich 115 Volts US08 Fehlerbehebungshandbuch

Friedrich

Friedrich M21DYF Kurzanleitung zur Einrichtung

Friedrich

Friedrich CP06C10 Bauanleitung

Friedrich

Friedrich CP05A10 Bauanleitung

Friedrich

Friedrich CP14 Bedienungsanleitung

Friedrich

Friedrich CP15G10A Leitfaden

Friedrich

Friedrich WallMaster WS08 Bedienungsanleitung

Friedrich

Friedrich ZoneAire P09B Bedienungsanleitung

Beliebte Klimaanlage Handbücher anderer Marken

Spheros

Spheros CC 355 Bedienungsanleitung

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE Bedienungsanleitung

Panasonic

Panasonic CS-E12HKEW Bedienungsanleitung

nedis

nedis ACMB1WT7 Bedienungsanleitung

Samsung

Samsung AR KV Series Leitfaden

Daikin

Daikin FCFV50A Bedienungsanleitung

Fujitsu

Fujitsu Inverter ASBA30JFC Bedienungsanleitung

Toshiba

Toshiba RAS-M10SMUV-E Bedienungsanleitung

Daikin

Daikin FXLQ20MAVE Bedienungsanleitung

Hitachi

Hitachi RAS-E24CAK Bedienungsanleitung

CIAT

CIAT Magister 2 Series Leitfaden

Bestron

Bestron AAC6000 Bedienungsanleitung

Hisense

Hisense 7K Technisches Handbuch

Frigidaire

Frigidaire FFRE0533S1E0 Bedienungsanleitung

Samsung

Samsung AS09HM3N Bedienungsanleitung

Frigidaire

Frigidaire CRA073PU11 Betriebsanleitung

Soleus Air

Soleus Air GB-PAC-08E4 Bedienungsanleitung

McQuay

McQuay MCK020A Bedienungsanleitung
