Friedrich PDE07K Series Bedienungsanleitung

PTACPRTS PD B-A (1-05) ** Digits vary with model.

Parts Manual

PTAC PD Series (Electronic Controls)

Packaged Terminal Air Conditioners

Packaged Terminal Heat Pumps

Serial Number LEAP and Later

MODELS

PDE07K**B-A

PDE07R**B-A

PDE09K**B-A

PDE09R**B-A

PDE12K**B-A

PDE12R**B-A

PDE15K**B-A

PDE15R**B-A

PDH07K**B-A

PDH07R**B-A

PDH09K**B-A

PDH09R**B-A

PDH12K**B-A

PDH12R**B-A

PDH15K**B-A

PDH15R**B-A

PTAC Model Number Identiﬁcation Guide......................................................................................................3

PTAC Serial Number Identiﬁcation Guide ......................................................................................................3

Unit Assembly................................................................................................................................................. 4

Unit Assembly Parts List................................................................................................................................. 5

Air Handler ..................................................................................................................................................... 6

Air Handler Parts List ..................................................................................................................................... 7

Control Box Assembly .................................................................................................................................... 8

Front Cover Assembly .................................................................................................................................. 10

Notes ............................................................................................................................................................ 11

Table of Contents

UNIT IDENTIFICATION

Model Number Code

PD H 07 K 3 S B A

Engineering Digit

Design Series

Options

S = Standard

R = Remote Thermostat

C = Seacoast Protection

X = Seacoast / Remote

Nominal Heater Size

(@ 230V or 265V)

0 = No Heater

2 = 2.5KW

3 = 3.4KW

5 = 5.0KW

Voltage

K = 208/230V - 1Ph. - 60Hz.

R = 265V - 1Ph. - 60Hz.

Nominal Cooling Capacity

07 = 7000 BTUh

09 = 9000 BTUh

12 = 12000 BTUh

15 = 15000 BTUh

System

X = Accessory

E = Cooling with or

without electric heat

H = Heat Pump with

Auxiliary Heat

Series

PD = P Series Digital PTAC

Serial Number L E A P 00000

Production Run Number

Decade Manufactured

L = 0 C = 3 F = 6 J = 9

A = 1 D = 4 G = 7 Product Line

B = 2 E = 5 H = 8

R = RAC

Year Manufactured P = PTAC

A = 1 C = 3 E = 5 G = 7 J = 9 E = EAC

B = 2 D = 4 F = 6 H = 8 K = 0 V = VPAK

H = DSS

Month Manufactured

A = Jan D = Apr G = Jul K = Oct

B = Feb E = May H = Aug L = Nov

C = Mar F = Jun J = Sep M = Dec

PTAC Serial Number Identiﬁcation Guide

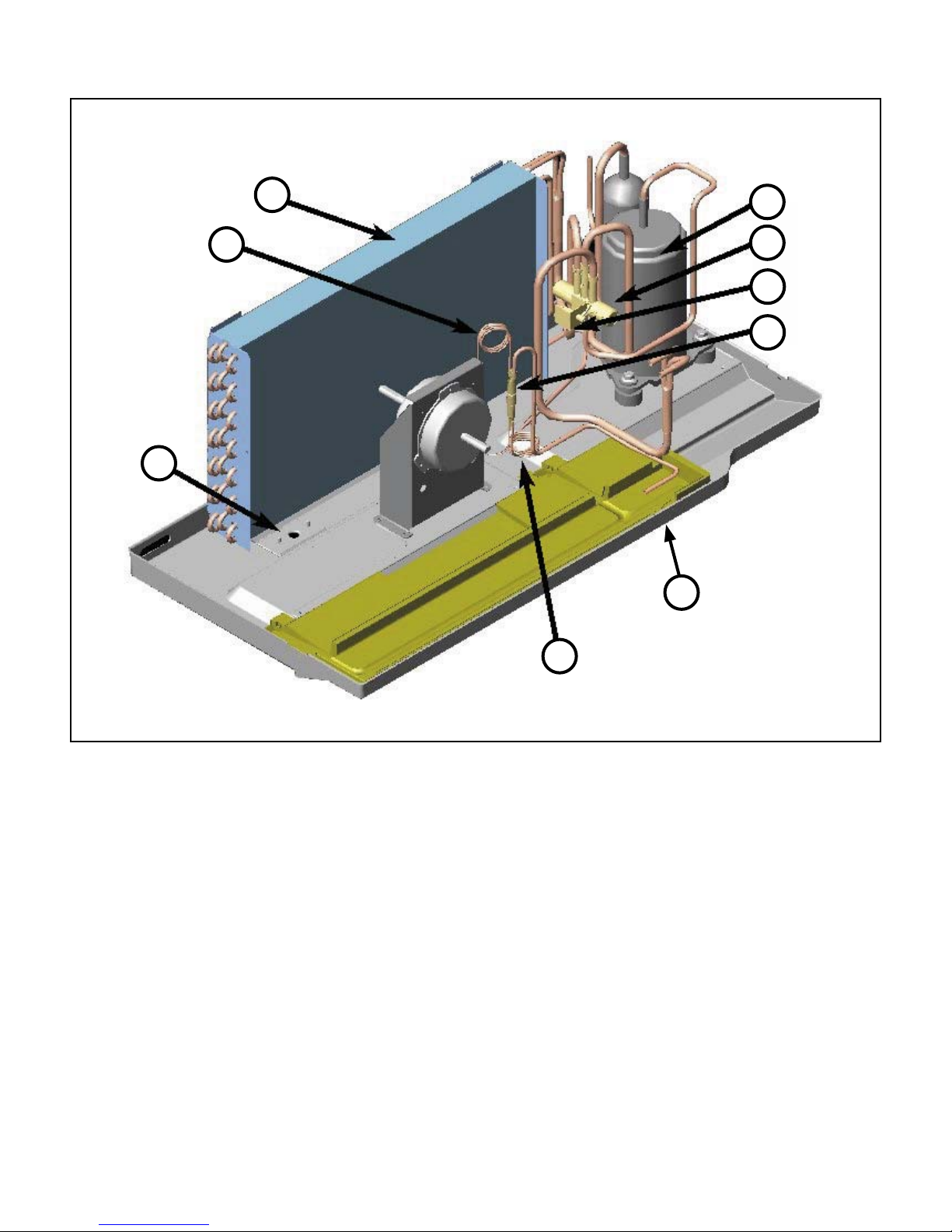

UNIT ASSEMBLY

10 11

REF. PART NO. DESCRIPTION 07 09 12 15 NOTES

N/S 25059400 Coil, Indoor 111–

N/S 25065000 Coil, Indoor –––1

10 25014820 Coil, Outdoor 1111

10 25014821 Coil, Outdoor 1111 Seacoast

10 25064800 Coil, Outdoor- Heat Pump Only –––1

10 25064801 Coil, Outdoor- Heat Pump Only –––1 Seacoast

11 25024915 Compressor, 230 Volt 1–––

11 25024908 Compressor, 230 Volt –1––

11 25024907 Compressor, 230 Volt ––1–

11 25024910 Compressor, 230 Volt –––1

11 25024914 Compressor, 265 Volt 1–––

11 25024913 Compressor, 265 Volt –1––

11 25024912 Compressor, 265 Volt ––1–

11 25024911 Compressor, 265 Volt –––1

12 03760548 Cap Tube A/C-Electric Only 1–––

12 03760547 Cap Tube A/C-Electric Only –1––

12 03760511 Cap Tube A/C-Electric Only ––1–

12 01389985 Cap Tube A/C-Electric Only –––1

12 03760547 Cap Tube, Cooling, Heat Pump 1–––

12 03760547 Cap Tube, Cooling, Heat Pump –1––

12 01390000 Cap Tube, Cooling, Heat Pump ––1–

12 01389975 Cap Tube, Cooling, Heat Pump –––1

13 03760473 Cap Tube, Heating, Heat Pump 1–––

13 03760547 Cap Tube, Heating, Heat Pump –1––

13 01389975 Cap Tube, Heating, Heat Pump ––1–

13 01389985 Cap Tube, Heating, Heat Pump –––1

14 25057200 Check Valve 1–––

14 25057201 Check Valve –111

15 25022010 Reversing Valve Kit (Includes Solenoids) 11––

15 25022020 Reversing Valve Kit (Includes Solenoids) ––11

16 25022050 Solenoid Coil 230 Volt 1111

16 25022060 Solenoid Coil 265 Volt 1111

17 60179903 Condensate Valve (bellows type) 1111

18 25014502 Drain Pan 1111

N/S 61764537 Overload Compressor 230 Volt 1–––

N/S 61764535 Overload Compressor 230 Volt –1––

N/S 61764521 Overload Compressor 230 Volt ––1–

N/S 61764532 Overload Compressor 230 Volt –––1

N/S 61764543 Overload Compressor 265 Volt 1–––

N/S 61764542 Overload Compressor 265 Volt –1––

N/S 61764541 Overload Compressor 265 Volt ––1–

N/S 61764538 Overload Compressor 265 Volt –––1

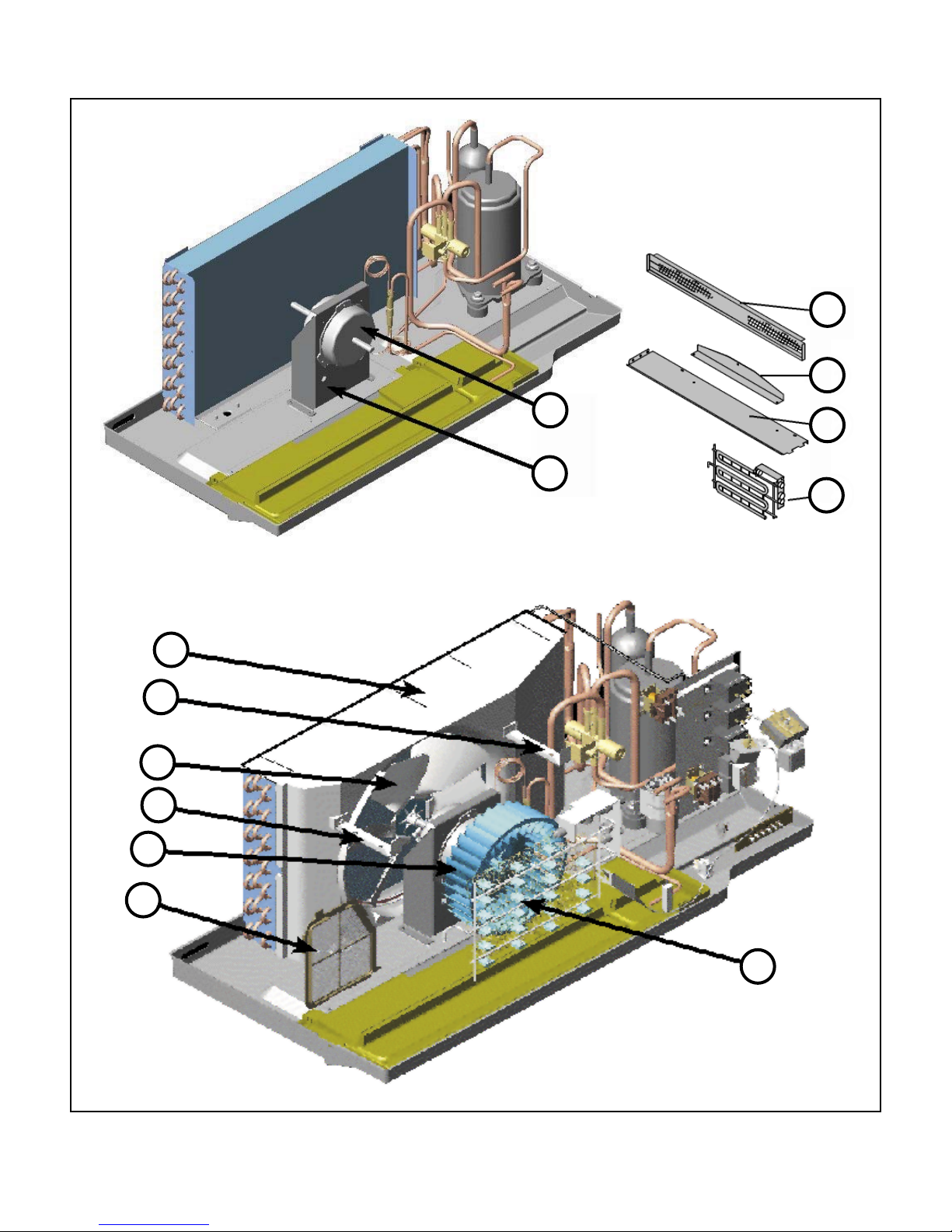

AIR HANDLER

REF. PART NO. DESCRIPTION 07 09 12 15 NOTES

20 25038401 Discharge Screen 1111

21 25067500 Air Deﬂector 1111

22 25016011Deck 1111

23 25059160 Heater, 2.5 kW @ 230 Volt 1111

23 25059161 Heater, 3.4 kW @ 230 Volt 1111

23 25059184 Heater, 5.0 kW @ 230 Volt 1111

23 25059162 Heater, 2.5 kW @ 265 Volt 1111

23 25059163 Heater, 3.4 kW @ 265 Volt 1111

23 25059185 Heater, 5.0 kW @ 265 Volt 1111

24 25036400 Support Brace (condenser) 1111

25 60542006 Condenser slinger blade 1111

26 25036801 Condenser Shroud 1111

27 25015300 Fresh Air Door Screen 1111

27 25034900 Fresh Air Door Insulation 1111

28 25014400 Motor Mount Bracket 1111

29 25014600 Motor, 230 Volt 1/15 HP 2P 11––

29 25014610 Motor, 230 Volt 1/10 HP 2P ––11

29 25014601 Motor, 265 Volt 1/15 HP 2P 11––

29 25014611 Motor, 265 Volt 1/10 HP 2P ––11

30 25069100 Blower Wheel 7-9 11––

30 25069000 Blower Wheel 12-15 ––11

N/S 25014306 Scroll 7-9 11––

N/S 25014306 Scroll 12-15 ––11

N/S 60217902 Seal, Motor to Wall 1111

N/S 25015900 Fresh Air Door Latch 1111

N/S 25045100 Fresh Air Door Cable 1111

N/S 25059620 Primary Limit Switch 145°F 2.5-3.4 kW 1111

N/S 25059621 Primary Limit Switch 155°F 5 kW ––11

N/S 25059618 Secondary Limit Switch 200°F 1111

N/S 61828200 Suction Dryer 1111

N/S 60308101 Liquid line Dryer (not for heat pump) 1111Cooling Only

N/S 25065700 Jumper, Heater 1111

CONTROL BOX ASSEMBLY

REF. PART NO. DESCRIPTION 07 09 12 15 NOTES

49 60500190 LCDI, 15A (2.5kW @ 230 Volt) 1111

49 60500191 LCDI, 20A (3.4kW @ 230 Volt) 1111

49 60500192 LCDI, 30A (5.0kW @ 230 Volt) 1111

58 20061450 Strain Relief 15/20A 1111

58 20086915 Strain Relief 30A 1111

50 25070050 Electronic Control Kit 1111See Note*

51 61921152 Dual Thermistor 1111

52 61921153 Single Thermistor 1111Heat Pump

53 25067900 Thermistor Holder 2222

54 25070102 Heat Cool Escutcheon 1111

55 25070103 Cool Only Escutcheon 1111

56 25070104 Remote Thermostat Escutcheon 1111

N/S 61080541 Capacitor, 20/5 @ 370 (230 Volt) 1–––

N/S 61080573 Capacitor, 15/5 @ 440 (265 Volt) 1–––

N/S 61080539 Capacitor, 25/5 @ 370 (230 Volt) –1––

N/S 61080571 Capacitor, 20/5 @ 440 (265 Volt) –1––

N/S 61080565 Capacitor, 30/5 @ 370 (230 Volt) ––1–

N/S 61080571 Capacitor, 20/5 @ 440 (265 Volt) ––1–

N/S 61080565 Capacitor, 30/5 @ 370 (230 Volt) –––1

N/S 61080571 Capacitor, 20/5 @ 440 (265 Volt) –––1

*Note: Electronic Control Kit includes: Electronic Control Board, Dual Thermister, Single Thermister, Thermister Holder (2),

Escutcheons (Heat/Cool, Cool Only, Remote Thermostat) and Installation Instructions

RYW BGLGHCD1D2F1F2

JP1

12345678

ON DIP

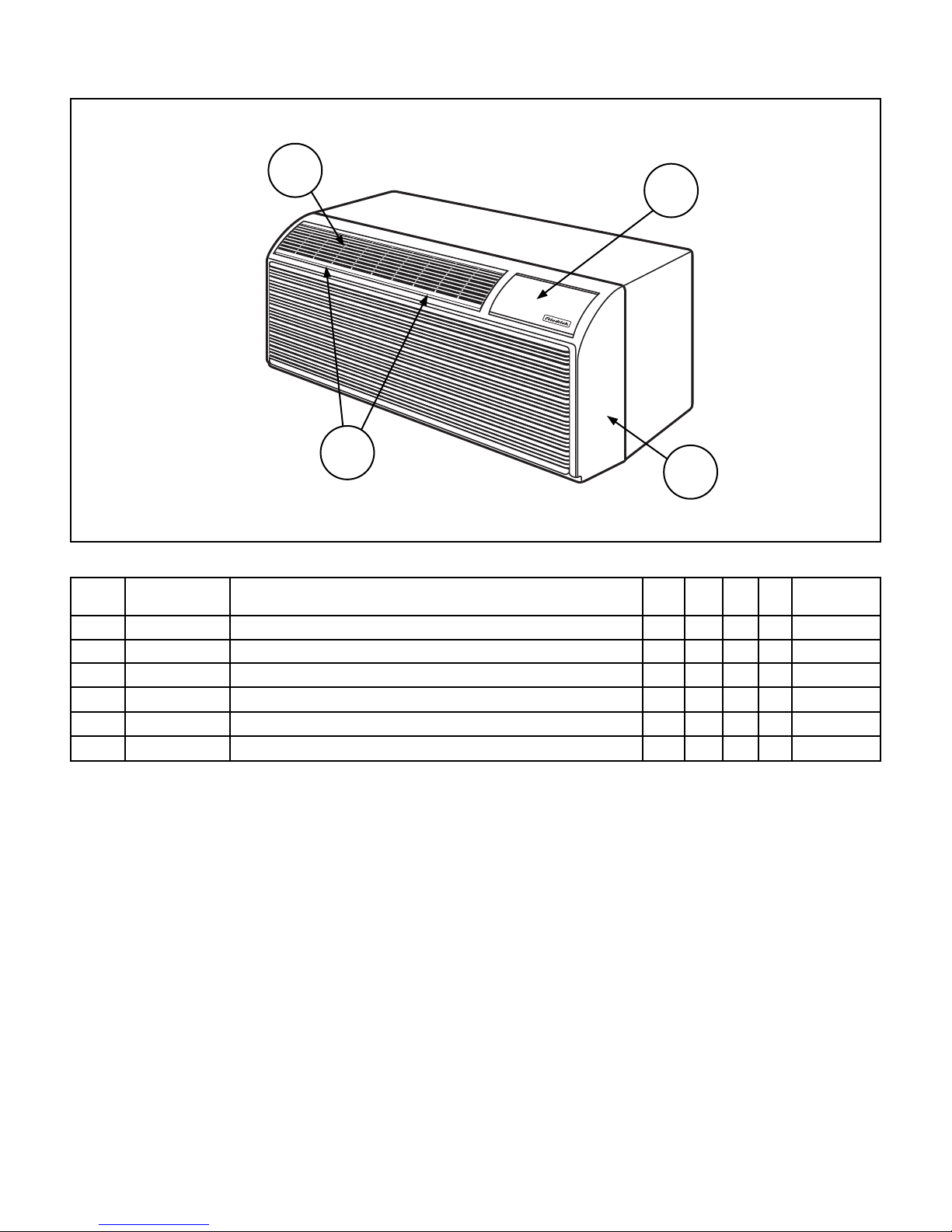

FRONT COVER

REF. PART NO. DESCRIPTION 07 09 12 15 NOTES

60 25037904 Front Cover Complete (Includes Door and Filters) 1 1 1 1

61 25031903 Control Door 1 1 1 1

62 25025903 Grille, Discharge 1 1 1 1

63 25037804 Filter 2 2 2 2

N/S 25060600 Thumb Screw 2 2 2 2

N/S 25060500 Speed Nut (U-Type) 2 2 2 2
