Friedrich ZoneAire Premier PDH09K3SGR3 Bedienungsanleitung

Installation and Operation Manual

THE EXPERTS IN ROOM AIR CONDITIONING

230 VOLT PDH09K3SGR3, PDH12K3SGR3

265 VOLT PDH09R3SGR3, PDH12R3SGR3

Chassis Models

ZoneAire Premier® R-32 Series

PTAC

Packaged Terminal Air

Conditioners & Heat Pumps

A. IMPORTANT SAFETY AND GENERAL INFORMATION ................. 3

A.1 Introduction ............................................................................. 3

A.2 • Safety Warnings ................................................................... 3

A.3 Warning For Using R32 Refrigerant..................................... 5

A.4 Importance of a Quality Installation..................................... 7

A.5 Product Inspection ................................................................. 7

A.5 Model Identiﬁcation Guide ..................................................... 7

A.6 Unit Features........................................................................... 7

B. SPECIFICATIONS ................................................................................. 9

B.1 Major Components and Dimensions .................................... 9

B.2 Product Data Information ..................................................... 9

C. INSTALLATION OF THE UNIT........................................................... 10

C.1 Pre-Installation Checkpoints............................................... 10

C.3 Choosing a Location..............................................................11

C.4 Install Unit .............................................................................13

C.4.2 External Drain Kit Installation .........................................14

C.4.3 Wall Sleeve Installation Instructions (PDXWS)..............................15

C.4.4 Standard Grille Instructions............................................. 19

C.5 Chassis Install....................................................................... 20

E. ELECTRICAL........................................................................................ 22

E.1 Electrical Safety Information...............................................22

E.2 Power Cord LCDI Test .........................................................22

E.3 Electrical Wiring........................................................................................... 23

E.4 How To Connect..................................................................... 25

F. REMOTE THERMOSTATS...................................................................26

F.1 Install Thermostat ........................................................................................ 26

F.2 Terminal Connections........................................................... 27

J. STARTUP AND OPERATION..............................................................27

J.1 Final Inspection ..................................................................... 27

J.2 Air Flow Selection and Adjustment .................................... 28

J.3 Dip Switches .......................................................................... 29

J.4 Control Panel Operation.......................................................30

J.5 Allocation Mode.....................................................................31

M. TROUBLESHOOTING......................................................................... 32

M.1. Troubleshooting Tips...................................................... 32

M.2 Diagnostic Codes............................................................. 33

P. ACCESSORIES..................................................................................... 34

R . INFORMATION FOR THE OWNER................................................... 36

R.2 Routine Maintenance ........................................................... 36

R.3 Qualiﬁcation Of Workers ...................................................... 36

R.3 Warranty ................................................................................37

CAUTION: Do Not Operate Equipment During Active Stages Of Construction

To ensure proper operation, Friedrich requires that all equipment is not operated during active construction phases. This includes active

stages of completing framing, drywalling, spackling, sanding, painting, ﬂooring, and moulding in the equipment’s designated conditioning

space. The use of this equipment during construction could result in premature failure of the components and/or system and is in violation of

our standard warranty guidelines. The operation of newly installed equipment during construction will accelerate the commencement and/or

termination of the warranty period.

Model information can be found on the name plate.

Please complete and mail the owner registration card furnished

with this product, or register online at www.friedrich.com.

For your future convenience, record the model information .

Model Number ________________________

Serial Number ________________________ WARNING ADVERTENCIA ATTENTION

• RISK OF FIRE OR

EXPLOSION

• FLAMMABLE REFIGERANT

USED

• REPAIRS MAY ONLY BE

PERFORMED BY TRAINED

PERSONNEL

• CONSULT SERVICE

MANUAL BEFORE

ATTEMPTING REPAIRS. ALL

SAFETY PRECAUIONS MUST

BE FOLLOWED

• DO NOT PUNCTURE

TUBING

• DISPOSE OF UNIT

PROPERLY IN ACCORDANCE

WITH FEDERAL OR LOCAL

REGULATIONS

• ONLY USE A2L APPROVED

SERVICE EQUIPMENT

• RIESGO DE FUEGO

• REFIGERANTE INFLAMABLE

UTILZADO

• PARA SER REPARDO

UNICAMENTE POR PERSONAL

DE SERVICIO CAPACITADO

• CONSULTE EL MANUAL

DE REPARACION DEL

PROPIETARIO ANTES

DE INTENTAR REPARAR

ESTE PRODUCTO. SE

DEBEN SEGUIR TODAS

LAS PRECAUCCIONES DE

SEGURIDAD

• NO PERFORE LA TUBERIA

DE REFIGERANTE

• DESECHE

APROPIADAMENTE DE

ACUERDO CON LAS

REGULACIONES FEDERALES

O LOCALES

• RISQUE D’INCENDIE

• REFRIGERANT

INFLAMMABLE UTILISE

• A REPARER UNIQUEMENT

PAR DU PERSONNELDE

SERVICE QUALIFIE

• CONSULTAR LE MANUEL

DE REPARATION/GUIDE

DU PROPRIETARE AVANTE

DE TENTER DE REPARER

CE PRODUIT. TOUTES LES

PRECAUTIONS DE SECURITE

DOIVENT ETRE SUIVIES

• NE PAS PERFORER LE

TUYAU DE REFIGERANT

• ELIMINER CORRECTEMENT

CONFORMENT AUX

REGLEMENTS FEDERAUX OU

LOCAUX

A. IMPORTANT SAFETY AND GENERAL INFORMATION

A.1 Introduction

This booklet contains the installation and operating instructions for your Air Conditioning unit. There are some precautions that should be taken

to ensure proper operation. Improper installation can result in unsatisfactory operation or dangerous conditions.

Read this booklet and any instructions packaged with separate equipment required to make up the system prior to installation. Give this booklet

to the owner and explain its provisions. The owner should retain this booklet for future reference.

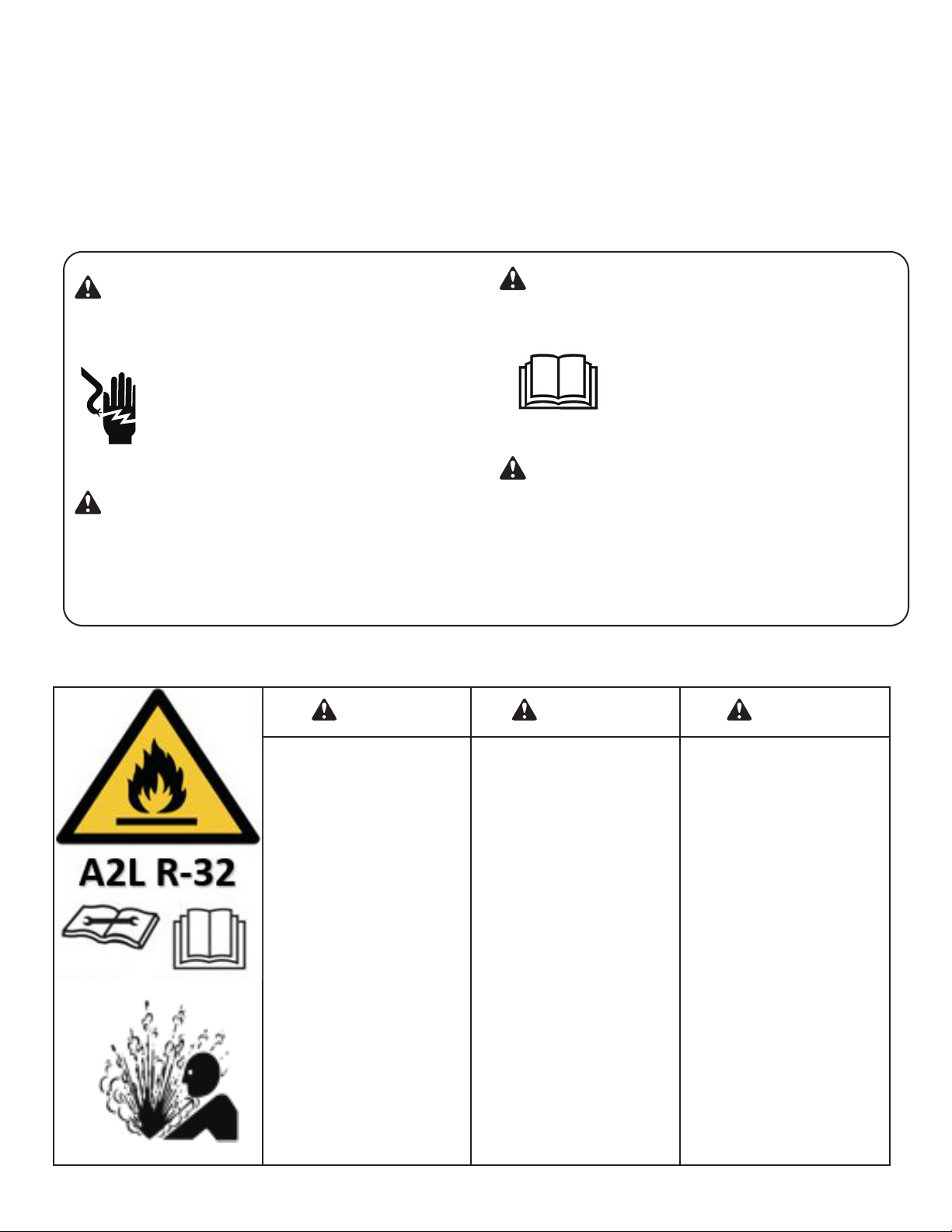

A.2 •Safety Warnings

WARNING:The manufacturer’s warranty does not cover

any damage or defect to the air conditioner caused by the attachment

or use of any components, accessories or devices (other than those

authorized by the manufacturer) into, onto or in conjunction with the

air conditioner. You should be aware that the use of

unauthorized components, accessories or devices may

adversely affect the operation of the air conditioner

and may also endanger life and property. The

manufacturer disclaims any responsibility for such loss

or injury resulting from the use of such unauthorized

components, accessories or devices.

WARNING:Electrical Shock Hazard

Disconnect all power to the unit before starting maintenance. All

electrical connections and wiring MUST be installed by a qualiﬁed

electrician and conform to the National Code and all local codes

which have jurisdiction. Failure to do so can result in property

damage, severe electrical shock or death.

WARNING: Read Installation Manual

Please read this manual thoroughly prior to equipment

installation or operation. It is the installer’s resposibility

to properly apply and install the equipment. Installation

must be in conformance with the NFPA 70-2023 national

electric code or current edition, International Mechanic

code 2021 or current edition, and any other local or

national codes.

WARNING: Safety First

Do not remove, disable, or bypass this unit’s safety

devices. Doing so may cause ﬁre, injuries, or death.

WARNING ADVERTENCIA ATTENTION

• RISK OF FIRE OR

EXPLOSION

• FLAMMABLE REFIGERANT

USED

• REPAIRS MAY ONLY BE

PERFORMED BY TRAINED

PERSONNEL

• CONSULT SERVICE

MANUAL BEFORE

ATTEMPTING REPAIRS. ALL

SAFETY PRECAUIONS MUST

BE FOLLOWED

• DO NOT PUNCTURE

TUBING

• DISPOSE OF UNIT

PROPERLY IN ACCORDANCE

WITH FEDERAL OR LOCAL

REGULATIONS

• ONLY USE A2L APPROVED

SERVICE EQUIPMENT

• RIESGO DE FUEGO

• REFIGERANTE INFLAMABLE

UTILZADO

• PARA SER REPARDO

UNICAMENTE POR PERSONAL

DE SERVICIO CAPACITADO

• CONSULTE EL MANUAL

DE REPARACION DEL

PROPIETARIO ANTES

DE INTENTAR REPARAR

ESTE PRODUCTO. SE

DEBEN SEGUIR TODAS

LAS PRECAUCCIONES DE

SEGURIDAD

• NO PERFORE LA TUBERIA

DE REFIGERANTE

• DESECHE

APROPIADAMENTE DE

ACUERDO CON LAS

REGULACIONES FEDERALES

O LOCALES

• RISQUE D’INCENDIE

• REFRIGERANT

INFLAMMABLE UTILISE

• A REPARER UNIQUEMENT

PAR DU PERSONNELDE

SERVICE QUALIFIE

• CONSULTAR LE MANUEL

DE REPARATION/GUIDE

DU PROPRIETARE AVANTE

DE TENTER DE REPARER

CE PRODUIT. TOUTES LES

PRECAUTIONS DE SECURITE

DOIVENT ETRE SUIVIES

• NE PAS PERFORER LE

TUYAU DE REFIGERANT

• ELIMINER CORRECTEMENT

CONFORMENT AUX

REGLEMENTS FEDERAUX OU

LOCAUX

A. IMPORTANT SAFETY AND GENERAL INFORMATION

Read All Instructions and Cautionary Markings Before Operation

and Installation to prevent death or injury to the user, other people,

or property damage, the following instructions must be followed.

Incorrect operation due to ignoring of instructions may cause death,

harm or damage.

WARNING: This symbol indicates the possibility of a

hazard to personnel.

CAUTION: This symbol indicates the possibility of

property damage or serious consequences.

WARNING:

1. Installation must be performed according to the installation

instructions. Improper installation can cause water leakage, electrical

shock, or ﬁre.

2. Use only the included accessories and parts, and speciﬁed tools for

the installation. Using nonstandard parts can cause water leakage,

electrical shock, ﬁre, and injury or property damage.

3. Make sure that the outlet you are using is grounded and has the

appropriate voltage. The power cord is equipped with a three-prong

grounding plug to protect against shock. Voltage information can be

found on the nameplate of the appliance.

4. Your appliance must be used in a properly grounded wall

receptacle. If the wall receptacle you intend to use is not adequately

grounded or protected by a time delay fuse or circuit breaker (the

fuse or circuit breaker needed is determined by the maximum current

of the appliance. The maximum current is indicated on the model

nameplate located on the appliance, have a qualiﬁed electrician install

the proper receptacle.

5. Install the appliance on a ﬂat, sturdy surface. Failure to do so could

result in damage or excessive noise and vibration.

6. The appliance must be kept free from obstruction to ensure proper

function and to mitigate safety hazards.

7. The unit should not be in contact with any equipment that will

transmit vibration to the unit. Any excessive vibration or pulsation to

the unit could result in damage to the refrigerant tubing.

8. Do not modify the length of the power cord or use an extension

cord to power the appliance.

9. Do not share a single outlet with other electrical appliances.

Improper power supply can cause ﬁre or electrical shock.

10. Do not install your air conditioner in a wet room such as a

bathroom or laundry room. Too much exposure to water can cause

electrical components to short circuit.

11. Do not install the appliance in a location that may be exposed to

combustible gas, as this could cause ﬁre.

12. Do not operate the appliance if it has been dropped or damaged.

13. Do not touch the appliance with wet or damp hands or when

barefoot.

14. If the air conditioner is knocked over during use, turn off the

appliance and unplug it from the main power supply immediately.

Visually inspect the appliance to ensure there is no damage. If you

suspect the appliance has been damaged, contact a technician or

customer service for assistance.

15. In a thunderstorm, the power must be cut off to avoid damage

to the machine due to lightning. Your air conditioner should be used

in such a way that it is protected from moisture. e.g. condensation,

splashed water, etc. Do not place or store your air conditioner

where it can fall or be pulled into water or any other liquid. Unplug

immediately if it occurs.

16. All wiring must be performed strictly in accordance with the

wiring diagram located inside of the appliance.

17. The appliance’s circuit board(PCB) is designed with a fuse to

provide overcurrent protection. The speciﬁcations of the fuse are

printed on the circuit board, such as: T 3.15A/250V, etc.

18. After proper installation, condensate will not overﬂow during

normal use. If the fan hits the built-up water and the sound annoys

you, please remove the cap located at the back of the air conditioner

to drain the water away.

CAUTION:

1. This appliance is not intended for use by persons (including

children) with reduced physical, sensory or mental capabilities or

lack of experience and knowledge, unless they have been given

supervision or instruction concerning use of the appliance by a person

responsible for their safety. Children should be supervised to ensure

that they do not play with the appliance. Children must be supervised

around the appliance at all times.

2. If the supply cord is damaged, it must be replaced by the

manufacturer, its service agent or similarly qualiﬁed persons in order

to avoid a hazard.

3. Prior to cleaning or other maintenance, the appliance must be

disconnected from the supply mains.

4. Never use this appliance if it is not working properly, or if it has

been dropped or damaged.

5. Do not run cord under carpeting. Do not cover cord with throw rugs,

runners, or similar coverings. Do not route cord under furniture or

appliances. Arrange cord away from trafﬁc area and where it will not

be tripped over.

6. Do not operate with a damaged cord, plug, power fuse or circuit

breaker. Discard the appliance or return to an authorized service

facility for examination and/or repair.

7. To reduce the risk of ﬁre or electric shock, do not use this fan with

any solid-state speed control device.

8. The appliance shall be installed in accordance with national wiring

regulations.

9. Contact the authorized service technician for repair or maintenance

of this appliance.

10. Contact the authorized installer for installation of this appliance.

11. Do not cover or obstruct the inlet or outlet grilles.

12. Do not use this product for functions other than those described in

this instruction manual.

13. Before cleaning, turn off the power and unplug the appliance.

14 .Disconnect the power if strange sounds, smell, or smoke comes

from it.

15. Do not press the buttons on the control panel with anything other

than your ﬁngers.

16. Do not operate or stop the appliance by inserting or pulling out the

power cord plug.

17. Do not use hazardous chemicals to clean or come into contact with

the appliance.

18. Do not use the appliance in the presence of ﬂammable substances

or vapour such as alcohol, insecticides, petrol,etc.

19. Always contact a qualiﬁed person to carry out repairs. If the power

supply cord is damaged, it must be replaced with a new power supply

cord obtained from the product manufacturer and not repaired.

20. Hold the plug by the head of the power plug when taking it out.

21. Turn off the product when not in use.

A. IMPORTANT SAFETY AND GENERAL INFORMATION

A.3 Warning For Using R32 Refrigerant

For R32 refrigerant models:

1. Appliance shall be installed, operated and stored in a room with a ﬂoor

area larger than 43 sq ft.

2. Appliance shall not be installed in an unventilated space, if that space is

smaller than 43 sq ft.

3. Compliance with national gas regulations shall be observed.

4. Keep ventilation openings clear of obstruction.

5. The appliance shall be stored so as to prevent mechanical damage from

occurring.

6. A warning that the appliance shall be stored in a well-ventilated area

where the room size corresponds to the room area as speciﬁed for

operation.

7. Any person who is involved with working on or opening a refrigerant

system must be certiﬁed for reﬁgerant handling as required by local, state,

and federal regulations.

8. Servicing shall only be performed as recommended by the equipment

manufacturer. Maintenance and repair requiring the assistance of other

skilled personnel shall be carried out under the supervision of the person

competent in the use of ﬂammable refrigerants.

9. Please follow the instruction carefully to handle, install, clear, and

service the air conditioner to avoid any damage or hazard. Flammable

Refrigerant R32 is used within air conditioner. When maintaining or

disposing the air conditioner, the refrigerant (R32) shall be recovered

properly, and shall not be discharged to air directly.

10. No any open ﬁre or device like a switch which may generate spark/

arcing shall be around the air conditioner to avoid causing ignition of the

ﬂammable refrigerant used.

11. Please follow the instruction carefully to store or maintain the air

conditioner to prevent mechanical damage from occurring.

12. Flammable refrigerant R32 is used in air conditioner. Please follow the

instruction carefully to avoid any hazard.

13. For speciﬁc information on the type of gas and the amount of

refrigerant used, refer to the model nameplate on the unit.

CAUTION:Risk of ﬁre/ﬂammable materials

(Required for R32 units only)

WARNING:low burning velocity material

(For R32 models apply to IEC60335-2-40:2018)

Note about Fluorinated Gases

1. Fluorinated greenhouse gases are contained in hermetically sealed

equipment. For speciﬁc information on the type, the amount and the Co2

equivalent in tonnes of the ﬂuorinated greenhouse gas(on some models),

please refer to the relevant label on the unit itself.

2. Installation, service, maintenance and repair of this unit must be

performed by a certiﬁed technician.

3. Product uninstallation and recycling must be performed by a certiﬁed

technician.

For Household Use Only Read And Save These Instructions

1. Transport of equipment containing ﬂammable refrigerants:

See transport regulations.

2. Marking of equipment using signs:

See local regulations.

3. Disposal of equipment using ﬂammable refrigerants:

See national regulations.

4. Storage of equipment/appliances:

The storage of equipment should be in accordance with the manufacturer’s

instructions.

5. Storage of packed (unsold) equipment:

Storage package protection should be constructed such that mechanical

damage to the equipment inside the package will not cause a leak of

the refrigerant charge. The maximum number of pieces of equipment

permitted to be stored together will be determined by local regulations.

6. Information on servicing:

1) Checks to the area:

Prior to beginning work on systems containing ﬂammable refrigerants,

safety checks are necessary to ensure that the risk of ignition is minimized.

For repair to the refrigerating system, the following precautions shall be

complied with prior to conducting work on the system.

2) Work procedure:

Work shall be undertaken under a controlled procedure so as to minimize

the risk of a ﬂammable gas or vapour being present while the work is

being performed.

3) General work area:

All maintenance staff and others working in the local area shall be

instructed on the nature of work being carried out. Work in conﬁned spaces

shall be avoided. The area around the workspace shall be sectioned off.

Ensure that the conditions within the area have been made safe by control

of ﬂammable material.

4) Checking for presence of refrigerant:

The area shall be checked with an appropriate refrigerant detector prior to

and during work, to ensure the technician is aware of potentially ﬂammable

atmospheres. Ensure that the leak detection equipment being used is

suitable for use with ﬂammable refrigerants, i.e. non-sparking, adequately

sealed or intrinsically safe.

5) Presence of ﬁre extinguisher:

If any hot work is to be conducted on the refrigeration equipment or

any associated parts, appropriate ﬁre extinguishing equipment shall be

available to hand. Have a dry powder or CO2 ﬁre extinguisher adjacent to

the charging area.

6) No ignition sources:

No person carrying out work in relation to a refrigeration system which

involves exposing any pipe work that contains or has contained ﬂammable

refrigerant shall use any sources of ignition in such a manner that it may

lead to the risk of ﬁre or explosion. All possible

ignition sources, including cigarette smoking, should be kept sufﬁciently far

away from the site of installation, repairing, removing and disposal, during

which ﬂammable refrigerant can possibly be released to the surrounding

space. Prior to work taking place,

the area around the equipment is to be surveyed to make sure that there

are no ﬂammable hazards or ignition risks. No Smoking signs shall be

displayed.

7) Ventilated area:

Ensure that the area is in the open or that it is adequately ventilated

before breaking into the system or conducting any hot work. A degree

of ventilation shall continue during the period that the work is carried

out. The ventilation should safely disperse any released refrigerant and

preferably expel it externally into the atmosphere.

8) Checks to the refrigeration equipment:

Where electrical components are being changed, they shall be ﬁt for the

purpose and to the correct speciﬁcation. At all times the manufacturer’s

maintenance and service guidelines shall be followed. If in doubt consult

the manufacturer’s technical department for assistance. The following

checks shall be applied to installations using ﬂammable refrigerants:

a. The charge size is in accordance with the room size within which the

refrigerant containing

parts are installed;

b. The ventilation machinery and outlets are operating adequately and are

not obstructed;

c. If an indirect refrigerating circuit is being used, the secondary circuit

shall be checked for the presence of refrigerant; Marking to the equipment

continues to be visible and legible. Markings and signs that are illegible

shall be corrected;

d. Refrigeration pipe or components are installed in a position where they

are unlikely to be exposed to any substance which may corrode refrigerant

containing components, unless the components are constructed of

materials which are inherently resistant to being corroded or are suitably

protected against being so corroded.

9) Checks to electrical devices:

Repair and maintenance to electrical components shall include initial

safety checks and component inspection procedures. If a fault exists that

could compromise safety, then no electrical supply shall be connected to

the circuit until it is satisfactorily dealt with. If the fault cannot be corrected

immediately but it is necessary to continue operation, an adequate

temporary solution shall be used. This shall be reported to the owner of

the equipment so all parties are advised. Initial safety checks shall include:

a. That capacitors are discharged: this shall be done in a safe manner to

avoid possibility of sparking;

b. That there no live electrical components and wiring are exposed while

charging, recovering or purging the system;

c. That there is continuity of earth bonding.

7. Repair to intrinsically safe components:

Do not apply any permanent inductive or capacitance loads to the circuit

without ensuring that this will not exceed the permissible voltage and

current permitted for the equipment in use. Intrinsically safe components

are the only types that can be worked on while live in the presence of a

ﬂammable atmosphere. The test apparatus shall be at the correct rating.

Replace components only with parts speciﬁed by the manufacturer. Other

parts may result in the ignition of refrigerant in the atmosphere from a

leak.

8. Cabling:

Check that cabling will not be subject to wear, corrosion, excessive

pressure, vibration, sharp edges or any other adverse environmental

effects. The check shall also take into account the effects of aging or

continual vibration from sources such as compressors or fans.

9. Detection of ﬂammable refrigerants

Under no circumstances shall potential sources of ignition be used in the

searching for or detection of refrigerant leaks. A halide torch (or any other

detector using a naked ﬂame) shall not be used.

10. Leak detection methods:

The following leak detection methods are deemed acceptable for systems

containing ﬂammable refrigerants. Electronic leak detectors shall be used

to detect ﬂammable refrigerants, but the sensitivity may not be adequate,

or may need re-calibration. (Detection equipment shall be calibrated in a

refrigerant-free area.) Ensure that the detector is not a potential source of

ignition and is suitable for the refrigerant used. Leak detection equipment

shall be set at a percentage of the LFL of the refrigerant and shall be

calibrated to the refrigerant employed and the appropriate percentage of

gas (25 % maximum) is conﬁrmed. Leak detection ﬂuids are suitable for

use with most refrigerants but the use of detergents containing chlorine

shall be avoided as the chlorine may react with the refrigerant and corrode

the copper pipe-work. If a leak is suspected, all naked ﬂames shall be

removed/extinguished. If a leakage of refrigerant is found which requires

brazing, all of the refrigerant shall be recovered from the system, or

isolated (by means of shut off valves) in a part of the system remote from

the leak. Oxygen free nitrogen (OFN) shall then be purged through the

system both before and during the brazing process.

11. Removal and evacuation

When breaking into the refrigerant circuit to make repairs or for any other

purpose conventional procedures shall be used. However, it is important

that best practice is followed since ﬂammability is a consideration. The

following procedure shall be adhered to: Remove refrigerant; Purge the

circuit with inert gas; Evacuate; Purge again with inert gas; Open the

circuit by cutting or brazing. The refrigerant charge shall be recovered into

the correct recovery cylinders. The system shall be ﬂushed with OFN to

render the unit safe. This process may need to be repeated several times.

Compressed air or oxygen shall not be used for this task. Flushing shall be

achieved by breaking the vacuum in the system with OFN and continuing

to ﬁll until the working pressure is achieved, then venting to atmosphere,

and ﬁnally pulling down to a vacuum. This process shall be repeated until

no refrigerant is within the system. When the ﬁnal OFN charge is used, the

system shall be vented down to atmospheric pressure to enable work to

take place. This operation is absolutely vital if brazing operations on the

pipe-work are to take place. Ensure that the outlet for the vacuum pump is

not close to any ignition sources and there is ventilation available.

12. Charging procedures:

In addition to conventional charging procedures, the following

requirements shall be followed. Ensure that contamination of different

refrigerants does not occur when using charging equipment. Hoses or

lines shall be as short as possible to minimise the amount of refrigerant

contained in them. Cylinders shall be kept upright. Ensure that the

refrigeration system is earthed prior to charging the system with

refrigerant. Label the system when charging is complete (if not already).

Extreme care shall be taken not to overﬁll the refrigeration system. Prior

to recharging the system it shall be pressure tested with OFN. The system

shall be leak tested on completion of charging but prior to commissioning.

A follow up leak test shall be carried out prior to leaving the site.

13. Decommissioning:

Before carrying out this procedure, it is essential that the technician is

completely familiarwith the equipment and all its detail. It is recommended

good practice that all refrigerants are recovered safely. Prior to the task

being carried out, an oil and refrigerant sample shall be taken in case

analysis is required prior to re-use of reclaimed refrigerant. It is essential

that electrical power is available before the task is commenced.

a. Become familiar with the equipment and its operation.

b. Isolate system electrically.

c. Before attempting the procedure ensure that: Mechanical handling

equipment is available, if required, for handling refrigerant cylinders;

All personal protective equipment is available and being used correctly;

The recovery process is supervised at all times by a competent person;

Recovery equipment and cylinders conform to the appropriate standards.

d. Pump down refrigerant system, if possible.

e. If a vacuum is not possible, make a manifold so that refrigerant can be

removed from various parts of the system.

f. Make sure that cylinder is situated on the scales before recovery takes

place.

g. Start the recovery machine and operate in accordance with

manufacturer’s instructions.

h. Do not overﬁll cylinders. (No more than 80 % volume liquid charge).

i. Do not exceed the maximum working pressure of the cylinder, even

temporarily.

j. When the cylinders have been ﬁlled correctly and the process completed,

make sure that the cylinders and the equipment are removed from site

promptly and all isolation valves on the equipment are closed off.

k. Recovered refrigerant shall not be charged into another refrigeration

system unless it has been cleaned and checked.

14. Labeling:

Equipment shall be labelled stating that it has been de-commissioned

and emptied of refrigerant. The label shall be dated and signed. Ensure

that there are labels on the equipment stating the equipment contains

ﬂammable refrigerant.

15. Recovery:

When removing refrigerant from a system, either for servicing or

decommissioning, it is recommended good practice that all refrigerants

are removed safely. When transferring refrigerant into cylinders, ensure

that only appropriate refrigerant recovery cylinders are employed. Ensure

that the correct number of cylinders for holding the total system charge

is available. All cylinders to be used are designated for the recovered

refrigerant and labeled for that refrigerant (i.e. special cylinders for the

recovery of refrigerant).

Cylinders shall be complete with pressure relief valve and associated shut-

off valves in good working order. Empty recovery cylinders are evacuated

and, if possible, cooled before recovery occurs. The recovery equipment

shall be in good working order with a set of instructions concerning

the equipment that is at hand and shall be suitable for the recovery of

ﬂammable refrigerants. In addition, a set of calibrated weighing scales

shall be available and in good working order. Hoses shall be complete

with leak-free disconnect couplings and in good condition. Before using

the recovery machine, check that it is in satisfactory working order, has

been properly maintained and that any associated electrical components

are sealed to prevent ignition in the event of a refrigerant release. Consult

manufacturer if in doubt. The recovered refrigerant shall be returned to

the refrigerant supplier in the correct recovery cylinder, and the relevant

Waste Transfer Note arranged. Do not mix refrigerants in recovery units

and especially not in cylinders. If compressors or compressor oils are to be

removed, ensure that they have been evacuated to an acceptable level to

make certain that ﬂammable refrigerant does not

remain within the lubricant. The evacuation process shall be carried out

prior to returning the compressor to the suppliers. Only electric heating to

the compressor body shall be employed to accelerate this process. When

oil is drained from a system, it shall be carried out safely.

NOTE: Check the appliance regularly and refer to TROUBLESHOOTING or

contact our customer support if it shows any of the following signs:

- Power cord or plug is damaged.

- Loud noise, unusual smell or excessive heat.

A. IMPORTANT SAFETY AND GENERAL INFORMATION

A.4 Importance of a Quality Installation

Optimal system performance and longevity depend upon a quality and proper installation. Failure to properly install this unit could result in

undesirable operation and subsequent faults and potential failures.

Carefully follow all guidelines listed in the manual and industry best practices. Conform to all local code requirements. Contact your local

technical representative with any questions or concerns.

A.5 Product Inspection

Upon receiving the unit, inspect it for any damage from shipment. Claims for damage, either shipping or concealed, should be ﬁled

immediately with the shipping company. IMPORTANT: Check the unit model number, Cooling size, electrical characteristics, and accessories

to determine if they are correct.

A.5 Model Identiﬁcation Guide

Figure A.5 (Model Identiﬁcation Guide)

A.6 Unit Features

This Premium unit has many exciting features which are different than those found on standard PTAC models. The owner must be

familiar with these features in order to fully understand the operation and capability of the unit.

Intelligence–Your Premium unit has an on board computer that utilizes real time diagnostics to prolong the life of your unit. There is

an LED indicator on the control board, behind the front panel, that will ﬂash an error code if the unit has detected some kind of fault condition.

In many cases, the unit will automatically clear the fault condition and continue operating with no interruption. In some cases, the condition

cannot be cleared and the unit will require service. In those cases, an“Fx” failure mode will be displayed on the digital display. For a detailed

list of all error codes and “Fx” conditions, see section M.2, 6-Status LED Indicator Deﬁnitions for further details.

Memory–Your Premium unit also has memory. If power is lost, all of the control settings (setpoint, mode, fanspeed, on/off and

conﬁguration) are remembered. So when power is restored, the unit will start back up in the mode (and conﬁguration) it was in, when power

was lost.

Premium Sound-The unit has 2 fan motors. The outdoor fan motor will run at minimum speed for 10 seconds before the compressor

start to reduce any compressor starting noise.

Random Compressor Restart-To help prevent power surges after a power outage (from many of your PTACS starting at the same

time), the compressor is equipped with a 2:45 to 3:15 random restart delay feature. Whenever the unit is plugged in, or power has been

restarted, a random compressor restart will occur.

Compressor Protection-To prevent short cycling of the compressor and maximize it’s life, there is a random start-up delay of 3

minutes on the compressor and a minimum compressor run time of 3 minutes.

THE EXPERTS IN ROOM AIR CONDITIONING

2023 PTAC Component Model Number Reference Guide

PDH 09 K 3 SG R3 - A

P: PTAC

D: Digital

H/E: HP or Cool only

Approximate

Cooling

BTU/HR

Voltage

K: 230/208

R: 265V

Minor

Engineering

Revision

Heater Size:

0: 0Kw

3: 3.4Kw

5: 5Kw

Hidden Character

Series

R32

2023 Gree R32 Model # based on SG chassis

A. IMPORTANT SAFETY AND GENERAL INFORMATION

Automatic Room Freeze Protection–automatically keeps the temperature in the room from getting too cold, where water pipes might

freeze. If the unit is conﬁgured for the freeze protection feature to be active (which is the default condition), then whenever power is supplied to

the unit, and the unit senses the temperature is below 40°F, the fan motor and electric heater are turned on, and will warm the room to 50°F.If

Freeze protection is not required, change the conﬁguration switch to turn the feature off (see section J.3 Dip switches on unit conﬁguration).

Automatic defrost protection –When the outdoor temperature gets too cold (approx. 28°F) and the unit can no longer effectively

heat with the compressor, the unit will automatically switch to electric heating. The unit will then heat with electric heat until the outside

temperature rises enough (approx.40°F), so the compressor can be used again.

Automatic Quick Warmup (for heat pump models only)-If the room temperature falls to 5°F below the set point temperature, the

reverse cycle heat is shut off and the electric strip heat is turned on for one cycle, until heating is satisﬁed.

LED Indicator’s and Buttons The touch pad has buttons for POWER, UP, DOWN, COOL, HEAT, CONSTANT FAN, HIGH, LOW and AUTO.

It also has LEDs that correspond to the mode, fan speed and setpoint operation, to indicate the unit’s status. The LEDs above the CONSTANT

FAN, COOL, and HEAT mode buttons indicate what operating mode is active. The LEDs above the LOW, AUTO, and HIGH buttons indicate the fan

speed that is selected. The LED above the power button is the unit On/Off status LED. If the unit is in ON mode, the LED will be blue. If the unit is

OFF, the LED will go out.

Conﬁgure Fan to Optimize Selected Application Unit can be optimized to selected application by conﬁguring the fan to run in

continuous mode or cycle on and off with the compressor and electric heater. In cycle mode, fan will continue to run for a while after

compressor or electric heater stops in order blow off any residual heat or cool left on coil.

Unit Conﬁguration There are many different conﬁguration possibilities, through both dip switches and the digital keypad, that allow

you to conﬁgure the unit for your exact application. See section J.3 on unit conﬁguration for more details. Following are the conﬁguration

selections that have not previously been mentioned:

Temperature Display The unit can display in either °For °C

Indoor Temperature Sensor Biasing Optimize the room temperature sensor reading to your exact application (one for cooling and an

other for heating).

Emergency Heat (for Heat Pump Only) Disable the compressor during heating mode operation (heat only with Electric Heat).

Display Setpoint or Room Temperature The unit can be conﬁgured to display the room temperature or setpoint only, during heating

and cooling modes. See section J.3 on unit conﬁguration for more details.

Limit the Setpoint Range The unit can be conﬁgured to limit the controlling setpoint range. The display will always show the complete

setpoint range, but the controlling setpoint will be limited to the conﬁgured minimum and maximum setpoint selected. See section J.3 on unit

conﬁguration for more details.

Energy Management (Sometimes known as Front Desk Control) an input is provided so that the unit can be manually disabled from a

different location. If the unit detects 24vac on this input, it will automatically turn itself off. If no voltage is detected on the input, the unit will run

normally.

Wall Thermostat Control A wired wall thermostat can be connected to the unit. If it is, the unit must be conﬁgured to disable the

keypad. See section J.3 on wired inputs and unit conﬁguration for more details.

B. SPECIFICATIONS

B.1 Major Components and Dimensions

Discharge

grille

Wire screen

Outdoor

orifice

sheets

Coil tube

Accessory

outdoor

grille

Accessory

wall

sleeve

Basepan

Indoor

coil

Front

panel

PDXWS Wall Sleeve Dimensions

16” H x 42” x W x 13 ” D

Front Cover Dimensions

16” H x 42” x W x 7 ” D

Cut-out Dimensions

16 x 42

3/4

1/4 1/4

Figure B.1 (Major Components and Dimensions)

B.2 Product Data Information

Operation Environment

Operating Temperature Range

Indoor side DB/WB(°F) Outdoor side DB/WB(°F)

Maximum cooling 80/67 115/75

Maximum RC Heating 80/ - 75/65

Maximum Electric Heating 77/ - 77/ -

Ambient temperature range(outdoor temperature)for cooling is 64-115°F,

Ambient temperature range(outdoor temperature) for heat pump is 55-75°F,

Ambient temperature range(outdoor temperature)for Electric Heating is 19-77°F.

C. INSTALLATION OF THE UNIT

C.1 Pre-Installation Checkpoints

C.1.1 Before attempting any installation, carefully consider the following points:

Before attempting any installation, carefully consider the following points:

• Inspect all components and accessories for damage before and after installation.

• Remove the cardboard wall sleeve support and grill weatherboard.

• Check for proper wall sleeve installation in accordance with the wall sleeve installation instructions.

• Check for a subbase kit or other means of structural support which is required for ALL installations projecting more than 8” into room.

• Install the recommended Condensate Drain Kits for complete condensate removal.

• Ensure that the chassis is installed in a 16” high x 42” wide wall sleeve that is no deeper than 13 ¾”. A bafﬂe kit is required if the sleeve

exceeds that depth.

• Ensure that chassis and chassis front cover are installed and secured properly.

• Ensure that drapes, bed, bedspread, furniture, etc. DO NOT block either return or discharge air grilles.

• Inspect the condenser air inlet and outlet for any obstructions (shrubbery, etc.)

• Ensure that ‘reset’ button is pressed on LCD device (only on 230V models)

•

C.1.2 Important Considerations

C.1.3 Introduction to R32 Refrigerants

C.1.4 Additional Notes:

• The installation site should be in a well-ventilated condition.

• The sites for installing and maintaining an air conditioner using Refrigerant R32 should be free from open ﬁre or welding, smoking, drying

oven or any other heat source higher than 1000˚F which easily produces open ﬁre.

• When installing an air conditioner, it is necessary to take appropriate anti-static measures such as wear anti-static clothing and/or gloves.

• It is necessary to choose the site convenient for installation or maintenance wherein the air inlets and outlets of the indoor and outdoor

units should be not surrounded by obstacles or close to any heat source or combustible and/or explosive environment.

• If the indoor unit suffers refrigerant leak during the installation, all the personnel should go out till the refrigerant leaks completely for 15

minutes. If the product is damaged, it is a must to carry such damaged product back to the maintenance station and it is prohibited to weld

the refrigerant pipe or conduct other operations on the user’s site.

• It is necessary to choose the place where the inlet and outlet air of the indoor unit is even.

ASSEMBLING YOUR AIR CONDITIONER

Installation & Assembly Instructions

Important Considerations

1. Before installing the appliance,you must read the manual carefully to

get the safety informa and notes.

2. Unit refrigerant charge amount: refer to unit name plate marking.

3. A leak test must be done r the n is completed.

4. It is a must to do the safety  before maintaining or repairing

an air r using e refrigerant in order to ensure

that the e risk is reduced to minimum.

5. It is necessary to operate the machine under a controlled procedure

in order to ensure that any risk arising from the e gas or

vapor during the  is reduced to minimum.

Introduction to Refrigerants R32

1.Site Safety2.Operation Safety

3.Installation Safety

- Refrigerant Leak Detector

- Appropriate  n

- The lepicture is the  diagram of a refrigerant leak detector.

Please note that:

1. The inst site should be in a d .

2. The sites for installing and maintaining an air r using Refrigerant R32 should be

free from open  or welding, smoking, drying oven or any other heat source higher than

548 which easily produces open .

3. When installing an air , it is necessary to take appropriate t measures

such as wear  clothing and/or gloves.

4. It is necessary to choose the site convenient for  or maintenance wherein the air

inlets and outlets of the indoor and outdoor units should be not surrounded by obstacles

or close to any heat source or c and/or explosive environment.

5. If the indoor unit suers refrigerant leak during the , all the personnel should go

out  the refrigerant leaks completely for 15 minutes. If the product is damaged, it is a

must to carry such damaged product back to the maintenance s and it is prohibited to

weld the refrigerant pipe or conduct other  on the user's site.

6. It is necessary to choose the place where the inlet and outlet air of the indoor unit is even.

7. It is necessary to avoid the places where there are other electrical products, power switch

plugs and sockets, kitchen cabinet, bed, sofa and other valuables right under the lines on

two sides of the indoor unit, and also prevent mechanical damage from occurring.

Open Flames

Prohibited



Necessary

Mind 

Electricity

Must Wear

 Clothing

and c

Gloves

Don't Use

Mobile Phone
