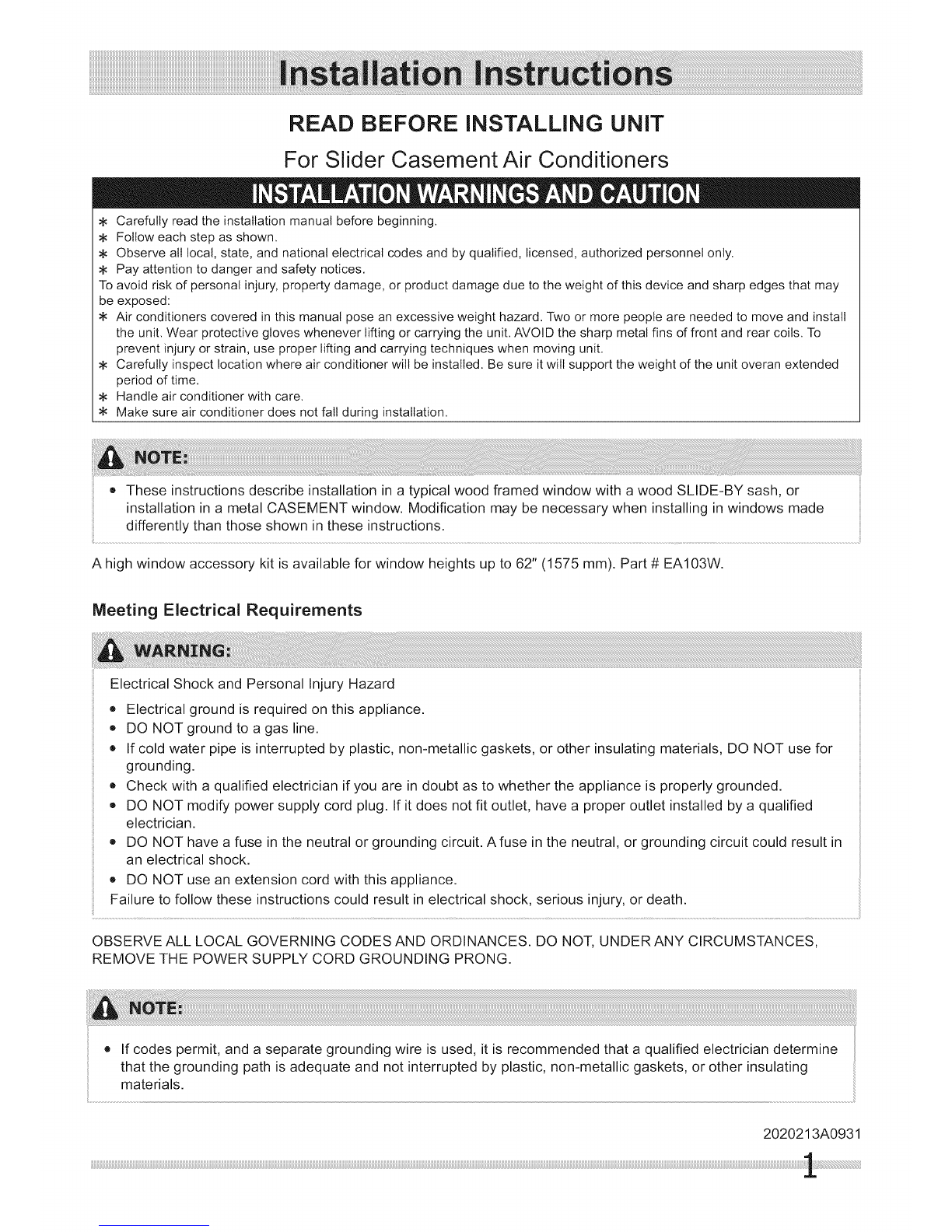

READ BEFORE iNSTALLiNG UNiT

For Slider Casement Air Conditioners

Carefully read the installation manual before beginning.

Follow each step as shown.

Observe all local, state, and national electrical codes and by qualified, licensed, authorized personnelonly.

Pay attention to danger and safety notices.

Toavoid risk of personal injury, propertydamage, or product damage due to the weight of this device and sharp edgesthat may

be exposed:

Air conditionerscovered in this manual posean excessive weight hazard. Two or more people are needed to move and install

the unit. Wear protective gloves whenever lifting or carrying the unit.AVOID the sharp metal fins of front and rear coils. To

prevent injury or strain, use proper lifting and carrying techniques when moving unit.

Carefully inspect location where air conditioner wilt be installed. Be sure itwill support the weight of the unitoveran extended

period of time.

Handle air conditioner with care.

Make sureair conditioner does not fall during installation.

® These instructions describe installation in a typical wood framed window with a wood SLIDE-BY sash, or

installation in a metal CASEMENT window. Modification may be necessary when installing in windows made

differently than those shown in these instructions.

A high window accessory kit is available for window heights up to 62" (1575 mm). Part # EA103W.

Meeting Electrical Requirements

Electrical Shock and Personal Injury Hazard

• Electrical ground is required on this appliance.

o DO NOT ground to a gas line.

o If cold water pipe is interrupted by plastic, non-metallic gaskets, or other insulating materials, DO NOT use for

grounding.

• Check with a qualified electrician if you are in doubt as to whether the appliance is properly grounded.

• DO NOT modify power supply cord plug. If it does not fit outlet, have a proper outlet installed by a qualified

electrician.

o DO NOT have a fuse in the neutral or grounding circuit. Afuse in the neutral, or grounding circuit could result in

an electrical shock.

® DO NOT use an extension cord with this appliance.

Failure to follow these instructions could result in electrical shock, serious injury, or death.

OBSERVE ALL LOCAL GOVERNING CODES AND ORDINANCES. DO NOT, UNDERANY CIRCUMSTANCES,

REMOVE THE POWER SUPPLY CORD GROUNDING PRONG.

• If codes permit, and a separate grounding wire is used, it is recommended that a qualified electrician determine

that the grounding path is adequate and not interrupted by plastic, non-metallic gaskets, or other insulating

materials.

2020213A0931

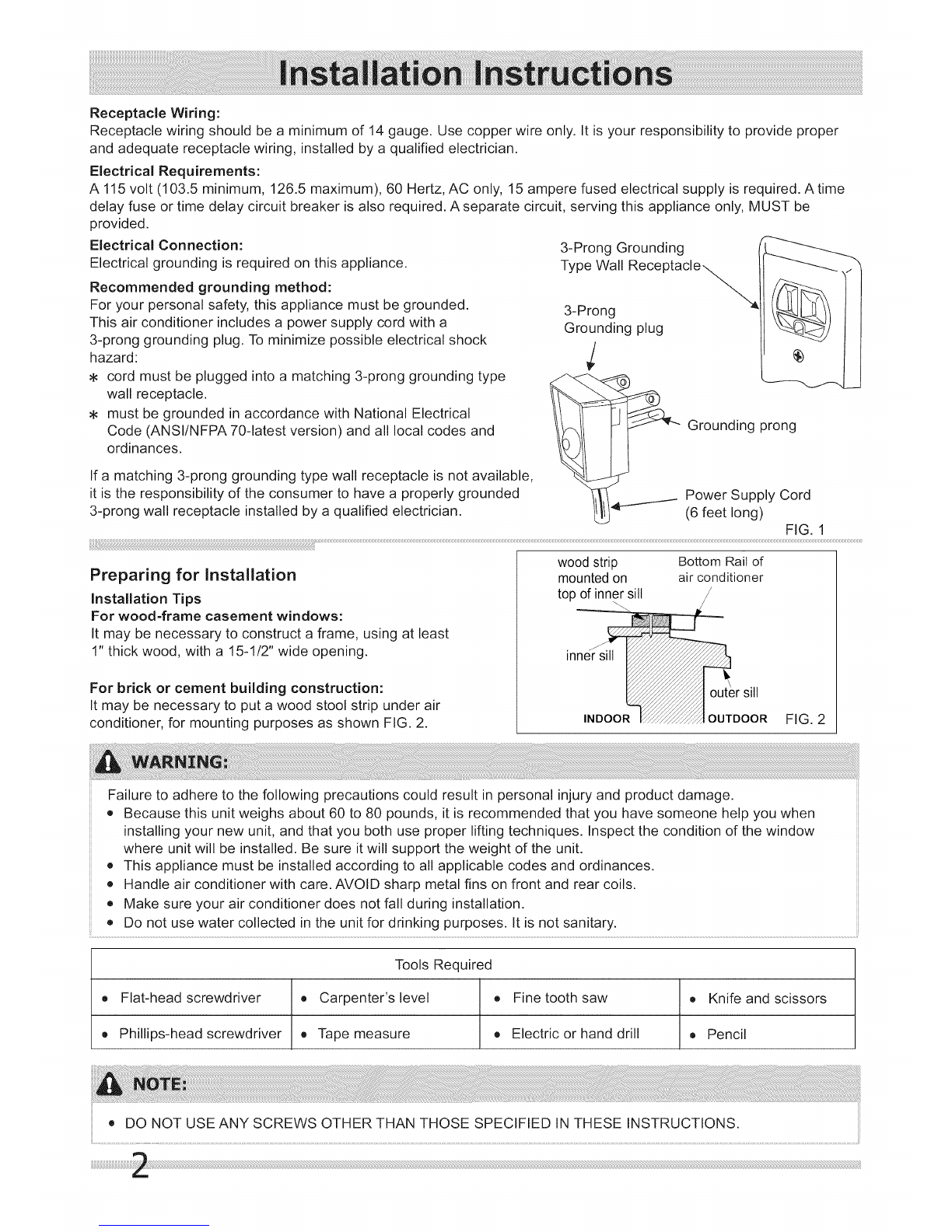

ReceptacleWiring:

Receptaclewiringshouldbeaminimumof14gauge.Usecopperwireonly.Itisyourresponsibilitytoprovideproper

andadequatereceptaclewiring,installedbyaqualifiedelectrician.

ElectricalRequirements:

A115volt(103.5minimum,126.5maximum),60Hertz,AConly,15amperefusedelectricalsupplyisrequired.Atime

delayfuseortimedelaycircuitbreakerisalsorequired.Aseparatecircuit,servingthisapplianceonly,MUSTbe

)rovided.

ElectricalConnection:

Electricalgroundingisrequiredonthisappliance.

Recommendedgroundingmethod:

Foryourpersonalsafety,thisappliancemustbegrounded.

Thisairconditionerincludesapowersupplycordwitha

3-pronggroundingplug.Tominimizepossibleelectricalshock

hazard:

cordmustbepluggedintoamatching3-pronggroundingtype

wallreceptacle.

mustbegroundedinaccordancewithNationalElectrical

Code(ANSI/NFPA70-latestversion)andalllocalcodesand

ordinances.

Ifamatching3-pronggroundingtypewallreceptacleisnotavailable,

itistheresponsibilityoftheconsumertohaveaproperlygrounded

3-prongwallreceptacleinstalledbyaqualifiedelectrician.

3-ProngGrounding

TypeWallRece

3-Prong

Groundingplug

Groundingprong

Power Supply Cord

(6 feet long) FIG. 1

Preparing for installation

Installation Tips

For wood=frame casement windows:

It may be necessary to construct a frame, using at least

1"thick wood, with a 15-1/2" wide opening.

For brick or cement building construction:

It may be necessary to put a wood stool strip under air

conditioner, for mounting purposes as shown FIG. 2.

wood strip Bottom Rail of

mounted on air conditioner

top of inner silt

inner st

INDOOR

;r silt

OUTDOOR FIG. 2

Failure to adhere to the following precautions could result in personal injury and product damage.

® Because this unit weighs about 60 to 80 pounds, it is recommended that you have someone help you when

installing your new unit, and that you both use proper lifting techniques. Inspect the condition of the window

where unit will be installed. Be sure it will support the weight of the unit.

• This appliance must be installed according to all applicable codes and ordinances.

Handle air conditioner with care. AVOID sharp metal fins on front and rear coils.

Make sure your air conditioner does not fall during installation.

Do not use water collected in the unit for drinking purposes. It is not sanitary.

Tools Required

• Flat-head screwdriver • Carpenter's level • Fine tooth saw _ Knife and scissors

Phillips-head screwdriver • Tape measure _ Electric or hand drill • Pencil

DO NOT USE ANY SCREWS OTHER THAN THOSE SPECIFIED IN THESE INSTRUCTIONS.

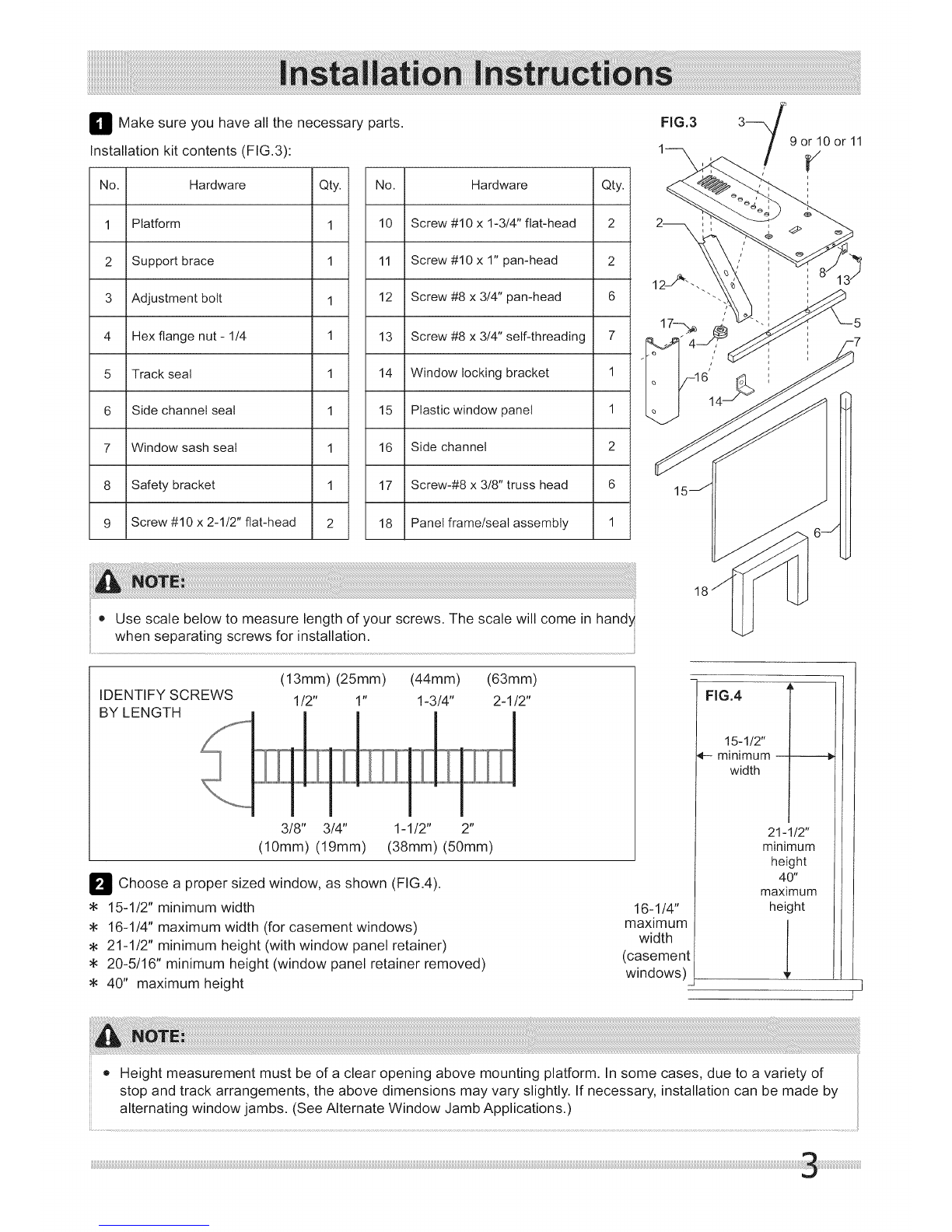

II!1 Make sure you have all the necessary parts.

Installation kit contents (FIG.3):

No.

Hardware Qty. No.

Platform 1 10

Support brace 1 11

Adjustment bolt 1 12

Hex flange nut- 1/4 1 13

Track seal 1 14

Side channel seal 1 15

Window sash seat 1 16

Safety bracket 1 17

Screw #1 0 x 2-1/2" flat-head 2 18

Hardware Qty.

Screw #10 x 1-3/4" flat-head 2

Screw #10 x 1" pan-head 2

Screw #8 x 314" pan-head 6

Screw #8 x 314" self-threading 7

Window locking bracket 1

Plastic window panel 1

Side channel 2

Screw-#8 x 318" truss head 6

Panel frame/seal assembly 1

FIG.3 9 or 10or 11

• Use scale below to measure length of your screws. The scale will come in handy

when separating screws for installation.

IDENTIFY SCREWS

BY LENGTH

ZIZI-

(13mm) (25mm) (44mm) (63mm)

1/2" 1" 1-3/4" 2-1/2"

3/8" 3/4" 1-1/2" 2"

(10mm) (19mm) (38mm) (50mm)

I_ Choose a proper sized window, as shown (FIG.4).

15-1/2" minimum width

16-1/4" maximum width (for casement windows)

21-1/2" minimum height (with window panel retainer)

20-5/16" minimum height (window panel retainer removed)

40" maximum height

16-1/4"

maximum

width

(casement

windows)

FIG.4

15-1/2"

_-- minimum --

width

21-1/2"

minimum

height

40"

maximum

height

• Height measurement must be of a clear opening above mounting platform. In some cases, due to a variety of

stop and track arrangements, the above dimensions may vary slightly. If necessary, installation can be made by

alternating window jambs. (See Alternate Window Jamb Applications.)

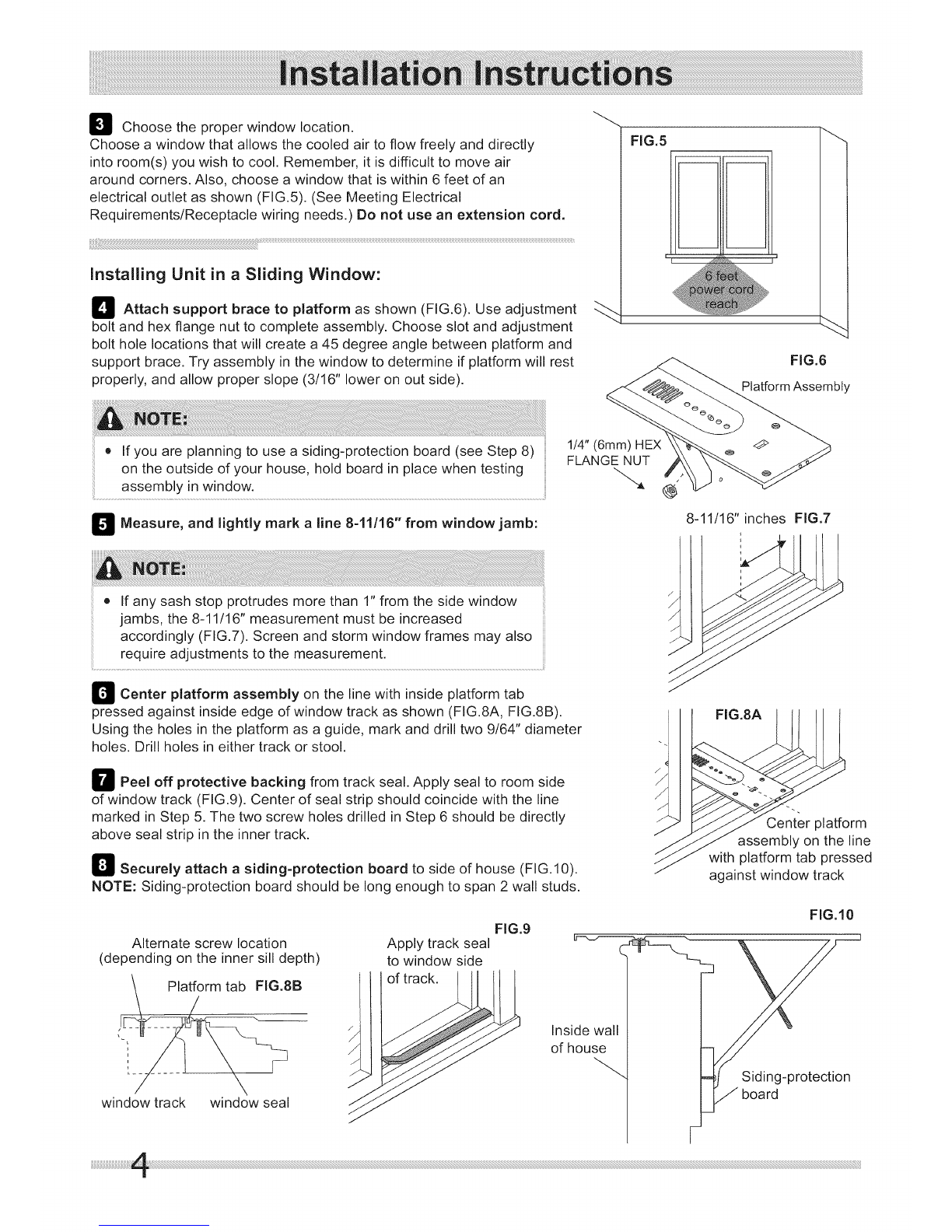

BChoose the proper window location.

Choose a window that allows the cooled air to flow freely and directly

into room(s) you wish to cool. Remember, it is difficult to move air

around corners. Also, choose a window that is within 6 feet of an

electrical outlet as shown (FIG.5). (See Meeting Electrical

Requirements/Receptacle wiring needs.) Do not use an extension cord.

Installing Unit in a Sliding Window:

_ Attach support brace to p_atform as shown (FIG.6). Use adjustment

bolt and hex flange nut to complete assembly. Choose slot and adjustment

bolt hole locations that will create a 45 degree angle between platform and

support brace. Try assembly in the window to determine if platform will rest

properly, and allow proper slope (3/16" lower on out side).

FIG.5

Platform Assembly

o If you are planning to use a siding-protection board (see Step 8)

on the outside of your house hold board in place when testing

assembly in window.

_Measure, and lightly mark a line 8-11/16" from window jamb:

1/4"(6mm) HEX

FLANGE NUT

8-11/16" inches FI6.7

If any sash stop protrudes more than 1" from the side window

jambs, the 8-11/16" measurement must be increased

accordingly (FIG.7). Screen and storm window frames may also

require adjustments to the measurement.

_ Center platform assembly on the line with inside platform tab

pressed against inside edge of window track as shown (FIG.8A, FIG.8B).

Using the holes in the platform as a guide, mark and drill two 9/64" diameter

holes. Drill holes in either track or stool.

_Peel off protective backing from track seal. Apply seal to room side

of window track (FIG.9). Center of seal strip should coincide with the line

marked in Step 5. The two screw holes drilled in Step 6 should be directly

above seal strip in the inner track.

_ Securely attach a siding-protection board to side of house (FIG.10).

NOTE: Siding-protection board should be long enough to span 2 wall studs.

Alternate screw location

(depending on the inner sill depth)

Platform tab FIG.8B

window track window seal

FIG.9

Apply track seal

to window side

of track. _

FIG.8A

Center platform

assembly on the line

with platform tab pressed

against window track

FIG.10

_hde_'w_ n

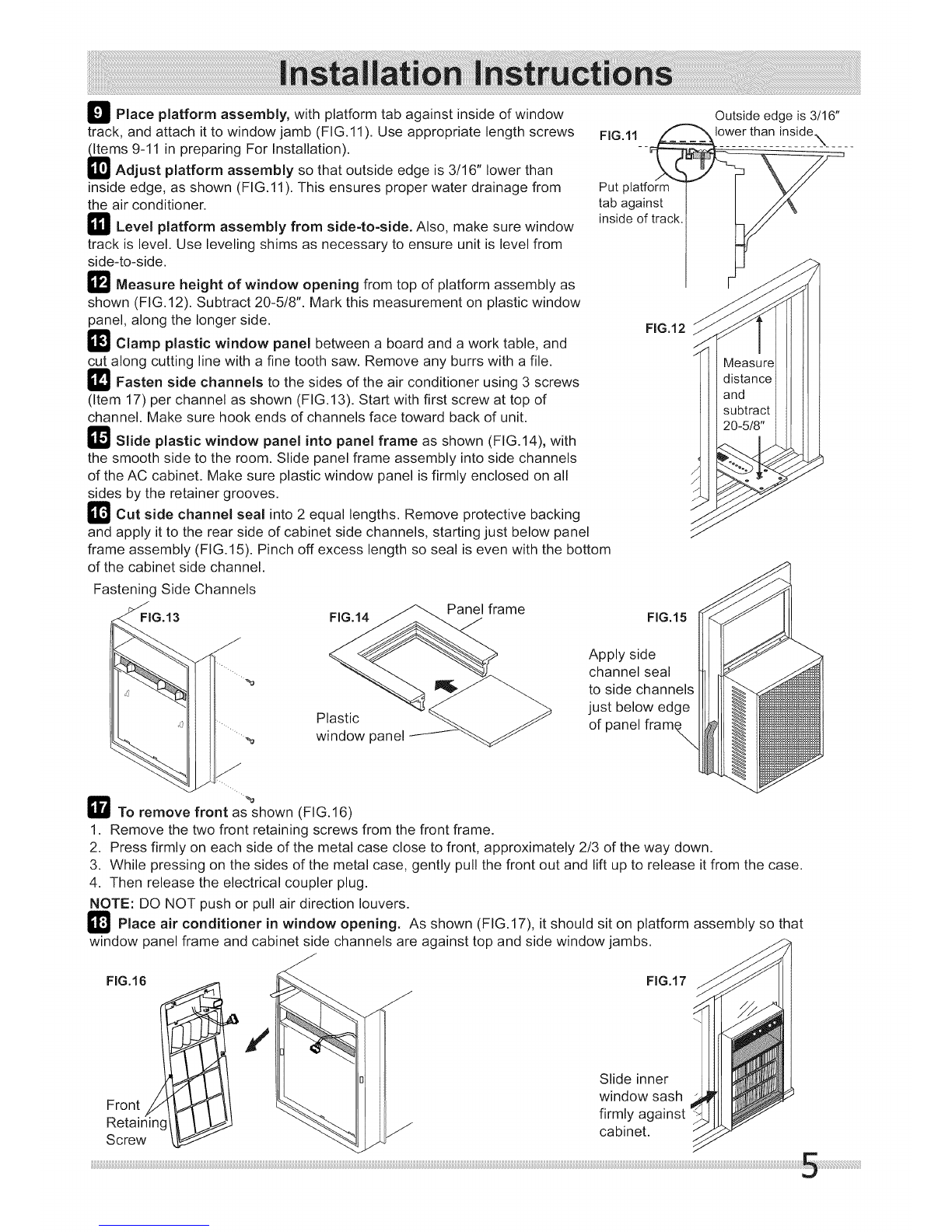

DPlace platform assembly, with platform tab against inside of window

track, and attach it to window jamb (FIG. 11). Use appropriate length screws

mAs9-11 in preparing For Installation).

djust platform assembly so that outside edge is 3/16" lower than

inside edge, as shown (FIG.11). This ensures proper water drainage from

the air conditioner.

_Level platform assembly from side-to-side. Also, make sure window

track is level. Use leveling shims as necessary to ensure unit is level from

side-to-side.

_Measure height of window opening from top of platform assembly as

shown (FIG.12). Subtract 20-5/8". Mark this measurement on plastic window

panel, along the longer side.

_ Clamp plastic window panel between a board and a work table, and

cut along cutting line with a fine tooth saw. Remove any burrs with a file.

_ Fasten side channels to the sides of the air conditioner using 3 screws

(Item 17) per channel as shown (FIG.13). Start with first screw at top of

channel. Make sure hook ends of channels face toward back of unit.

_ Slide plastic window panel into panel frame as shown (FIG.14), with

the smooth side to the room. Slide panel frame assembly into side channels

of the AC cabinet. Make sure plastic window panel is firmly enclosed on all

sides by the retainer grooves.

_Cut side channel seal into 2 equal lengths. Remove protective backing

and apply it to the rear side of cabinet side channels, starting just below panel

frame assembly (FIG.15). Pinch off excess length so seal is even with the bottom

of the cabinet side channel.

FIG.11

Put platform

tab against

inside of track.

FIG.12

Outside edge is 3/16"

lower than inside\

Fastening Side Channels

J>FFIG.13

_ame

,ast,

window panel _ _

FIG.15

Apply side

channel seal

to side channels

just below edge

of panel frame

JFIG.17

Slide inner

window sash

firmly against

cabinet.

Front _//_ _/

Retaining/_ ,_

Screw

E To remove front as shown (FIG.16)

1. Remove the two front retaining screws from the front frame.

2. Press firmly on each side of the metal case close to front, approximately 2/3 of the way down.

3. While pressing on the sides of the metal case, gently pull the front out and lift up to release it from the case.

4. Then release the electrical coupler plug.

NOTE: DO NOT push or pull air direction louvers.

_ Place air conditioner in window opening. As shown (FIG.17), it should sit on platform assembly so that

window panel frame and cabinet side channels are against top and side window jambs.

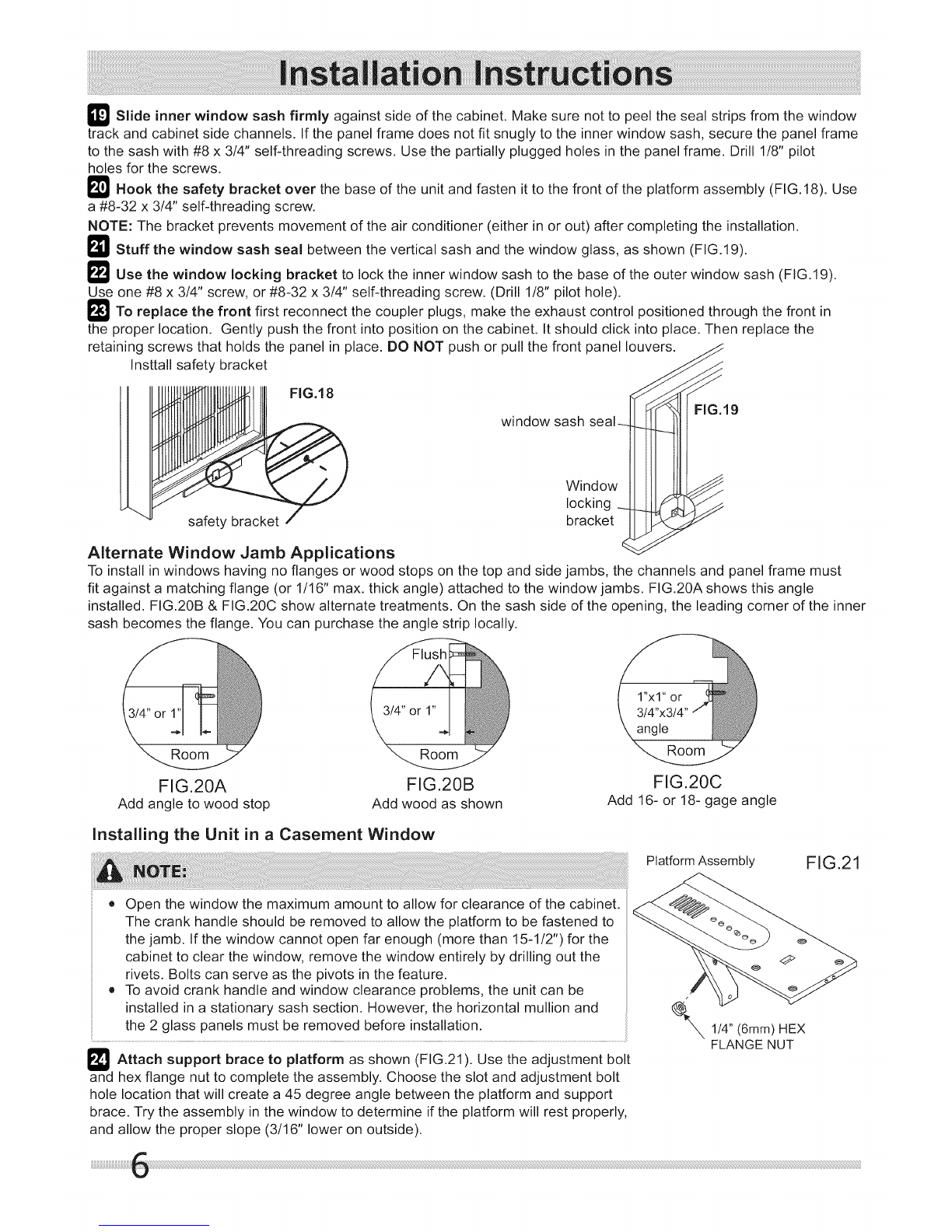

II_ Slideinnerwindowsashfirmlyagainstsideofthecabinet.Makesurenottopeelthesealstripsfromthewindow

trackandcabinetsidechannels.Ifthepanelframedoesnotfitsnuglytotheinnerwindowsash,securethepanelframe

tothesashwith#8x3/4"self-threadingscrews.Usethepartiallypluggedholesinthepanelframe.Drill118"pilot

holesforthescrews.

_Hook thesafetybracketoverthebaseoftheunitandfastenittothefrontoftheplatformassembly(FIG.18).Use

a#8-32x3/4"self-threadingscrew.

NOTE:Thebracketpreventsmovementoftheairconditioner(eitherinorout)aftercompletingtheinstallation.

_Stuff thewindowsashsealbetweentheverticalsashandthewindowglass,asshown(FIG.19).

_Use thewindowlockingbrackettolocktheinnerwindowsashtothebaseoftheouterwindowsash(FIG.19).

Useone#8x3/4"screw,or#8-32x3/4"self-threadingscrew.(Drill118"pilothole).

_To replacethefrontfirstreconnectthecouplerplugs,maketheexhaustcontrolpositionedthroughthefrontin

theproperlocation.Gentlypushthefrontintopositiononthecabinet.Itshouldclickintoplace.Thenreplacethe

retainingscrewsthatholdsthepanelinplace.DONOTpushorpullthefrontpanellouvers.

Insttallsafetybracket FIG.18 windowsashseal FIG.19

Window

locking

safetybracket bracket

Alternate Window Jamb Applications

To install in windows having no flanges or wood stops on the top and side jambs, the channels and panel frame must

fit against a matching flange (or 1/16" max. thick angle) attached to the window jambs. FIG.20A shows this angle

installed. FIG.20B & FIG.20C show alternate treatments. On the sash side of the opening, the leading corner of the inner

sash becomes the flange. You can purchase the angle strip locally.

FIG.20A FIG.20B FIG.20C

Add angle to wood stop Add wood as shown Add 16- or 18- gage angle

Platform Assembly FIG.21

Installing the Unit in a Casement Window

• Open the window the maximum amount to allow for clearance of the cabinet.

The crank handle should be removed to allow the platform to be fastened to

the jamb. If the window cannot open far enough (more than 15-1/2 ) for the

cabinet to clear the window, remove the window entirely by drilling out the

rivets. Bolts can serve as the pivots in the feature.

o To avoid crank handle and window clearance problems, the unit can be

installed in a stationary sash section. However the horizontal mullion and

the 2 glass panels must be removed before installation.

_ Attach support brace to platform as shown (FIG.21). Use the adjustment bolt

and hex flange nut to complete the assembly. Choose the slot and adjustment bolt

hole location that will create a 45 degree angle between the platform and support

brace. Try the assembly in the window to determine if the platform will rest properly,

and allow the proper slope (3/16" lower on outside).

1/4" (6mm) HEX

FLANGE NUT

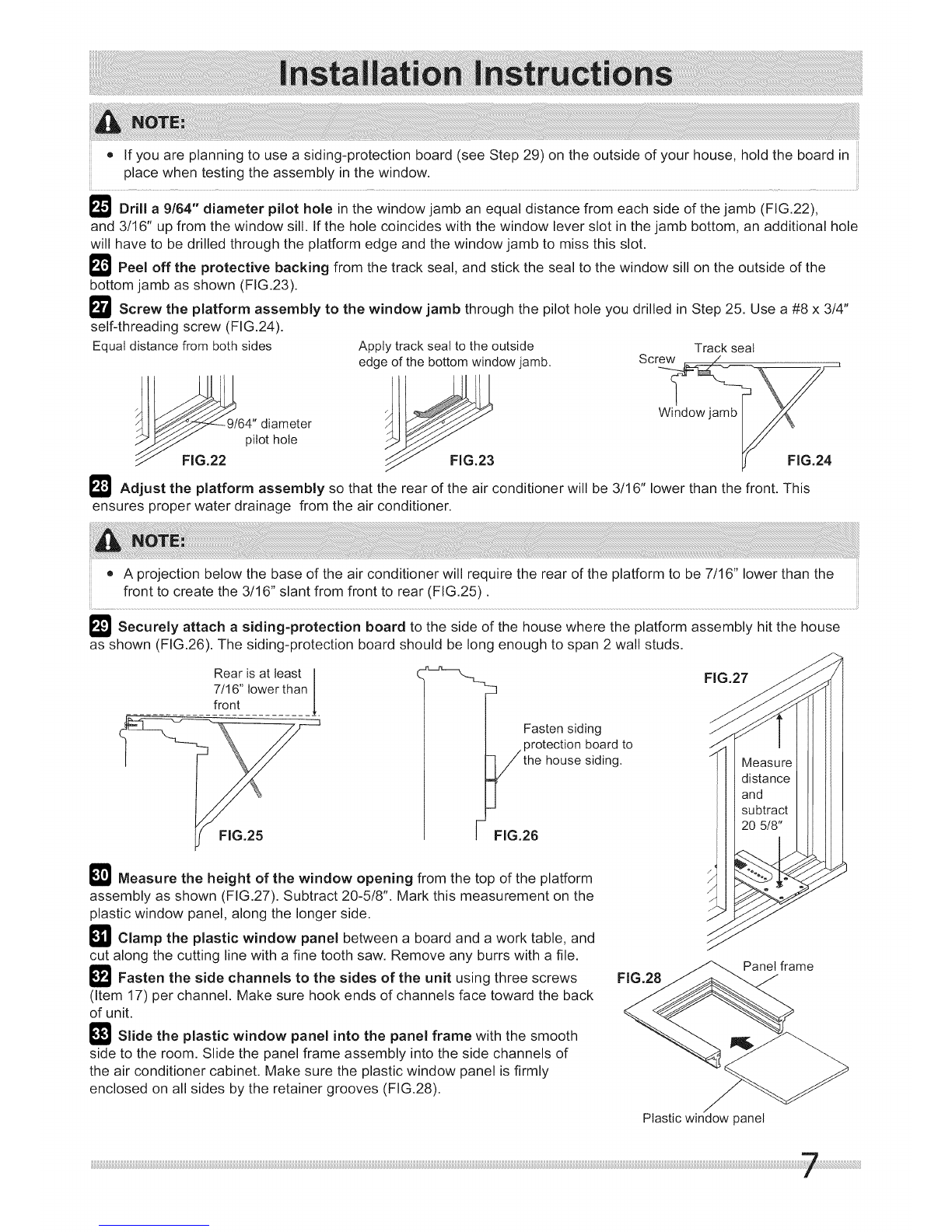

• If you are planning to use a siding-protection board (see Step 29) on the outside of your house, hold the board in

place when testing the assembly in the window.

_ Drill a 9/64" diameter pilot hole in the window jamb an equal distance from each side of the jamb (FIG.22),

and 3/16" up from the window sill. If the hole coincides with the window lever slot in the jamb bottom, an additional hole

will have to be drilled through the platform edge and the window jamb to miss this slot.

_Peel off the protective backing from the track seal, and stick the seal to the window sill on the outside of the

bottom jamb as shown (FIG.23).

_ Screw the platform assembly to the window jamb through the pilot hole you drilled in Step 25. Use a #8 x 3/4"

self-threading screw (FIG.24).

Equal distance from both sides Apply track seal to the outside Track seat

edge of the bottomwindow jamb. Screw /

_[_9/" ._._. Windowjam__b _

64 diameter

Y/_/F/_ pilot hole

FIG.22 _FIG,24

_ Adjust the platform assembly so that the rear of the air conditioner will be 3/16" lower than the front. This

ensures proper water drainage from the air conditioner.

• A projection below the base of the air conditioner will require the rear of the platform to be 7/16" lower than the

front to create the 3/16" slant from front to rear (FIG.25).

_ Securely attach a siding-protection board to the side of the house where the platform assembly hit the house

as shown (FIG.26). The siding-protection board should be long enough to span 2 wall studs.

Rear is at least

7/16" lower than

front

FIG.25

Fasten siding

protection board to

the house siding.

FIG,26

_Measure the height of the window opening from the top of the platform

assembly as shown (FIG.27). Subtract 20-5/8". Mark this measurement on the

plastic window panel, along the longer side.

W Clamp the plastic window panel between a board and a work table, and

cut along the cutting line with a fine tooth saw. Remove any burrs with a file.

_ Fasten the side channels to the sides of the unit using three screws

(Item 17) per channel. Make sure hook ends of channels face toward the back

of unit.

_ Slide the plastic window panel into the panel frame with the smooth

side to the room. Slide the panel frame assembly into the side channels of

the air conditioner cabinet. Make sure the plastic window panel is firmly

enclosed on all sides by the retainer grooves (FIG.28).

FIG.27

F_anel frame

Plastic window panel

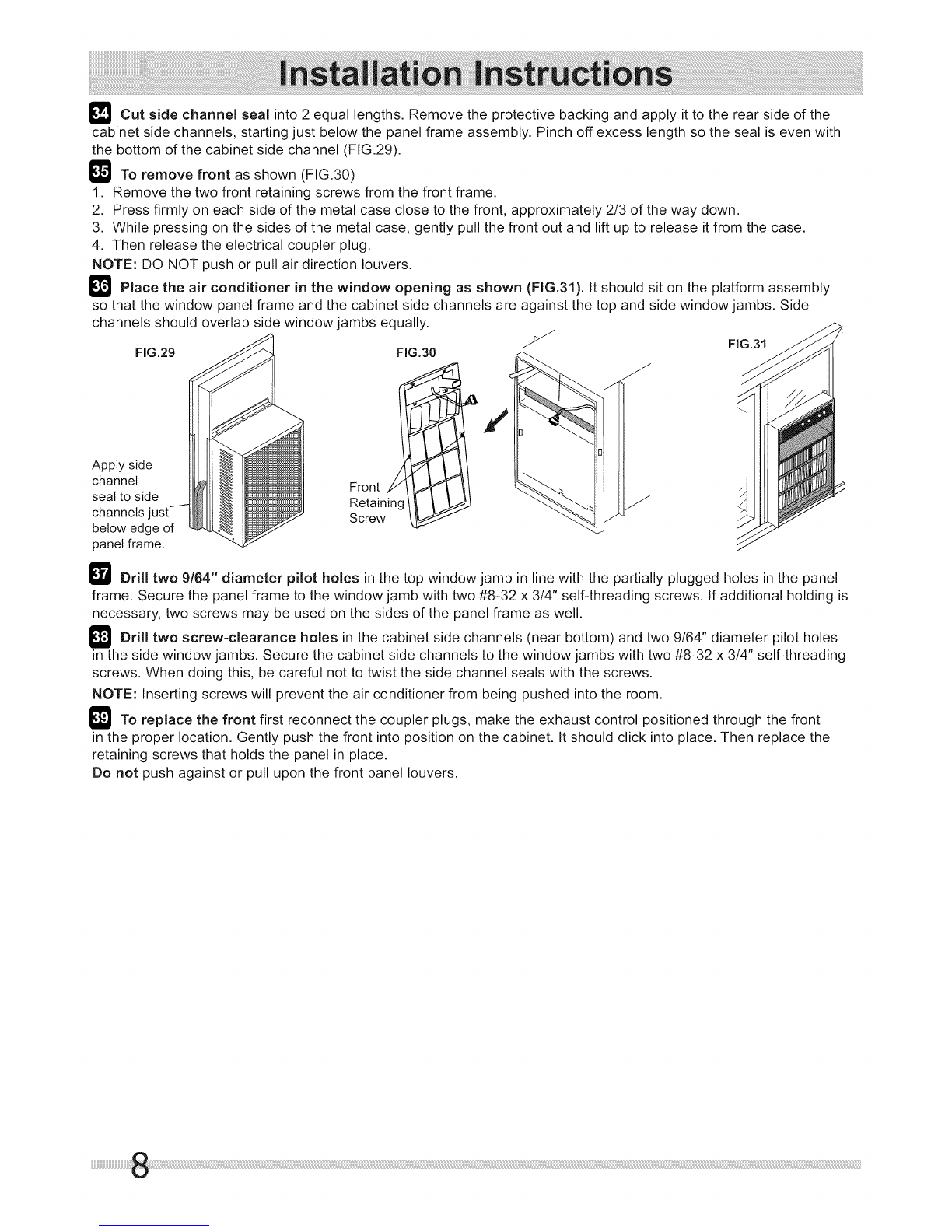

_Cut side channel seal into 2 equal lengths. Remove the protective backing and apply it to the rear side of the

cabinet side channels, starting just below the panel frame assembly. Pinch off excess length so the seal is even with

the bottom of the cabinet side channel (FIG.29).

_To remove front as shown (FIG.30)

1. Remove the two front retaining screws from the front frame.

2. Press firmly on each side of the metal case close to the front, approximately 2/3 of the way down.

3. While pressing on the sides of the metal case, gently pull the front out and lift up to release it from the case.

4. Then release the electrical coupler plug.

NOTE: DO NOT push or pull air direction louvers.

_Place the air conditioner in the window opening as shown (FIG.31). It should sit on the platform assembly

so that the window panel frame and the cabinet side channels are against the top and side window jambs. Side

channels should overlap side window jambs equally.

FIG.29

Apply side

channel

seal to side

channels

below edge of

panel frame.

FIG.30

¢,

Front

Retaining/_, /_--_.,-_J

Screw_

FIG.31

_ Drill two 9/64" diameter pilot holes in the top window jamb in line with the partially plugged holes in the panel

frame. Secure the panel frame to the window jamb with two #8-32 x 3/4" self-threading screws. If additional holding is

necessary, two screws may be used on the sides of the panel frame as well.

_ Drill two screw-clearance holes the cabinet side channels (near bottom) and two 9/64" diameter pilot holes

in the side window jambs. Secure the cabinet side channels to the window jambs with two #8-32 x 3/4" self-threading

screws. When doing this, be careful not to twist the side channel seals with the screws.

NOTE: Inserting screws will prevent the air conditioner from being pushed into the room.

_To replace the front first reconnect the coupler plugs, make the exhaust control positioned through the front

in the proper location. Gently push the front into position on the cabinet. It should click into place. Then replace the

retaining screws that holds the panel in place.

Do not push against or pull upon the front panel louvers.

Dieses Handbuch passt für folgende Modelle

Andere Frigidaire Klimaanlage Handbücher

Frigidaire

Frigidaire GAC122P1A - GIBSON 12000BTU 115V 9.8EER3 SPD 8 WAY AIR... Bedienungsanleitung

Frigidaire

Frigidaire FAX054P7A6 Kurzanleitung

Frigidaire

Frigidaire FAS25EQ2A2 Kurzanleitung

Frigidaire

Frigidaire CRA106BT110 Betriebsanleitung

Frigidaire

Frigidaire FRA064VU1 Betriebsanleitung

Frigidaire

Frigidaire GAC102P1A - GIBSON 10000BTU 115V 9.2A 9.8E3 SPD 8 WAY AIR... Kurzanleitung

Frigidaire

Frigidaire FRA08EZT111 Betriebsanleitung

Frigidaire

Frigidaire 220219A174 Bedienungsanleitung

Frigidaire

Frigidaire FAS295J2A4 Kurzanleitung

Frigidaire

Frigidaire FAK085R7V - Slider/Casemen Room Air... Bedienungsanleitung

Frigidaire

Frigidaire LRA057XT716 Betriebsanleitung

Frigidaire

Frigidaire FRA103BT113 Bedienungsanleitung

Frigidaire

Frigidaire FFRS08C3Q10 Betriebsanleitung

Frigidaire

Frigidaire FRA052XT7 Bedienungsanleitung

Frigidaire

Frigidaire FAC105L1A2 Bedienungsanleitung

Frigidaire

Frigidaire FAX052P7A - Window Unit Air Conditioner Last One... Bedienungsanleitung

Frigidaire

Frigidaire FRA122CT110 Betriebsanleitung

Frigidaire

Frigidaire FAA084P7 Bedienungsanleitung

Frigidaire

Frigidaire FFRZ0633Q13 Betriebsanleitung

Frigidaire

Frigidaire Home Comfort FRA09EPT1 Montageanleitung

Frigidaire

Frigidaire FAS296N2A Bedienungsanleitung

Frigidaire

Frigidaire FRA060XT70 Bedienungsanleitung

Frigidaire

Frigidaire LRA127CT10 Bedienungsanleitung

Frigidaire

Frigidaire LRA11PZW114 Betriebsanleitung

Beliebte Klimaanlage Handbücher anderer Marken

Spheros

Spheros CC 355 Bedienungsanleitung

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE Bedienungsanleitung

Panasonic

Panasonic CS-E12HKEW Bedienungsanleitung

nedis

nedis ACMB1WT7 Bedienungsanleitung

Samsung

Samsung AR KV Series Leitfaden

Daikin

Daikin FCFV50A Bedienungsanleitung

Fujitsu

Fujitsu Inverter ASBA30JFC Bedienungsanleitung

Toshiba

Toshiba RAS-M10SMUV-E Bedienungsanleitung

Daikin

Daikin FXLQ20MAVE Bedienungsanleitung

Hitachi

Hitachi RAS-E24CAK Bedienungsanleitung

CIAT

CIAT Magister 2 Series Leitfaden

Bestron

Bestron AAC6000 Bedienungsanleitung

Hisense

Hisense 7K Technisches Handbuch

Samsung

Samsung AS09HM3N Bedienungsanleitung

Soleus Air

Soleus Air GB-PAC-08E4 Bedienungsanleitung

McQuay

McQuay MCK020A Bedienungsanleitung

Webasto

Webasto Frigo Top 25 DS Bedienungsanleitung

Mitsubishi Electric

Mitsubishi Electric MSC-GE20VB Bedienungsanleitung
