Frigidaire FAA064N7A Bedienungsanleitung

Product No. FAA064N7A1 FAA064N7A2

Series MS II MS II

Volts 115 115

BTU-Cooling 6000 6000

Owner's Guide 2202039823 2202039823

Market North America North America

M40L0002.eps M40C0003.eps M40M0001.eps Remote Control wiring diagram.eps

ELECTROLUX HOME PRODUCTS, INC.

P.O. Box 212378, Augusta, GA 30917

Publication No.

5995405585

04/03/29

(EN/SERVICE/KC)

099

ROOM AIR

CONDITIONER

Model No.

FAA064N7A

Publication No: 5995405585 FAA064N7A

03/04 2

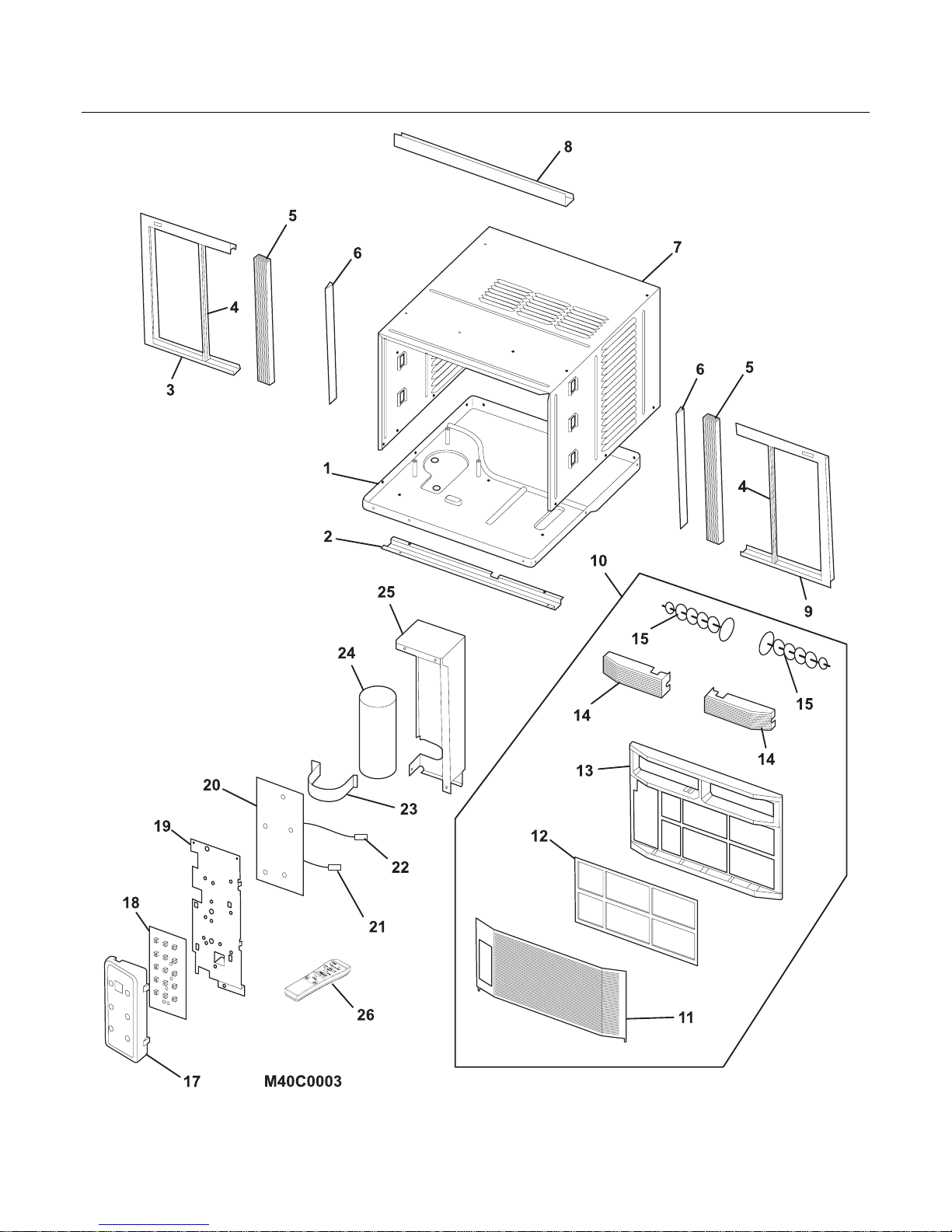

CABINET, FRONT, CONTROLS

FAA064N7A Publication No: 5995405585

# Functional Parts 3 03/04

* Non-Illustrated Parts

CABINET, FRONT, CONTROLS

Model Index: AFAA064N7A (FAA064N7A1)

BFAA064N7A (FAA064N7A2)

POS. NO PART NO. DESCRIPTION

1 5304437072 A - Base, unit chassis

1 5304437067 - B Base, unit chassis

2 5304437068 A B Rail, shutter track, bottom

3 5304437055 A B Frame, shutter panel, LH

4 5304437052 A B Retainer, shutter lock

5 5304437053 A B Shutter, accordian panel

6 5304437057 A B Retainer, shutter mount, cabinet sides

7 5304437071 A B Cabinet, wrapper/sleeve

8 5304437069 A B Rail, shutter track, top

9 5304437054 A B Frame, shutter panel, RH

10 5304437065 A B Front Assembly, complete panel, includes

11 5304437059 A B Panel, front grille, tilt-out

12 5304437062 A B Filter, air, plastic frame

13 5304437058 A B Frame, front assembly

14 5304437061 A B Louver, horizontal

15 5304437060 A B Louver, vertical

17 5304436536 A B Enclosure, control, pcb display

17 5304436537 A B Control Panel, display, electronic

18 # 5304437075 A B PC Board, display/input

19 5304437066 A B Panel, ctrl mtg board

20 # 5304436531 A B PC Board, control/power

21 # 5304436543 A B Sensor, ambient temp

22 # 5304436542 A B Sensor, evap temp, defrost

23 5304436530 A B Strap, capacitor mtg.

24 # 5304437111 A - Capacitor

24 # 5304437110 - B Capacitor

25 5304437070 A B Control Box

26 # 5304436595 A B Remote Control, transmitter

Publication No: 5995405585 FAA064N7A

03/04 4

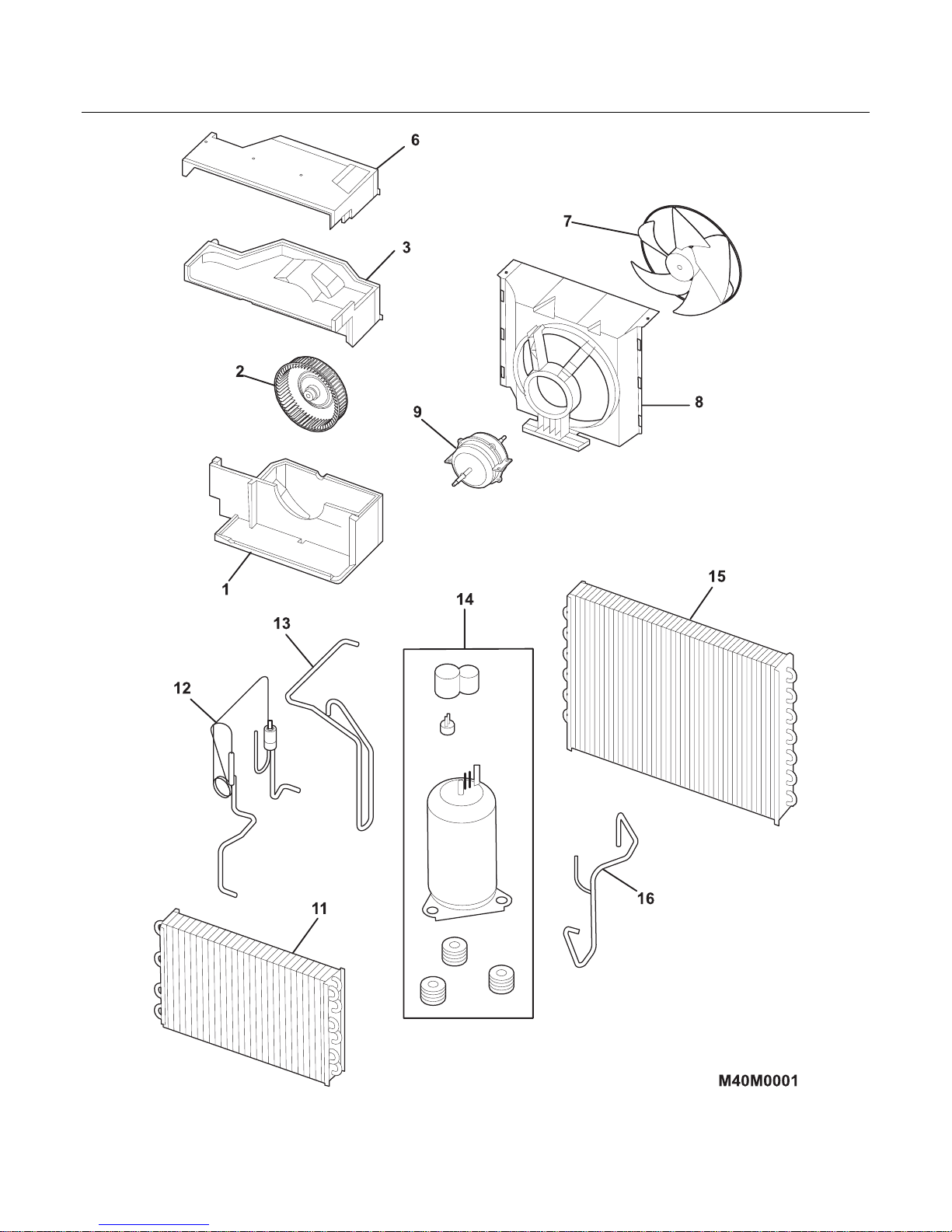

COOLING & AIR FLOW SYSTEMS

FAA064N7A Publication No: 5995405585

# Functional Parts 5 03/04

* Non-Illustrated Parts

COOLING & AIR FLOW SYSTEMS

Model Index: AFAA064N7A (FAA064N7A1)

BFAA064N7A (FAA064N7A2)

POS. NO PART NO. DESCRIPTION

1 5304437105 A B Scroll, blower housing, bottom, w/drain tray

2 # 5304437891 A B Blower Wheel, centrifugal fan

3 5304437104 A B Scroll, blower housing, top

6 5304437103 A B Cover, blower scroll, top

7 # 5304437049 A B Fan Blade, propeller, axial flow

8 # 5304437056 A B Shroud, fan housing

9 # 5304437108 A B Motor, fan

11 # 5304437091 A B Evaporator

12 # 5304437097 A B Capillary Tube, assy w/strainer

13 # 5304437099 A - Discharge Tube

13 # 5304437096 - B Discharge Tube

14 # 5304437079 A - Compressor Assy, Note: includes overload, wiring cover, and mounting grommets

14 # 5304437084 - B Compressor Assy, Note: includes overload, wiring cover, and mounting grommets

15 # 5304437089 A B Condenser

16 # 5304437098 A - Suction Tube

16 # 5304437095 - B Suction Tube

Publication No: 5995405585 FAA064N7A

03/04 6

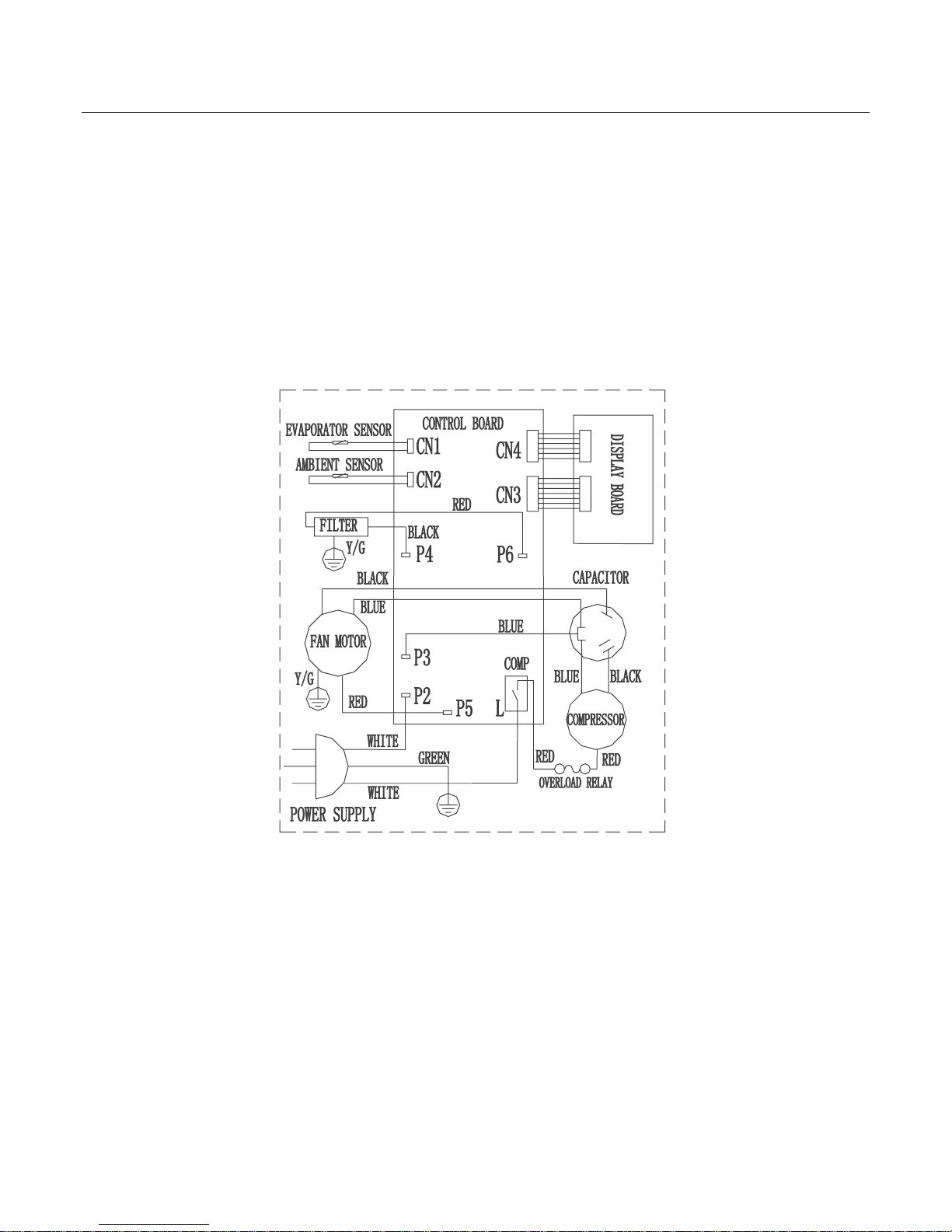

WIRING DIAGRAM
