Frigidaire FAA087P7 Bedienungsanleitung

M40L0002.eps M40C0003.eps M40M0001.eps 2202049160.eps

Product No. FAA087P7A1 FAA087P7A2 FAA087P7A3 FAA087P7A4

Series MS II MS II MS II MS II

Color N/A N/A N/A N/A

Volts 115 115 115 115

BTU-Cooling 8000 8000 8000 8000

Owner's Guide 220202d019 220202d019 220202d019 220202d019

Installation Instructions msinstalleng msinstalleng msinstalleng msinstalleng

Market North America North America North America North America

Electrolux Major Appliances

North & Latin America

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995438800

05/06/07

(EN/SERVICE/WC)

099

ROOM AIR

CONDITIONER

Model No.

FAA087P7

Publication No: 5995438800 FAA087P7

06/05 2

CABINET, FRONT, CONTROLS

FAA087P7 Publication No: 5995438800

# Functional Parts 3 06/05

* Non-Illustrated Parts

CABINET, FRONT, CONTROLS

Model Index: AFAA087P7A (FAA087P7A1)

BFAA087P7A (FAA087P7A2)

CFAA087P7A (FAA087P7A3)

DFAA087P7A (FAA087P7A4)

POS. NO PART NO. DESCRIPTION

1 5304446386 A B C D Base, unit chassis

2 5304437068 A B C D Rail, shutter track, bottom

3 5304437055 A B C D Frame, shutter panel, LH

4 5304437052 A B C D Retainer, shutter lock

5 5304437053 A B C D Shutter, accordion panel

6 5304437057 A B C D Retainer, shutter mount, cabinet sides

7 5304446348 A B C D Cabinet, wrapper/sleeve

8 5304437069 A B C D Rail, shutter track, top

9 5304437054 A B C D Frame, shutter panel, RH

10 5304447876 A B C D Front Assembly, complete panel, includes 11, 12, 13, 14, 15

11 5304447870 A B C D Panel, front grille, tilt-out

12 5304447871 A B C D Filter, air, plastic frame

13 5304447872 A B C D Frame, front assembly

14 5304447873 A B C D Louver, horizontal

15 5304447874 A B C D Louver, vertical

17 5304447868 A B C D Console, control cover

17* 5304447869 A B C D Panel, control display, overlay

18 # 5304437075 A B C D PC Board, display/input

19 5304446346 A B C D Panel, ctrl mtg board

20 # 5304436531 A B C D PC Board, control/power

21 # 5304436543 A B C D Sensor, ambient temp

22 # 5304436542 A B C D Sensor, evap temp, defrost

23 5304436530 A B C D Strap, capacitor mtg.

24 # 5304436528 A B - - Capacitor

24 # 5304436527 - - C D Capacitor

25 5304437070 A B C D Control Box

26 # 5304447875 A B C D Remote Control, transmitter

* 5304458022 A B C D Hardware Kit, installation

Publication No: 5995438800 FAA087P7

06/05 4

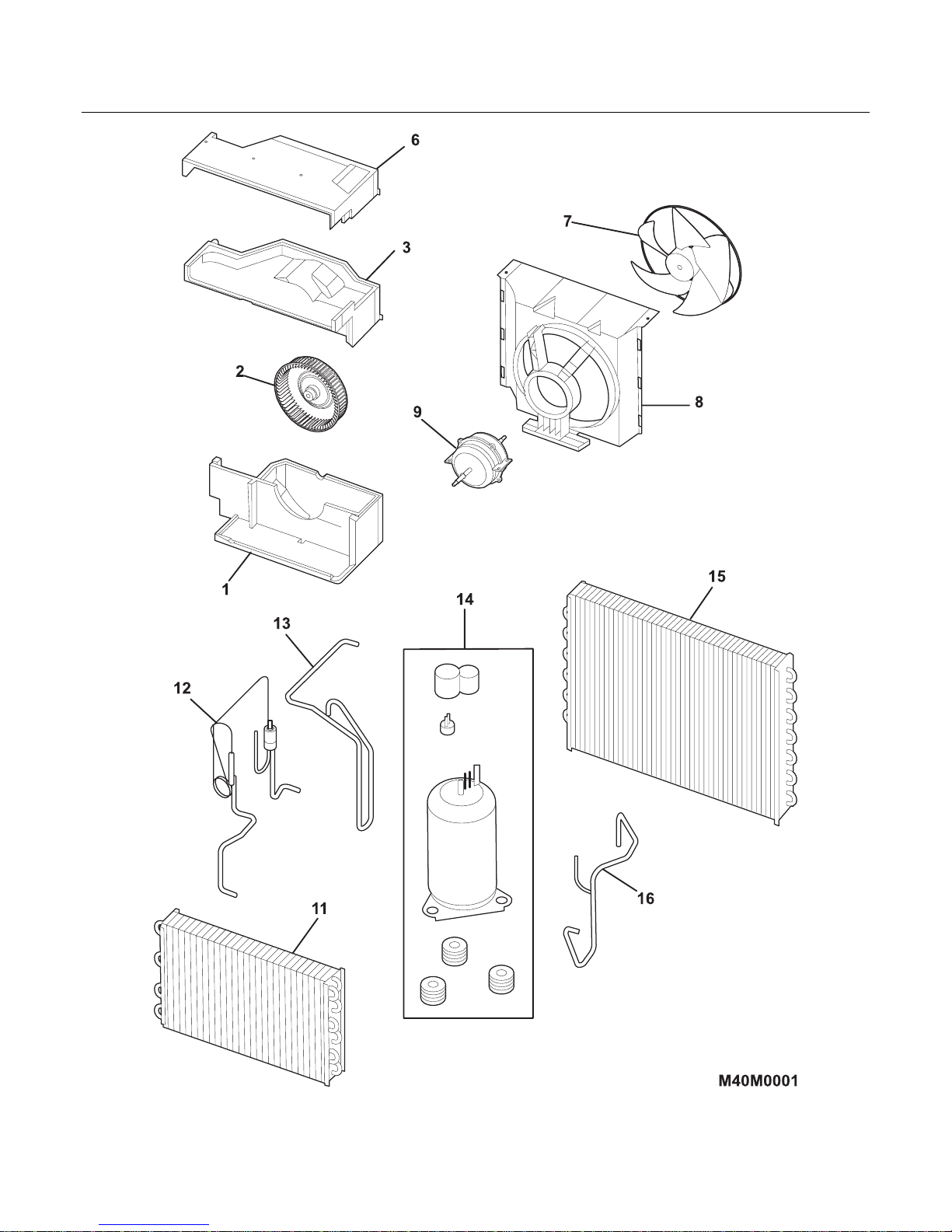

COOLING & AIR FLOW SYSTEMS

FAA087P7 Publication No: 5995438800

# Functional Parts 5 06/05

* Non-Illustrated Parts

COOLING & AIR FLOW SYSTEMS

Model Index: AFAA087P7A (FAA087P7A1)

BFAA087P7A (FAA087P7A2)

CFAA087P7A (FAA087P7A3)

DFAA087P7A (FAA087P7A4)

POS. NO PART NO. DESCRIPTION

1 5304446349 A B C D Scroll, blower housing, bottom

2 # 5304446350 A B C D Blower Wheel, centrifugal fan

3 5304446351 A B C D Scroll, blower housing, top

6 5304446355 A B C D Cover, blower scroll, top

7 # 5304437049 A B C D Fan Blade, propeller, axial flow

8 # 5304447863 A B C D Shroud, fan housing

9 # 5304446392 A B - D Motor, fan

9 # 5304446393 - - C - Motor, fan

11 # 5304446373 A B C D Evaporator

12 # 5304446378 A B - - Capillary Tube

12 # 5304446385 - - C D Capillary Tube

13 # 5304446388 A B - - Discharge Tube

13 # 5304446391 - - C D Discharge Tube

14 # 5304437077 A B - - Compressor Assy

14 # 5304446390 - - C D Compressor Assy

15 # 5304446387 A B - - Condenser

15 # 5304446375 - - C D Condenser

16 # 5304446381 A B - - Suction Tube

16 # 5304446389 - - C D Suction Tube

* 5304446361 A B C D Power Cord, electric, 115 V

Publication No: 5995438800 FAA087P7

06/05 6

WIRING DIAGRAM

2202019160
