Frigidaire FAS185N2 Bedienungsanleitung

Product No. FAS185N2A

Series heavy duty

Volts 230/208

BTU-Cooling 18500 BTU

Owner's Guide 309000855

Market North America

P40L2006.eps FAS185_186N2A.eps Heavy Duty FAS Wiring Diagram.eps

ELECTROLUX HOME PRODUCTS, INC.

P.O. Box 212378, Augusta, GA 30917

Publication No.

5995407748

04/04/16

(EN/SERVICE/KC)

099

ROOM AIR

CONDITIONER

Model No.

FAS185N2

Publication No: 5995407748 FAS185N2A

04/04 2

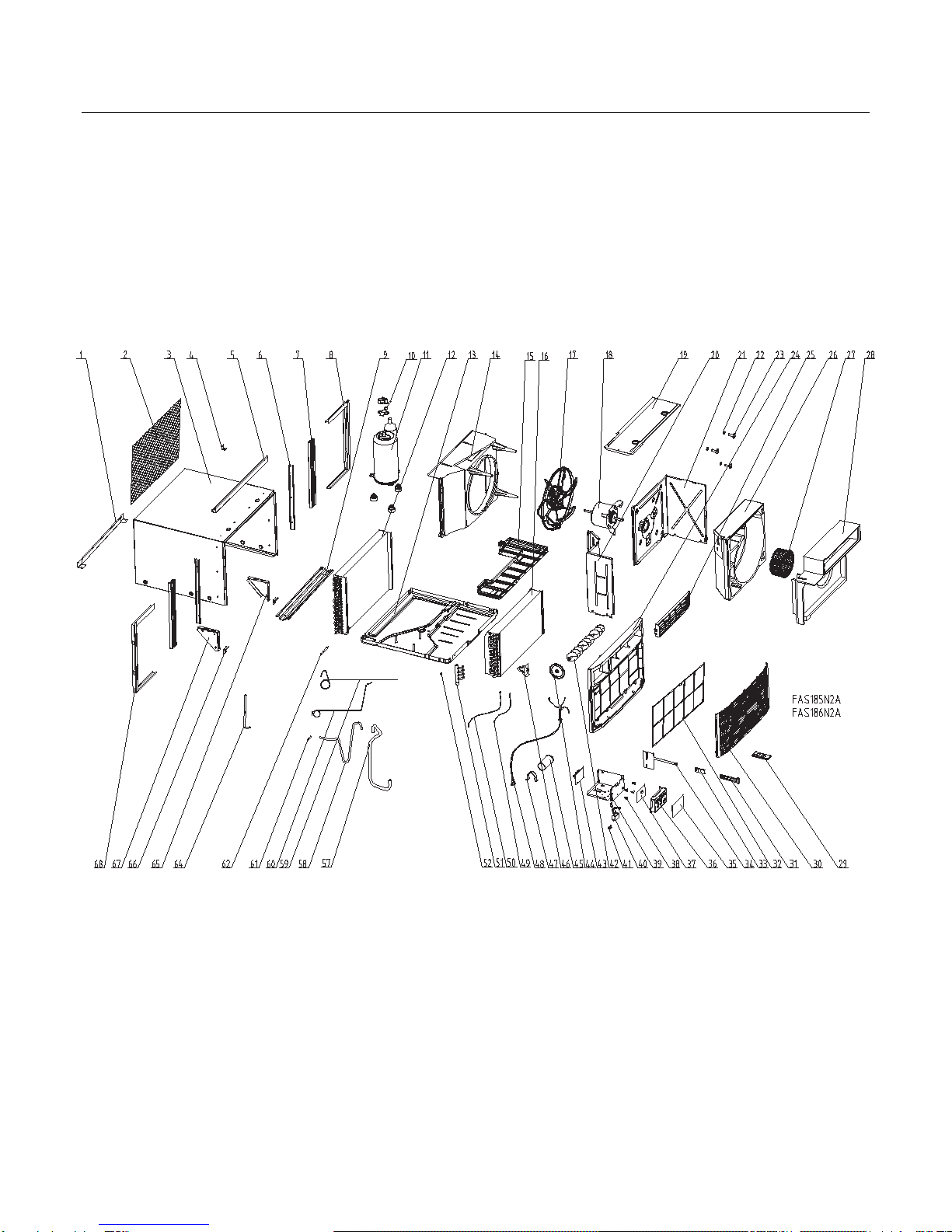

RECOMMENDED SPARE PARTS

FAS185N2A Publication No: 5995407748

# Functional Parts 3 04/04

* Non-Illustrated Parts

RECOMMENDED SPARE PARTS

POS. NO PART NO. DESCRIPTION

1 5304414097 Rail, cabinet bottom, rear

2 5304408741 Grille, rear panel, aluminum

3 309623906 Cabinet, wrapper/sleeve

4 5303211056 Bracket, sash lock

5 5304414116 Rail, cabinet top, front

6 5304414933 Retainer, shutter mount, cabinet side

7 309645602 Shutter, accordion panel, RH/LH, window closure

8 5304414929 Frame, shutter, gray, RH, extension

9 5304416310 Rail, cabinet bottom, front

10 # 5304432854 Overload Protector

11 # 309603124 Compressor

11 # 5303306719 Condenser

13 309632910 Base, compressor mtg., with studs

14 309623201 Shroud, cond fan motor

15 309623501 Tray, evap drip

16 # 309634201 Evaporator

17 # 5303311048 Fan Blade, with clamp

18 # 309630613 Motor, fan, 1 Speed

19 309630302 Cover, blower wheel, top

20 309623602 Bulkhead, control system

21 309623403 Bulkhead, air system

22 5300105402 Grommet, motor, (3)

23 5303317224 Screw, indt hex head, 10-16, (3)

24 309900101 Frame, cabinet front

25 309900301 Louver, horizontal

26 309630102 Housing, blower scroll

27 # 309633001 Blower Wheel, plastic, with clamp

28 309630203 Plate, scroll cover

29 # 309902202 Remote Control, transmitter

30 309900201 Panel, front grille

31 309900601 Handle, vent opener

32 309639001 Filter, micro-biologic, framed

33 309902801 Detent, vent handle

34 309321402 Door, vent, with actuator

35 309901703 Overlay, control display

36 309900501 Enclosure, input pcb, control panel

37 # 309901601 PC Board, input/display

38 5304413781 Hardware, PCB support

39 309630404 Control Box

40 # 309900701 Ionizer

41 309111201 Grommet, wire protector

42 309904601 Louver, vertical

43 # 309901501 PC Board, power, variable speed, 230 V

44 309900401 Wheel, louver adjuster

45 # 5304426451 Capacitor, 450 V, 35+6 mfd

46 5304414108 Holder, thermistor clip, 5/16"

47 5303303077 Strap, capacitor mtg.

48 # 309343112 Power Cord, electric, 16 AWG, 230 V, type C

49 # 309201602 Sensor, thermistor, ambient temp

50 # 309201603 Sensor, thermistor, evap defrost

51 # 309330504 Manifold Assembly, with rings

Publication No: 5995407748 FAS185N2A

04/04 4

RECOMMENDED SPARE PARTS

FAS185N2A Publication No: 5995407748

# Functional Parts 5 04/04

* Non-Illustrated Parts

RECOMMENDED SPARE PARTS

POS. NO PART NO. DESCRIPTION

52 5303302254 Nut, expansion type

57 # 309377701 Tube, suction, copper

58 # 309371701 Tube, discharge, copper

59 # 309377901 Tube, capillary, copper, top, formed

60 # 309377801 Tube, capillary, copper, bottom, formed

61 # 309111002 Fitting, reducer .313 OD, .114/.117 ID, copper tube

62 # 5303290357 Strainer

64 # 5304426970 Tube, process, copper

65 5304414105 Bracket, cab support, RH

66 3001815 Support, angle bracket, window sill mt.

67 5304414106 Bracket, cab support, LH

68 5304414928 Frame, shutter, gray, LH, extension

Publication No: 5995407748 FAS185N2A

04/04 6

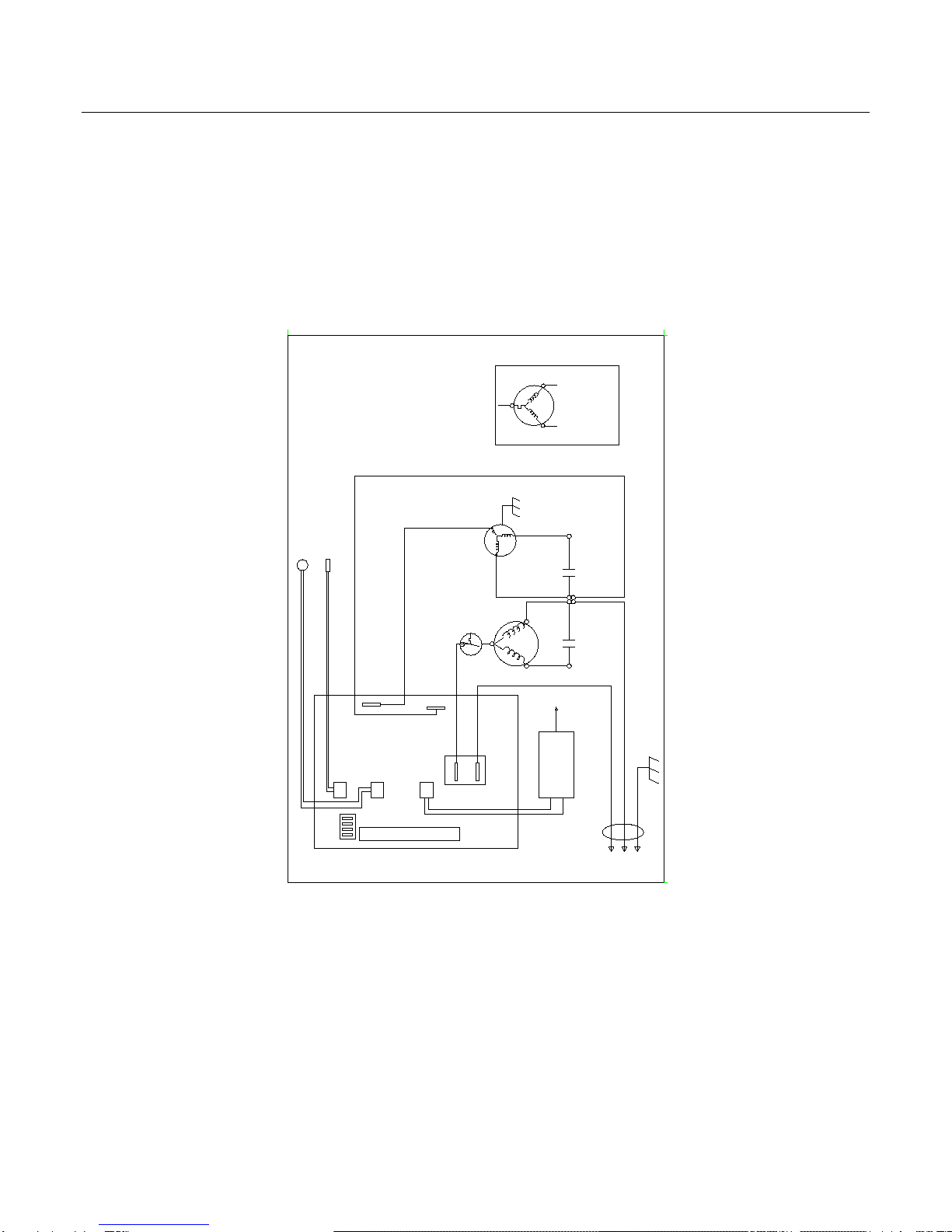

WIRING DIAGRAM

BK=Black(Noir)

BL=Blue(Bleu)

BR=Brown(Brun)

G=Green(Vert)

R=Red(Rouge)

W=White(Blanc)

Y=Yellow(Jaune)

Alternate Internal Overload

Compressor

(Autre Surcharge

Interne Du Compresseur)

Ion.

J3210

309902101/01

Fan(Ventilateur)

Room

Sensor

(Sonde D'

Ambiance)

Evap

Sensor (Sonde

Anti Givre)

Compressor

(Compresseur)

Fan motor

(Moteur Du

Ventilateur)

Compressor

capacitor

(Condensateur Du

Compresseur)

Fan motor capacitor

(Condensateur Du

Ventilateur)

Connector (Connecteur)

Compressor Overload

(Surcharge Du

Compresseur)

(Vert)

GND

Compressor Relay (Relais Du

Compresseur)

Ionizer(Ion)

(Optional)

(Facultatif)

(Vert)

GND

Ribbed

(Blue)

Raye(Bleu)

Plain

(Brown)

Ordinaire(Brun)

WOR Y

(OU)
