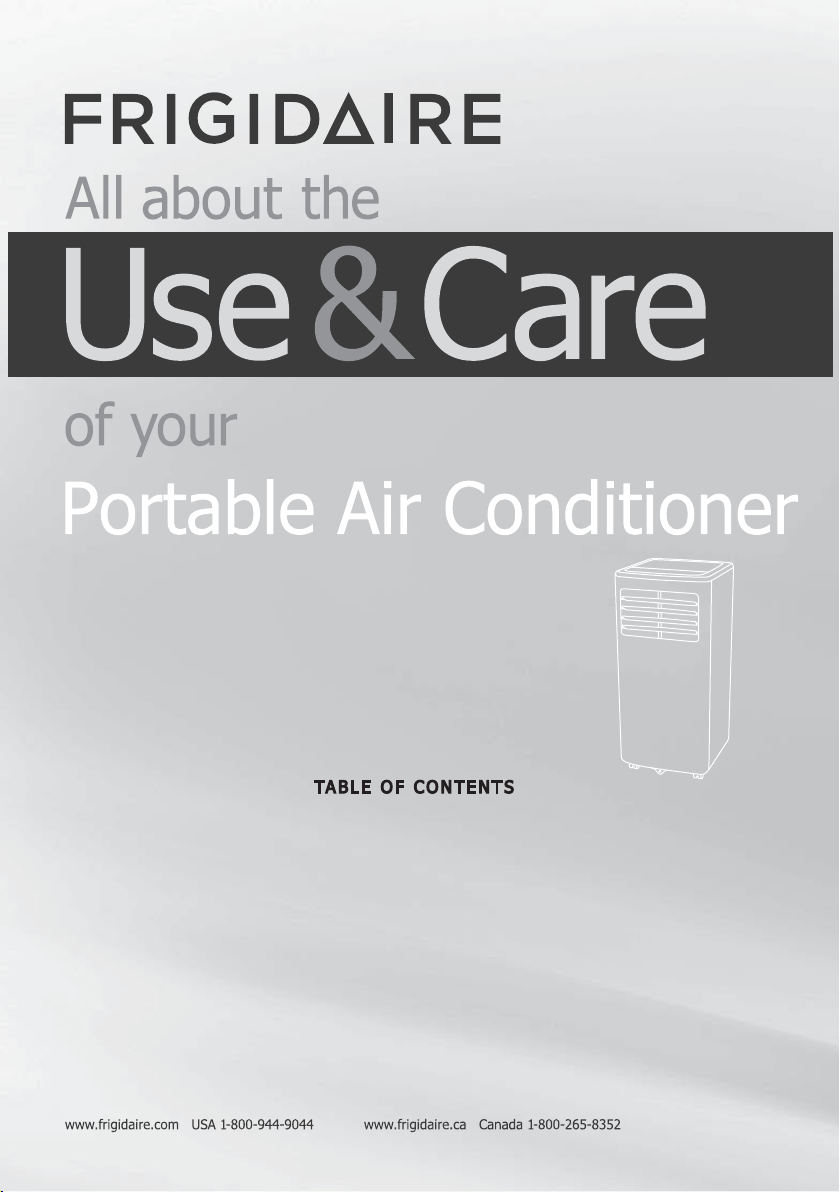

Frigidaire FHPC082AC1 Bedienungsanleitung
Care and Cleaning.............................................15
Before You Call..................................................16
Major Appliance Limited Warranty................. ...17
Operating Instruction......................................8-14
Air Conditioner Features.....................................8
Installation Instructions.......................................6-7
Important Safety Instructions..............................2-3
Product Registration...............................................4
Normal Sounds.......................................................4
Unit Description......................................................5
Accessories Included.............................................5
Important Safety Instructions
NOTE:
NOTE:
WARNING
WARNING
WARNING
WARNING
SAFETY PRECAUTIONS
This appliance is not intended for use by persons (including children) with reduced physical ,sensory or mental capabilities or lack of experience
and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
The appliance shall be installed in accordance with national wiring regulations.
Important Safety Instructions
SAFETY PRECAUTIONS
NOTE:
manufacturer.
manufacturer.
fails
Provide ventilation per installation instructions.
Do not direct airflow at fireplaces or other heat related sources as this could cause flare ups or make units run excessively.
7KHUHIULJHUDWLQJV\VWHPVKRXOGQRWUHFHLYHPDLQWHQDQFHVHUYLFHRUUHSDLUE\DQ\SHUVRQ
(QVXUHWKDWWKHDUHDLVLQWKHRSHQRUWKDWLWLVDGHTXDWHO\YHQWLODWHGEHIRUHEUHDNLQJLQWRWKHV\VWHPRUFRQGXFWLQJDQ\KRWZRUN$GHJUHH
of ventilation shall continue during the period that the work is carried out. The ventilation should safely disperse any released refrigerant and
preferably expel it externally into the atmosphere.
&KHFNWKDWFDEOLQJZLOOQRWEHVXEMHFWWRZHDUFRUURVLRQH[FHVVLYHSUHVVXUHYLEUDWLRQVKDUSHGJHVRUDQ\RWKHUDGYHUVHHQYLURQPHQWDO
effects. The check shall also take into account the effects of aging or continual vibration from sources such as compressors or fans.
8QGHUQRFLUFXPVWDQFHVVKDOOSRWHQWLDOVRXUFHVRILJQLWLRQEHXVHGLQWKHVHDUFKLQJIRURUGHWHFWLRQRIUHIULJHUDQWOHDNV$KDOLGH
torch (or any other detector using a naked flame) shall not be used.
7KHIROORZLQJOHDNGHWHFWLRQPHWKRGVDUHGHHPHGDFFHSWDEOHIRUDOOUHIULJHUDQWV\VWHPV(OHFWURQLFOHDNGHWHFWRUVPD\EHXVHGWRGHWHFW
UHIULJHUDQWOHDNVEXWLQWKHFDVHRI)/$00$%/(5()5,*(5$176WKHVHQVLWLYLW\PD\QRWEHDGHTXDWHRUPD\QHHGUHFDOLEUDWLRQ'HWHFWLRQ
HTXLSPHQWVKDOOEHFDOLEUDWHGLQDUHIULJHUDQWIUHHDUHD(QVXUHWKDWWKHGHWHFWRULVQRWDSRWHQWLDOVRXUFHRILJQLWLRQDQGLVVXLWDEOHIRUWKH
refrigerant used. Leak detection equipment shall be set at a percentage of the LFL of the refrigerant and shall be calibrated to the refrigerant
employed, and the appropriate percentage of gas (25 % maximum) is confirmed. Leak detection fluids are also suitable for use with most
refrigerants but the use of detergents containing chlorine shall be avoided as the chlorine may react with the refrigerant and corrode the
FRSSHUSLSHZRUN
127(([DPSOHVRIOHDNGHWHFWLRQIOXLGVDUH
– bubble method,
– fluorescent method agents.
If a leak is suspected, all naked flames shall be removed/extinguished.
If a leakage of refrigerant is found contact local manufacter to replace unit.
WARNING
Product Registration & Normal Sounds
Product Registration
Normal Sounds
Record Your Model and Serial Numbers
Record in the space provided below the mode and serial numbers. On all models, the
serial plate is located on the side of the cabinet.
Model No.
Serial No.
Register Your Product
The self-addressed PRODUCT REGISTRATION CARD should be filled in completely,
signed and returned to the Frigidaire Company.
At the top of the unit, you may
hear the sound of rushing air
being moved by the fan.
Sound of Rushing Air
Today’s high efficiency
compressors may have a
high pitched chatter during
the cooling cycle.
High pitched Chatter
“Gurgling or hissing” noise may be
heard due to refrigerant passing
through evaporator during normal
operation.
Gurgle/Hiss
Unit may vibrate and make noise
because of uneven floor.
Vibration
Unit Description & Accessories Included
+
Unit Description
Accessories Included
Remote Control
( )
( )
Air Intake
Air Outlet Grill
Control Panel
Remote
Control
Air Exhaust
Castor
PARTS: PARTS NAME: QUANTITY:
Window Kit Connector A
Exhaust hose connector B
Window Kit
Exhaust Hose
Screws
Safety Lock
Bolts
Foam seal B
Foam seal A
Power
Cord
Air Intake
Air Intake
Continuous
Drain Outlet
Bottom
Drain Outlet
Signal
Receiver
Drain hose
Installation Instructions
Installation Instructions
EXHAUSTING HOT AIR
In the Cool Mode the appliance must be placed close to a
window or opening so that the warm exhaust air can be ducted
outside.
The hose can be extended from its original length of
15"up to 59",but it is the best to keep the length to
minimum required. Also make sure that the hose does
not have any sharp bends or sags.(Fig.5)
First position unit on a flat floor and is within the vicinity of a single
circuit outlet power source. Make sure there’s a minimum of 31.5"
clearance in the front/back of the unit, and a minimum of 19.7"
clearance in the left/right sides of the unit.
31.5"
19.7"
Vertical
window
Window Slider Kit
Minimum:26.6 (67.5cm)
Maxmum:52.5 (133cm)
Fig.3
Horizontal
window
Window Slider Kit
Minimum:26.6 (67.5cm)
Maxmum:52.5 (133cm)
Fig.4
Fig.5
Fig.2
Slide onto
1. Extend either side of the hose(Fig.1A) and screw the hose to
connector A(Fig.1B).
2. Extend the other side of the hose and screw it to adaptor B(Fig.1C).
3. Install the connector B into the unit (Fig.2).
4. Affix the connector A into the window slider kit and seal.(Fig.3&4)
Fig.1A
Extend the side of hose
Fig.1B
Fig.1C
Installation Instructions
Installation Instructions(continued)
1.Cut the foam seals A(adhesive type) to the proper lengths and attach
them to the window and stool.(Fig.6)
2.Open the window sash and place the window slider kit on the window
stool (Fig.7). Attach the window slider kit to the window stool. Adjust
the length of the window slider kit according to the width of window.
Screw down the two screws on the window slider kit. See Fig.7.
Cut the adjustable window slider kit if the width of window is less than
26.6 inches(Fig.8).
3.Close the window sash securely against the window slider kit.(Fig.9)
window
sash.(Fig.9)
5.Secure the window slider kit to the window stool(Fig.9):
securing.
6.To secure lower sash in place, attach right angle sash lock w
(12.7mm) screw as shown(Fig.10).
NOTE: It is difficult to lock the windows with the sash lock for Vinyl-Clad
windows, so you can use lock by window itself.
7.Cut the foam seal B to an appropriate length and seal the open gap
between the top window sash and outer window sash, as shown in
Fig.11.
Installation in a double-hung sash window
Installation in a sliding sash window
1.Cut the foam seals A(adhesive type) to the proper lengths and attach
them to the window frame. See Fig.12.
2.Open the window sash and place the window slider kit on the window
stool (Fig.13). Attach the window slider kit to the window stool. Adjust
the length of the window slider kit according to the height of window.
Screw down the two screws on the window slider kit. See Fig.13.
Cut the adjustable window slider kit if the height of window is less than
26.6 inches(Fig.8).
3.Close the window sash securely against the window slider kit.(Fig.14)
window
sash.(Fig.14)
window
stool.(Fig.14)
6.Cut the foam seal B to an appropriate length and seal the open gap
between the sliding sash and outer window sash, as shown in Fig.15.
7.To secure sliding sash in place, attach right angle sash lock
(12.7mm) screw as shown(Fig.16).
Fig.6
Fig.7
Fig.8
Fig.12
Fig.13
Fig.14
Fig.15
Fig.16
Fig.9
Fig.10
Fig.11
screws
screws or
hex head cap screws
Window stool
Window slider kit
Foam seal B
Foam seal A
(adhesive type)
screws
Window slider kit
Window stool
Cut this to fit your window
Foam seal A
(adhesive type)
Window stool Window slider kit
screws
Window stool Window slider kit
screws
Foam seal B
screws
26.6"~52.5"
26.6"~52.5"
Air Conditioner Features & Operating Instructions
Control Panel
Cool mode
Press the “mode” button until the Cool mode indicator lights.
Press the "fan speed" button to choose the fan speed according to the illumination of the fan speed indicator.
Press the “ ” or “ ”button to choose the temperature you want.
Operating Instruction
Display
Temperature/Timer Timer indicator
Filter
Reset
Sleep
indicator
Adjust
Temperature
or Timer
Mode
Selection
Fan
Speed
Power
on/off
You can choose the “hi”, “low”, or “auto” fan speed setting.
Fan mode
Press the “mode” button until the Fan mode indicator lights.
The screen displays room temperature.
Note: In this mode, the air exhaust hose does not need to be connected.
Dry mode
Press the “mode” button until the Dry mode indicator lights. In this mode, the “ ” or “ ” button is disabled and the
screen displays the room temperature. The unit will continuously drain moisture from the room.
Note: In this mode, the fan speed will be set as “low” automatically, which cannot be changed.
In this mode, condensate drainage are required, refer to the "Drainage Instructions" on Page 14 for more
instructions to drain the excess condensate.
Operating Instructions
Auto mode
Press the “mode” button until the Auto mode indicator lights.
Press the “ ” or “ ” button to choose the temperature you want. The screen will display the setting temperature.
In this mode, the unit will automatically select cooling, heating(not applicable for cooling only models), or fan only
operation depending on what temperature you have selected and the room temperature. The air conditioner will
control room temperature automatically around the temperature point set by you.
Note: In this mode, fan speed cannot be selected.
In this mode, you can select fan speed “hi” or “low”.
Operating Instructions
Filter reset
This feature is a reminder to clean the Air Filter (See Care and Cleaning) for more efficient operation.
The filter indicator will illuminate after 250 hours of fan operation. Press the “filter reset” button, to reset after cleaning
the filter.
Press the “ ” and “ ”button the same time for more than 3 seconds to switch between degree Fahrenheit and
degrees Celsius.
Note: Under Dry/Fan mode, you can not select °F/°C.
function
