Frigidaire FDB125RH Bedienungsanleitung
PRODUCT NO. BASE MODEL NO. SERIES COLOR
FDB125RHB1 FDB125RH 24" Built-in black
FDB125RHD1 FDB125RH 24" Built-in almond
FDB125RHS1 FDB125RH 24" Built-in white
MARKET
North America
Publication No.
5995347662
001214
-EN/SERVICE /ECL
821
24" Built-In
DISHWASHER
Model No.
FDB125RH
©2000 White Consolidated Industries, Inc.
All rights reserved
FACTORY PARTS CATALOG
DISHWASHER
SERVICE DATA SHEET # - 154388101
OWNER’S GUIDE # - 154361601
INSTALLATION INSTRUCTIONS # - 154373601
ELECTROLUX HOME PRODUCTS NORTH AMERICA
P.O. Box 212378, Augusta, GA 30917
12/00 2
Publication No. FDB125RH
5995347662

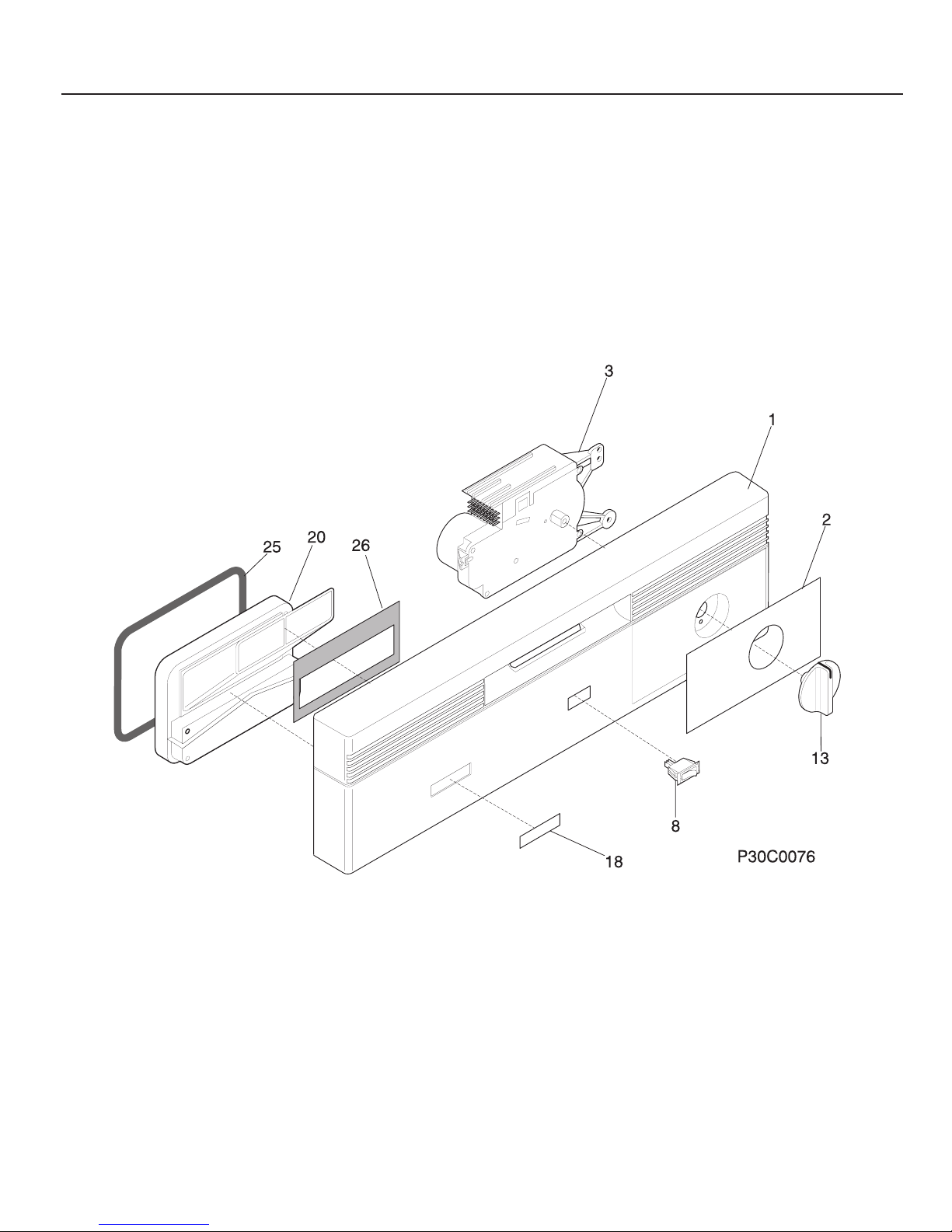

CONTROL PANEL
# = Fast Moving Part 3 12/00
* = Non-Illustrated Part
FDB125RH Publication No.
5995347662
CONTROL PANEL
A = FDB125RH (FDB125RHS1)
B = FDB125RH (FDB125RHD1)
C = FDB125RH (FDB125RHB1)
POS. NO PART NO DESCRIPTION
1 154338801 A - - Panel-control,pad printed ,plastic ,white
1 154338803 - B C Panel-control,pad printed ,plastic ,black
2 154348001 A - - Insert-control pnl,white
2 154348003 - B C Insert-control pnl,black
3 # 154347701 A B C Timer
8 # 154240401 A - - Switch-selector,rocker ,white
8 # 154240403 - B C Switch-selector,rocker ,black
8* 5303318719 A B C Screw,mtg.
13 154338301 A - - Knob-timer,white
13 154338303 - B C Knob-timer,black
18 316095402 A - - Label-nameplate,Frigidaire ,white
18 316095420 - B C Nameplate,Frigidaire ,black
20 154327301 A B C Vapor Chamber Assy
25 154229201 A B C Seal-chamber
26 154303901 A B C Gasket-vent
* 154388201 A B C Wiring Harness
* 154283901 A B C Screw,#8-10 ,3/8 phillips
12/00 4
Publication No. FDB125RH
5995347662

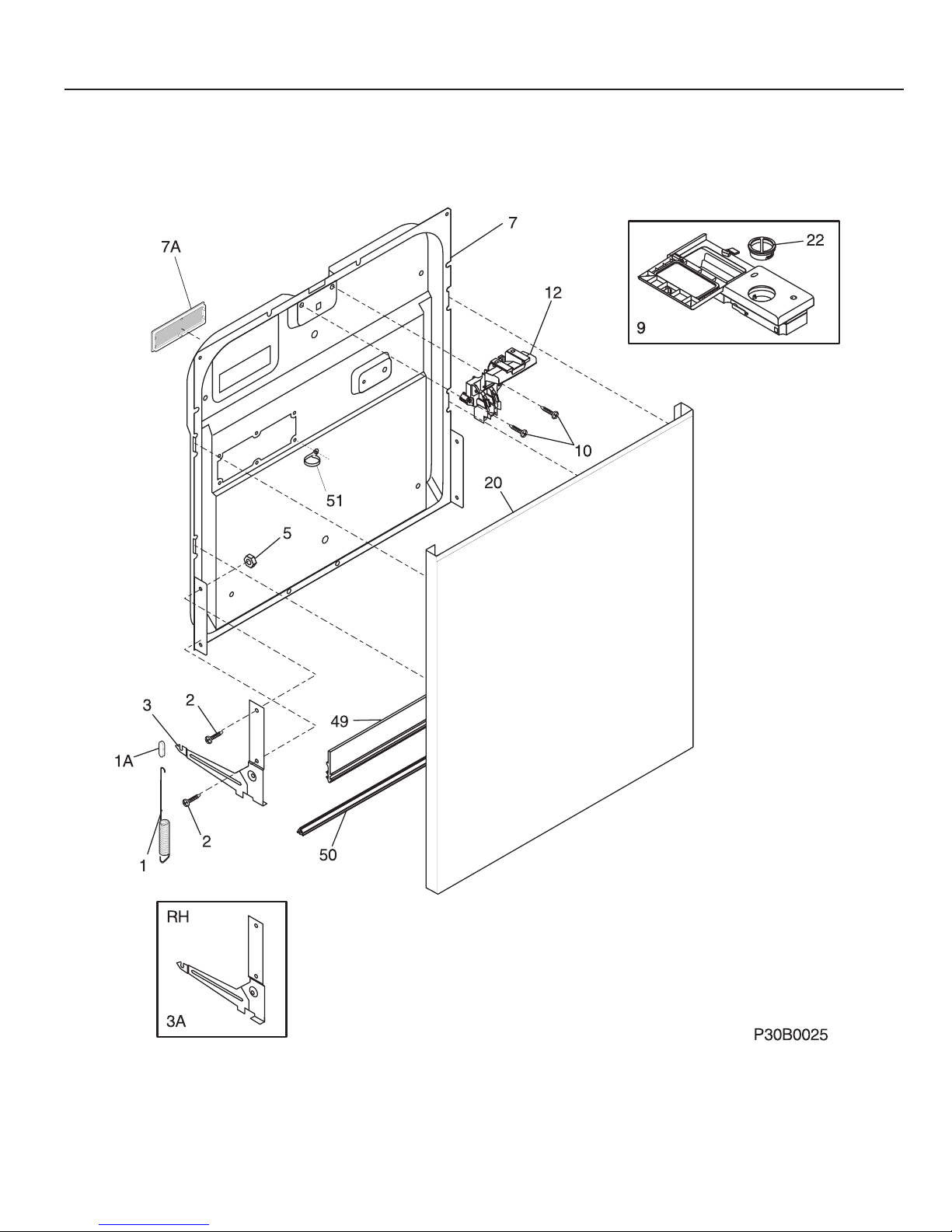

DOOR
# = Fast Moving Part 5 12/00
* = Non-Illustrated Part
FDB125RH Publication No.
5995347662
A = FDB125RH (FDB125RHS1)
B = FDB125RH (FDB125RHD1)
C = FDB125RH (FDB125RHB1)
POS. NO PART NO DESCRIPTION
1 154345902 A B C Spring-door,(2)
1A 154325201 A B C Spring linkage,(2)
2 154093301 A B C Screw-arm assy,(4)
3 154325304 A B C Arm Assy,LH
3A 154325303 A B C Arm Assy,RH
* 154211501 A B C Pin-arm
5 154079601 A B C Nut-arm assy,(4)
7 154299002 A B C Door-inner assy
7A 154332701 A B C Grate-liner
9 154230101 A B C Dispenser-det/rinse aid,includes #22
9* 154294701 A B C Screw,#7 plas .375 ,(6) ,disp. assy.
10 154103702 A B C Screw-latch mtg,(2)
12 # 154361201 A - - Latch assy,white
12 # 154361203 - B C Latch assy,black
20 154359105 A - - Door,white
20 154359106 - B - Door,almond
20 154359107 - - C Door,black
22 154388801 A B C Cap-rinse aid
49 154297602 A B C Gasket-door,bottom
50 154211401 A B C Support-door hinge
51 154320301 A B C Clamp-wire,drip loop
* 154200601 A B C Screw-#10-16 x 3/8
DOOR
12/00 6
Publication No. FDB125RH
5995347662

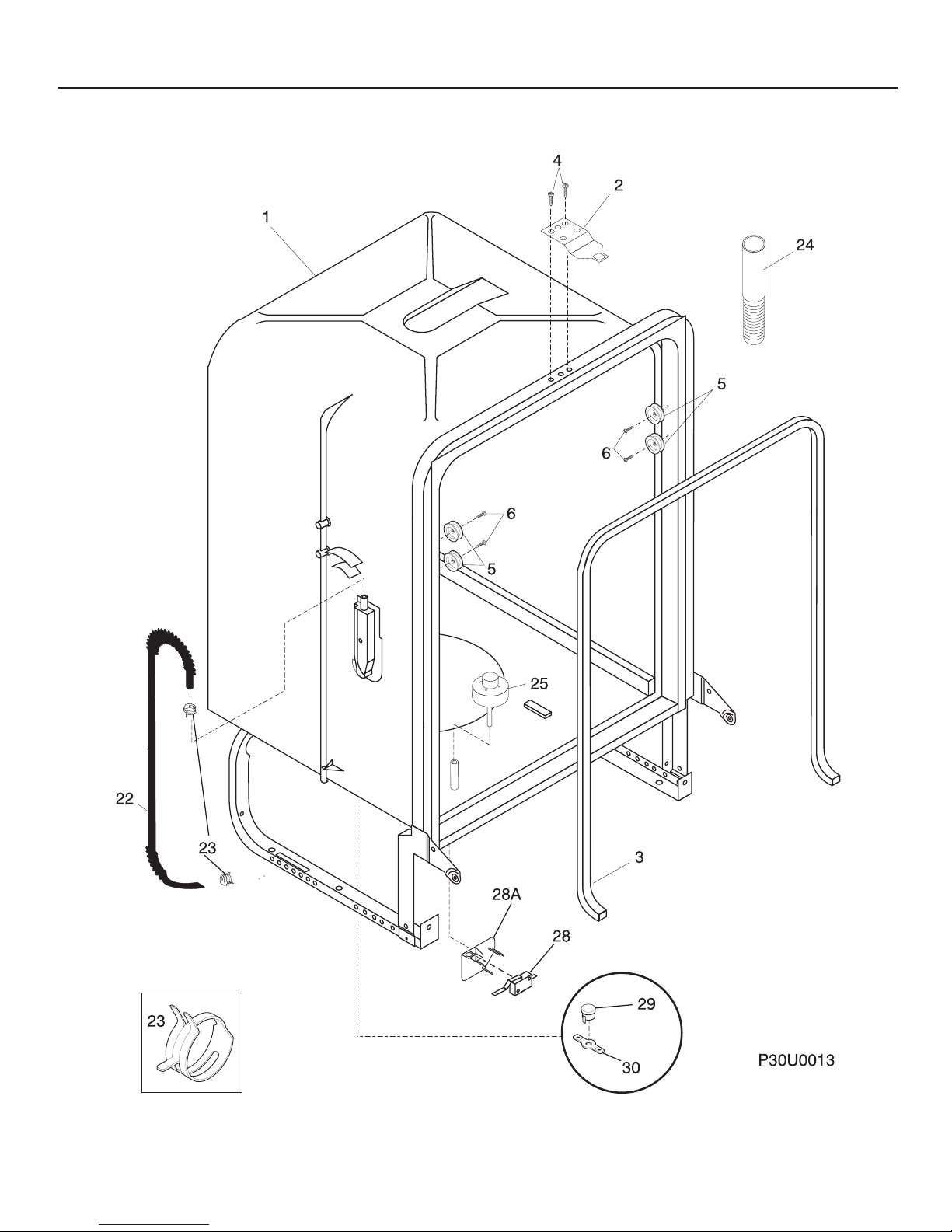

TUB
# = Fast Moving Part 7 12/00
* = Non-Illustrated Part
FDB125RH Publication No.
5995347662
A = FDB125RH (FDB125RHS1)
B = FDB125RH (FDB125RHD1)
C = FDB125RH (FDB125RHB1)
POS. NO PART NO DESCRIPTION
1 # 154209204 A B C Tub,plastic
2 154211601 A B C Strike-door
3 # 154211801 A B C Gasket-tub
4 154200602 A B C Screw,10-16 x 3/8 ,hex
5 154333901 A B C Roller-tub
6 5303943103 A B C Screw w/washer,(8)
22 154239801 A B C Tubing-water inlet
23 5303318539 A B C Clamp-tubing,(2)
24 # 154225602 A B C Hose-drain
25 # 154209701 A B C Float
28 # 154225501 A B C Switch-float
28A 154386601 A B C Bracket-float switch
28A* 154333301 A B C Screw,bracket mtg ,ph truss head
29 # 154290204 A B C Thermostat,re-settable
30 154241101 A B C Retainer-thermostat
30* 154297701 A B C Screw,retainer-thermo
* 154238304 A B C Insulation,tub
* 154041001 A B C Screw,plask #1 ,10-10 x 9/16
* 5300807270 A B C Screw,(2) ,countertop mtg.
TUB
12/00 8
Publication No. FDB125RH
5995347662
MOTOR & PUMP
# = Fast Moving Part 9 12/00
* = Non-Illustrated Part
FDB125RH Publication No.
5995347662
A = FDB125RH (FDB125RHS1)
B = FDB125RH (FDB125RHD1)
C = FDB125RH (FDB125RHB1)
POS. NO PART NO DESCRIPTION
1 # 154247601 A B C Heater
1* 154106201 A B C Nut-heater,(2)
1* 154289801 A B C Shield-heater terminal
2 154359701 A B C Bracket-heater,(2)
10 154335301 A B C Cover-volute
13 154246801 A B C Gasket-sump
14 154365903 A B C Housing-sump
16 154246502 A B C Retainer,sump
24 154335802 A B C Spray arm-lower,w/tower
24A 154335201 A B C Nut-arm support,arm support
40 154348401 A B C Clamp,red ,pump
40 154348501 A B C Clamp,silver ,pump
40* 154106801 A B C Clamp-hose,(2)
54 154234401 A B C Hose-connector
55 154362301 A B C Bracket-motor
55* 5303316032 A B C Screw,truss ss ,8 .625
59 154246901 A B C O-ring,rear
59A 154247001 A B C O-ring,front
60 154247502 A B C Drain Pump Assy
60* 154234501 A B C Bracket-motor,drain
63 154252201 A B C Base-soil director
64 154332602 A B C Filter-soil director
65 154252401 A B C Filter-polypro
70 # 154369501 A B C Motor assembly,circulation,w/o o’rings
* 154338601 A B C Clamp-P,nylon
* 154200601 A B C Screw-#10-16 x 3/8
MOTOR & PUMP
12/00 10
Publication No. FDB125RH
5995347662

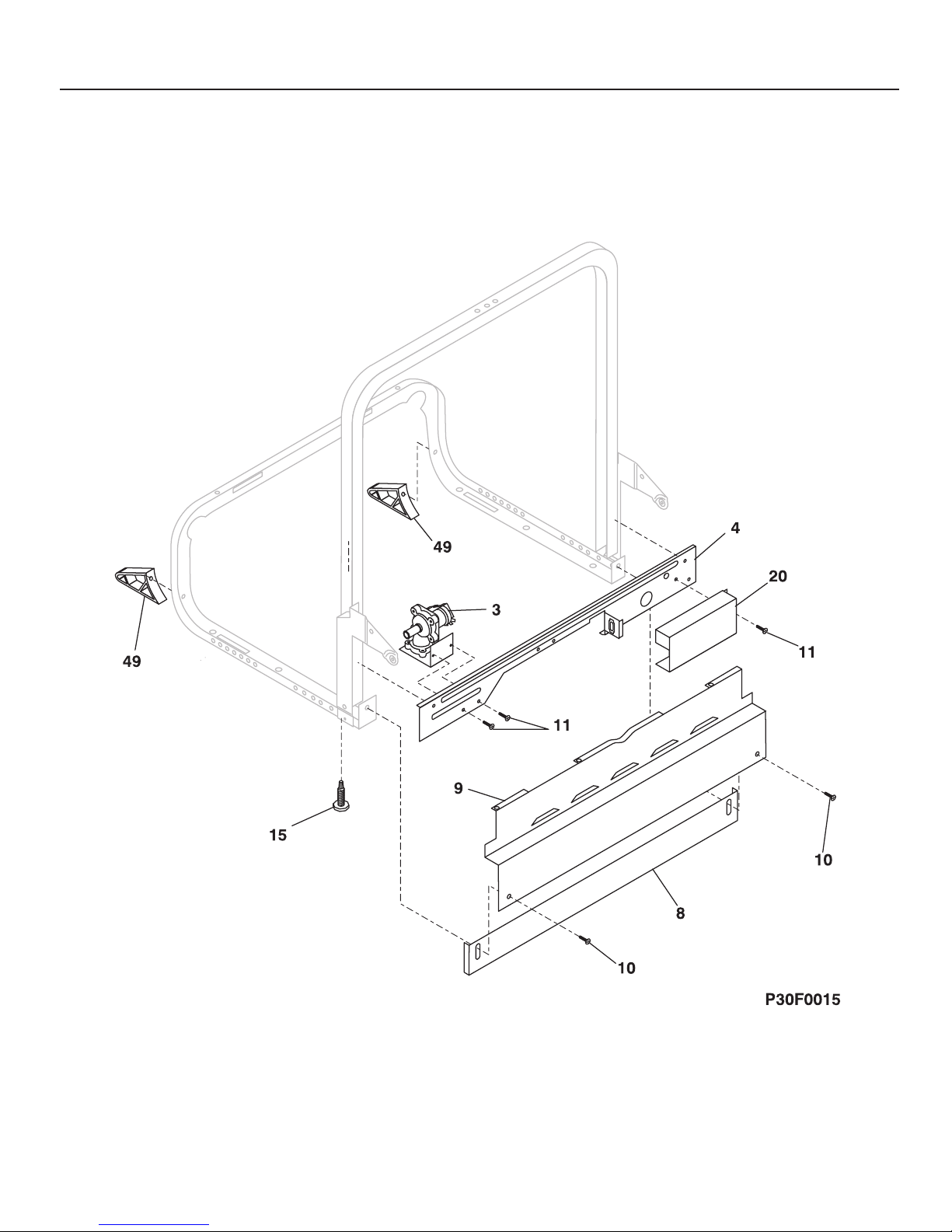

FRAME
