Frigidaire FDB2110LC Bedienungsanleitung

PRODUCT NO. BASE MODEL NO. SERIES COLOR

FDB2110LCB0 FDB2110LC 24" Built-in black

FDB2110LCC0 FDB2110LC 24" Built-in stainless

FDB2110LCQ0 FDB2110LC 24" Built-in bisque

FDB2110LCS0 FDB2110LC 24" Built-in white

MARKET

North America

Publication No.

5995391769

030611

-EN/SERVICE /ECL

821

24" Built-In

DISHWASHER

Model No.

FDB2110LC

FACTORY PARTS CATALOG

DISHWASHER

SERVICE DATA SHEET # - 154476001

OWNER’S GUIDE # - 154475601

INSTALLATION INSTRUCTIONS # - 154427301

ENERGY GUIDE LABEL # - 154399013

ELECTROLUX HOME PRODUCTS, INC.

P.O. Box 212378, Augusta, GA 30917

06/03 2

Publication No. FDB2110LC

5995391769

CONTROL PANEL

# = Fast Moving Part 3 06/03

* = Non-Illustrated Part

FDB2110LC Publication No.

5995391769

CONTROL PANEL

A = FDB2110LC (FDB2110LCS0)

B = FDB2110LC (FDB2110LCQ0)

C = FDB2110LC (FDB2110LCB0)

D = FDB2110LC (FDB2110LCC0)

POS. NO PART NO DESCRIPTION

1 154454401 A - - - Panel,control ,white

1 154454404 - B - - Panel,control ,bisque

1 154454403 - - C D Panel,control ,black

2 154459301 A - - - Insert,control panel ,9 pad ,white

2 154459304 - B - - Insert,control panel ,9 pad ,bisque

2 154459303 - - C D Insert,control panel ,9 pad ,black

3 # 154470601 A B C D Control

3* 154200401 A B C D Screw,6-10 x 3/8 ,pan plask

4 154460601 A B C D Cover,control

4* 154477401 A B C D Gasket,cover

8 # 154474701 A B C D Switch,selector ,9 pad

8A 154477601 A B C D Cover,switch

8A* 154476601 A B C D Screw,pan head ,6-19 x 1/4

20 154433001 A B C D Vent assy,static dry

20* 154436201 A B C D Screw,dry duct ,(3)

28 154474401 A B C D Adapter,vent

* # 154476401 A B C D Wiring Harness

* 154227501 A B C D Thermistor

* 154399013 A B C D Label,energy guide

06/03 4

Publication No. FDB2110LC

5995391769

DOOR

# = Fast Moving Part 5 06/03

* = Non-Illustrated Part

FDB2110LC Publication No.

5995391769

A = FDB2110LC (FDB2110LCS0)

B = FDB2110LC (FDB2110LCQ0)

C = FDB2110LC (FDB2110LCB0)

D = FDB2110LC (FDB2110LCC0)

POS. NO PART NO DESCRIPTION

1 154430601 A B C D Spring,door ,(2)

1A 154325201 A B C D Linkage,door spring ,(2)

2 154093301 A B C D Screw,arm assy ,(4)

3 154325304 A B C D Arm Assy,LH

3A 154325303 A B C D Arm Assy,RH

* 154400601 A B C D Pin,arm assy

5 154079601 A B C D Nut,arm assy ,and handle mtg.

7 154299004 A B C D Door,inner assy

9 154230103 A B C D Dispenser,det/rinse aid ,includes #22

9* 154294701 A B C D Screw,#7 plas .375 ,(6) ,disp. assy.

10 154103702 A B C D Screw,latch mtg ,(2)

12 # 154475101 A - - - Latch assy,white

12 # 154475104 - B - - Latch assy,bisque

12 # 154475103 - - C D Latch assy,black

20 154359006 A - - - Door,white

20 154359008 - B - - Door,bisque

20 154359007 - - C - Door,black

20 154359012 ---D Door,stainless

20* 5304428306 A B C D Screw,door mtg. ,(2)

22 154388801 A B C D Cap,Rinse aid

49 154297603 A B C D Gasket,door ,bottom

50 154211401 A B C D Support,door hinge

51 154320301 A B C D Clamp,drip loop ,wire

* 154200601 A B C D Screw,#10-16 x 3/8

DOOR

06/03 6

Publication No. FDB2110LC

5995391769

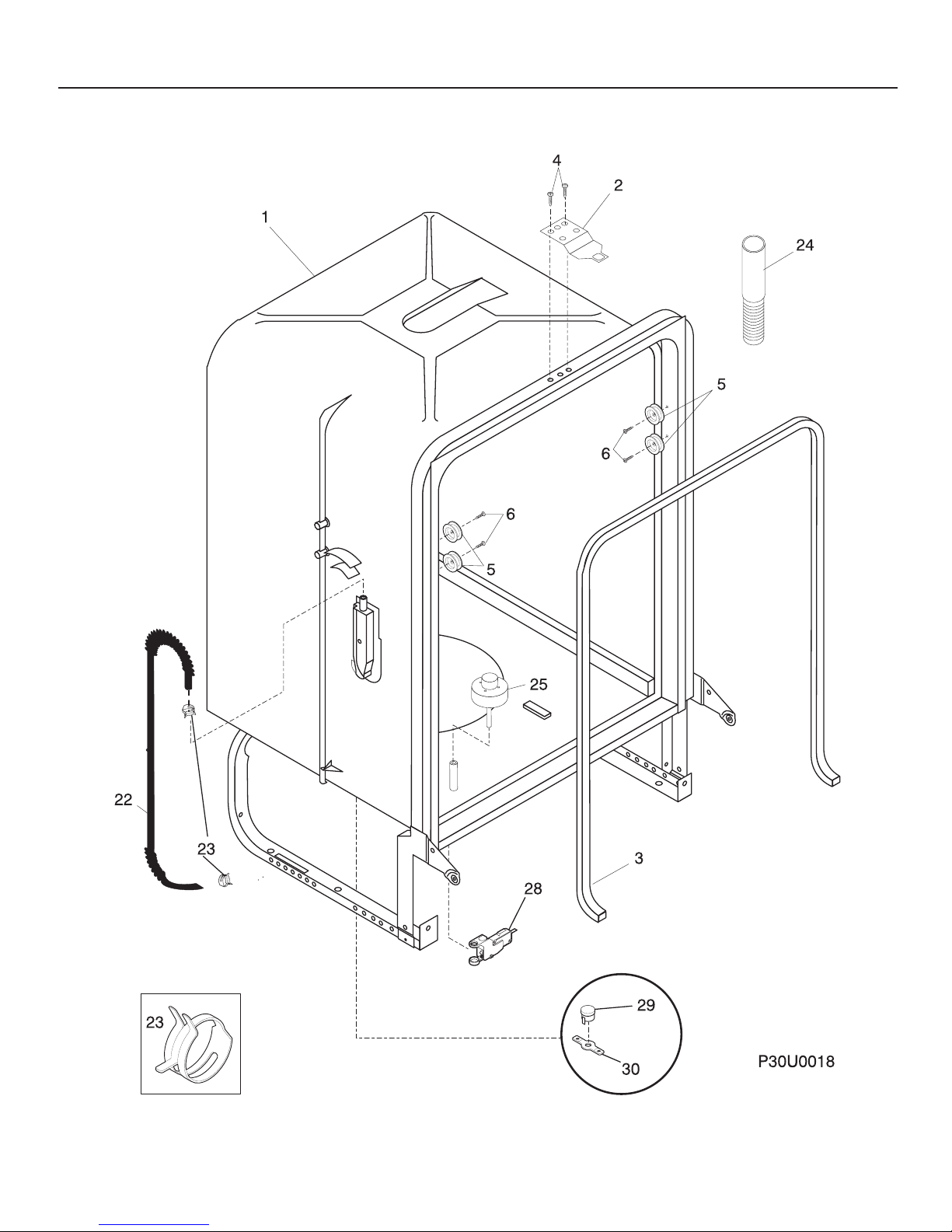

TUB

# = Fast Moving Part 7 06/03

* = Non-Illustrated Part

FDB2110LC Publication No.

5995391769

A = FDB2110LC (FDB2110LCS0)

B = FDB2110LC (FDB2110LCQ0)

C = FDB2110LC (FDB2110LCB0)

D = FDB2110LC (FDB2110LCC0)

POS. NO PART NO DESCRIPTION

1 # 154209301 A B C D Tub assy,w/frame parts

2 154429101 A B C D Strike,door

3 # 154211801 A B C D Gasket,tub

4 154200602 A B C D Screw,10-16 x 3/8 ,hex

5 154333902 A B C D Roller,tub

6 5303943103 A B C D Screw,w/washer ,(8)

22 154239801 A B C D Tubing,water inlet

23 5303318539 A B C D Clamp,tubing ,(2)

24 # 154411003 A B C D Hose,drain

25 # 154209701 A B C D Float

28 154408701 A B C D Switch assy,float

29 # 154290204 A B C D Thermostat,re-settable

30 154241101 A B C D Retainer,thermostat

30* 154297701 A B C D Screw,retainer-thermo

* 154041001 A B C D Screw,plask #1 ,10-10 x 9/16

* 154447102 A B C D Insulation,blanket

* 5300807270 A B C D Screw,(2) ,countertop mtg.

TUB

06/03 8

Publication No. FDB2110LC

5995391769

MOTOR & PUMP

# = Fast Moving Part 9 02/03

* = Non-Illustrated Part

FDB2110LC Publication No.

5995391769

A = FDB2110LC (FDB2110LCS0)

B = FDB2110LC (FDB2110LCQ0)

C = FDB2110LC (FDB2110LCB0)

D = FDB2110LC (FDB2110LCC0)

POS. NO PART NO DESCRIPTION

1 # 154247601 A B C D Heater

1* 154106201 A B C D Nut,heater ,(2)

1* 154289801 A B C D Shield,heater terminal

2 154359701 A B C D Bracket,heater ,(2)

10 154245501 A B C D Cover,volute

13 154246801 A B C D Gasket,sump

14 154365902 A B C D Housing,sump

16 154246502 A B C D Retainer,sump

24 154414101 A B C D Spray arm,lower ,w/heat shield

24A 154313601 A B C D Spray arm,center

24A* 154252001 A B C D Nut,spray arm ,center

32 154406601 A B C D Tube,delivery

32A 154406401 A B C D Gasket,delivery tube

40 154348401 A B C D Clamp,red ,pump

40 154348501 A B C D Clamp,silver ,pump

40* 154106801 A B C D Clamp,hose ,(2)

40* 154380601 A B C D Clamp,hose ,(1)

54 154234401 A B C D Hose,connector

55 154362301 A B C D Bracket,motor ,askoll

55* 5303316032 A B C D Screw,truss ss ,8 .625

58 154246402 A B C D Check ball

59 154246901 A B C D O-ring,rear

59A 154247001 A B C D O-ring,front

60 154407401 A B C D Drain Pump Assy

60* 154426201 A B C D Bracket,motor ,drain

61 154406501 A B C D Nozzle,3rd level ,spray arm

62 154294101 A B C D Support,spray arm ,lower

63 154252201 A B C D Base,soil director

64 154252301 A B C D Filter,soil director

65 154252401 A B C D Filter,polypro

66 154252701 A B C D Trap,glass

70 # 154395403 A B C D Motor assembly,circulation ,w/o o’rings

* 154200601 A B C D Screw,#10-16 x 3/8

MOTOR & PUMP

06/03 10

Publication No. FDB2110LC

5995391769

FRAME
