Frigidaire FDB2410LD Bedienungsanleitung

P30L0066.eps P30C0143.eps P30B0037.eps P30U0021.eps P30M0038.eps P30F0022.eps

P30R0082.eps

Product No. FDB2410LDC1

Series Built-in 24"

Color stainless

Owner's Guide 154493801

Service Data Sheet 154526501

Energy Guide 154540024

Installation Instructions 154427301

Market North America

ELECTROLUX HOME PRODUCTS, INC.

P.O. Box 212378, Augusta, GA 30917

Publication No.

5995424198

04/12/13

(EN/SERVICE/ECL)

821

24-INCH BUILT-IN

DISHWASHER

Model No.

FDB2410LD

Publication No: 5995424198 FDB2410LDC1

12/04 2

CONTROL PANEL

P30C0143

FDB2410LDC1 Publication No: 5995424198

# Functional Parts 3 12/04

* Non-Illustrated Parts

CONTROL PANEL

POS. NO PART NO. DESCRIPTION

1 154486003 Panel, control, black

2 154525403 Insert, control panel, black

3 154522803 Board, control

3* 154200401 Screw, 6-10 x 3/8, pan plask

4 154460601 Cover, control

4* 154478901 Gasket, cover

8 # 154475801 Switch, selector, 9 pad w/display

8* 5303318719 Screw, mtg.

8A 154486201 Shield, tactile switch

20 154423601 Vent assy, active dry, w/actuator

20* 154436201 Screw, dry duct, (3)

27 154433501 Actuator, active dry vent

28 154474401 Adapter, vent

* # 154527101 Wiring Harness, main

* 154540024 Energy guide label

Publication No: 5995424198 FDB2410LDC1

12/04 4

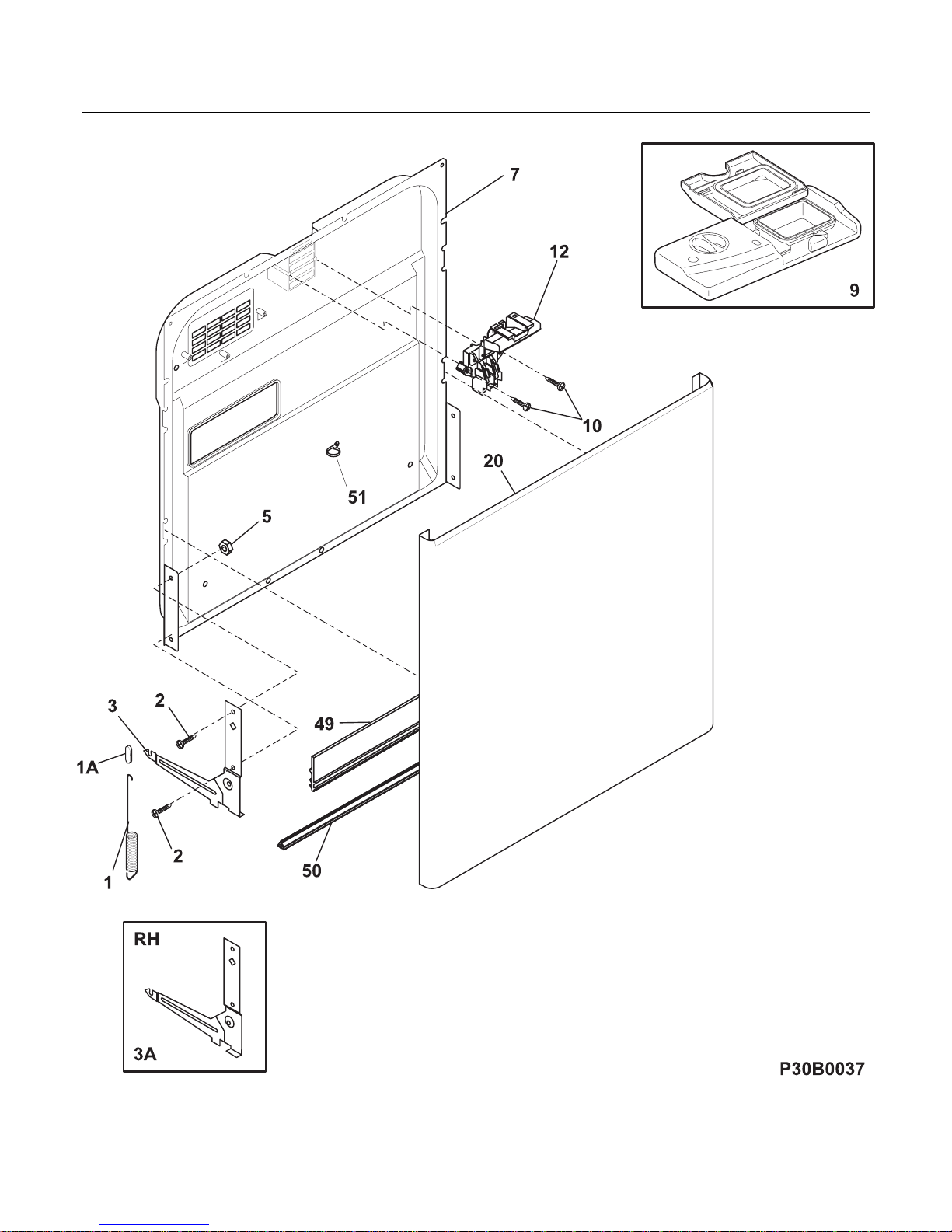

DOOR

FDB2410LDC1 Publication No: 5995424198

# Functional Parts 5 12/04

* Non-Illustrated Parts

DOOR

POS. NO PART NO. DESCRIPTION

1 154430501 Spring, door, (2)

1A 154325201 Linkage, door spring, (2)

2 154093301 Screw, armassy, (4)

3 154325302 Arm Assy, LH

3A 154325301 Arm Assy, RH

* 154400601 Pin, arm assy

5 154079601 Nut, arm assy, and handle mtg.

7 154494601 Liner, door assy.

9 154452703 Dispenser, det/rinse aid, w/o reed

9* 154294701 Screw, #7 plas .375, (6), disp. assy.

10 154103702 Screw, latch mtg, (2)

12 154529403 Latch assy, black

20 154533401 Door, stainless

20* 154253201 Insulation, door

20* 5304428306 Screw, door mtg., (2)

49 154297603 Gasket, door, bottom

50 154211401 Support, door hinge

51 154320301 Clamp, drip loop, wire

Publication No: 5995424198 FDB2410LDC1

12/04 6

TUB

FDB2410LDC1 Publication No: 5995424198

# Functional Parts 7 12/04

* Non-Illustrated Parts

TUB

POS. NO PART NO. DESCRIPTION

1 # 154534701 Tub assy, w/frame parts

2 154429101 Strike, door

3 # 154211801 Gasket, tub

4 154200602 Screw, 10-16 x 3/8, hex

5 154333902 Roller, tub

6 5303943103 Screw, w/washer, (8)

22 154446002 Tubing, water inlet

23 5303318539 Clamp, tubing, (2)

24 # 154525301 Hose, drain

25 # 154209701 Float

28 154408701 Switch Assy, float

29 # 154290204 Thermostat, re-settable

30 154241101 Retainer, thermostat

30* 154297701 Screw, retainer-thermo

* 154447102 Insulation, blanket

* 154041001 Screw, plask #1, 10-10 x 9/16

* 5300807270 Screw, (2), countertop mtg.

Publication No: 5995424198 FDB2410LDC1

12/04 8

MOTOR & PUMP

FDB2410LDC1 Publication No: 5995424198

# Functional Parts 9 12/04

* Non-Illustrated Parts

MOTOR & PUMP

POS. NO PART NO. DESCRIPTION

1 # 154482901 Heater, round

1* 154106201 Nut, heater, (2)

1* 154289801 Shield, heater terminal

2 154465101 Bracket, heater, (2)

10 154245501 Cover, volute

13 154246801 Gasket, sump

14 154461902 Housing, sump

16 154246502 Retainer, sump

16* 5304404947 Screw, retainer

24 154467702 Spray arm, grey, lower

24A 154468502 Spray arm, grey, center

24B 154520601 Nozzle, shower, assembly

32 154464101 Tube, delivery

32* 154491101 Screw, delivery tube

32A 154406401 Gasket, delivery tube

40 154348401 Clamp, red, pump

40 154348502 Clamp, red, pump

40* 154106801 Clamp, hose, (2)

40* 154380601 Clamp, hose, (1)

54 154234401 Hose, connector

55 154362301 Bracket, motor, askoll

55* 5303316032 Screw, truss ss, 8 .625

58 154246402 Check ball

59 154246901 O-ring, rear

59A 154247001 O-ring, front

60 154491301 Pump, drain

60* 5303318719 Screw, mtg.

61 154463402 Grommet, delivery tube

62 154294102 Support, spray arm, grey, lower

63 154252201 Base, soil director

64 154252302 Filter, soil director, grey

65 154283005 Filter Assy, grey

66 154252702 Trap, glass, grey

70 154523501 Motor & Pump Assy

71 # 154473901 Sensor, turbidity

71* 154376001 O-ring, turbidity

* 154200601 Screw, #10-16 x 3/8

Publication No: 5995424198 FDB2410LDC1

12/04 10

FRAME
