Frigidaire FDB345LF Bedienungsanleitung

PRODUCT NO. BASE MODEL NO. SERIES COLOR

FDB345LFR1 FDB345LF 24" Buiklt-in black

FDB345LFS1 FDB345LF 24" Buiklt-in white

MARKET

North America

Publication No.

5995344438

001009

-EN/SERVICE /ECL

821

24" BUILT IN

DISHWASHER

Model No.

FDB345LF

FACTORY PARTS CATALOG

DISHWASHER

SERVICE DATA SHEET # - 154385301

OWNER’S GUIDE # - 154334202

WIRING DIAGRAM # - 154385301

101 Masters Blvd.

Anderson, SC 29624

10/00 2

Publication No. FDB345LF

5995344438

CONTROL PANEL

# = Fast Moving Part 3 10/00

* = Non-Illustrated Part

FDB345LF Publication No.

5995344438

CONTROL PANEL

A = FDB345LF (FDB345LFS1)

B = FDB345LF (FDB345LFR1)

POS. NO PART NO DESCRIPTION

1 154368301 A - Panel-control,white

1 154368303 - B Panel-control,black

2 154333801 A - Insert-control pnl,white

2 154333803 - B Insert-control pnl,black

3 # 154295701 A B Timer

3* 154095701 A B Screw-timer,thread rolling ,(2)

3* 154131203 A B Shield-timer

8 154334101 A B Switch

8* 154242201 A B Shield-switch

8* 5303318719 A B Screw,mtg.

12 154236502 A - Pushbutton,white ,(2)

12 154236501 - B Pushbutton,black ,(4)

13 154239501 A - Knob-timer,white

13 154239503 - B Knob-timer

20 154283701 A B Vapor Weldment Assy

25 154229201 A B Seal-chamber

26 154303901 A B Gasket-vent

27 154226701 A B Actuator-wax

28 154226901 A B Valve-vent

29 154226403 A B Gasket-valve

* 154283901 A B Screw,#8-10 ,3/8 phillips

* # 154385101 A B Harness-wiring

10/00 4

Publication No. FDB345LF

5995344438

DOOR

# = Fast Moving Part 5 10/00

* = Non-Illustrated Part

FDB345LF Publication No.

5995344438

A = FDB345LF (FDB345LFS1)

B = FDB345LF (FDB345LFR1)

POS. NO PART NO DESCRIPTION

1 154345902 A B Spring-door,(2)

1A 154325201 A B Spring linkage,(2)

2 154093301 A B Screw-arm assy,(4)

3 154325304 A B Arm Assy,LH

3A 154325303 A B Arm Assy,RH

* 154211501 A B Pin-arm

5 154079601 A B Nut-arm assy,(4)

7 154299002 A B Door-inner assy

7A 154226601 A B Liner grate

9 154230101 A B Dispenser-det/rinse aid

9* 154294701 A B Screw,#7 plas .375 ,(6) ,disp. assy.

10 154103702 A B Screw-latch mtg,(2)

12 # 154361201 A - Latch assy,white

12 # 154361203 - B Latch assy,black

20 154327701 A B Mid Door Assy

27 154309501 A - Trim-door,white ,bottom

27 154309503 - B Trim-door,black ,bottom

32 5303943148 A B Insert-door kit,wht/alm&blk/wht

32A 154229001 A B Spacer-insert,door

36 154309301 A - Trim-door,side ,(2)

36 154309303 - B Trim-door,side ,(2)

49 154297602 A B Gasket-door,bottom

50 154211401 A B Support-door hinge

51 154320301 A B Clamp-wire,drip loop

* 154227806 A B Thermostat-temp boost

DOOR

10/00 6

Publication No. FDB345LF

5995344438

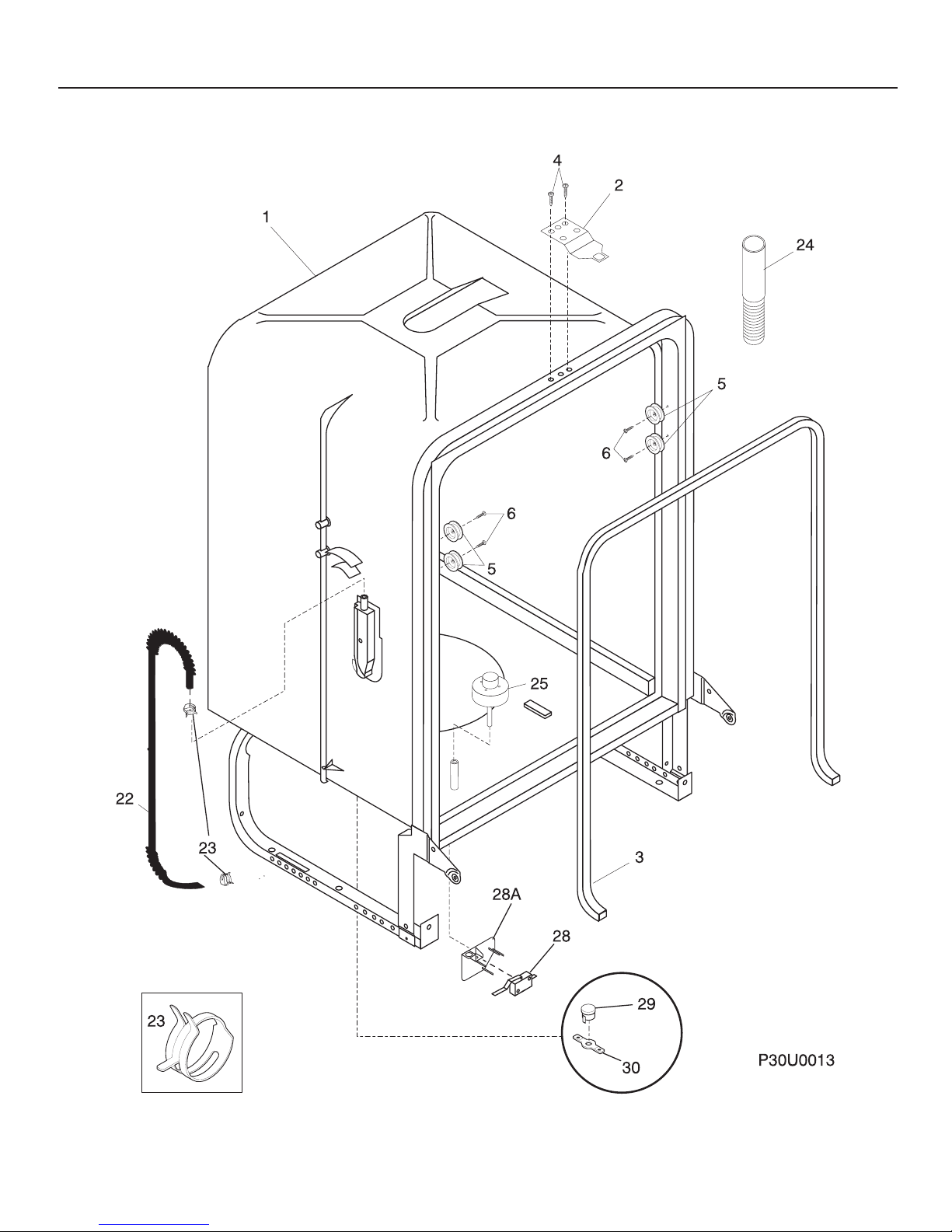

TUB

# = Fast Moving Part 7 10/00

* = Non-Illustrated Part

FDB345LF Publication No.

5995344438

A = FDB345LF (FDB345LFS1)

B = FDB345LF (FDB345LFR1)

POS. NO PART NO DESCRIPTION

1 # 154209301 A B Tub assy,w/frame parts

2 154211601 A B Strike-door

3 # 154211801 A B Gasket-tub

4 154200602 A B Screw,10-16 x 3/8 ,hex

5 154333901 A B Roller-tub

6 5303943103 A B Screw w/washer,(8)

22 154239801 A B Tubing-water inlet

23 5303318539 A B Clamp-tubing,(2)

24 # 154225602 A B Hose-drain

25 # 154209701 A B Float

28 # 154225501 A B Switch-float

28A 154209801 A B Bracket-float switch

28A* 154333301 A B Screw,bracket mtg ,ph truss head

29 # 154290204 A B Thermostat,re-settable

30 154241101 A B Retainer-thermostat

30* 154297701 A B Screw,retainer-thermo

* 154238304 A B Insulation,tub

* 5300807270 A B Screw,(2) ,countertop mtg.

TUB

10/00 8

Publication No. FDB345LF

5995344438

MOTOR & PUMP

# = Fast Moving Part 9 10/00

* = Non-Illustrated Part

FDB345LF Publication No.

5995344438

A = FDB345LF (FDB345LFS1)

B = FDB345LF (FDB345LFR1)

POS. NO PART NO DESCRIPTION

1 # 154247601 A B Heater

1* 154106201 A B Nut-heater,(2)

1* 154289801 A B Shield-heater terminal

2 154359701 A B Bracket-heater,(2)

10 154245501 A B Cover-volute

13 154246801 A B Gasket-sump

14 154365902 A B Housing-sump

16 154246502 A B Retainer,sump

16* 5304404947 A B Screw,retainer

24 154250801 A B Spray arm-lower

24A 154313601 A B Spray arm-center

24A* 154252001 A B Nut-spray arm

32 154251701 A B Tube-delivery

32A 154358901 A B Gasket-delivery tube

34 154064901 A B Washer-insulating

40 154348401 A B Clamp,red ,pump

40 154348501 A B Clamp,silver ,pump

40* 154106801 A B Clamp-hose,(2)

54 154234401 A B Hose-connector

55 154362301 A B Bracket-motor

55* 5303316032 A B Screw,truss ss ,8 .625

58 154246402 A B Check ball

59 154246901 A B O-ring,rear

59A 154247001 A B O-ring,front

60 154247502 A B Drain Pump Assy

60* 154234501 A B Bracket-motor,drain

61 154359601 A B Nozzle,3rd level ,spray arm

62 154294101 A B Support-spray arm

63 154252201 A B Base-soil director

64 154252301 A B Filter-soil director

65 154252401 A B Filter-polypro

66 154252701 A B Trap-glass

70 # 154369501 A B Motor assembly,circulation ,w/o o’rings

* 154338601 A B Clamp-P,nylon

MOTOR & PUMP

10/00 10

Publication No. FDB345LF

5995344438

FRAME
