Frigidaire FDB641RA Bedienungsanleitung

PRODUCT NO. BASE MODEL NO. SERIES COLOR

FDB641RAB2 FDB641RA Built-in 24" black

FDB641RAS2 FDB641RA Built-in 24" white

MARKET

North America

Publication No.

5995379020

021001

-EN/SERVICE /ECL

821

24" Built-In

DISHWASHER

Model No.

FDB641RA

FACTORY PARTS CATALOG

DISHWASHER

SERVICE DATA SHEET # - 154442401

OWNER’S GUIDE # - 154428001

INSTALLATION INSTRUCTIONS # - 154427401

P.O. Box 212378, Augusta, GA 30917

10/02 2

Publication No. FDB641RA

5995379020

CONTROL PANEL

# = Fast Moving Part 3 10/02

* = Non-Illustrated Part

FDB641RA Publication No.

5995379020

CONTROL PANEL

A = FDB641RA (FDB641RAS2)

B = FDB641RA (FDB641RAB2)

POS. NO PART NO DESCRIPTION

1 154368201 A - Panel,control ,white

1 154368203 - B Panel,control ,black

2 154403401 A - Insert,control panel ,white

2 154403403 - B Insert,control panel ,black

3 # 154413101 A B Timer

3* 154131203 A B Shield,timer

3* 154095701 A B Screw,thread rolling ,(2) ,timer

8 # 154373701 A B Switch,selector ,6 button

8* 154248601 A B Shield,switch

8* 5303318719 A B Screw,mtg.

13 154239504 A - Knob,timer ,white

13 154239509 - B Knob,timer ,black

20 154433001 A B Vent assy,static dry

20* 154436201 A B Screw,dry duct ,(3)

* # 154438701 A B Harness,wiring

* 154399012 A B Label,energy guide

10/02 4

Publication No. FDB641RA

5995379020

DOOR

# = Fast Moving Part 5 10/02

* = Non-Illustrated Part

FDB641RA Publication No.

5995379020

A = FDB641RA (FDB641RAS2)

B = FDB641RA (FDB641RAB2)

POS. NO PART NO DESCRIPTION

1 154413301 A B Spring,door ,(2)

1A 154325201 A B Linkage,door spring ,(2)

2 154093301 A B Screw,arm assy ,(4)

3 154325304 A B Arm Assy,LH

3A 154325303 A B Arm Assy,RH

* 154400601 A B Pin,arm assy

5 154079601 A B Nut,arm assy ,and handle mtg.

7 154299004 A B Door,inner assy

9 154230103 A B Dispenser,det/rinse aid ,includes #22

9* 154294701 A B Screw,#7 plas .375 ,(6) ,disp. assy.

10 154103702 A B Screw,latch mtg ,(2)

12 # 154361201 A - Latch assy,white

12 # 154361203 - B Latch assy,black

20 154359105 A - Door,white

20 154359107 - B Door,black

20* 5304428306 A B Screw,door mtg. ,(2)

22 154388801 A B Cap,Rinse aid

49 154297603 A B Gasket,door ,bottom

50 154211401 A B Support,door hinge

51 154320301 A B Clamp,drip loop ,wire

* # 154227808 A B Thermostat,temp boost

* 154200601 A B Screw,#10-16 x 3/8

DOOR

10/02 6

Publication No. FDB641RA

5995379020

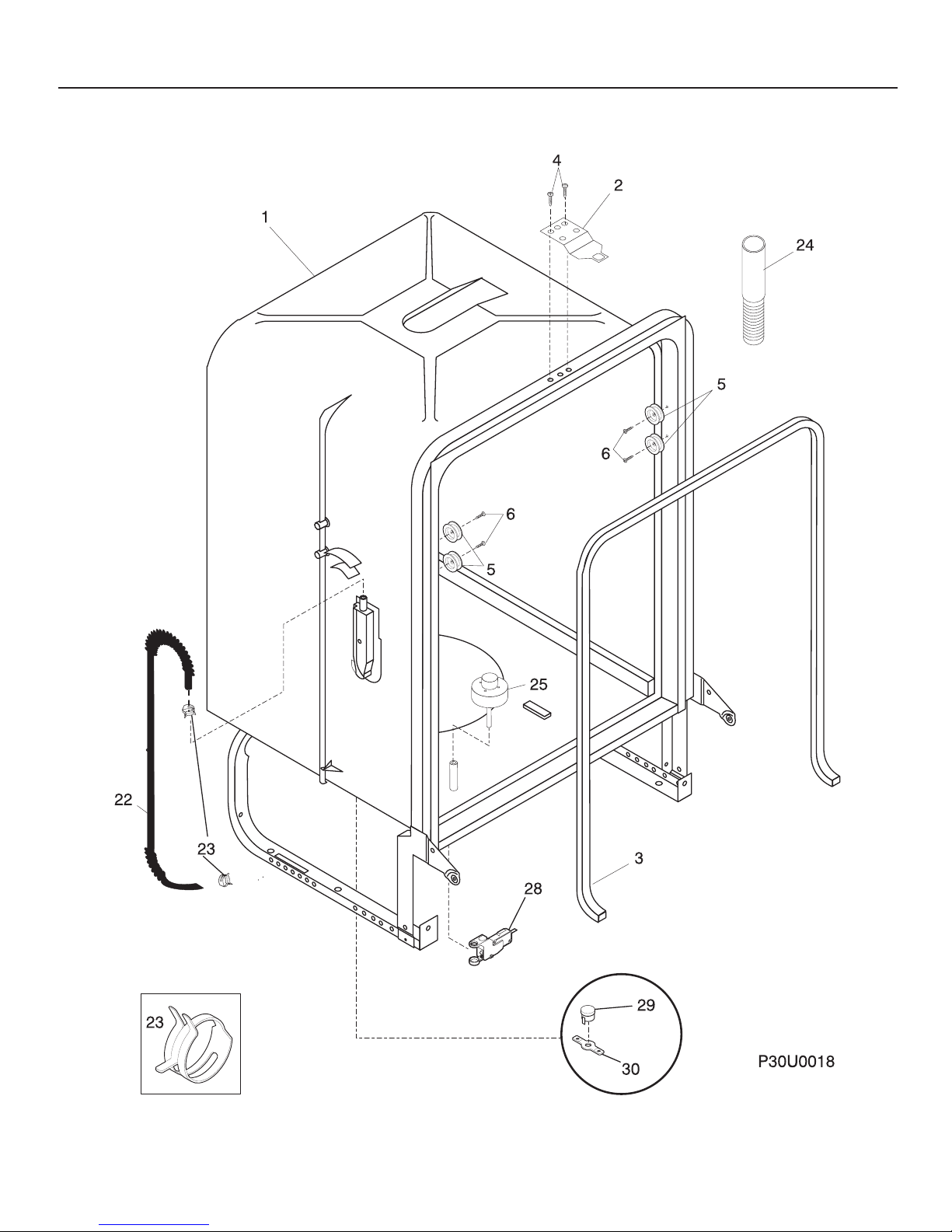

TUB

# = Fast Moving Part 7 10/02

* = Non-Illustrated Part

FDB641RA Publication No.

5995379020

A = FDB641RA (FDB641RAS2)

B = FDB641RA (FDB641RAB2)

POS. NO PART NO DESCRIPTION

1 # 154209301 A B Tub assy,w/frame parts

2 154429101 A B Strike,door

3 # 154211801 A B Gasket,tub

4 154200602 A B Screw,10-16 x 3/8 ,hex

5 154333902 A B Roller,tub

6 5303943103 A B Screw,w/washer ,(8)

22 154239801 A B Tubing,water inlet

23 5303318539 A B Clamp,tubing ,(2)

24 # 154411003 A B Hose,drain

25 # 154209701 A B Float

28 154408701 A B Switch assy,float

29 # 154290204 A B Thermostat,re-settable

30 154241101 A B Retainer,thermostat

30* 154297701 A B Screw,retainer-thermo

* 154238304 A B Insulation,tub

* 154041001 A B Screw,plask #1 ,10-10 x 9/16

* 5300807270 A B Screw,(2) ,countertop mtg.

TUB

10/02 8

Publication No. FDB641RA

5995379020

MOTOR & PUMP

# = Fast Moving Part 9 10/02

* = Non-Illustrated Part

FDB641RA Publication No.

5995379020

A = FDB641RA (FDB641RAS2)

B = FDB641RA (FDB641RAB2)

POS. NO PART NO DESCRIPTION

1 # 154247601 A B Heater

1* 154106201 A B Nut,heater ,(2)

1* 154289801 A B Shield,heater terminal

2 154359701 A B Bracket,heater ,(2)

10 154245501 A B Cover,volute

13 154246801 A B Gasket,sump

14 154365902 A B Housing,sump

16 154246502 A B Retainer,sump

24 154414101 A B Spray arm,lower ,w/heat shield

24A 154313601 A B Spray arm,center

24A* 154252001 A B Nut,spray arm ,center

32 154406601 A B Tube,delivery

32A 154406401 A B Gasket,delivery tube

40 154348401 A B Clamp,red ,pump

40 154348501 A B Clamp,silver ,pump

40* 154106801 A B Clamp,hose ,(2)

54 154234401 A B Hose,connector

55 154362301 A B Bracket,motor ,askoll

55* 5303316032 A B Screw,truss ss ,8 .625

58 154246402 A B Check ball

59 154246901 A B O-ring,rear

59A 154247001 A B O-ring,front

60 154407401 A B Drain Pump Assy

60* 154426201 A B Bracket,motor ,drain

61 154406701 A B Nozzle,2nd level ,spray arm

62 154294101 A B Support,spray arm ,lower

63 154252201 A B Base,soil director

64 154252301 A B Filter,soil director

65 154252401 A B Filter,polypro

66 154252701 A B Trap,glass

70 # 154395403 A B Motor assembly,circulation ,w/o o’rings

* 154380601 A B Clamp,hose ,(1)

* 154200601 A B Screw,#10-16 x 3/8

MOTOR & PUMP

10/02 10

Publication No. FDB641RA

5995379020

FRAME
