Frigidaire FDB836GF Bedienungsanleitung

PRODUCT NO. BASE MODEL NO. COLOR

FDB836GFT4 FDB836GF almond

MARKET

North America

Publication No.

5995327284

990831

-EN/SERVICE /ECL

821

18" PORTABLE

DISHWASHER

Model No.

FDB836GF

FACTORY PARTS CATALOG

DISHWASHER

SERVICE DATA SHEET # - 154320701

OWNER’S GUIDE # - 154314302

WIRING DIAGRAM # - 154320701

101 Masters Blvd.

Anderson, SC 29624

8/99 2

Publication No. FDB836GFT4

5995327284

CONTROL PANEL

# = Fast Moving Part 3 8/99

* = Non-Illustrated Part

FDB836GFT4 Publication No.

5995327284

CONTROL PANEL

POS. NO PART NO DESCRIPTION

1 154253102 Panel-control,almond

2 154236902 Insert-control pnl,almond

3 # 154227703 Control

3* 154200401 Screw,6-10 x 3/8 ,pan plask

4 154287901 Cover-control

4A 154301301 Cover-pc protector

20 154228301 Duct-dynamic

25 154229201 Seal-chamber

26 154303901 Gasket-vent

27 154226701 Actuator-wax

28 154226901 Valve-vent

29 154226401 Gasket-valve

30 154226802 Blower-crossflow

31 154228101 Chamber-vapor

33 154292402 Gasket-cover

34 154321901 Keypad,8pad

* 154301202 Harness-wiring,main

* 154302302 Nameplate Assy,almond

8/99 4

Publication No. FDB836GFT4

5995327284

DOOR

# = Fast Moving Part 5 8/99

* = Non-Illustrated Part

FDB836GFT4 Publication No.

5995327284

POS. NO PART NO DESCRIPTION

1 154226002 Spring-door,(2)

2 154093301 Screw-arm assy,(4)

3 154225902 Arm Assy,LH

3A 154225901 Arm Assy,RH

* 154211501 Pin-arm

* 154298101 Washer,arm

5 154079601 Nut-arm assy,(4)

7 154299002 Door-inner assy

7A 154226601 Liner grate

9 154230101 Dispenser-det/rinse aid

9* 154294701 Screw,#7 plas .375 ,(6) ,disp. assy.

10 154304301 Screw-latch mtg,(2)

12 # 154308102 Latch assy,almond

20 154292602 Door,almond

49 154297601 Gasket-door,bottom

50 154211401 Support-door hinge

51 154320301 Clamp-wire,drip loop

* # 154227501 Thermister

* 154200601 Screw-#10-16 x 3/8

* 154253201 Insulation,door

* 5300808749 Screw,C.R. truss ,#8 .625

DOOR

8/99 6

Publication No. FDB836GFT4

5995327284

TUB

# = Fast Moving Part 7 8/99

* = Non-Illustrated Part

FDB836GFT4 Publication No.

5995327284

POS. NO PART NO DESCRIPTION

1 # 154209301 Tub assy,w/frame parts

2 154211601 Strike-door

3 # 154211801 Gasket-tub

4 154200602 Screw,10-16 x 3/8 ,hex

5 154080001 Roller-tub

6 5303943103 Screw w/washer,(8)

22 154239801 Tubing-water inlet

23 5303318539 Clamp-tubing,(2)

24 # 154225602 Hose-drain

25 # 154209701 Float

28 # 154225501 Switch-float

28A 154209801 Bracket-float switch

28A* 154200701 Screw-#10-32 x 3/8

29 # 154290204 Thermostat,re-settable

30 154241101 Retainer-thermostat

30* 154297701 Screw,retainer-thermo

* 154041001 Screw,plask #1 ,10-10 x 9/16

* 154238305 Insulation

* 154249401 Dampener-tub,front

* 154249402 Dampener-tub,back

TUB

8/99 8

Publication No. FDB836GFT4

5995327284

MOTOR & PUMP

# = Fast Moving Part 9 8/99

* = Non-Illustrated Part

FDB836GFT4 Publication No.

5995327284

POS. NO PART NO DESCRIPTION

1 # 154247601 Heater

1* 154106201 Nut-heater,(2)

1* 154289801 Shield-heater terminal

2 154211001 Bracket-heater

7 154245901 Macerator

10 154245501 Cover-volute

10* 5303316032 Screw,truss ss ,8 .625

12 154245801 Impeller

12* 154282701 Screw,ss impeller

13 154246801 Gasket-sump

14 154245401 Housing-sump

15 154246701 Check valve

16 154246501 Retainer,sump

24 # 154250901 Spray arm-lower,w/cover

24A 154313601 Spray arm-center

24A* 154252001 Nut-spray arm

32 154251701 Tube-delivery

32A 154251601 Gasket-delivery tube

34 154064901 Washer-insulating

40 154106801 Clamp-hose

40* 154247301 Clamp,drain pump

54 154234401 Hose-connector

55 154245601 Bracket-motor

55A 154246201 Bracket-motor,front

57 154246001 Barrel,front

57* 154246101 Barrel,rear

58 154246402 Check ball

59 154246901 O-ring,rear

59A 154247001 O-ring,front

60 154247501 Drain Pump Assy

60* 154234501 Bracket-motor,drain

61 154250201 Nozzle,3rd level ,spray arm

62 154294101 Support-spray arm

63 154252201 Base-soil director

64 154252301 Filter-soil director

65 154283004 Filter Assy

66 154252701 Trap-glass

67 154246601 Hose-drain,shunt

70 154291504 Motor & Pump Assy,includes#7,#12 ,

#55A,#57,#59,,#59A

70* 154287201 Screw,motor mounting

71 # 154289901 Transformer

* 154200601 Screw-#10-16 x 3/8

* 154247101 Clamp,drain side

* 154247201 Clamp,intake

* 154247401 Clamp,connector pump

MOTOR & PUMP

8/99 10

Publication No. FDB836GFT4

5995327284

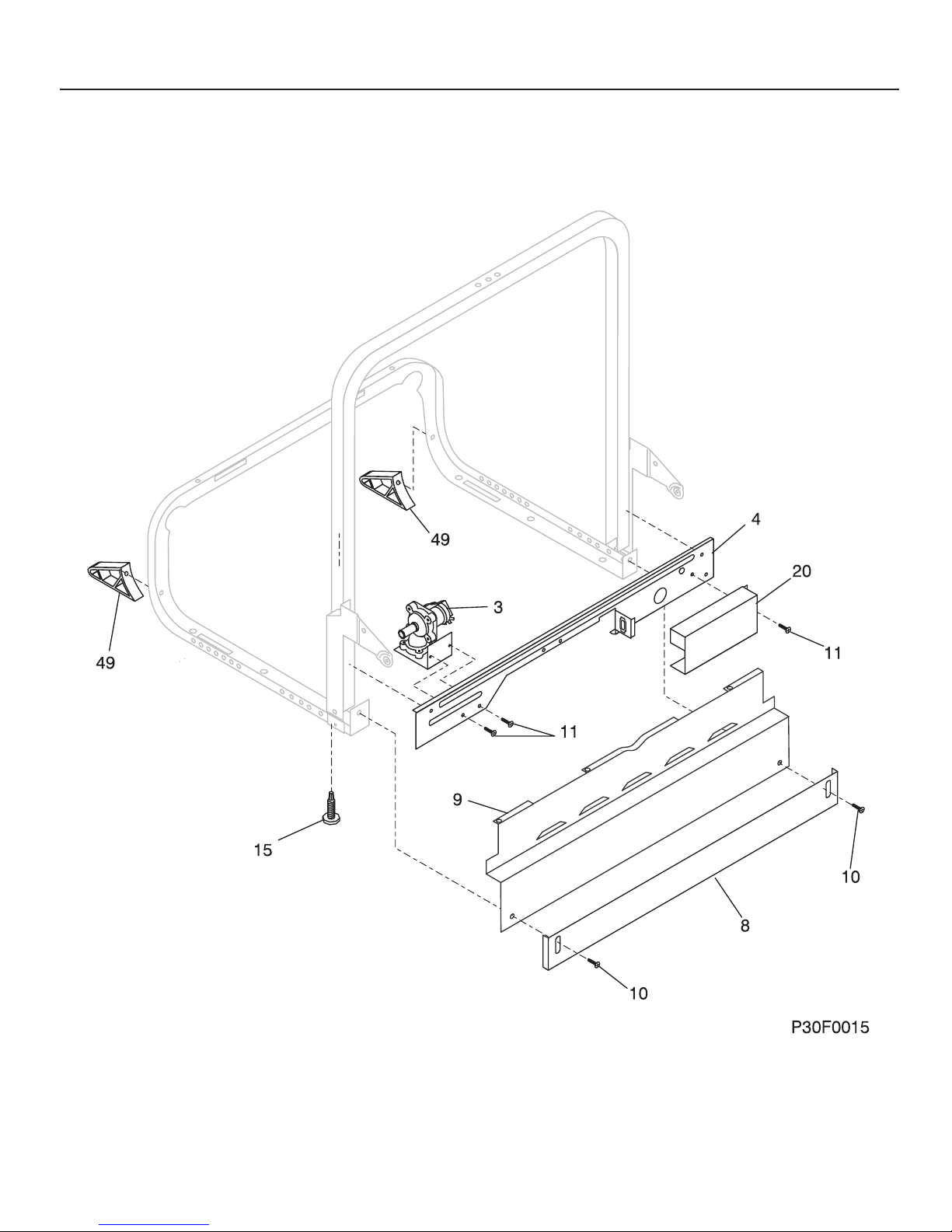

FRAME
