Frigidaire FDB836GF Bedienungsanleitung

PRODUCT NO. BASE MODEL NO. COLOR WIRING DIAGRAM OWNER’S GUIDE

FDB836GFB3 FDB836GF black 154320701 154314301

FDB836GFS3 FDB836GF white 154320701 154314301

FDB836GFT3 FDB836GF almond 154320701 154314301

Publication No.

5995310785

980723

-EN/SERVICE /JLT

821

24" BUILT-IN

DISHWASHER

Model No.

FDB836GF

FACTORY PARTS CATALOG

DISHWASHER

SERVICE DATA SHEET # - 154320701

OWNER’S GUIDE # - 154314301

INSTALLATION INST - 154309602

101 Masters Blvd.

Anderson, SC 29624

7/98 2

Publication No. FDB836GF

5995310785

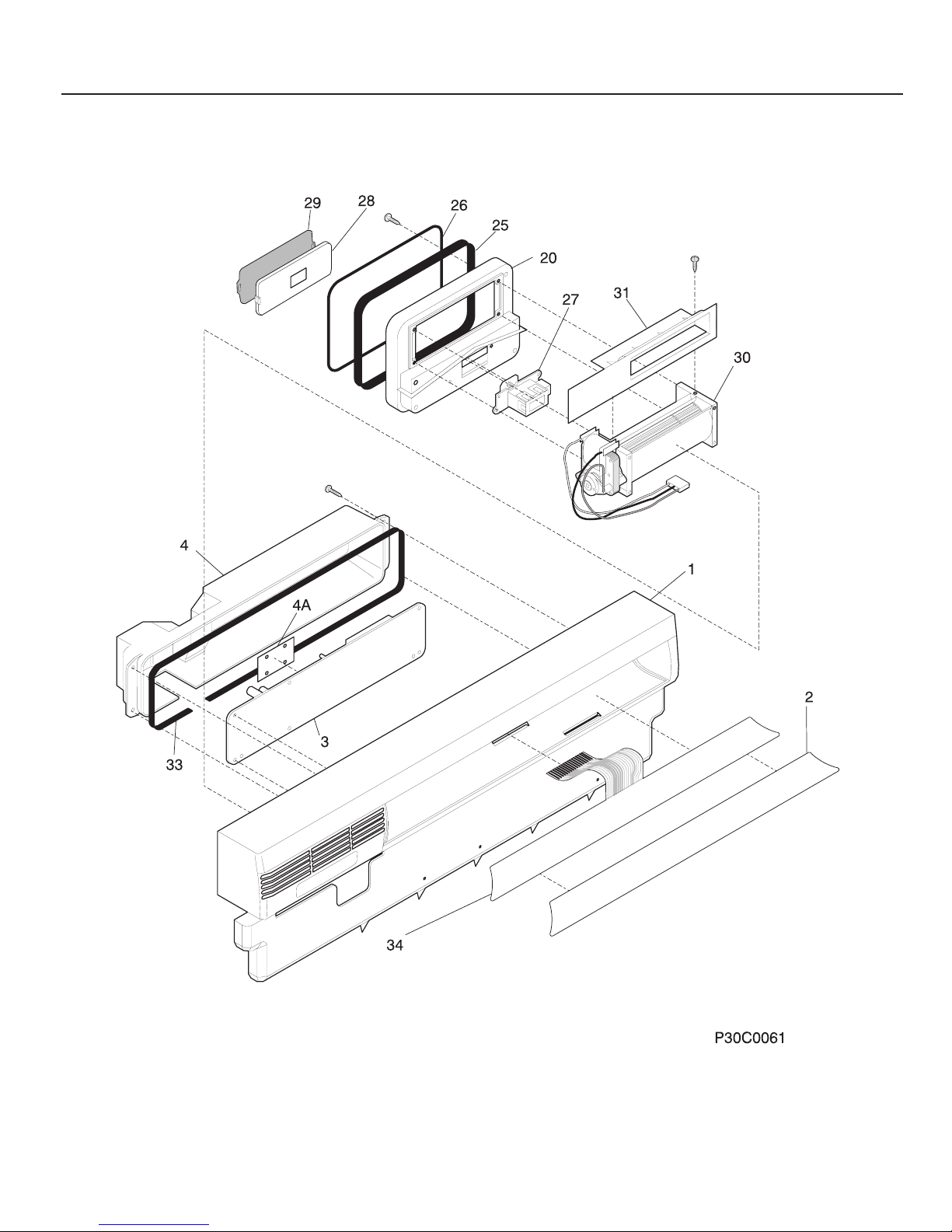

CONTROL PANEL

# = Fast Moving Part 3 7/98

* = Non-Illustrated Part

FDB836GF Publication No.

5995310785

CONTROL PANEL

A = FDB836GF (FDB836GFB3)

B = FDB836GF (FDB836GFS3)

C = FDB836GF (FDB836GFT3)

POS. NO PART NO DESCRIPTION

1 154253103 A - - Panel-control,black

1 154253101 - B - Panel-control,white

1 154253102 - - C Panel-control,almond

2 154236903 A - - Insert-control pnl,black

2 154236901 - B - Insert-control pnl,white

2 154236902 - - C Insert-control pnl,almond

3 # 154227703 A B C Control

4 154287901 A B C Cover-control

4A 154301301 A B C Cover-pc protector

20 154228301 A B C Duct-dynamic

25 154229201 A B C Seal-chamber

26 154303901 A B C Gasket-vent

27 154226701 A B C Actuator-wax

28 154226901 A B C Valve-vent

29 154226401 A B C Gasket-valve

30 154226802 A B C Blower-crossflow

31 154228101 A B C Chamber-vapor

33 154292402 A B C Gasket-cover

34 154321901 A B C Keypad,8pad

* 154200401 A B C Screw,6-10 x 3/8 ,pan plask

* 154283901 A B C Screw,#8-10 ,3/8 phillips

* 154301202 A B C Harness-wiring,main

* 154302303 A - - Nameplate Assy,black

* 154302301 - B - Nameplate Assy,white

* 154302302 - - C Nameplate Assy,almond

7/98 4

Publication No. FDB836GF

5995310785

DOOR

# = Fast Moving Part 5 7/98

* = Non-Illustrated Part

FDB836GF Publication No.

5995310785

A = FDB836GF (FDB836GFB3)

B = FDB836GF (FDB836GFS3)

C = FDB836GF (FDB836GFT3)

POS. NO PART NO DESCRIPTION

1 154226002 A B C Spring-door,(2)

2 154093301 A B C Screw-arm assy

3 154225902 A B C Arm Assy,LH

3* 154211501 A B C Pin-arm

3A 154225901 A B C Arm Assy,RH

5 154079601 A B C Nut-arm assy

7 154299002 A B C Door-inner assy

9 154230101 A B C Dispenser-det/rinse aid

10 154304301 A B C Screw-latch mtg,(2)

12 # 154308103 A - - Latch assy,black

12 # 154308101 - B - Latch assy,white

12 # 154308102 - - C Latch assy,almond

20 154292603 A - - Door,black

20 154292601 - B - Door,white

20 154292602 - - C Door,almond

49 154297601 A B C Gasket-door,bottom

50 154211401 A B C Support-door hinge

* 154200601 A B C Screw-#10-16 x 3/8

* 154253201 A B C Insulation,door

* 154298101 A B C Washer,arm

* 5300808749 A B C Screw,C.R. truss ,#8 .625

DOOR

7/98 6

Publication No. FDB836GF

5995310785

TUB

# = Fast Moving Part 7 7/98

* = Non-Illustrated Part

FDB836GF Publication No.

5995310785

A = FDB836GF (FDB836GFB3)

B = FDB836GF (FDB836GFS3)

C = FDB836GF (FDB836GFT3)

POS. NO PART NO DESCRIPTION

1 # 154209301 A B C Tub assy,w/frame parts

2 154211601 A B C Strike-door

3 # 154211801 A B C Gasket-tub

4 5300807270 A B C Screw

5 154080001 A B C Roller-tub

6 5303943103 A B C Screw w/washer,(8)

22 154239801 A B C Tubing-water inlet

23 5303318539 A B C Clamp-tubing,(2)

24 # 154225602 A B C Hose-drain

25 # 154209701 A B C Float

28 # 154225501 A B C Switch-float

28* 154200701 A B C Screw-#10-32 x 3/8

28* 154209801 A B C Bracket-float switch

29 # 154290203 A B C Thermostat,high limit

29A# 154227501 A B C Thermister

30 154241101 A B C Retainer-thermostat

30* 154297701 A B C Screw,retainer-thermo

* 154041001 A B C Screw,plask #1 ,10-10 x 9/16

* 154238303 A B C Insulation,blanket

* 154249401 A B C Dampener-tub,front

* 154249402 A B C Dampener-tub,back

TUB

7/98 8

Publication No. FDB836GF

5995310785

MOTOR & PUMP

# = Fast Moving Part 9 7/98

* = Non-Illustrated Part

FDB836GF Publication No.

5995310785

A = FDB836GF (FDB836GFB3)

B = FDB836GF (FDB836GFS3)

C = FDB836GF (FDB836GFT3)

POS. NO PART NO DESCRIPTION

1 # 154247601 A B C Heater

1* 154106201 A B C Nut-heater,(2)

1* 154289801 A B C Shield-heater terminal

2 154211001 A B C Bracket-heater

7 154245901 A B C Macerator

10 154245501 A B C Cover-volute

12 154245801 A B C Impeller

12* 154282701 A B C Screw,ss impeller

13 154246801 A B C Gasket-sump

14 154245401 A B C Housing-sump

15 # 154246701 A B C Check valve

16 154246501 A B C Retainer,sump

24 # 154250901 A B C Spray arm-lower,w/cover

24* 154252001 A B C Nut-spray arm

24A 154313601 A B C Spray arm-center

32 154251701 A B C Tube-delivery

32A 154251601 A B C Gasket-delivery tube

34 154064901 A B C Washer-insulating

40 154106801 A B C Clamp-hose

40 154247301 A B C Clamp,drain pump

54 154234401 A B C Hose-connector

55 154245601 A B C Bracket-motor

55A 154246201 A B C Bracket-motor,front

56 # 154245706 A B C Motor,circulation

57 154246001 A B C Barrel,front

57* 154246101 A B C Barrel,rear

58 154246402 A B C Check ball

59 154246901 A B C O-ring,rear

59A 154247001 A B C O-ring,front

60 154247501 A B C Drain Pump Assy

60* 154234501 A B C Bracket-motor,drain

61 154250201 A B C Nozzle,3rd level ,spray arm

62 154294101 A B C Support-spray arm

63 154252201 A B C Base-soil director

64 154252301 A B C Filter-soil director

65 154283003 A B C Filter Assy

65 154283004 A B C Filter Assy

66 154252701 A B C Trap-glass

67 154246601 A B C Hose-drain,shunt

70 # 154291504 A B C Motor & Pump Assy,includes#7,#12 ,

#57A,#59 & #59A,#55A,#56,#57

* # 154289901 A B C Transformer

* 154200601 A B C Screw-#10-16 x 3/8

* 154241101 A B C Retainer-thermostat

* 154247101 A B C Clamp,drain side

* 154247201 A B C Clamp,intake

* 154247401 A B C Clamp,connector pump

* 154287201 A B C Screw,motor mounting

* 5303316032 A B C Screw,truss ss ,8 .625

* 154281101 A B C Shield-spray arm,white

MOTOR & PUMP

7/98 10

Publication No. FDB836GF

5995310785

FRAME
