Frigidaire FDBB2865F Bedienungsanleitung
P30L0069.eps P30C0144.eps P30B0039.eps P30U0021.eps P30M0036.eps P30F0022.eps
P30R0099.eps
Product No. FDBB2865FC0
Series Built-in 24"
Color stainless
Owner's Guide English 154575701
Owner's Guide Spanish 154575703
Owner's Guide French 154575702
Service Data Sheet 154493101
Energy Guide 154540024
Installation Instructions 154427301
Market North America
Electrolux Major Appliances
North & Latin America
P.O. BOX 212378
AUGUSTA, GA 30917
Publication No.
5995471512
06/08/02
(EN/SERVICE/ECL)
821
24-INCH BUILT-IN
DISHWASHER
Model No.
FDBB2865F
Copyright ©2006 Electrolux Home Products, Inc.
All rights reserved.
Publication No: 5995471512 FDBB2865FC0
08/06 2

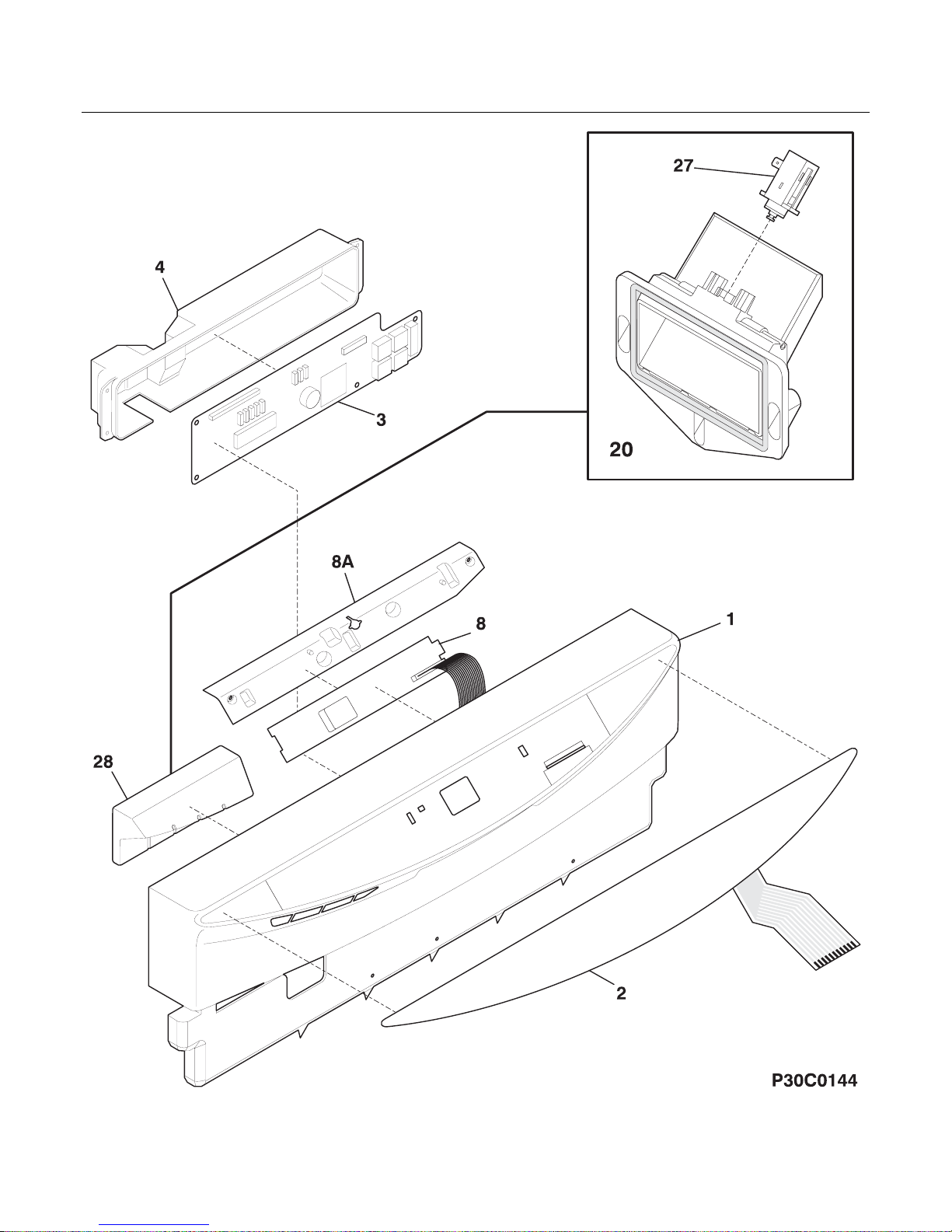

CONTROL PANEL
FDBB2865FC0 Publication No: 5995471512
# Functional Parts 3 08/06
* Non-Illustrated Parts
CONTROL PANEL
POS. NO PART NO. DESCRIPTION
1 # 154486103 Panel, control, black
2 154483503 Insert, control panel, stainless, w/switch memb.
3 154555005 Board, control
3* 154200401 Screw, 6-10 x 3/8, pan plask
4 154554601 Cover, control
4* 154478901 Gasket, cover
8 154474801 Board, segment display
8* 5303318719 Screw, mtg.
8A 154486201 Shield, tactile switch
20 154423601 Vent assy, active dry, w/actuator
20* 154436201 Screw, dry duct, (3)
27 154433501 Actuator, active dry vent
28 154474401 Adapter, vent
* 154546901 Wiring Harness, main
* 154540024 Energy guide label
Publication No: 5995471512 FDBB2865FC0
08/06 4
DOOR
FDBB2865FC0 Publication No: 5995471512
# Functional Parts 5 08/06
* Non-Illustrated Parts
DOOR
POS. NO PART NO. DESCRIPTION
1 154430601 Spring, door, (2)
1A 154325201 Linkage, door spring, (2)
2 154093301 Screw, armassy, (4)
3 154558103 Arm Assy, LH
3A 154558503 Arm Assy, RH
* 154529101 Pin, arm assy
5 154079601 Nut, arm assy, and handle mtg.
7 154494601 Liner, door assy.
9 154542104 Dispenser, det/rinse aid, w/read
9* 154294701 Screw, #7 plas .375, (6), disp. assy.
10 154103702 Screw, latch mtg, (2)
12 154529403 Latch assy, black
20 154533202 Door, stainless
20* 154253201 Insulation, door
20* 5304428306 Screw, door mtg., (2)
41 154470405 Towel bar assy, stainless
49 154576501 Gasket, door, bottom
50 154211401 Support, door hinge
51 154320301 Clamp, drip loop, wire
53 154425001 Nut, Keps, (2), handle mtg.
* 154200601 Screw, #10-16 x 3/8
Publication No: 5995471512 FDBB2865FC0
08/06 6

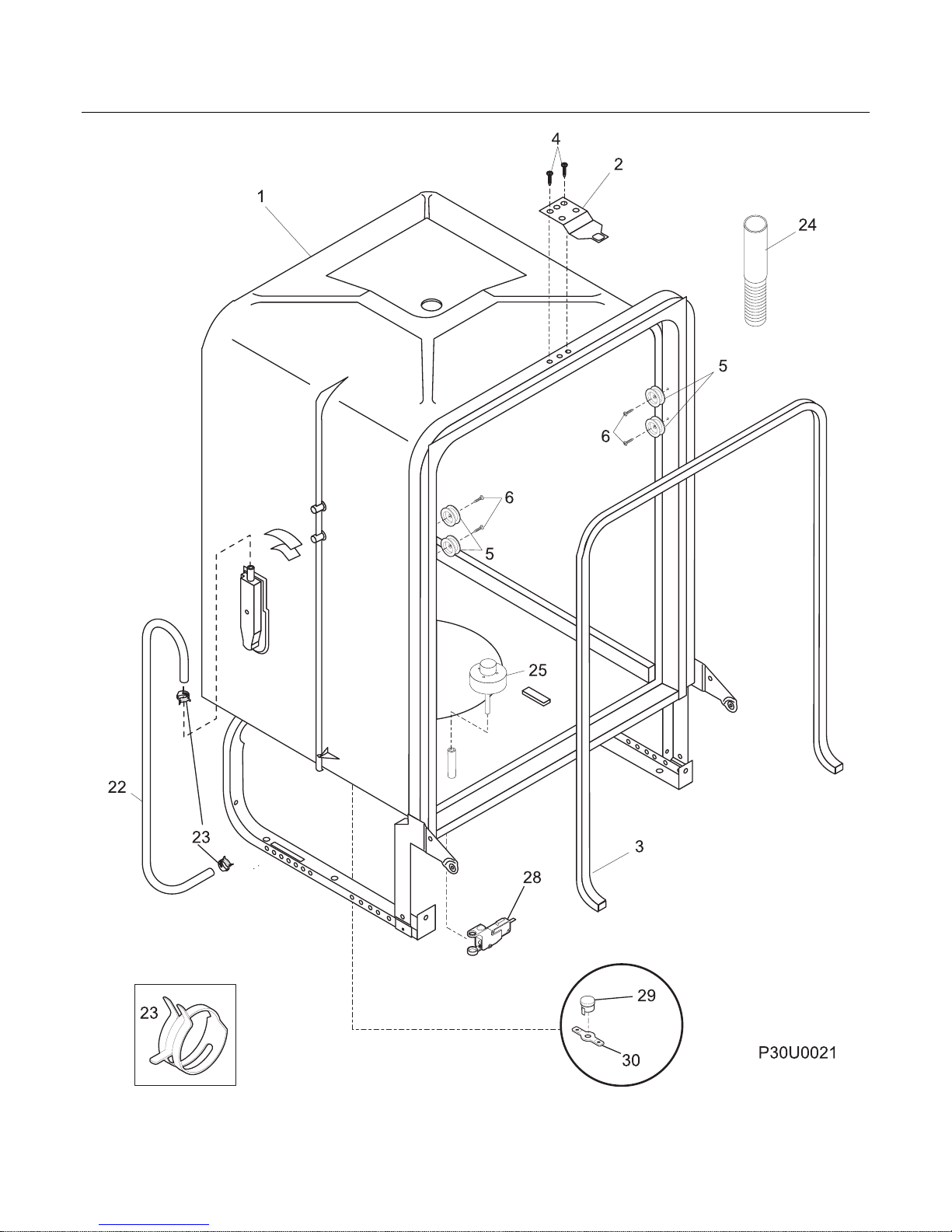

TUB
FDBB2865FC0 Publication No: 5995471512
# Functional Parts 7 08/06
* Non-Illustrated Parts
TUB
POS. NO PART NO. DESCRIPTION
1 # 154594101 Tub assy, w/frame parts
2 154429101 Strike, door
3 # 154561002 Gasket, tub
4 154200602 Screw, 10-16 x 3/8, hex
5 5304456938 Roller, tub, grey, (8), w/screw+washer
6 5303943103 Screw, w/washer, (8)
22 154446002 Tubing, water inlet
23 5303318539 Clamp, tubing, (2)
24 # 154525301 Hose, drain
25 # 154209702 Float, grey
28 154408701 Switch Assy, float
29 # 154290204 Thermostat, re-settable
30 154241101 Retainer, thermostat
30* 154297701 Screw, retainer-thermo
* 154447102 Insulation, blanket
* 154041001 Screw, plask #1, 10-10 x 9/16
* 154447301 Insulation, tub back
* 5300807270 Screw, (2), countertop mtg.
Publication No: 5995471512 FDBB2865FC0
08/06 8
MOTOR & PUMP
FDBB2865FC0 Publication No: 5995471512
# Functional Parts 9 08/06
* Non-Illustrated Parts
MOTOR & PUMP
POS. NO PART NO. DESCRIPTION
1 # 154482901 Heater, round
1* 154106201 Nut, heater, (2)
1* 154289801 Shield, heater terminal
2 154465101 Bracket, heater, (2)
10 154245501 Cover, volute
13 154246801 Gasket, sump
14 154461902 Housing, sump
16 154246502 Retainer, sump
24 154467702 Spray arm, grey, lower
24A 154468502 Spray arm, grey, center
24B 154478202 Spray arm, 3rd level, grey
32 154464101 Tube, delivery
32* 154491101 Screw, delivery tube
32A 154406401 Gasket, delivery tube
40 154106801 Clamp, hose, worm/drain
40* 154380601 Clamp, hose, worm/gear
54 154234401 Hose, connector
55 154362301 Bracket, motor
55* 5303316032 Screw, truss ss, 8 .625
58 154246402 Check ball
59 154246901 O-ring, rear
59A 154247001 O-ring, front
60 154491301 Pump, drain
60* 5303318719 Screw, mtg.
61 154463402 Grommet, delivery tube
62 154294102 Support, spray arm, grey, lower
63 154252201 Base, soil director
64 154252302 Filter, soil director, grey
65 154283005 Filter Assy, grey
66 154252702 Trap, glass, grey
70 # 154574701 Motor & Pump Assy
71 # 154473901 Sensor, turbidity
71* 154376001 O-ring, turbidity
* 154200601 Screw, #10-16 x 3/8
Publication No: 5995471512 FDBB2865FC0
08/06 10
FRAME
