Product No. FDBB540DB0 FDBB540DS0

Series Built-in 24" Built-in 24"

Color black white

Owner's Guide 154466101 154466101

Service Data Sheet 154457601 154457601

Energy Guide 154485212 154485212

Installation Instructions 154427301 154427301

Market North America North America

ELECTROLUX HOME PRODUCTS, INC.

P.O. Box 212378, Augusta, GA 30917

Publication No.

5995416681

04/09/20

(EN/SERVICE/ECL)

821

24-INCH BUILT-IN

DISHWASHER

Model No.

FDBB540D

Publication No: 5995416681 FDBB540D

09/04 2

CONTROL PANEL

FDBB540D Publication No: 5995416681

# Functional Parts 3 09/04

* Non-Illustrated Parts

CONTROL PANEL

Model Index: AFDBB540D (FDBB540DB0)

BFDBB540D (FDBB540DS0)

POS. NO PART NO. DESCRIPTION

1 154454203 A - Panel, control, black

1 154454201 - B Panel, control, white

2 154520003 A - Insert, control panel, black

2 154520001 - B Insert, control panel, white

3 # 154412901 A B Timer

3* 154131203 A B Shield, timer

3* 154095701 A B Screw, thread rolling, (2), timer

8 # 154470001 A B Switch, selector, 6 button

8* 154248601 A B Shield, switch

8* 5303318719 A B Screw, mtg.

13 154426903 A - Knob, timer, black

13 154426901 - B Knob, timer, white

20 154433001 A B Vent assy, static dry

20* 154436201 A B Screw, dry duct, (3)

* # 154457501 A B Wiring Harness

* 154485212 A B Energy Guide

Publication No: 5995416681 FDBB540D

09/04 4

DOOR

FDBB540D Publication No: 5995416681

# Functional Parts 5 09/04

* Non-Illustrated Parts

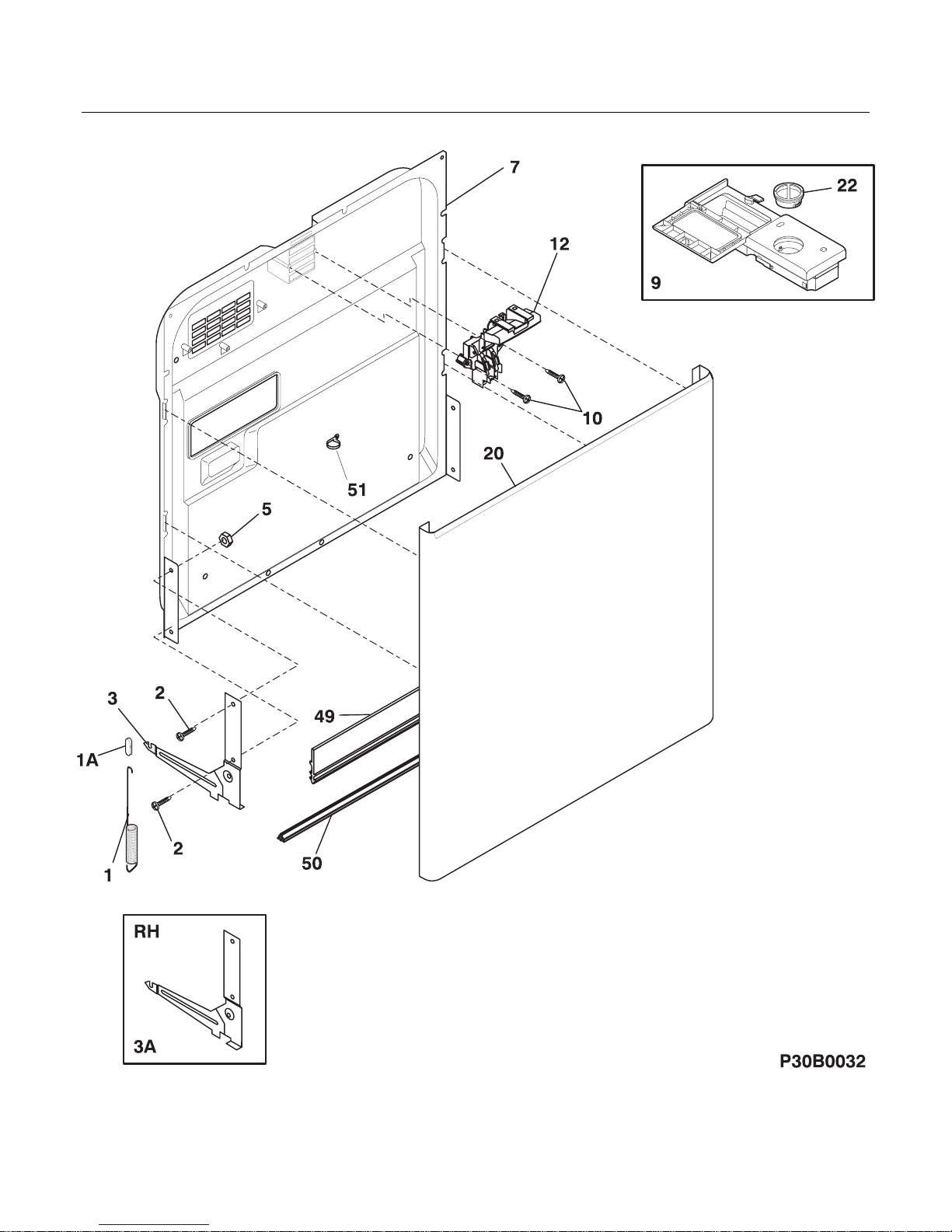

DOOR

Model Index: AFDBB540D (FDBB540DB0)

BFDBB540D (FDBB540DS0)

POS. NO PART NO. DESCRIPTION

1 154430501 A B Spring, door, (2)

1A 154325201 A B Linkage, door spring, (2)

2 154093301 A B Screw, arm assy, (4)

3 154325306 A B Arm Assy, LH

3A 154325305 A B Arm Assy, RH

* 154400601 A B Pin, arm assy

5 154079601 A B Nut, arm assy, and handle mtg.

7 154299004 A B Door, inner assy

9 154230103 A B Dispenser, det/rinse aid, includes #22

9* 154294701 A B Screw, #7 plas .375, (6), disp. assy.

10 154103702 A B Screw, latch mtg, (2)

12 # 154475203 A - Latch assy, black

12 # 154475201 - B Latch assy, white

20 154359107 A - Door, black

20 154359105 - B Door, white

20* 5304428306 A B Screw, door mtg., (2)

22 154388801 A B Cap, Rinse aid

49 154297603 A B Gasket, door, bottom

50 154211401 A B Support, door hinge

51 154320301 A B Clamp, drip loop, wire

* # 154227805 A B Thermostat, temp assure

* # 154227808 A B Thermostat, temp boost, hi temp wash

* 154200601 A B Screw, #10-16 x 3/8

Publication No: 5995416681 FDBB540D

09/04 6

TUB

FDBB540D Publication No: 5995416681

# Functional Parts 7 09/04

* Non-Illustrated Parts

TUB

Model Index: AFDBB540D (FDBB540DB0)

BFDBB540D (FDBB540DS0)

POS. NO PART NO. DESCRIPTION

1 # 154209301 A B Tub assy, w/frame parts

2 154429101 A B Strike, door

3 # 154211801 A B Gasket, tub

4 154200602 A B Screw, 10-16 x 3/8, hex

5 154333902 A B Roller, tub

6 5303943103 A B Screw, w/washer, (8)

22 154239801 A B Tubing, water inlet

23 5303318539 A B Clamp, tubing, (2)

24 # 154411003 A B Hose, drain

25 # 154209701 A B Float

28 154408701 A B Switch Assy, float

29 # 154290204 A B Thermostat, re-settable

30 154241101 A B Retainer, thermostat

30* 154297701 A B Screw, retainer-thermo

* 154457001 A B Insulation, blanket

* 154041001 A B Screw, plask #1, 10-10 x 9/16

* 5300807270 A B Screw, (2), countertop mtg.

Publication No: 5995416681 FDBB540D

09/04 8

MOTOR & PUMP

FDBB540D Publication No: 5995416681

# Functional Parts 9 09/04

* Non-Illustrated Parts

MOTOR & PUMP

Model Index: AFDBB540D (FDBB540DB0)

BFDBB540D (FDBB540DS0)

POS. NO PART NO. DESCRIPTION

1 154247601 A B Heater

1* 154106201 A B Nut, heater, (2)

1* 154289801 A B Shield, heater terminal

2 154479601 A B Bracket, heater, (2)

10 154245501 A B Cover, volute

13 154246801 A B Gasket, sump

14 154365902 A B Housing, sump

16 154246502 A B Retainer, sump

24 154414101 A B Spray arm, lower, w/heat shield

24A 154313601 A B Spray arm, center

24A* 154252001 A B Nut, spray arm, center

32 154406601 A B Tube, delivery

32A 154406401 A B Gasket, delivery tube

40 154348401 A B Clamp, red, pump

40 154348502 A B Clamp, red, pump

40* 154106801 A B Clamp, hose, (2)

40* 154380601 A B Clamp, hose, (1)

54 154234401 A B Hose, connector

55 154362301 A B Bracket, motor, askoll

55* 5303316032 A B Screw, truss ss, 8 .625

58 154246402 A B Check ball

59 154246901 A B O-ring, rear

59A 154247001 A B O-ring, front

60 154474101 A B Drain Pump Assy

60* 154426201 A B Bracket, motor, drain

60* 5303318719 A B Screw, mtg.

61 154406501 A B Nozzle, 3rd level, spray arm

62 154294101 A B Support, spray arm, lower

63 154252201 A B Base, soil director

64 154252301 A B Filter, soil director

65 154252401 A B Filter, polypro

66 154252701 A B Trap, glass

70 154523501 A B Motor & Pump Assy

* 154200601 A B Screw, #10-16 x 3/8

Publication No: 5995416681 FDBB540D

09/04 10

FRAME
